Introduction
This manual provides essential information for the safe and efficient operation of your Hoover H-DRY 300 Lite HLE C10DE-84 Condenser Dryer. Please read these instructions carefully before using the appliance and retain them for future reference. This dryer is designed to care for your clothes, maintaining fabric quality and colors.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. Keep children and pets away from the appliance during operation. Ensure the appliance is properly earthed. Do not touch the appliance with wet hands. Do not allow children to play with the appliance or its packaging. Always unplug the appliance before cleaning or maintenance.
Setup and Installation
Unpacking
Remove all packaging materials from the dryer. Check for any damage during transit. Report any damage to your retailer immediately.
Positioning
Place the dryer on a firm, level floor. Ensure adequate ventilation around the appliance. Do not install the dryer behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
Electrical Connection
Connect the dryer to a properly earthed power socket. Ensure the voltage and frequency match the specifications on the rating plate.
Front view of the Hoover H-DRY 300 Lite HLE C10DE-84 Condenser Dryer, showing the control panel, door, and AquaVision water tank.
Operating Instructions
Loading the Dryer
Open the dryer door and load laundry, ensuring not to overload the drum. The maximum capacity is 10 kg. Close the door firmly.
The dryer drum with laundry inside, illustrating how to load the appliance.
Program Selection
Turn the program selector knob to choose the desired drying program. Refer to the control panel image for program options.
Close-up of the control panel, showing the program selector dial with various drying options like 'Anti-Gerüche' (Anti-Odour), 'Leicht Bügeln' (Easy Iron), 'Allergie' (Allergy), 'Wolle' (Wool), 'Sports', 'Jeans', 'Synthetik' (Synthetics), 'Hemden' (Shirts), 'Dunkles & Buntwäsche' (Dark & Colored Laundry), 'Mix & Dry', 'Kochwäsche' (Boil Wash), 'Baumwolle' (Cotton), 'XXL Füllmenge' (XXL Load), 'XS Füllmenge' (XS Load), and 'One Touch'.
NFC Functionality (One Touch)
This dryer features NFC technology for smart operation. Download the Hoover Wizard app to your smartphone. Select the 'One Touch' program on the dryer. Place your smartphone near the 'One Touch' logo on the control panel to connect and access additional programs and features via the app.
Detail of the Hoover H-DRY 300 Lite logo and the 'One Touch' NFC area on the appliance's front panel.
Starting a Cycle
Press the 'Start/Pause' button to begin the drying cycle. The display will show the remaining time.
Close-up of the digital display showing 'Time Remaining' and the 'Start/Pause' button, with a time of 1:30 displayed.
Maintenance
Emptying the AquaVision Water Tank
The AquaVision water tank collects condensed water. Empty the tank after each drying cycle. The indicator on the tank will show when it is full. The tank is conveniently located in the door.
The AquaVision water tank integrated into the dryer door, shown partially filled with water, next to the open dryer drum.
A person emptying the AquaVision water tank, demonstrating its removal and disposal of collected water, possibly for reuse in watering plants.
Cleaning the Lint Filter
Clean the lint filter after every cycle to ensure optimal drying performance and prevent fire hazards. The filter is located inside the door opening.
Close-up view of the lint filter located inside the dryer drum, designed to collect lint during the drying process.
Cleaning the Condenser
Periodically clean the condenser unit to maintain efficiency. Refer to the full instruction manual for detailed steps on accessing and cleaning the condenser.
Troubleshooting
- Dryer not starting: Check if the power cord is plugged in, the door is fully closed, and the 'Start/Pause' button has been pressed.
- Laundry not drying properly: Ensure the lint filter is clean, the water tank is empty, and the selected program is appropriate for the load type and size. Avoid overloading.
- Unusual noise: Check for foreign objects in the drum. Ensure the dryer is level.
- Error codes: Consult the full instruction manual or the Hoover Wizard app for specific error code meanings and solutions.
Specifications
| Feature | Detail |
|---|---|
| Brand | Hoover |
| Model Number | HLE C10DE-84 |
| Type | Condenser Dryer |
| Capacity | 10 kg |
| Dimensions (H x W x D) | 85 x 60 x 58.5 cm |
| Weight | 33.5 kg |
| Technology | NFC (One Touch), AquaVision Water Tank |
| Control Panel Language | German |
Diagram illustrating the dimensions of the Hoover H-DRY 300 Lite HLE C10DE-84 condenser dryer: 85cm height, 60.6cm width, and 58.5cm depth.
Energy Information
This appliance has an energy efficiency class G. For detailed energy consumption data and product information, please refer to the EU EPREL database.
The EU Energy Label for the Hoover H-DRY 300 Lite HLE C10DE-84, showing an energy efficiency class G, 366 kWh/100 cycles, 71% condensation efficiency, 68 dB noise level, 10 kg capacity, and a program duration of 3:17.

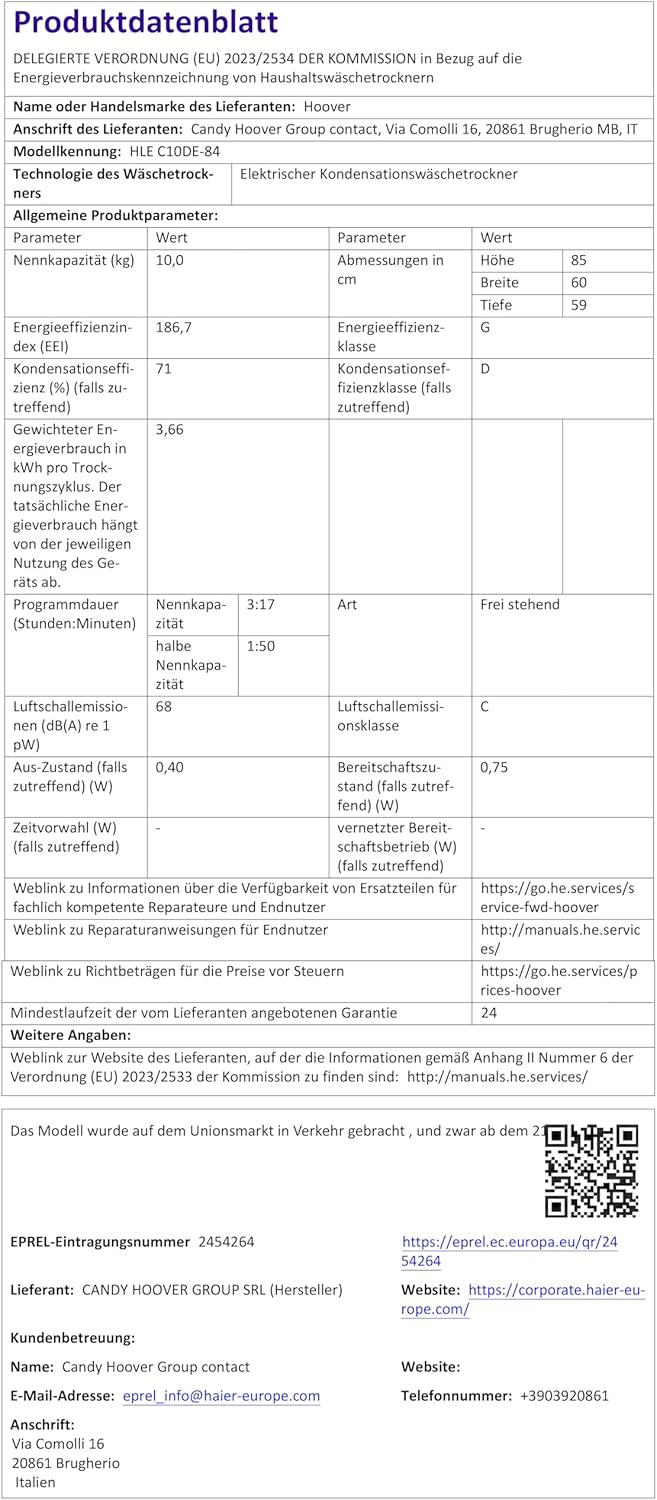

You can find the official product information sheet and energy label details on the EPREL database using the QR code or by visiting: https://eprel.ec.europa.eu/qr/2454264
Warranty and Support
This product comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your appliance or contact Hoover customer support. In case of defects or damage, please consult the retailer or the manufacturer's support channels.
What's in the box: Device, instructions (language may vary).
For further assistance, visit the official Hoover website or contact their customer service.
