MIMITOOU Mini Bicycle Pump Instruction Manual

1. Introduction

Thank you for choosing the MIMITOOU Mini Bicycle Pump. This compact and versatile pump is designed for efficient inflation of various items, including bicycle tires, sports balls, and other inflatables. Its durable aluminum alloy construction and dual valve compatibility make it a reliable tool for your inflation needs.

Figure 1: MIMITOOU Mini Bicycle Pump. This image displays the compact black and silver pump with its hose and foot pedal unfolded, ready for use. An extra valve and gas needle are shown in the top right corner.

2. Product Features

• Durable Construction: Made from 100% aluminum alloy, ensuring longevity and resistance to rust.
• Multifunctional Valve Compatibility: Supports both Presta and Schrader valves, suitable for a wide range of inflatables.
• Foot Pedal Design: Features a foot-activated pumping mechanism for effortless and rapid inflation.
• Compact & Portable: Lightweight design (approximately 350g) and compact size (6.81 x 3.46 inches when collapsed) for easy transport and storage.
• Integrated Accessory Storage: Non-slip base includes a hidden compartment for storing the plastic inflatable connector and inflating needle.

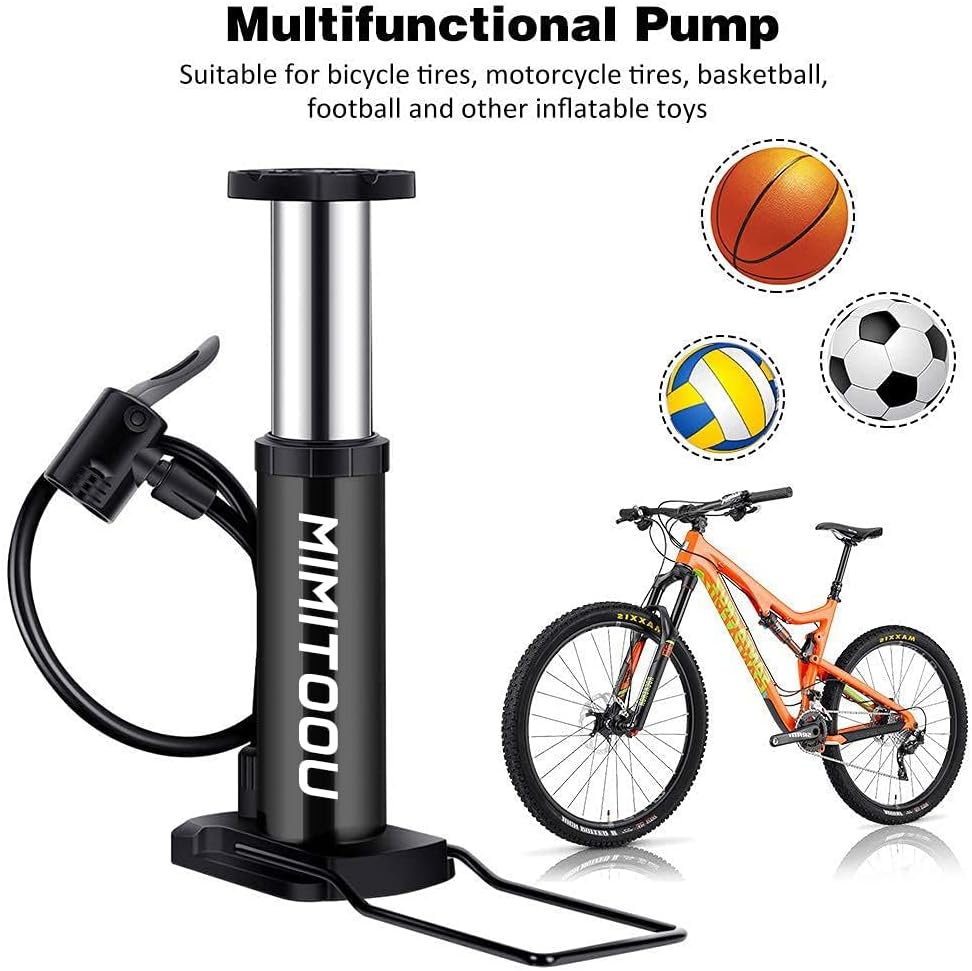

Figure 2: Multifunctional Pump Applications. This image illustrates the pump's versatility, showing it can inflate bicycle tires, motorcycle tires, basketballs, footballs, and other inflatable toys.

Figure 3: Presta and Schrader Valve Compatibility. A close-up view of the pump's dual valve head, clearly labeled for both Schrader and Presta valve types, along with the included inflation accessories.

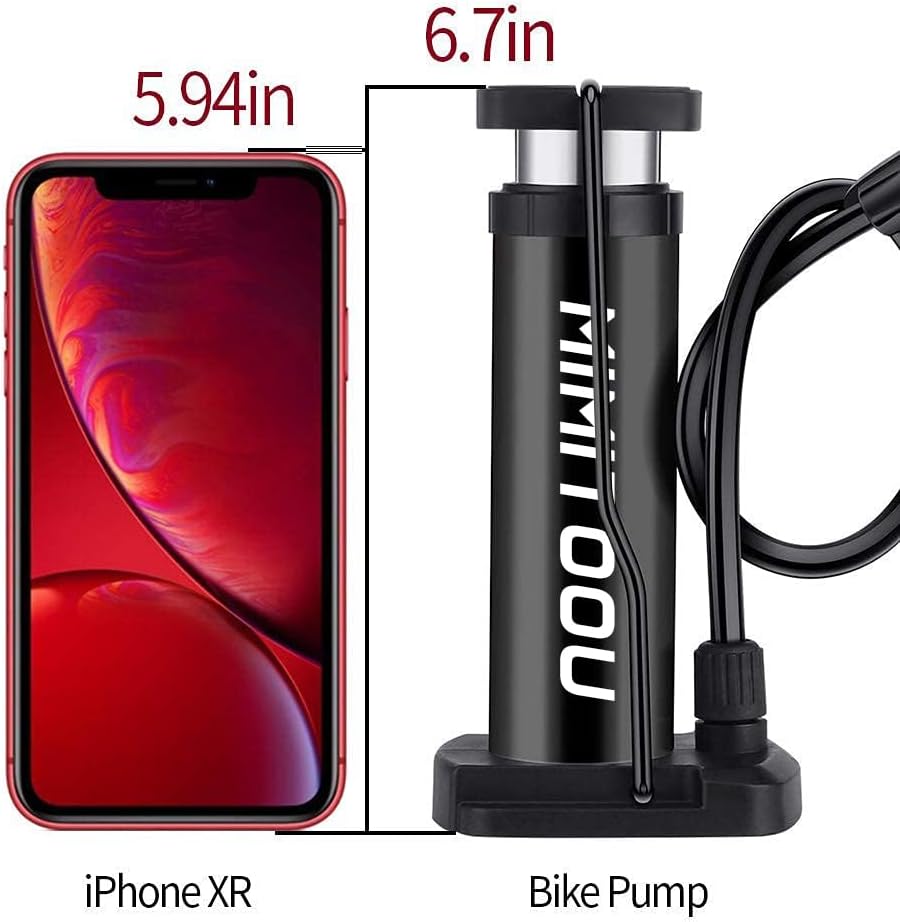

Figure 4: Compact Size Comparison. This image shows the pump next to an iPhone XR, demonstrating its compact and portable dimensions, making it easy to carry.

Figure 5: Non-slip Pedal and Base with Storage. This image highlights the non-slip collapsible foot pedal and the hidden storage compartment within the base for the plastic inflatable connector and inflating needle.

Figure 6: Pump Portability in Backpack. The image shows the compact pump being easily placed into a backpack, emphasizing its portability for on-the-go use.

3. Package Contents

Upon opening your package, please ensure all the following items are present:

• 1 x MIMITOOU Mini Bicycle Pump
• 1 x Plastic Inflatable Connector (for air cushions, swimming rings, etc.)
• 1 x Inflating Needle (for sports balls)

4. Setup

1. Unfold the Foot Pedal: Gently pull out the foot pedal from the base of the pump until it locks into place. This provides stability during operation.
2. Prepare the Hose: Uncoil the air hose from its storage position around the pump body.
3. Access Accessories (if needed): If inflating items requiring the plastic connector or needle, locate the hidden storage compartment on the underside of the pump's base. Carefully remove the required accessory.

5. Operating Instructions

The MIMITOOU Mini Bicycle Pump is compatible with both Presta and Schrader valves. No adapters are needed as the valve head accommodates both types.

1. Identify Valve Type: Determine if your item has a Presta or Schrader valve.
2. Attach Valve Head:
   • For Schrader valves, simply push the pump's valve head onto the tire valve.
   • For Presta valves, first unscrew the small nut on the valve stem, then push the pump's valve head onto the valve.
3. Secure the Connection: Flip the small lever on the pump's valve head to the closed position (usually 90 degrees) to secure it firmly to the tire valve. This prevents air leakage during inflation.
4. Inflate: Place your foot on the pedal for stability. Push down on the pump handle repeatedly to begin inflating. The compact design allows for rapid air delivery.
5. Monitor Pressure: Inflate until the desired pressure is reached. (Note: This pump does not include a pressure gauge. Manual pressure checks are required.)
6. Detach Pump: Once inflated, flip the lever on the valve head back to the open position. Carefully pull the valve head off the tire valve.

For items like sports balls or inflatable toys, insert the appropriate accessory (inflating needle or plastic connector) into the pump's valve head before attaching to the item and following steps 3-6.

6. Maintenance

• Cleaning: Wipe the pump clean with a damp cloth after use. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the pump in a dry, cool place away from direct sunlight and extreme temperatures. Ensure the foot pedal is folded and the hose is coiled for compact storage.
• Accessory Care: Always return the plastic inflatable connector and inflating needle to their designated storage compartment in the pump's base to prevent loss. Consider using a small, separate container or bag for these accessories if frequent detachment is a concern.

7. Troubleshooting

8. Specifications

9. Warranty & Support

MIMITOOU offers a 100% satisfaction guarantee for this product. If you encounter any issues or are not satisfied with your purchase for any reason, please contact our customer support team for assistance. We are committed to providing a refund or a new replacement as needed.

For support, please refer to the contact information provided with your purchase or visit the official MIMITOOU website.
