Okeysen Ergonomic Office Desk Chair

1. Introduction

Thank you for choosing the Okeysen Ergonomic Office Desk Chair, Model OF-C01. This chair is designed to provide comfort and support for extended periods, featuring a modern aesthetic suitable for various office and home environments. This manual provides essential information for assembly, operation, maintenance, and safety to ensure proper use and longevity of your chair.

Figure 1: Okeysen Ergonomic Office Desk Chair (Model OF-C01) in Grey.

2. Safety Information

• Always follow the assembly instructions carefully to ensure the chair is assembled correctly and safely. Improper assembly can lead to instability and potential injury.
• Do not exceed the maximum weight capacity of 330 pounds (150 kg). Exceeding this limit can cause structural failure and compromise user safety.
• Keep all small parts and packaging materials away from children to prevent choking hazards.
• Ensure all screws and bolts are tightened securely before use. Periodically check and re-tighten fasteners as needed.
• Use the chair on a level surface to prevent tipping.

3. Package Contents

Before beginning assembly, please ensure all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• 1 x Office Chair (disassembled components)
• 1 x Instruction Manual
• Assembly Tools (e.g., Allen wrench)

Figure 2: All components included in the package.

4. Assembly Instructions

Assembly typically takes approximately 15 minutes. Follow these steps carefully:

1. Attach Casters to Base: Insert the five rolling casters into the holes at the end of each leg of the five-star base. Push firmly until they click into place.
2. Insert Gas Lift: Place the gas lift cylinder into the center hole of the assembled five-star base.
3. Attach Mechanism to Seat: Secure the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism aligns with the front of the seat.
4. Connect Armrests: Attach the armrests to both sides of the seat cushion and the backrest using the designated screws. Ensure they are securely fastened.
5. Attach Backrest to Seat: Connect the backrest to the seat assembly, aligning the pre-drilled holes and securing with screws.
6. Place Seat Assembly onto Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is centered and stable.

Figure 3: Detail of the gas lift and sturdy base.

5. Operating Instructions

Your Okeysen office chair offers several adjustment features for personalized comfort:

• Height Adjustment: To raise the seat, lift the lever on the right side of the chair while taking your weight off the seat. To lower the seat, lift the lever while seated. Release the lever at the desired height.
• Tilt Function: Pull the same lever outwards to unlock the tilt mechanism, allowing the chair to rock back and forth. Push the lever inwards to lock the chair in an upright position.
• Tilt Tension Control: The round knob located underneath the seat, at the front of the mechanism, controls the tension of the tilt. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
• Swivel and Rolling: The chair features 360-degree swivel and smooth-rolling casters for easy movement and flexibility.

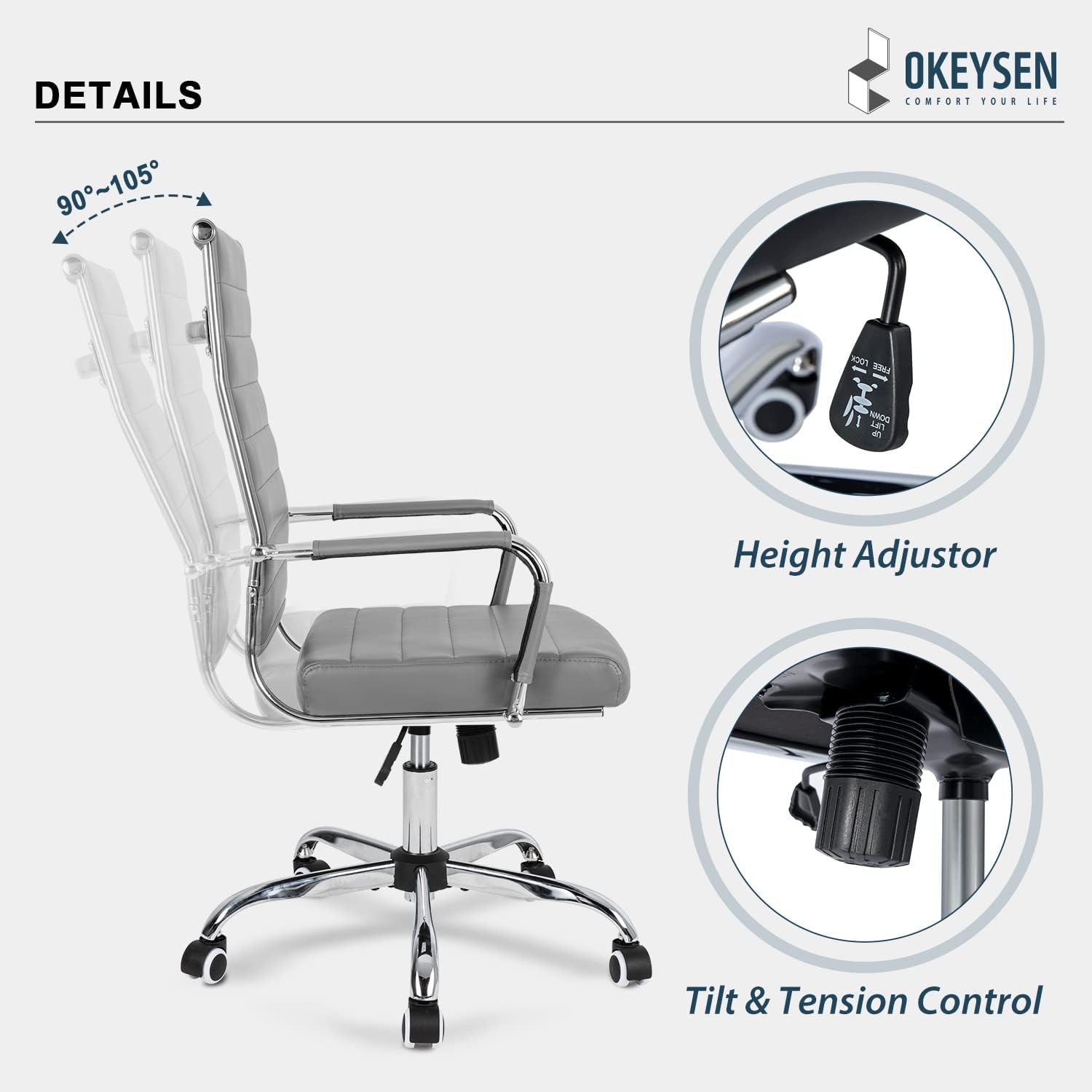

Figure 4: Height adjustment and tilt control mechanisms.

Figure 5: Ergonomic design for spinal support.

6. Maintenance

• Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the PU leather or chrome finish.
• Inspection: Periodically check all bolts and screws to ensure they are tight. Re-tighten as necessary to maintain stability and safety.
• Caster Care: Keep casters free of debris (hair, dust, etc.) to ensure smooth rolling.

7. Troubleshooting

If you encounter any issues with your chair, please refer to the following common solutions:

• Chair is wobbly: Check all screws and bolts to ensure they are securely tightened. Ensure the chair is on a flat, even surface.
• Height adjustment not working: Ensure the gas lift lever is fully engaged or disengaged as required. If the issue persists, the gas lift may need replacement.
• Casters not rolling smoothly: Inspect casters for trapped debris (hair, lint) and clean them. Ensure they are properly inserted into the base.
• Chair squeaks: Apply a small amount of silicone lubricant to moving parts or connection points.

For further assistance, please contact Okeysen customer support.

8. Specifications

Figure 6: Chair Dimensions.

9. Warranty and Support

Okeysen is committed to providing quality products and customer satisfaction. Your Okeysen Ergonomic Office Desk Chair (Model OF-C01) comes with the following:

• 30 Days Free Return Policy: If you are not satisfied with your purchase, you may return it within 30 days.
• 365 Days Limited Warranty: This product is covered by a limited warranty for 365 days from the date of purchase, covering manufacturing defects.
• Customer Service: For any questions, concerns, or warranty claims, please contact Okeysen customer service. We aim to provide 24/7 support.

Customer satisfaction is our highest pursuit. We are dedicated to providing the best products and services.

Figure 7: Okeysen After-Sale Guarantee.
