Introduction
This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Ibanez AEG550 Acoustic-Electric Guitar. Please read this manual thoroughly before using your instrument to ensure optimal performance and longevity.
The Ibanez AEG550 is a slim-body acoustic-electric guitar designed for comfort and playability, featuring quality tonewoods and integrated electronics for amplified performance.
Features
- 6-string Acoustic-electric Guitar with Spruce Top
- Ebony Fingerboard
- Bocote Back and Sides
- Nyatoh Neck

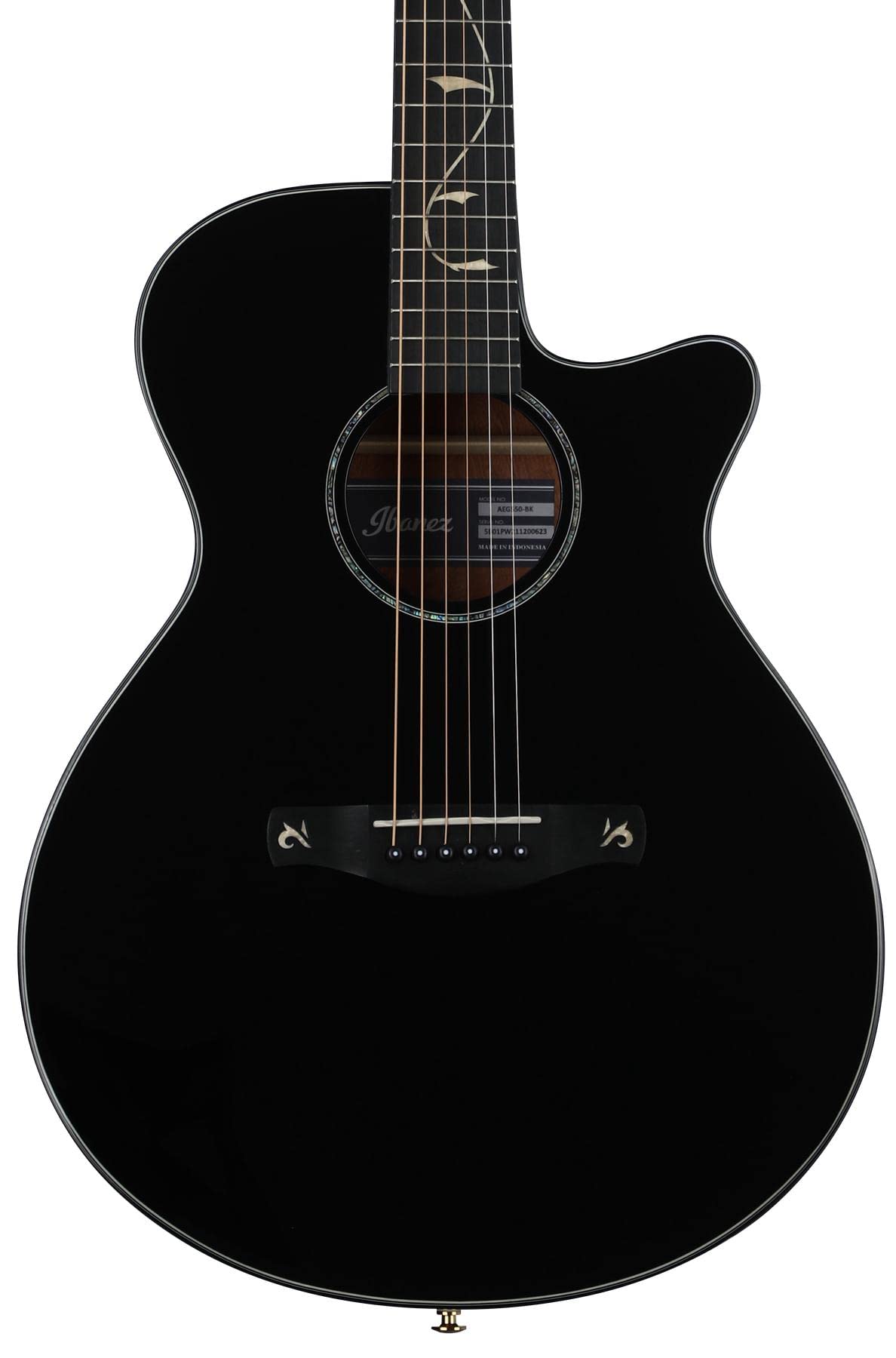

Figure 1: Front view of the Ibanez AEG550 Acoustic-Electric Guitar, showcasing its slim body and black finish.
Setup
- Unpacking: Carefully remove the guitar from its packaging. Inspect for any signs of damage during transit.
- Tuning: Use an electronic tuner to tune the guitar to standard EADGBe tuning. Ensure strings are stretched properly to maintain tuning stability.
- Stringing: If new strings are required, refer to standard acoustic guitar stringing procedures. Use light to medium gauge acoustic guitar strings for optimal playability and tone.
- Connecting to an Amplifier (Optional):
- Connect a standard 1/4-inch instrument cable from the guitar's output jack to your acoustic amplifier or PA system.
- Ensure the amplifier's volume is set to a low level before connecting or disconnecting the cable to prevent sudden loud noises.
- Adjust the guitar's onboard preamp controls (if applicable) and amplifier settings for desired tone.
Operating Instructions
Playing the Guitar
The AEG550 is designed for comfortable playability. Experiment with different strumming and fingerpicking techniques to explore its tonal range. The slim body design makes it suitable for both stage performance and comfortable practice.
Using the Onboard Electronics
Your AEG550 is equipped with an Ibanez AEQ-SP2 preamp and an Ibanez T-bar Undersaddle pickup, providing amplified sound. The preamp typically includes controls for:
- Volume: Adjusts the overall output level when amplified.
- Bass/Treble: Tone controls to shape the low and high frequencies of your amplified sound.
- Phase Switch: Helps to reduce feedback in amplified settings.
- Built-in Tuner: Activates an onboard chromatic tuner for convenient tuning.
Refer to the specific markings on your guitar's preamp for exact control functions. Always ensure a fresh 9V battery is installed for optimal electronic performance.
Maintenance
- Cleaning: Wipe down the guitar body, neck, and strings with a soft, lint-free cloth after each use. For stubborn grime, use guitar-specific cleaning products sparingly. Avoid abrasive cleaners.
- String Changes: Change strings regularly, typically every 1-3 months depending on usage, to maintain optimal tone and playability. Always change one string at a time to maintain neck tension.
- Humidity Control: Acoustic guitars are sensitive to humidity changes. Store your guitar in a stable environment, ideally between 45-55% relative humidity. Use a guitar humidifier in dry climates and a dehumidifier in excessively humid conditions.
- Storage: When not in use, store the guitar in a hard case or gig bag to protect it from dust, impacts, and environmental changes.
- Battery Replacement: Replace the 9V battery for the onboard electronics when the low battery indicator illuminates or when the amplified sound becomes weak or distorted.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound when amplified | Dead battery, faulty cable, amplifier off, volume down. | Replace 9V battery, check cable connections, turn on amplifier, increase volume. |
| Buzzing or rattling sound | Loose hardware, worn frets, improper string action, environmental changes. | Check tuning pegs and strap buttons. If persistent, consult a qualified guitar technician for setup adjustment. |
| Guitar won't stay in tune | Old strings, improper stringing, tuning machine issues, humidity changes. | Replace strings, ensure proper string winding, lubricate nut, maintain stable humidity. |
| Feedback when amplified | High volume, proximity to amplifier, resonant frequencies. | Engage phase switch, reduce volume, move away from amplifier, use a soundhole cover. |
Specifications
| Brand | Ibanez |
| Model | AEG550 |
| Number of Strings | 6 |
| Top Material | Spruce Wood |
| Back Material | Bocote |
| Sides Material | Bocote |
| Neck Material | Nyatoh |
| Fretboard Material | Ebony |
| Color | Black |
| Item Weight | 7 pounds |
| Product Dimensions | 42.4"L x 18.56"W x 5.48"H |
| Hand Orientation | Right |
Warranty and Support
Ibanez products are manufactured to high standards and come with a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official Ibanez website for detailed warranty terms and conditions.
For technical support, service, or parts, please contact Ibanez customer service through their official website or authorized service centers. Keep your proof of purchase for warranty claims.
