1. Important Safety Instructions

Please read all instructions carefully before using the appliance. Keep this manual for future reference.

• Ensure the appliance is properly grounded.
• Do not allow children to play on or in the appliance.
• Unplug the appliance before cleaning or performing any maintenance.
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
• Keep the area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

2. Product Overview

The Haam Electric HMFL10D6S-22 is a front-load washer and dryer combination unit designed for efficient laundry care. It features an inverter motor, LED display, and multiple wash programs.

Figure 1: Front view of the Haam Electric HMFL10D6S-22 Washer and Dryer. This image displays the control panel, detergent drawer, and the main door with the drum visible.

3. Setup and Installation

3.1 Unpacking

Carefully remove all packaging materials, including the shipping bolts located at the rear of the machine. Keep packaging materials away from children.

3.2 Location and Leveling

Place the appliance on a firm, level floor. Adjust the leveling feet to ensure the machine is stable and does not wobble. Proper leveling reduces noise and vibration during operation.

3.3 Water Supply Connection

Connect the inlet hoses to the hot and cold water taps and to the corresponding inlets on the back of the machine. Ensure connections are tight to prevent leaks.

3.4 Drain Hose Installation

Securely attach the drain hose to a standpipe or laundry tub, ensuring it is properly positioned to prevent siphoning or backflow.

3.5 Power Connection

Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the appliance's requirements (240 Volts).

4. Operating Instructions

4.1 Control Panel Overview

The control panel features an LED display, program selector knob, and various function buttons for cycle options, temperature, and spin speed.

• LED Display: Shows remaining time, error codes, and selected options.
• Program Selector: Rotate to choose from 15 available wash programs.
• Function Buttons: Adjust water temperature, spin speed, delay start, and activate child lock.

4.2 Loading Laundry

Open the front door and load clothes into the stainless steel drum. Do not overload the machine. For optimal results, ensure items are distributed evenly.

Figure 2: Close-up view of the stainless steel drum interior, showing the perforations and agitators designed for effective washing.

4.3 Adding Detergent and Additives

Pull out the detergent drawer and add appropriate amounts of detergent, fabric softener, and pre-wash agents to their respective compartments.

4.4 Selecting a Program

Turn the program selector knob to choose one of the 15 available wash programs. Options include daily washing (45 minutes), Baby Wear, and others. Adjust water temperature and spin speed as needed using the function buttons.

4.5 Starting a Cycle

Press the Start/Pause button to begin the selected wash or dry cycle. The LED display will show the remaining time.

4.6 Special Features

• Child Lock: Activates to prevent accidental changes to settings during operation. Refer to the control panel for activation instructions.
• Delay Start: Allows you to set a delayed start time for the wash cycle.

5. Maintenance and Care

5.1 Cleaning the Drum

Regularly run a drum clean cycle (if available) or a hot wash with a specialized washing machine cleaner to prevent odor and residue buildup.

5.2 Cleaning the Detergent Dispenser

Remove the detergent drawer and rinse it under running water to clear any detergent or softener residue. Clean the housing of the drawer as well.

5.3 Cleaning the Drain Filter

Periodically clean the drain filter, usually located at the bottom front of the machine. This helps prevent blockages and ensures efficient draining. Refer to the appliance diagram for exact location and removal instructions.

5.4 Exterior Care

Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.

6. Troubleshooting

Before contacting service, review the following common issues and solutions:

• Machine not starting: Ensure the power cord is plugged in, the door is closed securely, and the Start/Pause button has been pressed. Check for power outages.
• Water not filling: Check that water taps are fully open and inlet hoses are not kinked.
• Water not draining: Inspect the drain hose for kinks or blockages. Clean the drain filter.
• Excessive vibration/noise: Ensure the machine is level and all shipping bolts have been removed. Check that laundry is evenly distributed in the drum.
• Error codes: If an error code appears on the LED display, consult the specific error code section in the full manual (if available) or contact customer support.

7. Specifications

Detailed technical specifications for the Haam Electric HMFL10D6S-22 Washer and Dryer:

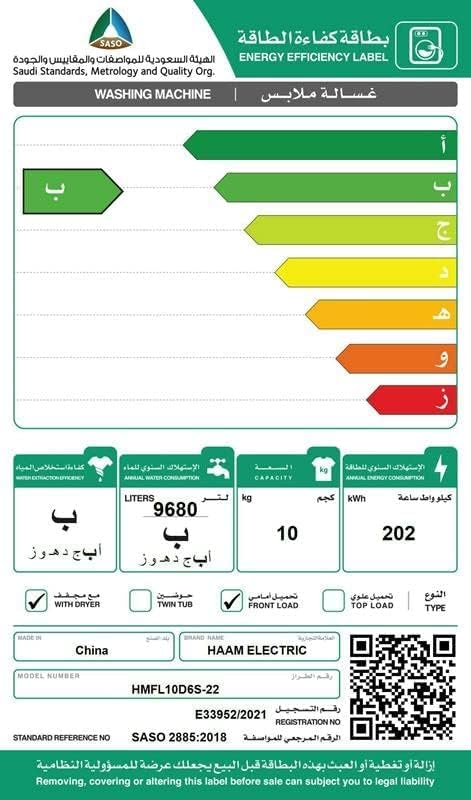

Figure 3: Energy Efficiency Label for the Haam Electric HMFL10D6S-22, indicating its energy and water consumption ratings. For verification, visit SASO Certificate Authentication.

8. Warranty and Support

This Haam Electric appliance comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical assistance, spare parts, or to schedule a service appointment, please contact Haam Electric customer support. Contact details are typically found on the product packaging or the official Haam Electric website.

When contacting support, please have your model number (HMFL10D6S-22) and purchase date readily available.
