E-YOOSO Mechanical Keyboard, Wired Compact LED Backlit Computer Keyboard with Number Pad, 89 Keys Mechanical Gaming Keyboard with Tactile Brown Switch for Windows/Mac, Laptop/PC User Manual

1. Introduction

Thank you for choosing the E-YOOSO Z-13 Mechanical Keyboard. This compact 89-key keyboard features tactile brown switches, LED backlighting, and a detachable Type-C cable, making it ideal for both gaming and office use across Windows and Mac operating systems. This manual provides detailed instructions to help you get the most out of your new keyboard.

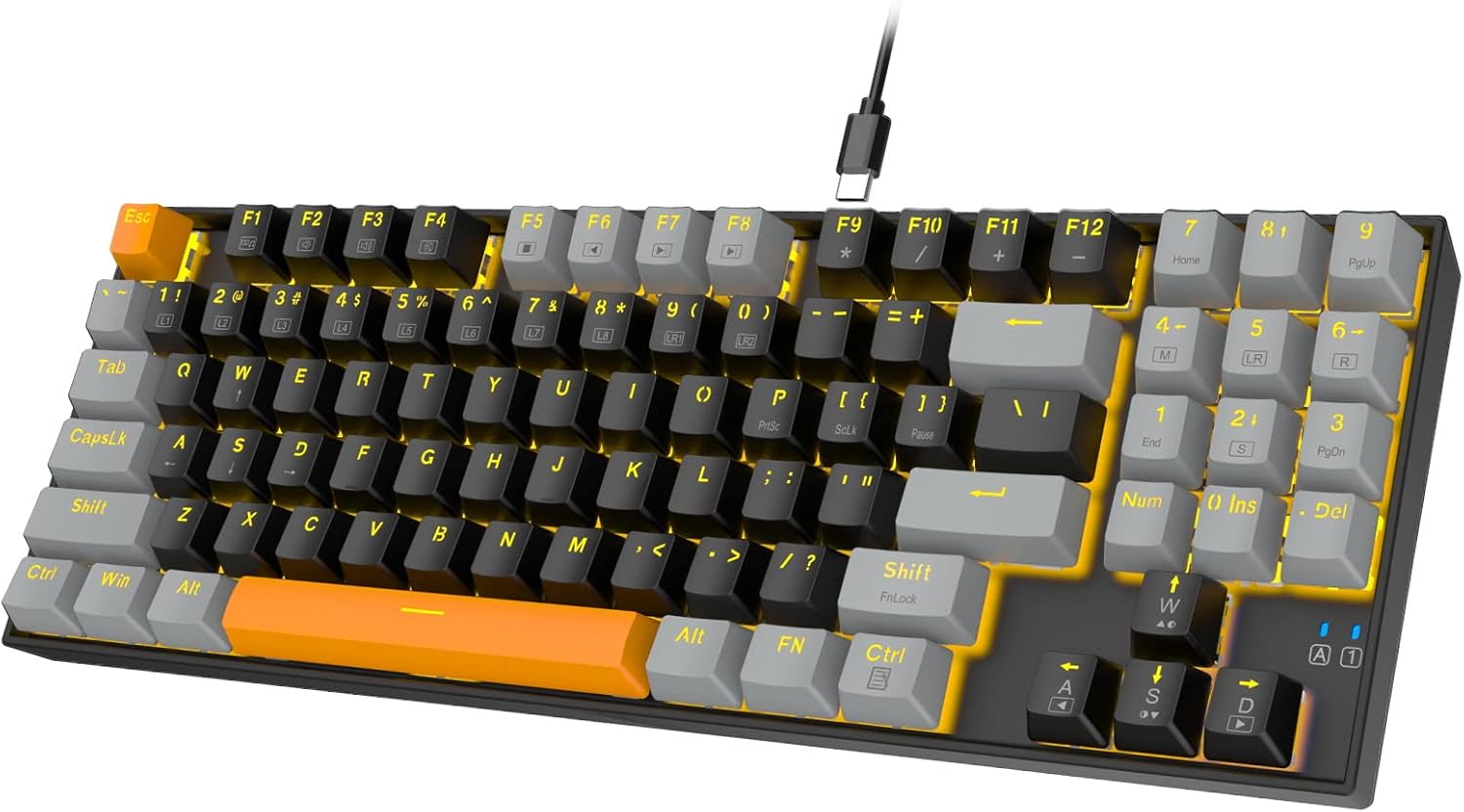

E-YOOSO Z-13 Mechanical Keyboard with yellow backlighting — The E-YOOSO Z-13 Mechanical Keyboard, showcasing its compact layout and vibrant yellow backlighting.

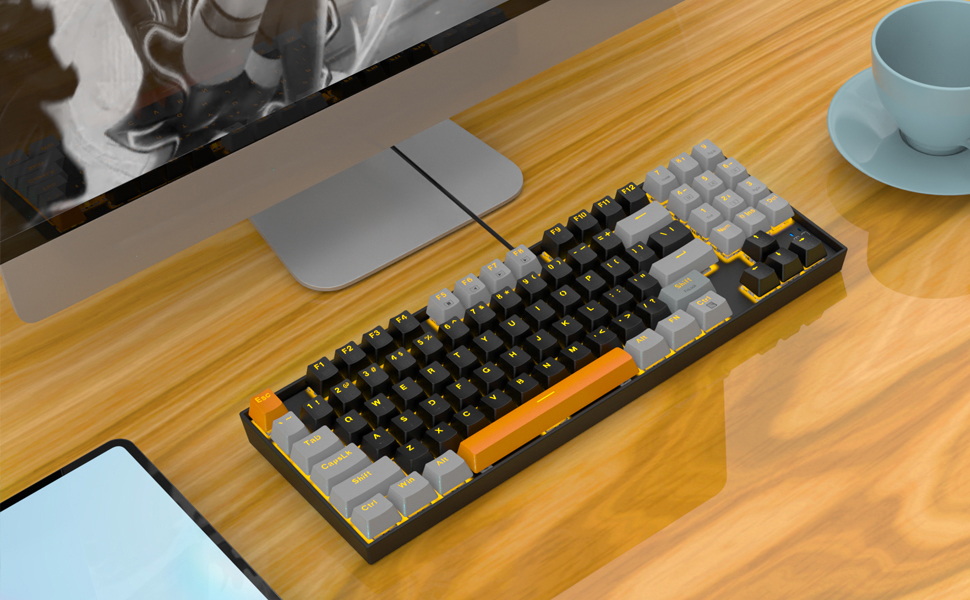

E-YOOSO Z-13 Mechanical Keyboard connected to a computer setup — The E-YOOSO Z-13 keyboard integrated into a typical desktop computer setup, demonstrating its compact size next to a monitor and mouse.

2. Setup Guide

Follow these steps to set up your E-YOOSO Z-13 Mechanical Keyboard:

Unpack the Keyboard: Carefully remove the keyboard and its accessories from the packaging.
Connect the USB Cable: The keyboard uses a detachable Type-C USB cable. Connect the Type-C end to the port on the keyboard and the USB-A end to an available USB port on your computer.
Adjust Keyboard Feet: For optimal typing comfort, you can adjust the foldable feet located on the underside of the keyboard to achieve your preferred angle.
Driver Installation (Plug & Play): The E-YOOSO Z-13 is a plug-and-play device. Your operating system (Windows 7/8/10/XP/Vista/Linux or Limited Mac) will automatically detect and install the necessary drivers. No additional software installation is required.

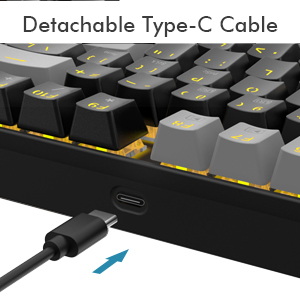

Close-up of detachable Type-C cable connection — A close-up view illustrating the connection of the detachable Type-C USB cable to the keyboard port.

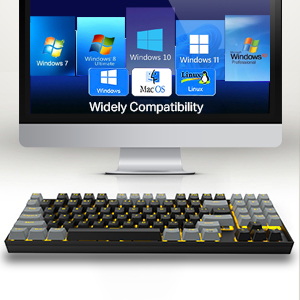

Keyboard compatibility with various operating systems — An image demonstrating the wide compatibility of the E-YOOSO Z-13 keyboard with multiple operating systems, including Windows (7, 8, 10, 11, XP, Vista, Linux) and Mac OS.

3. Operating Instructions

3.1 Basic Functions

Typing: The keyboard features 89 keys with tactile brown switches, providing a quiet click sound and fast action for comfortable typing.
Numpad: A dedicated numpad is included for efficient data entry.
Anti-Ghosting: All 89 keys support N-key rollover (no conflict), ensuring that all key presses are registered accurately, even during rapid simultaneous inputs.

3.2 Backlight Modes

The E-YOOSO Z-13 keyboard supports 17 kinds of preset backlit modes and 2 customized modes. You can adjust the brightness and breathing speed of the backlight.

Switching Modes: Use the dedicated backlight control keys (refer to your keyboard layout for specific key combinations, often Fn + certain keys) to cycle through the preset modes.
Adjusting Brightness: Typically, Fn + Up Arrow / Down Arrow keys control backlight brightness.
Adjusting Speed: Typically, Fn + Left Arrow / Right Arrow keys control the speed of dynamic backlight effects.

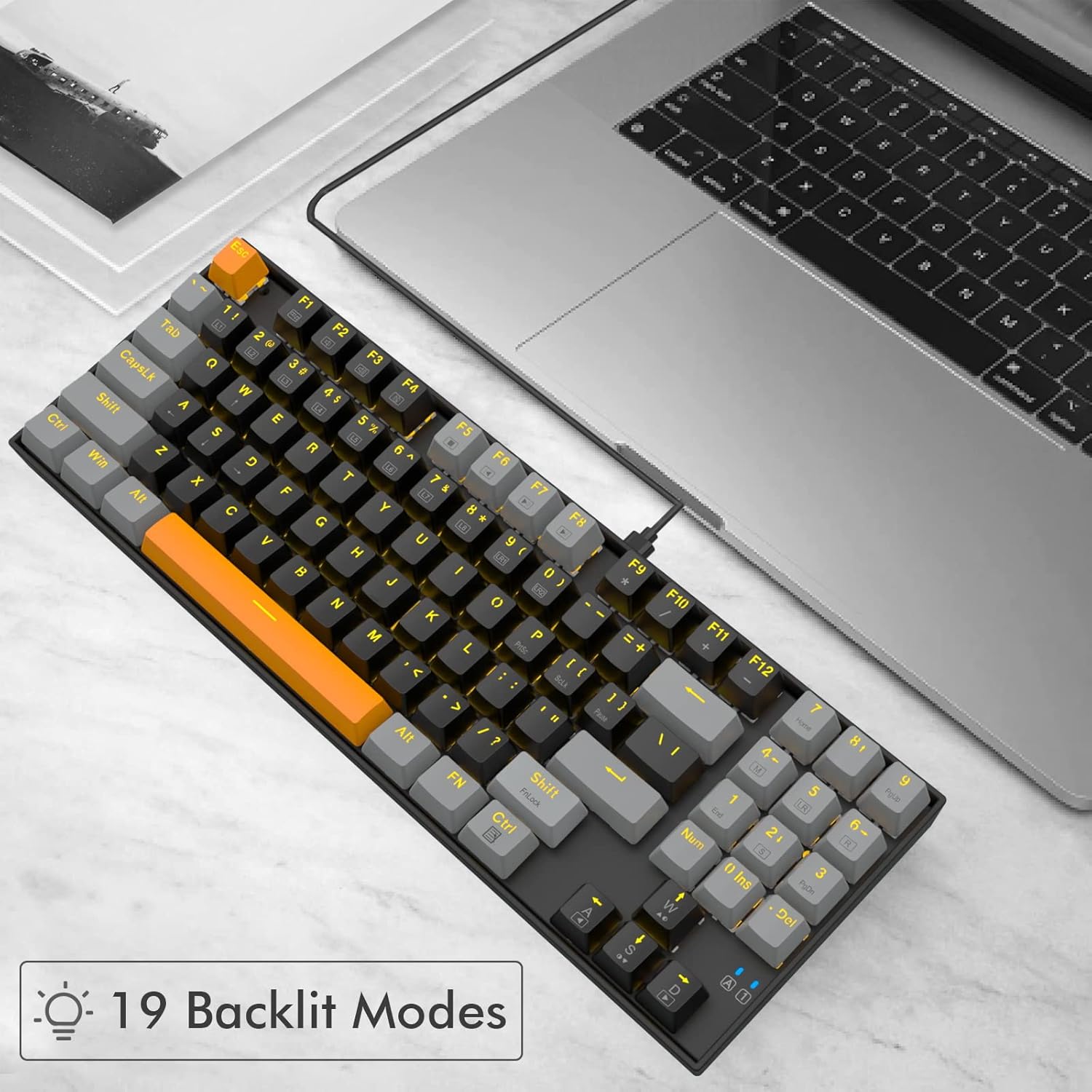

E-YOOSO Z-13 keyboard displaying 19 backlit modes — The E-YOOSO Z-13 keyboard showcasing its various backlight modes, highlighting the customizable lighting options.

3.3 Multimedia and Function Keys

The keyboard includes multimedia functions accessible via the Fn key in combination with the F1-F12 keys. Specific functions may vary slightly based on your operating system.

Diagram showing multimedia and numpad function key combinations — A visual guide illustrating the combination of the 'Fn' key with F1-F8 for multimedia controls, and 'Fn' with 'Shift' and 'F9' for numpad lock functions.

Fn + F1-F8: Typically control multimedia functions such as media player, volume up/down, mute, play/pause, previous/next track.
Fn + F9: May control specific system functions or backlight modes.
Fn + F10-F12: May control specific system functions or backlight modes.
Fn + Shift + F9 (FnLock): Toggles the F-keys between standard F1-F12 and their secondary functions.

4. Maintenance

Proper maintenance ensures the longevity and performance of your keyboard:

Cleaning Keycaps: The keyboard features durable PBT keycaps. To clean, gently wipe with a soft, damp cloth. For deeper cleaning, you can use the included keycap puller to remove keycaps and clean underneath.
Cleaning Switches: Use compressed air to remove dust and debris from around the mechanical switches. Avoid spraying liquids directly into the switches.
Cable Care: Handle the detachable Type-C cable with care. Avoid sharp bends or excessive pulling to prevent damage.
Storage: When not in use for extended periods, store the keyboard in a dry, dust-free environment.

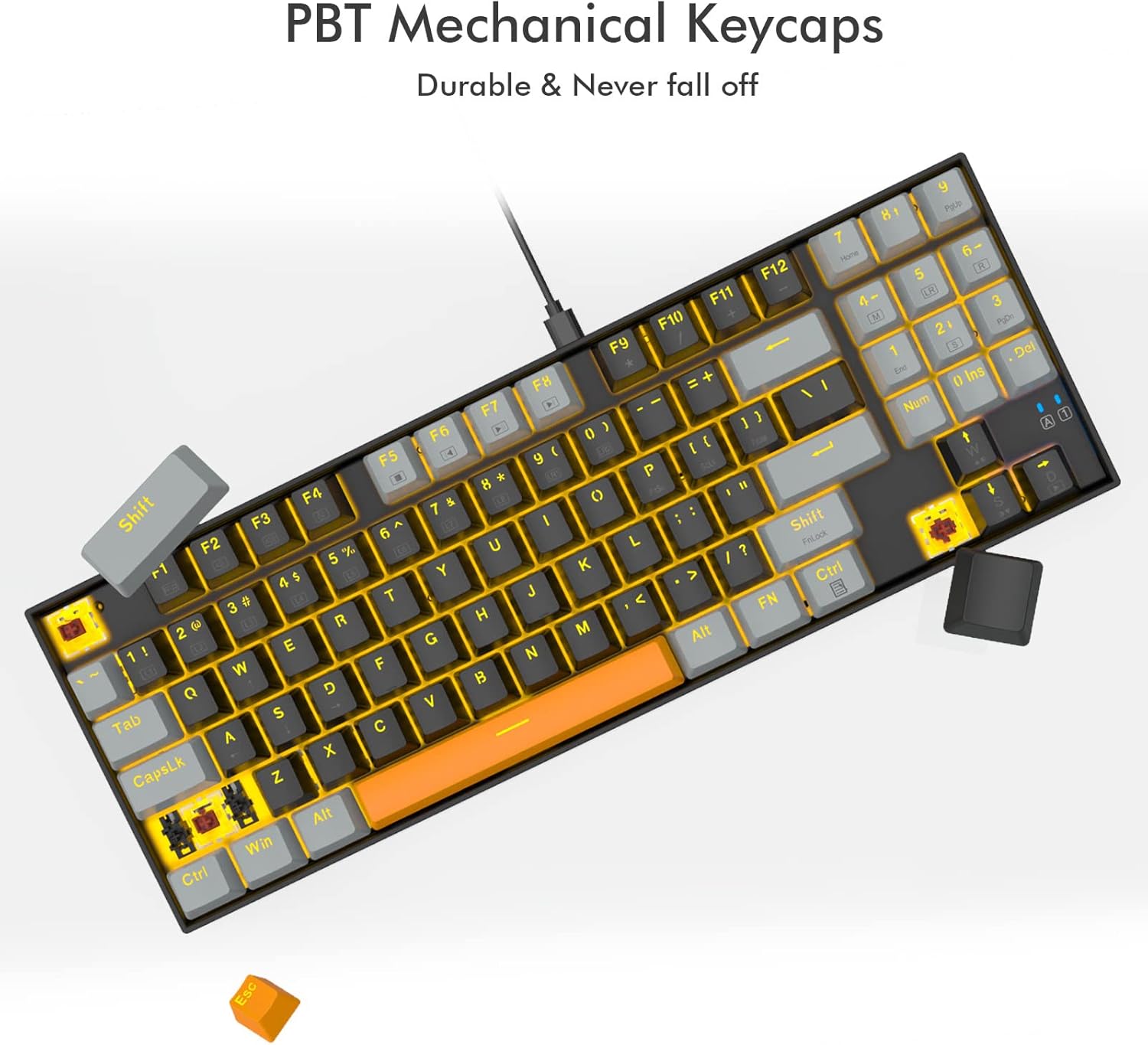

E-YOOSO Z-13 keyboard with PBT keycaps being removed — An image demonstrating the removal of PBT keycaps from the E-YOOSO Z-13 keyboard, highlighting their durability and ease of maintenance.

5. Troubleshooting

If you encounter issues with your E-YOOSO Z-13 keyboard, refer to the following common problems and solutions:

Problem	Possible Solution
Keyboard not responding	Ensure the USB cable is securely connected to both the keyboard and the computer. Try connecting the keyboard to a different USB port on your computer. Restart your computer. Test the keyboard on another computer to rule out system-specific issues.
Backlight not working or flickering	Check backlight brightness settings (Fn + Up/Down Arrow). Cycle through different backlight modes to see if any work. Ensure the keyboard is receiving sufficient power from the USB port.
Certain keys not working	Remove the keycap and check for any debris obstructing the switch. Clean with compressed air. If the keyboard is hot-swappable, try reseating the switch or replacing it with a spare if available. Ensure no software conflicts are present (e.g., remapping software).
Keyboard input lag or double typing	Ensure the USB cable is not damaged and is securely connected. Try a different USB port or a different computer. Check for any background processes or software that might be consuming system resources.

If the problem persists after trying these solutions, please contact E-YOOSO customer support for further assistance.

6. Specifications

Feature	Detail
Model	Z-13
Brand	E-YOOSO
Connectivity	Wired, Detachable Type-C USB
Key Count	89 Keys (Compact with Numpad)
Switch Type	Tactile Brown Mechanical Switches
Keycap Material	PBT (Polybutylene Terephthalate)
Backlight	Yellow LED Backlit (17 preset modes + 2 customized)
Anti-Ghosting	All 89 Keys N-Key Rollover
Ergonomics	Stepped Key Layout, Adjustable Feet
Compatible Devices	PC, Laptop, Computer
Operating Systems	Windows (7, 8, 10, XP, Vista, Linux), Limited Mac
Item Weight	2.12 pounds
Package Dimensions	14.76 x 6.14 x 1.73 inches

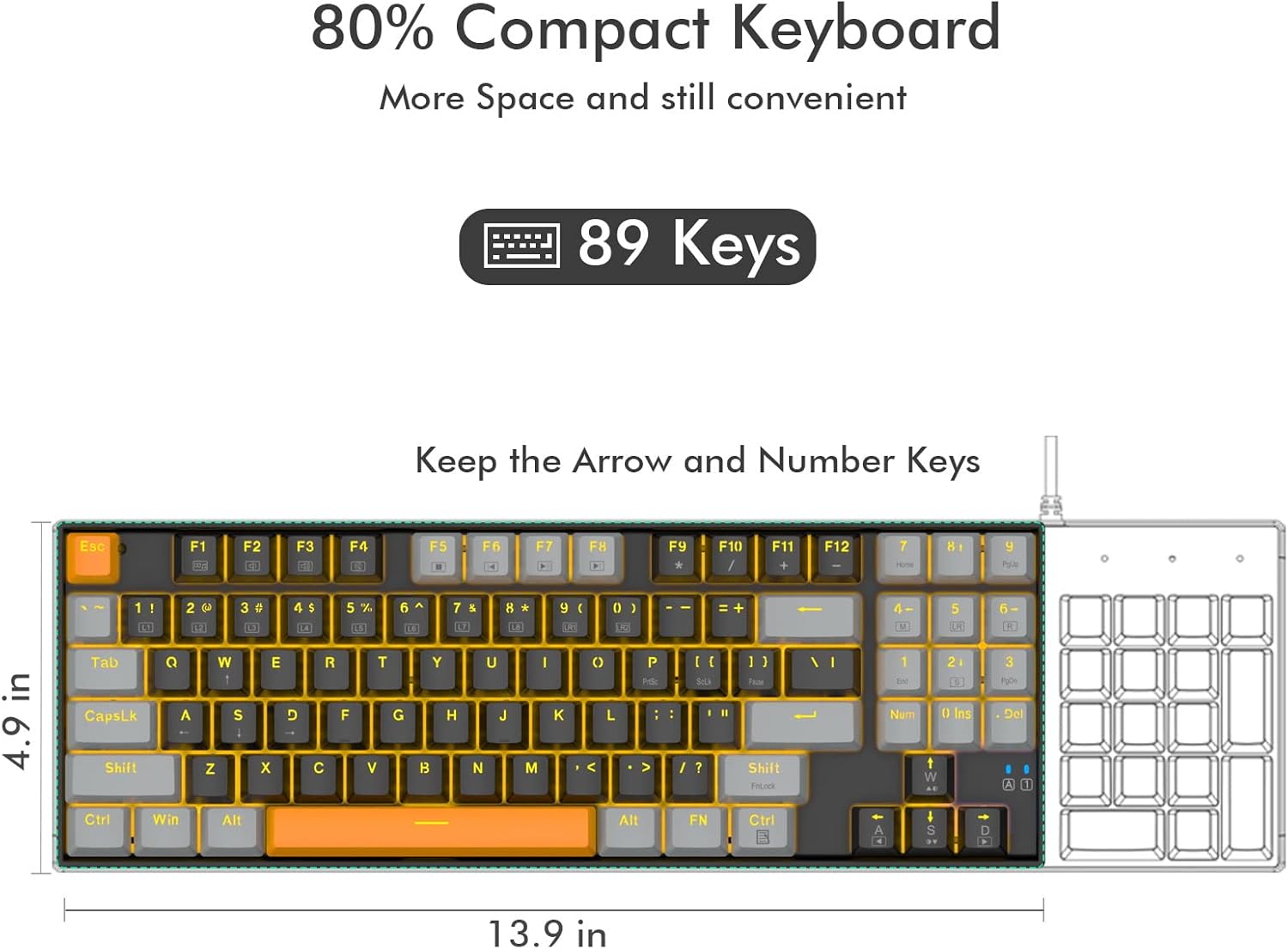

Diagram showing dimensions of E-YOOSO Z-13 keyboard — A diagram illustrating the compact dimensions of the E-YOOSO Z-13 keyboard, highlighting its 89-key layout and the inclusion of arrow and number keys within its efficient design.

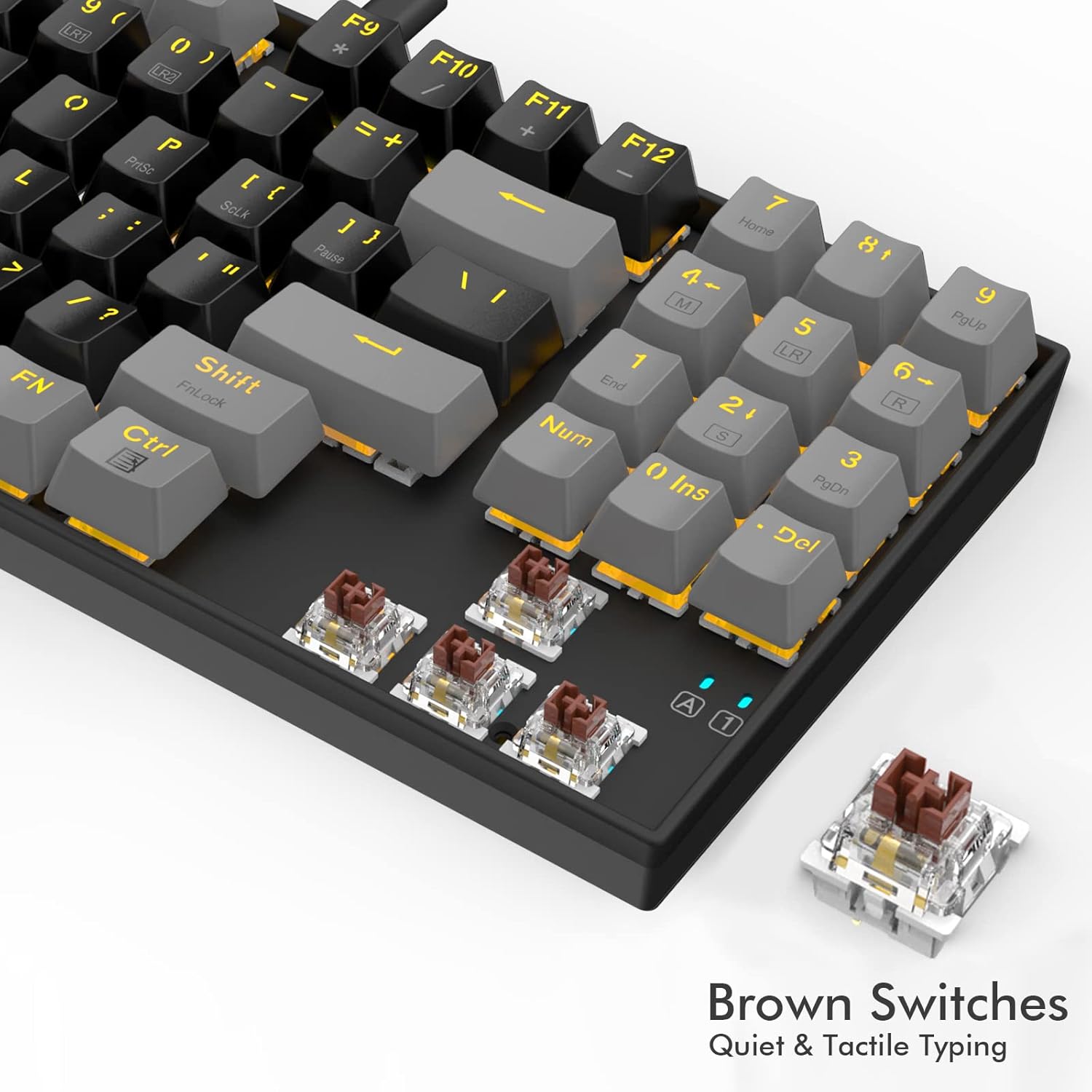

Close-up of brown mechanical switches — A detailed view of the brown mechanical switches used in the E-YOOSO Z-13 keyboard, emphasizing their quiet and tactile typing experience.

7. Warranty and Support

E-YOOSO is committed to providing high-quality products and excellent customer service. Your E-YOOSO Z-13 Mechanical Keyboard comes with a standard manufacturer's warranty against defects in materials and workmanship.

Warranty Period: Please refer to the product packaging or the official E-YOOSO website for specific warranty duration details.
Claiming Warranty: In case of a defect, please retain your proof of purchase. Contact E-YOOSO customer support with a description of the issue and your purchase details.
Customer Support: For any questions, technical assistance, or warranty claims, please contact E-YOOSO customer service. E-YOOSO aims to reply and provide the best service within 24 hours.

For the most up-to-date support information, please visit the official E-YOOSO website or the platform where you purchased the product.
