UTRUSTA Cabinet Hinge Instruction Manual
Model: 938e5bac-904c-4809-92e5-e1c074c1a354
Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your UTRUSTA Cabinet Hinges. These hinges are designed for kitchen cabinet doors, featuring an integrated damper for soft and silent closing. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Product Overview
The UTRUSTA Cabinet Hinge is engineered to provide a smooth and controlled closing motion for cabinet doors. Key features include:
- Integrated damper for slow, soft, and silent closing.
- Adjustable height, depth, and width for precise door front positioning.
- Snap-on design for screw-less mounting and easy removal for cleaning.
- Deactivatable damper via a slide button, useful for push openers or adjusting closing speed.
- Constructed from durable steel with a nickel-plated finish.

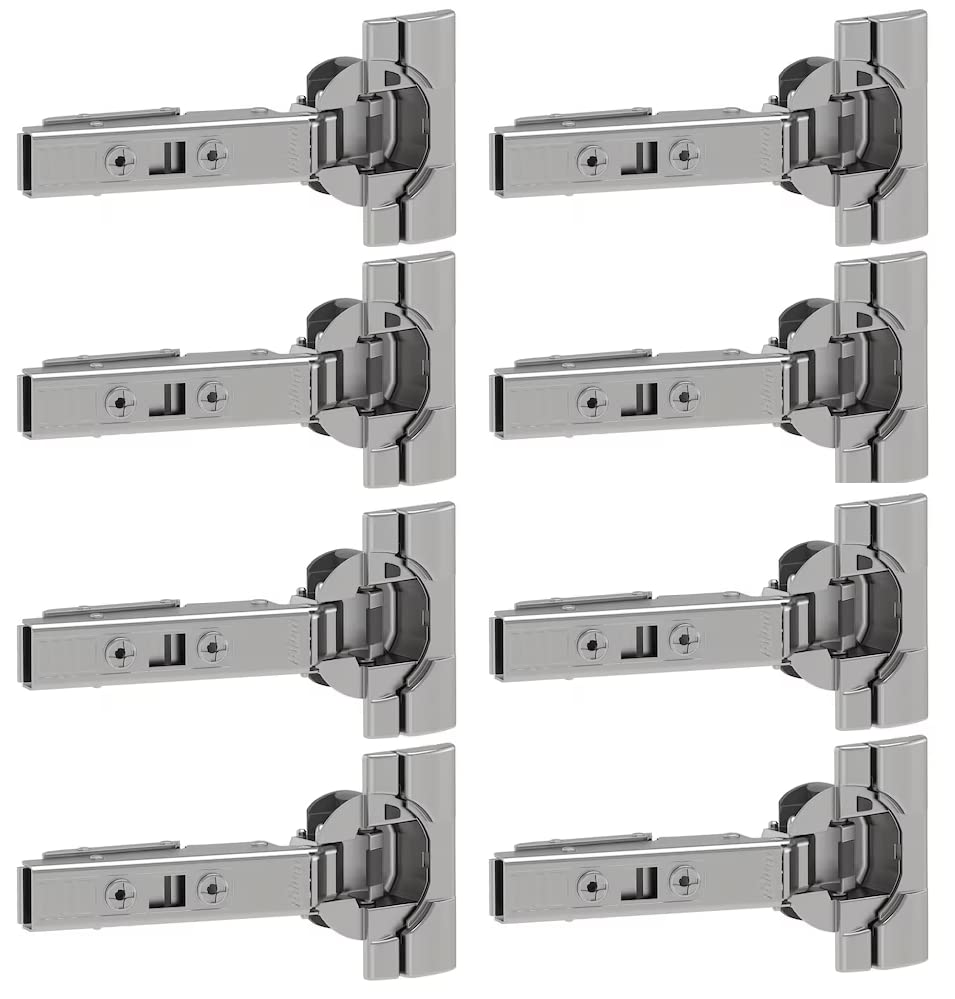

Figure 1: Overview of the UTRUSTA Cabinet Hinges. Each hinge features a robust steel construction with a nickel-plated finish, designed for durability and smooth operation. The integrated damper mechanism is visible, ensuring a soft-close function.
Setup and Installation
Before beginning installation, ensure you have the necessary tools: a screwdriver, measuring tape, and a pencil. These hinges are designed for easy snap-on mounting.
- Prepare the Cabinet and Door: Ensure the cabinet frame and door are clean and free of debris. Mark the desired hinge positions on both the cabinet and the door.
- Attach Hinges to Door: The snap-on design allows for attachment to the door without screws. Align the hinge cup with the pre-drilled hole on the door and press firmly until it clicks into place.
- Mount Door to Cabinet: Align the hinge arm with the mounting plate on the cabinet frame. Snap the hinge arm onto the mounting plate.
- Adjust Door Position: Use the adjustment screws on the hinge to fine-tune the door's position.
- Height Adjustment: Adjusts the vertical alignment of the door.
- Depth Adjustment: Moves the door closer to or further from the cabinet frame.
- Width Adjustment: Adjusts the horizontal gap between the door and the cabinet.
- Test Operation: Open and close the door several times to ensure smooth operation and proper alignment.
Operating the Damper Function
The UTRUSTA hinges feature an integrated damper for soft and silent closing. This function can be activated or deactivated as needed.
- Activating the Damper: Ensure the slide button on the hinge is in the 'on' position. The door will close slowly and silently.
- Deactivating the Damper: If you wish to use a push opener or prefer a faster closing speed, locate the small slide button on the hinge body and move it to the 'off' position. This will disable the soft-close function.
You can easily re-activate the damper at any time by sliding the button back to the 'on' position.
Maintenance and Care
Proper care will ensure the longevity and continued smooth operation of your UTRUSTA hinges.
- Cleaning: Wipe clean with a dry cloth. For more stubborn marks, use a water-dampened soft cloth and a mild, non-abrasive dish detergent or soap. Avoid harsh chemicals or abrasive cleaners, as these can damage the nickel-plated finish.
- Lubrication: The hinges are designed for maintenance-free operation. Do not apply lubricants unless specifically instructed by a professional, as this may interfere with the damper mechanism.
- Periodic Inspection: Periodically check the screws and connections to ensure they are secure. Re-tighten if necessary, but do not overtighten.
- Door Removal for Cleaning: The snap-on design allows for easy removal of the door for thorough cleaning. Simply disengage the hinge arm from the mounting plate. Reattach by snapping it back into place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not close softly/silently. | Damper is deactivated. | Check the slide button on the hinge and ensure it is in the 'on' position. |
| Door closes too slowly. | Damper is active and desired speed is faster. | Deactivate the damper using the slide button. |
| Door is misaligned or crooked. | Hinge adjustments are incorrect. | Adjust the height, depth, and width screws on the hinges until the door is properly aligned. Refer to the Setup and Installation section. |
| Door feels loose. | Hinges are not securely attached or screws are loose. | Ensure hinges are snapped on correctly. Check and tighten any mounting screws if applicable (though these are snap-on, the mounting plate might have screws). |
Specifications
- Model Number: 938e5bac-904c-4809-92e5-e1c074c1a354
- Opening Angle: 110°
- Material: Steel
- Finish: Nickel Plated
- Mounting Type: Door Mount (Snap-on)
- Integrated Feature: Damper for soft-close
- Adjustability: Height, Depth, Width
- Package Quantity: Available in 2, 4, 6, 8, 12 pack options (This specific product is an 8-pack)
- Item Weight (8-pack): Approximately 1.9 pounds
- Package Dimensions (8-pack): Approximately 8.5 x 7 x 2.25 inches
- Batteries Required: No
Warranty Information
This product is covered by a 25-year Limited Warranty. For detailed terms and conditions, please refer to the Limited Warranty brochure that accompanies your product or contact the manufacturer directly. This warranty covers defects in materials and workmanship under normal use.
Support and Contact
For further assistance, technical support, or warranty claims, please contact your retailer or the manufacturer. When contacting support, please have your product model number (938e5bac-904c-4809-92e5-e1c074c1a354) and purchase information readily available.
Manufacturer: Shah_G
Note: Specific contact details for Shah_G are not provided in the product data. Please refer to your purchase documentation for direct support channels.
