HWWH High-Performance Adult Electric Scooter User Manual

Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your HWWH High-Performance Adult Electric Scooter, model 8000W-43AH-13. Please read this manual thoroughly before using the scooter to ensure proper function and safety.

Safety Instructions

Always prioritize safety when operating the electric scooter. Failure to follow safety guidelines can result in serious injury or damage to the product.

• Wear appropriate safety gear, including a helmet, knee pads, and elbow pads.
• Do not operate the scooter under the influence of alcohol or drugs.
• Observe all local traffic laws and regulations.
• Avoid riding in heavy traffic, on slippery surfaces, or in adverse weather conditions.
• Ensure the battery is fully charged and all components are securely fastened before each ride.
• Maintain a safe distance from other vehicles and pedestrians.
• The maximum weight limit for this scooter is 200 kg. Do not exceed this limit.
• Recommended age for use is adult, with a maximum recommended age of 70 years.

Product Components

Your HWWH Electric Scooter comes with the following components:

• Electric Scooter Unit
• Charger (2 x 5A)
• User Manual (this document)
• Installation Tools
• Seat (optional, if included with your model)

Image: Main view of the HWWH Electric Scooter, showcasing its robust design and dual headlights.

Setup and Assembly

Follow these steps to prepare your scooter for its first ride:

1. Unfolding the Scooter: Carefully remove the scooter from its packaging. Locate the folding mechanism and unlock it to raise the handlebar stem. Ensure it clicks securely into place.
2. Handlebar Assembly: Attach the handlebars to the stem, ensuring all bolts are tightened with the provided tools.
3. Seat Installation (if applicable): If your model includes a seat, follow the specific instructions in the separate seat manual for proper installation and adjustment.
4. Initial Charge: Before the first use, fully charge the battery. Connect the charger to the scooter's charging port and then to a power outlet. The charging indicator will show when charging is complete (approximately 5-6 hours with dual 5A chargers).
5. Tire Pressure Check: Verify that the 13-inch tubeless tires are inflated to the recommended pressure.
6. Brake Check: Test both front and rear hydraulic disc brakes to ensure they are functioning correctly.

Image: The HWWH Electric Scooter in both unfolded and folded configurations, with key dimensions highlighted for transport and storage.

Image: Close-up of the scooter's folding mechanism, illustrating how to fold and unfold the unit for portability.

Operating Instructions

Starting the Scooter

1. Press the power button on the LCD display to turn on the scooter.
2. The LCD display will show speed, battery level, and trip distance.
3. Select your desired speed mode (25/45/95 km/h) using the mode button.
4. Choose between single or dual motor drive using the dedicated switch for optimal performance based on terrain.

Riding the Scooter

• Place one foot on the deck and push off with the other foot to gain initial momentum.
• Gently press the thumb accelerator to engage the motor.
• Maintain balance and steer by leaning and turning the handlebars.
• Use the dual hydraulic suspension for a smooth ride over varied terrain, including mountain roads, beaches, gravel, and snow.
• The scooter can handle a maximum climbing angle of 50°.

Image: Close-up of the handlebar controls, including the LCD display, power button, mode selector, and thumb accelerator.

Braking

• To slow down or stop, gently squeeze the brake levers. The scooter features an EABS electronic braking system and hydraulic disc brakes on both front and rear wheels for responsive and efficient stopping.
• Avoid sudden or harsh braking, especially at high speeds or on slippery surfaces.

Lighting System

• Activate the dual U7 LED headlights for improved visibility during night riding.
• The scooter is equipped with an oversized anti-collision warning light and turn signals for enhanced safety.

Image: The scooter's dual LED headlights and rear warning light, demonstrating their brightness and function for night visibility and safety.

Image: Rear view of the scooter, highlighting the brake light and integrated turn signals for improved road safety.

Off-Road Capability

The 13 x 4.7-inch extra-wide, anti-slip, wear-resistant, and shock-absorbing tubeless tires are designed for various terrains. The dual hydraulic suspension system provides stability and comfort on uneven surfaces.

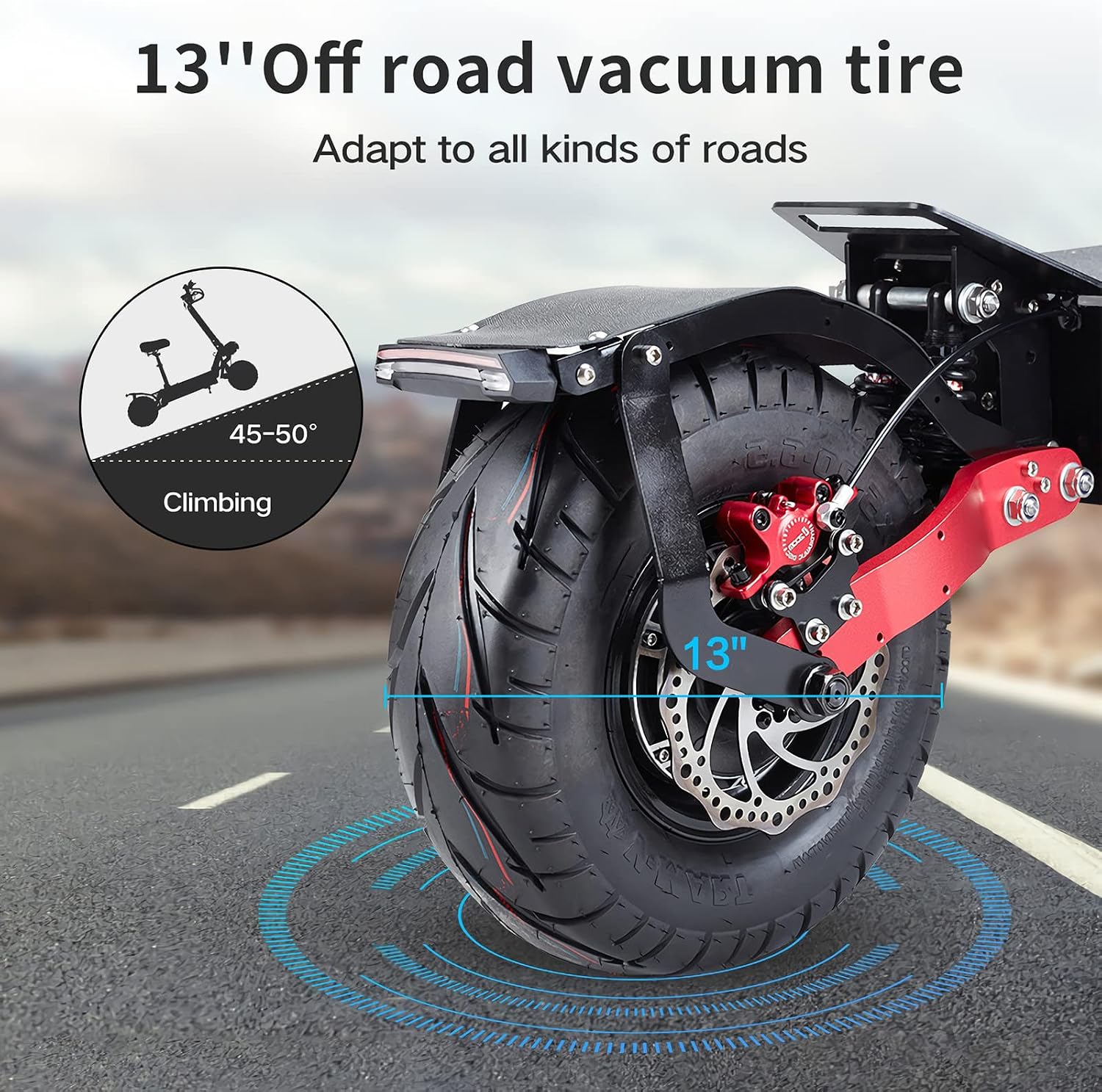

Image: Close-up of the 13-inch off-road vacuum tire, designed for superior grip and durability on diverse terrains.

Image: Illustration of the scooter's advanced suspension system, highlighting its ability to absorb shocks for a smoother ride.

Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe down the scooter with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
• Tires: Regularly check tire pressure and inspect for wear or damage. Replace tires if necessary.
• Brakes: Inspect brake pads and discs periodically. Ensure brake levers operate smoothly and provide adequate stopping power. Adjust or replace components as needed.
• Battery Care:
  • Charge the battery fully after each use.
  • Do not completely drain the battery.
  • Store the scooter in a cool, dry place when not in use, and charge it periodically if stored for extended periods.
• Fasteners: Periodically check all bolts and screws for tightness, especially on the handlebars, folding mechanism, and wheels.

Image: Internal view of the scooter's dual motor system and large capacity lithium battery, highlighting key power components.

Image: Detailed view of the 60V 43Ah lithium battery pack, emphasizing its large capacity for extended range.

Troubleshooting

Specifications

Warranty and Support

Warranty Information:

• Battery: Six (6) months warranty.
• Motor and Controller: One (1) year warranty.
• Vehicle: Lifetime maintenance support.

We have a professional after-sales service team in Europe. For any questions or support needs, please contact our customer service.
