1. Introduction
The Moulinex Perfect Mix+ LM835D Glass Mixer is a versatile kitchen appliance designed to prepare a wide range of hot and cold recipes, from smoothies and desserts to soups and sauces. Featuring a powerful 1400W motor, a durable 2-liter glass jug, and advanced Powelix technology, this blender offers efficient and consistent results. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.
- Read all instructions before using the appliance.
- Do not immerse the motor unit, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Exercise extreme caution when handling the sharp blades.
- Ensure the lid is securely in place before operating the blender.
- Do not fill the jug beyond the maximum fill line, especially with hot liquids.
3. Product Components
Familiarize yourself with the main parts of your Moulinex Perfect Mix+ LM835D blender:
- Motor Unit: The base containing the powerful 1400W motor and control panel.
- Glass Jug: A durable 2-liter capacity glass jug (1.75L useful capacity) for blending ingredients.
- Blade Assembly: Features 6 stainless steel Powelix blades for efficient blending. This assembly is removable for cleaning.
- Lid: Securely fits onto the glass jug to prevent spills during operation.
- Measuring Cup: Integrated into the lid for adding ingredients during blending.

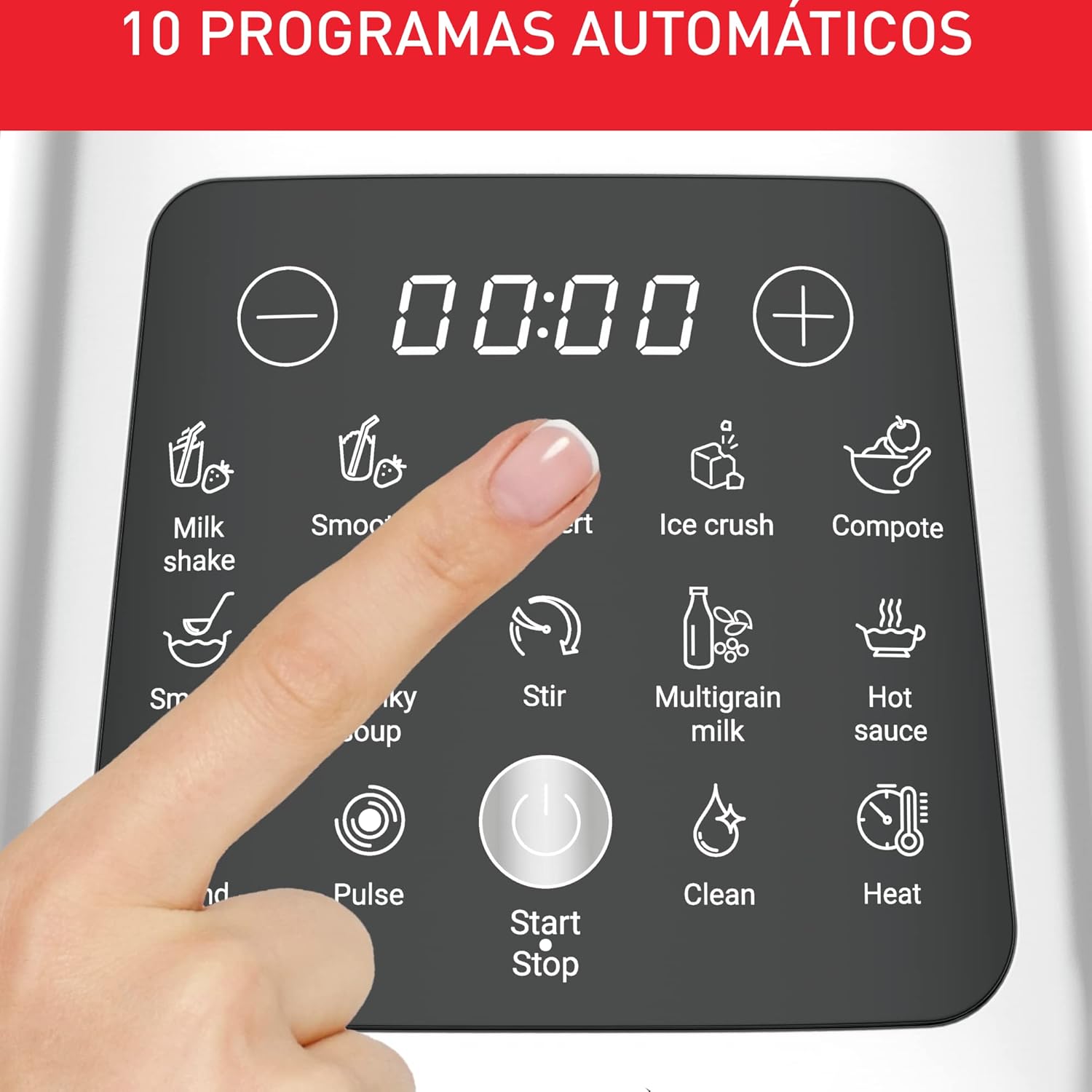

- Control Panel: Intuitive touch screen with various program selections and manual controls.
4. Setup
Before first use, ensure all packaging materials are removed and the appliance is clean.
- Unpack: Carefully remove the blender and all its components from the packaging.
- Clean: Wash the glass jug, lid, and blade assembly with warm, soapy water. Rinse thoroughly and dry. The motor unit should only be wiped with a damp cloth.
- Assemble: Place the blade assembly securely onto the bottom of the glass jug. Ensure it is tightened properly to prevent leaks.
- Position: Place the motor unit on a stable, flat, and dry surface.
- Attach Jug: Place the assembled glass jug onto the motor unit. Ensure it clicks into place securely.
- Connect Power: Plug the power cord into a suitable electrical outlet (230V).
5. Operating Instructions
The Moulinex Perfect Mix+ LM835D offers 10 automatic programs and manual controls for various blending needs.
5.1. Cold Programs
These programs are designed for cold ingredients and do not involve heating.
- Milkshake: Ideal for creamy milkshakes and smooth beverages.
- Smoothie: Perfect for fruit and vegetable smoothies, ensuring a consistent texture.
- Ice Crush: Specifically designed to crush ice cubes for drinks or desserts.
- Dessert: For preparing various cold desserts, such as mousses or purees.
5.2. Hot Programs
These programs include a heating function, allowing you to prepare hot recipes directly in the blender (up to 100°C).
- Lump-free Soup: Creates perfectly smooth soups without lumps.
- Soup with Trips (Chunky Soup): For soups with a desired chunky texture.
- Compote: Ideal for making fruit compotes.
- Mix: A general hot mixing program.
- Multigrain Milk: For preparing plant-based milks from grains.
- Hot Sauce: Perfect for smooth, hot sauces.
5.3. Manual Modes
For customized blending, use the manual speed settings and pulse function.
- 6 Speeds: Adjust the blending speed according to your ingredients and desired consistency.
- Pulse: Provides short bursts of power for controlled blending, ideal for chopping or quick mixing.
6. Cleaning and Maintenance
Regular cleaning ensures the longevity and hygiene of your blender.
6.1. Autoclean Mode
The blender features an automatic cleaning program for convenience.
- Fill the jug with warm water (up to the 1L mark) and add a few drops of dish soap.
- Secure the lid.
- Select the 'Clean' program on the control panel.
- After the program finishes, rinse the jug thoroughly with clean water.

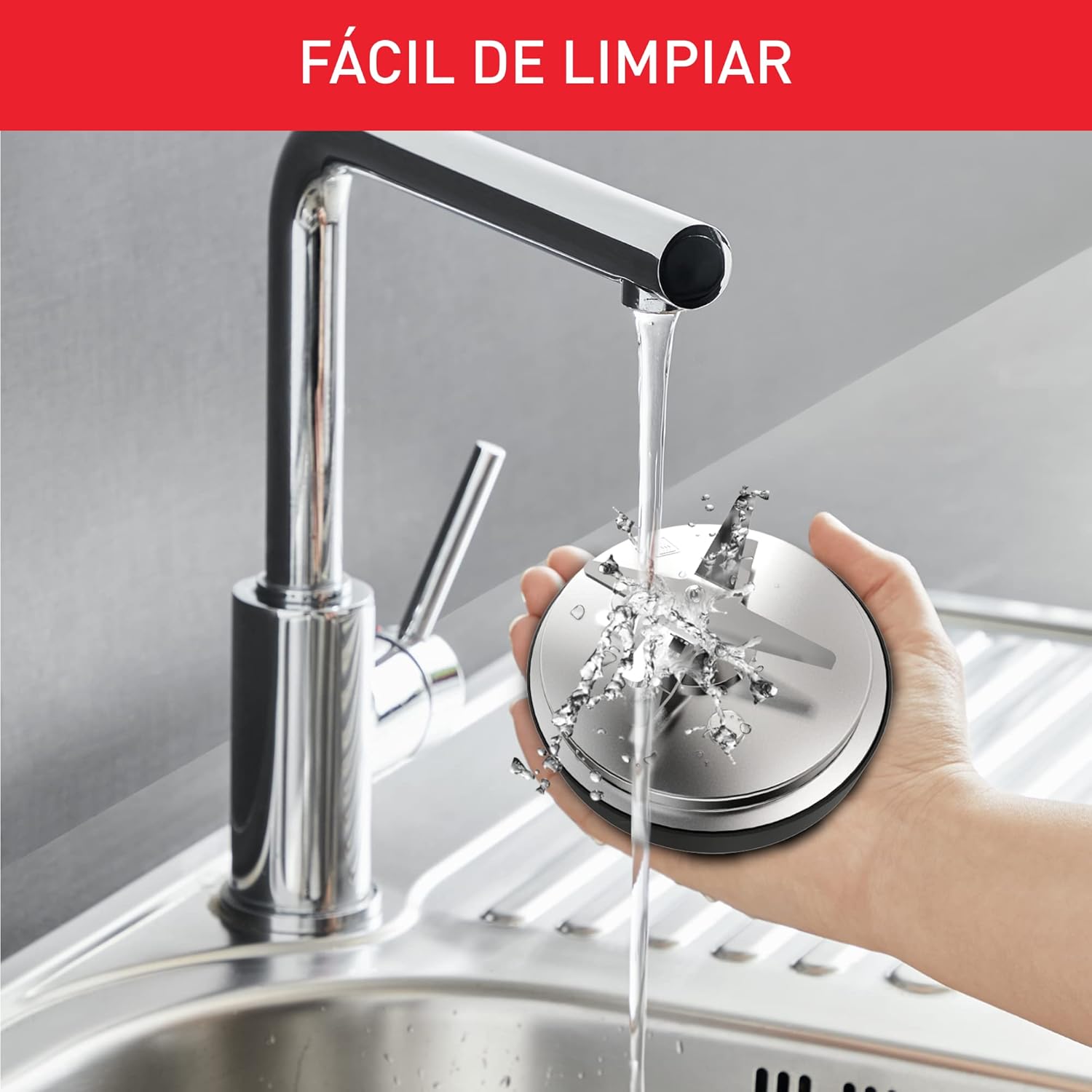

6.2. Manual Cleaning
For a more thorough clean, especially after processing sticky or thick ingredients:
- Unplug: Always unplug the blender from the power outlet before cleaning.
- Disassemble: Carefully remove the glass jug from the motor unit. Detach the blade assembly from the jug.
- Wash: Wash the glass jug, lid, and blade assembly with warm, soapy water. Use the provided cleaning brush for hard-to-reach areas around the blades.
- Rinse: Rinse all parts thoroughly under running water.
- Dry: Allow all parts to air dry completely before reassembling or storing.
- Motor Unit: Wipe the motor unit with a damp cloth. Never immerse the motor unit in water.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Blender does not turn on. | Not plugged in; jug not correctly assembled; safety mechanism engaged. | Ensure power cord is securely plugged in. Check that the jug is correctly seated on the motor unit. If the motor unit overheats, the safety system may activate; allow it to cool down for 15-20 minutes before restarting. |
| Ingredients are not blending smoothly. | Too little liquid; jug overloaded; ingredients too large. | Add more liquid. Reduce the amount of ingredients. Cut ingredients into smaller pieces. Use the pulse function for stubborn ingredients. |
| Leakage from the bottom of the jug. | Blade assembly not tightened; seal ring misplaced or damaged. | Ensure the blade assembly is securely tightened onto the jug. Check the seal ring for proper placement and any signs of damage. Replace if necessary. |
| Burning smell during operation. | Overloading; prolonged use; motor overheating. | Reduce the load. Do not operate continuously for extended periods. Allow the motor to cool down. If the smell persists, discontinue use and contact customer support. |
| Excessive noise during operation. | Jug not seated correctly; hard ingredients; foreign object. | Ensure the jug is properly seated. The blender is powerful and will produce noise; however, if it's unusually loud, check for any foreign objects inside the jug. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Moulinex |
| Model Number | LM835D |
| Power | 1400 W |
| Capacity | 2 Litres (useful capacity 1.75 Litres) |
| Jug Material | Glass |
| Blades | 6 Stainless Steel Powelix Blades |
| Speeds | 6 Speeds + Pulse |
| Automatic Programs | 10 (4 Cold, 6 Hot) |
| Max Temperature | 100°C |
| Cooling System | Air Cooling System |
| Dimensions (Product) | 48.6 x 25.7 x 31.4 cm |
| Item Weight | 7.69 kg |
9. Moulinex App & Recipes
Enhance your cooking experience with the official Moulinex App, offering over 200 delicious recipes specifically designed for your blender.
Download the Moulinex App:
10. Warranty and Support
Your Moulinex Perfect Mix+ LM835D Glass Mixer comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact Moulinex customer service in your region. Keep your proof of purchase for warranty claims.
