1. Introduction
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new Trailmaster Mini Bike Hurricane 200X. Please read this manual thoroughly before operating the mini bike to ensure proper use and to prevent injury or damage.

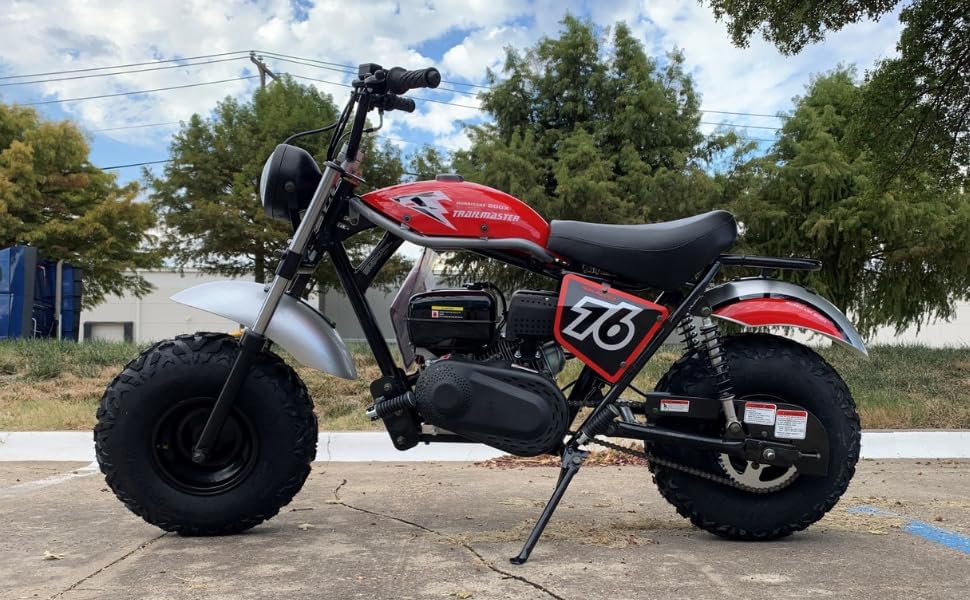

The Trailmaster Hurricane 200X is a powerful mini bike designed for off-road use, featuring a 196cc OHV engine, hydraulic front and rear disc brakes, and a robust frame with dual suspension for a comfortable ride on various terrains.
2. Safety Information
WARNING: Operating this mini bike can be dangerous. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and sturdy footwear. Adult supervision is required for riders under 16 years of age. Do not operate on public roads.
- Always perform a pre-ride inspection.
- Ensure all nuts and bolts are tightened securely.
- Check tire pressure before each ride.
- Familiarize yourself with the controls, especially the brakes, before riding at speed.
- Do not carry passengers.
- Avoid riding on excessively steep inclines or uneven terrain that could cause loss of control.
- This product is not CA CARB-compliant.
3. Setup and Assembly
Your Trailmaster Mini Bike Hurricane 200X requires some assembly before its first use. It is recommended to have basic mechanical skills and tools for this process. Assembly typically involves:
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Handlebar Installation: Attach the handlebars securely to the steering column. Ensure all cables (throttle, brakes) are routed correctly and not pinched.

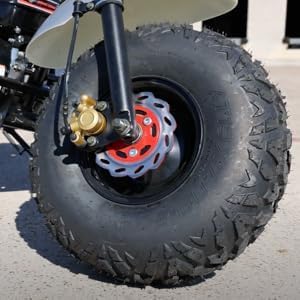

- Front Wheel Assembly: Install the front wheel, ensuring the hydraulic disc brake caliper is correctly aligned and the axle is tightened to specifications.
- Fender Installation: Attach the front and rear fenders.
- Seat Installation: Secure the seat to the frame.
- Fluid Checks: Add engine oil (if not pre-filled) and fuel. Refer to the engine manual for specific fluid types and capacities.
- Pre-Ride Inspection: Before the first start, double-check all connections, fasteners, and controls.
4. Operating Instructions
Follow these steps to safely operate your mini bike:
- Pre-Ride Check: Always perform a safety check before starting.
- Fuel Valve: Turn the fuel valve to the ON position.
- Choke: If starting a cold engine, move the choke lever to the FULL CHOKE position. For a warm engine, the choke may not be necessary.
- Engine Start: Use the pull-start mechanism. Pull the starter rope firmly until the engine starts.
- Choke Adjustment: Once the engine starts, gradually move the choke lever to the OFF position as the engine warms up.
- Throttle Control: Gently twist the right handlebar grip to apply throttle and accelerate. Release to decelerate.
- Braking: Use the hand levers for the hydraulic front and rear disc brakes to slow down or stop. Apply both brakes smoothly for optimal control.
- Stopping the Engine: Turn the engine kill switch to the OFF position.
5. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your mini bike. Refer to the engine manual for detailed service schedules.
- Engine Oil: Check engine oil level before each ride and change according to the manufacturer's recommendations (typically after the first 5 hours, then every 25-50 hours).
- Air Filter: Clean or replace the air filter regularly, especially when riding in dusty conditions.
- Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
- Chain: Keep the drive chain clean, lubricated, and properly tensioned.
- Brakes: Regularly inspect brake pads and discs for wear. Check brake fluid levels for hydraulic systems and adjust as needed.
- Tires: Maintain correct tire pressure (refer to tire sidewall for maximum pressure) and inspect for wear or damage.
- Fasteners: Periodically check all nuts, bolts, and fasteners for tightness.
6. Troubleshooting
This section addresses common issues you might encounter with your mini bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, choke incorrect, spark plug issue, low oil. | Check fuel level, adjust choke, inspect/replace spark plug, ensure oil is at correct level. |
| Loss of power | Dirty air filter, old fuel, spark plug issue. | Clean/replace air filter, use fresh fuel, inspect spark plug. |
| Brakes feel spongy | Air in hydraulic line, low brake fluid, worn pads. | Bleed brake lines, top up fluid, replace brake pads. |
| Unusual noises | Loose fasteners, worn chain, engine issue. | Inspect all components for looseness, check chain, consult a mechanic for engine noise. |
7. Specifications
- Bike Type: Dirt Bike
- Engine: Powerful 196cc OHV engine
- Brakes: Hydraulic Front and Rear Disc Brakes
- Drivetrain: Torque Converter, CVT drive
- Suspension: Dual, Front, Rear
- Tires: Aggressive large 19X7-8 front and rear tires
- Wheel Size: 19 Inches
- Item Weight: 167.5 Pounds
- Model Name: MB200X
- Assembly Required: Yes
- UPC: 647351993188
8. Warranty and Support
Your Trailmaster Mini Bike Hurricane 200X comes with a Limited Warranty. Please refer to the included manual for specific terms and conditions regarding warranty coverage.
For customer support, technical assistance, or warranty claims, please contact Trailmaster customer service. Details can typically be found in the separate manual included with your purchase or on the official Trailmaster website.
Return Policy: This product typically has a 30-day return policy. Please check with your retailer for specific return conditions.
