1. Introduction
This manual provides essential instructions for the safe operation, setup, maintenance, and troubleshooting of your DongCheng 1100W Angle Grinder, model DSM10-125. Please read this manual thoroughly before using the tool to ensure proper function and to prevent injury.
Figure 1: DongCheng 1100W Angle Grinder DSM10-125 with included accessories, including grinding discs, flap discs, cutting discs, auxiliary handle, and wrench.
2. General Safety Instructions
Always observe the following safety precautions when operating the angle grinder to reduce the risk of electric shock, fire, and serious injury.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
- Personal Safety: Always wear eye protection (safety goggles) and hearing protection. Use a dust mask if operations create dust. Wear appropriate work gloves. Do not overreach; keep proper footing and balance at all times.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
- Kickback and Related Warnings: Kickback is a sudden reaction to a pinched or snagged rotating wheel. Always maintain a firm grip on the angle grinder and position your body and arm to allow you to resist kickback forces.
- Specific Grinder Safety: Always use the guard provided with the tool. Ensure the accessory is correctly mounted and tightened before use. Do not use damaged accessories.
Figure 2: The angle grinder incorporates safety features such as restart protection, disc protection, overheat protection, and overload protection.
3. Product Overview
The DongCheng 1100W Angle Grinder DSM10-125 is a versatile power tool designed for various applications including cutting, grinding, and polishing. It features a powerful motor and durable construction.
3.1 Key Components
Figure 3: Key components of the angle grinder, including the 1100W copper motor, stereoscopic air outlet, dust-proof nets, spindle lock, on/off switch, disc guard, and M14 thread.
- Motor: 1100W copper motor providing 11800 RPM for efficient operation.
- Disc Guard: Adjustable for user protection during operation.
- Auxiliary Handle: Can be attached in two positions for left or right-handed use, enhancing control and comfort.
- Spindle Lock: Facilitates quick and easy accessory changes.
- On/Off Switch: For controlling power to the tool.
- Ventilation System: Stereoscopic air outlet design for efficient heat dissipation, extending motor life.
- Dust Filter: Removable for easy cleaning and maintenance.
4. Setup
Before starting any work, ensure the angle grinder is unplugged from the power source.
4.1 Attaching the Auxiliary Handle
The auxiliary handle can be screwed into either side of the gear housing, depending on your preference and the task at hand. This provides better control and reduces fatigue.
Figure 4: The auxiliary handle can be adjusted to two positions for comfortable left or right-handed operation, ensuring secure handling in all situations.
4.2 Installing/Changing Grinding/Cutting Discs
- Ensure the tool is unplugged.
- Press and hold the spindle lock button.
- Use the provided wrench to loosen and remove the outer flange nut.
- Place the desired 125mm disc onto the spindle, ensuring it sits correctly on the inner flange. The disc must be compatible with M14 EU specifications.
- Replace the outer flange nut and tighten it securely with the wrench while holding the spindle lock button.
- Release the spindle lock button and ensure the disc is firmly attached and rotates freely without wobbling.
Figure 5: The practical spindle lock allows for quick and easy changing of grinding discs. Ensure the 22/23mm flange bore and M14 thread are correctly aligned with the 125mm disc diameter.
4.3 Adjusting the Disc Guard
The disc guard should always be positioned to provide maximum protection to the user, shielding against sparks and debris. Adjust the guard by loosening its clamp, rotating it to the desired position, and then securely tightening the clamp.
5. Operation
Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and gloves before operating the angle grinder.
5.1 Powering On and Off
- To Turn On: Ensure the tool is held firmly. Slide the on/off switch to the "ON" position. The grinder will immediately reach full speed.
- To Turn Off: Slide the on/off switch to the "OFF" position. Wait for the disc to come to a complete stop before setting the tool down.
5.2 Grinding, Cutting, and Polishing Techniques
The DongCheng Angle Grinder is suitable for various tasks on materials like metal and stone.

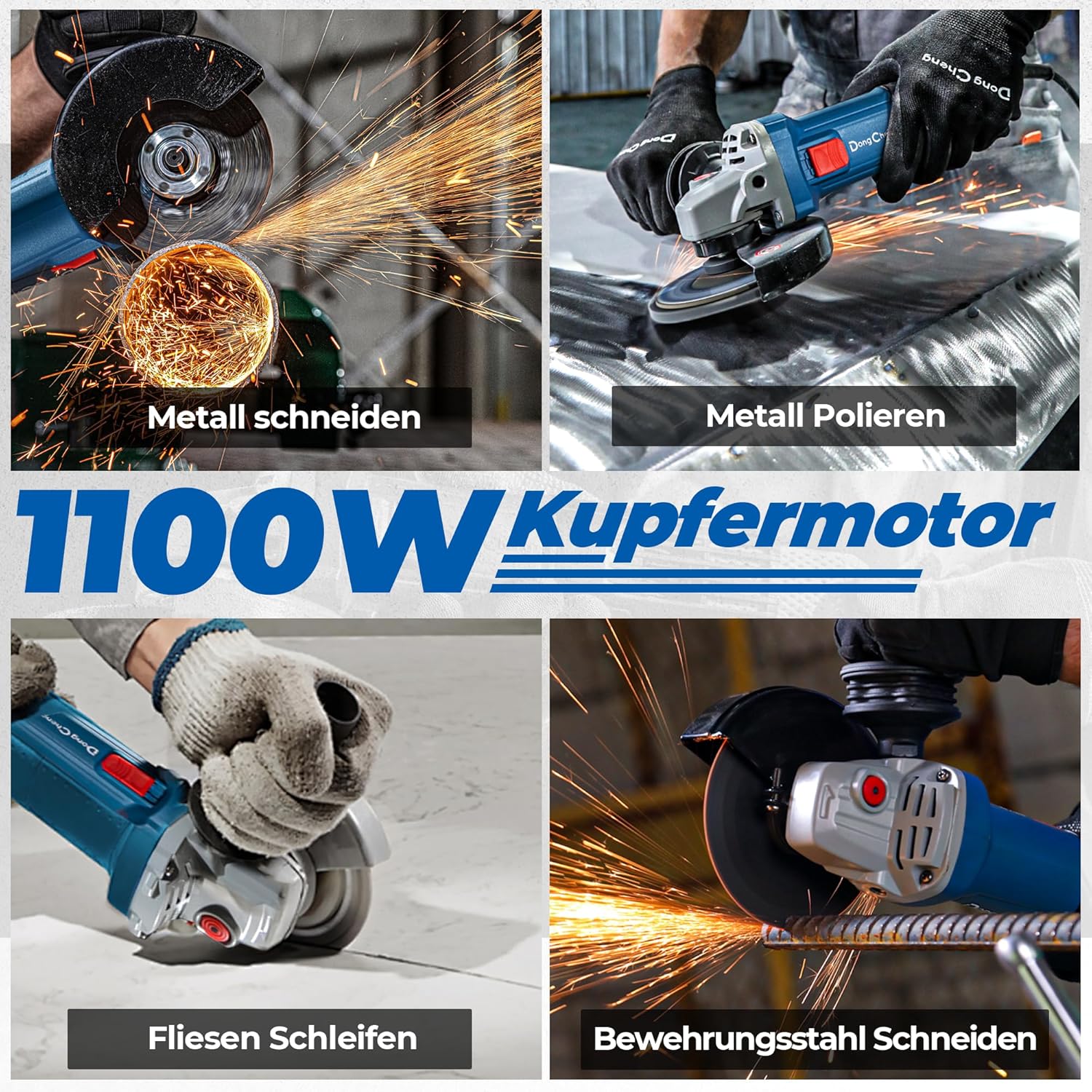

Figure 6: The 1100W copper motor enables the angle grinder to perform various tasks such as cutting metal, polishing metal, grinding tiles, and cutting rebar.
- Grinding: Use a grinding disc. Hold the grinder at a 15-30 degree angle to the workpiece. Apply moderate pressure and move the tool smoothly across the surface.
- Cutting: Use a cutting disc. Hold the grinder at a 90-degree angle to the workpiece. Allow the disc to do the work; do not force it. Ensure the workpiece is securely clamped.
- Polishing: Use appropriate polishing accessories (e.g., flap discs or polishing pads). Hold the grinder at a shallow angle and move it consistently to achieve an even finish.
Figure 7: High-power cutting applications include steel plates, I-beams, and granite of 20-30mm thickness.
Figure 8: Grinding applications include smoothing weld seams and concrete surfaces.
Figure 9: Surface polishing applications include removing rust and paint.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your angle grinder. Always unplug the tool before performing any maintenance.
6.1 Cleaning
- General Cleaning: Wipe down the tool with a clean, damp cloth. Do not use harsh chemicals or solvents.
- Dust Filter: The removable dust filter should be cleaned regularly to maintain optimal airflow and prevent motor overheating. Remove the filter, tap out accumulated dust, and reinsert it.
- Ventilation Openings: Keep all ventilation openings clear of dust and debris to ensure proper heat dissipation.
Figure 10: The stereoscopic air outlet design ensures high-efficiency heat dissipation, which is crucial for extending the motor's lifespan. Keep these vents clear.
6.2 Inspecting Discs and Accessories
Before each use, inspect discs for cracks, chips, or excessive wear. Replace any damaged or worn discs immediately. Ensure all accessories are securely attached and in good condition.
6.3 Carbon Brush Replacement
The angle grinder uses carbon brushes, which are consumable parts. When the motor performance decreases or sparks become excessive, the carbon brushes may need replacement. Refer to a qualified service technician for carbon brush replacement if you are unsure.
Figure 11: The main product image shows spare carbon brushes (L59, L57) included, indicating they are user-replaceable or serviceable components.
7. Troubleshooting
This section addresses common issues you might encounter with your angle grinder.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start. | No power supply; faulty switch; carbon brushes worn. | Check power connection. Ensure switch is fully engaged. Inspect and replace carbon brushes if necessary. |
| Excessive sparking from motor. | Worn carbon brushes; motor overload. | Replace carbon brushes. Reduce load on the tool. |
| Tool overheats. | Blocked ventilation openings; continuous heavy use; motor overload. | Clean ventilation openings and dust filter. Allow tool to cool down. Reduce load. |
| Disc wobbles or vibrates excessively. | Disc not properly installed; damaged disc; bent spindle. | Re-install disc correctly. Replace damaged disc. If spindle is bent, seek professional repair. |
8. Specifications
Technical specifications for the DongCheng 1100W Angle Grinder DSM10-125.
- Model: DSM10-125
- Power: 1100 Watts
- Voltage: 220 Volts
- Disc Diameter: 125 mm
- No-load Speed: 11800 RPM
- Spindle Thread: M14
- Weight: 2 Kilograms
- Dimensions (L x W x H): 28.5 x 7.7 x 10 cm (approximate, based on 285mm x 77mm x 100mm from image)
- Material: Metal
- Power Source: Corded Electric
Figure 12: The angle grinder is lightweight at 2kg and compact with dimensions of approximately 285mm x 100mm x 77mm, featuring an ergonomic grip circumference of 186mm.
9. Warranty & Support
Specific warranty details and direct customer support contact information are not provided within the available product data. For warranty claims or technical assistance, please refer to the retailer where the product was purchased or visit the official Dong Cheng website for the most up-to-date information.
You may also find additional information on the Dong Cheng Brand Store on Amazon.
