Generic LSL123 Electric Bicycle Motor Controller Instruction Manual

1. Introduction

1.1 Safety Information

Please read this manual carefully before installation and operation. Improper installation or use can lead to damage to the controller, motor, battery, or personal injury. Always ensure the power is disconnected before performing any installation or maintenance.

1.2 Product Overview

The LSL123 Electric Bicycle Motor Controller is designed to provide efficient and reliable power management for electric bicycles. It features a brushless DC motor control system, offering stable speed, sensitive braking, and protection mechanisms for both the motor and battery. Constructed from high-quality aluminum alloy, it ensures durability and effective heat dissipation.

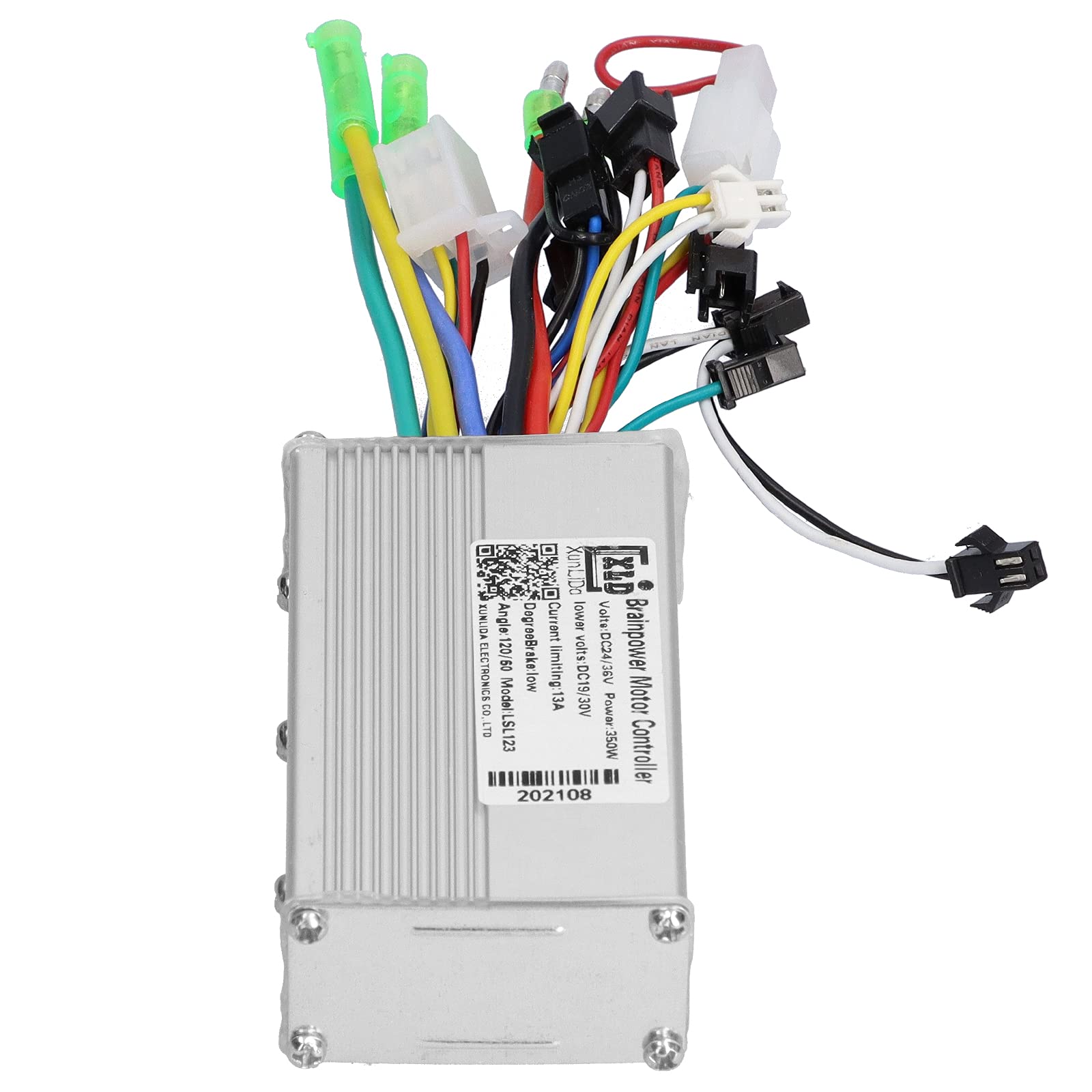

Figure 1: LSL123 Electric Bicycle Motor Controller

2. Product Features

• Silent Start: Provides a smooth and quiet motor startup, minimizing operational noise.
• Stable Power Output: Ensures a consistent and balanced power delivery to the motor.
• Overheat Protection: Automatically cuts off power if the controller temperature becomes too high, restarting once the temperature normalizes.
• Overload Protection: Disables power output if the motor is overloaded and stops for more than two seconds, protecting both the motor and battery.
• Battery Protection: Manages current output when battery voltage is low to maintain normal operation, extending battery life and operating distance.
• Automatic Phase Angle and Direction Detection: Automatically identifies the motor's phase angle and correct rotation direction for optimal performance.
• Enhanced Climbing Ability: Designed to provide stronger climbing power.
• Durable Construction: Made from high-quality aluminum alloy for strength, durability, and effective heat dissipation.
• Waterproof Design: Protects internal circuits from moisture.

3. Product Dimensions and Material

3.1 Dimensions

The controller features a compact design for easy integration into various electric bicycle setups.

Figure 2: Controller dimensions (approximately 8.8cm x 5.2cm) shown next to a smartphone for scale.

3.2 Material Quality

The LSL123 controller is manufactured from a high-quality aluminum alloy, ensuring robustness and resistance to wear. This material choice also contributes to efficient heat dissipation, protecting the internal components.

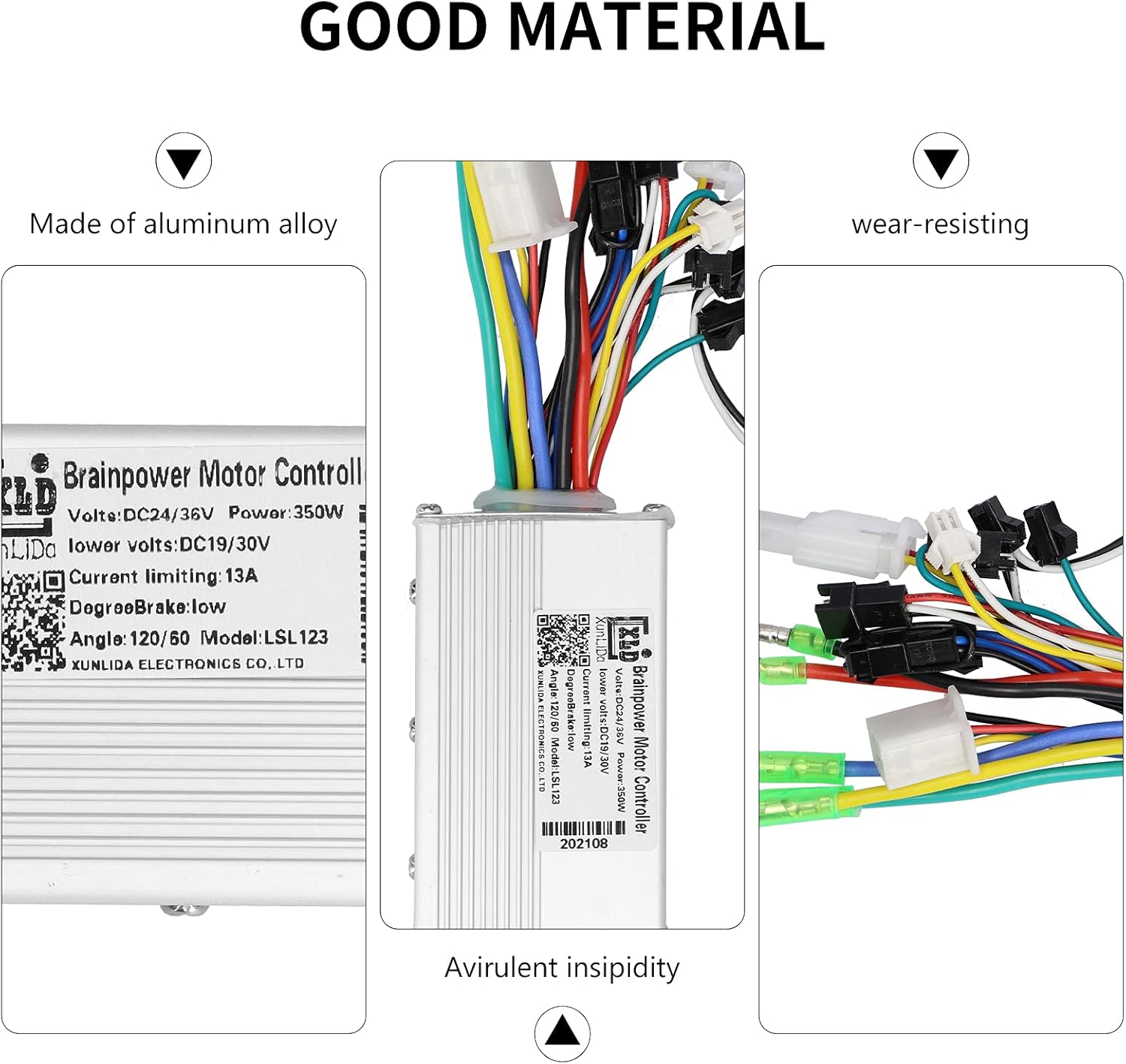

Figure 3: The controller's aluminum alloy casing, designed for durability and wear resistance.

4. Setup and Installation

The LSL123 controller is designed for straightforward installation. Ensure all connections are secure and correctly matched to prevent electrical issues.

Figure 4: The controller is designed for easy integration into electric bicycle systems.

4.1 Wiring Diagram

Refer to the diagram below for proper connection of the controller to your electric bicycle components. Each wire is labeled for clear identification.

Figure 5: Wiring connections for the LSL123 controller.

• THE ELECTRIC DOOR LOCK: Connects to the electric door lock circuit.
• POWER SUPPLY CATHODE: Negative terminal for power supply.
• POSITIVE: Positive terminal for power supply.
• HIGH POTENTIAL BRAKE: Connects to the high potential brake signal.
• INTELLIGENT IDENTIFICATION: For automatic motor parameter identification.
• ELECTRONIC BRAKE SELECTION: For selecting electronic brake functionality.
• CRUISE OPTION: Connects to the cruise control function.
• LOW POTENTIAL BRAKE: Connects to the low potential brake signal.
• REVERSE BACK: For reverse function (if applicable).
• ROTARY ACCELERATOR: Connects to the throttle/accelerator.
• THE SIGNAL IS: General signal wire.
• GEAR SHIFT 3 GEARS: For 3-speed gear shifting control.
• ALARM SIGNAL: Connects to the alarm system signal.
• ALARM POWER SUPPLY: Power supply for the alarm system.
• HALL PLUG FOR MOTOR: Connects to the motor's Hall sensors.
• MOTOR THREE-PHASE LINE: Connects to the three-phase motor wires.

5. Operating Instructions

Once correctly installed, the LSL123 controller will manage your electric bicycle's motor. The controller's intelligent design ensures a smooth and silent start, providing a comfortable riding experience. It automatically adjusts to the motor's phase angle and direction for optimal performance. The system is designed to provide consistent power and responsive braking.

Figure 6: The controller ensures safe and reliable operation for electric mobility devices.

6. Maintenance

To ensure the longevity and optimal performance of your LSL123 controller, follow these general maintenance guidelines:

• Keep the controller clean and free from dust and debris.
• Avoid exposing the controller to extreme temperatures or direct sunlight for prolonged periods.
• Ensure all wiring connections remain tight and free from corrosion.
• While the controller is waterproof, avoid submerging it in water.

7. Troubleshooting

The LSL123 controller incorporates several protective features to prevent damage. If you experience issues, consider the following:

• Motor Stops Operating: If the motor stops due to overload (e.g., carrying excessive weight or encountering significant resistance) for more than two seconds, the controller will cut off power output to protect the motor and battery. Reduce the load and restart the system.
• System Shuts Down Due to Overheating: If the controller's internal temperature becomes excessively high, it will automatically cut off power. Allow the unit to cool down. Once the temperature returns to normal, the system will automatically restart.
• Reduced Performance at Low Battery: The controller is designed to reduce current output when the battery voltage is low. This protects the battery and extends its life and operating distance. Charge your battery if you notice reduced performance.

For persistent issues, consult a qualified technician.

8. Specifications

9. Warranty and Support

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For warranty claims or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
