1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Velvac 320183-4 Way Air Pilot Shut Spring Return Valve, model 27A15415. Please read this manual thoroughly before using the product to ensure safe and efficient operation.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the equipment:
- Ensure all air supply lines are depressurized before installation or maintenance.
- Wear appropriate personal protective equipment (PPE), such as safety glasses, during installation and operation.
- Verify that the valve's pressure ratings are compatible with your pneumatic system.
- Do not modify the valve in any way. Unauthorized modifications can lead to malfunction and void the warranty.
- Install the valve in a clean, dry environment, free from excessive vibration or corrosive substances.
- Ensure all connections are secure and leak-free before applying air pressure.
3. Product Overview
The Velvac 320183-4 Way Air Pilot Shut Spring Return Valve is designed for controlling the flow of compressed air in pneumatic systems. This 4-way valve features an air pilot actuation, meaning it is shifted by an external air signal, and a spring return mechanism, which returns the valve to its initial position when the pilot signal is removed. It is constructed from durable stainless steel, ensuring longevity and resistance to corrosion.

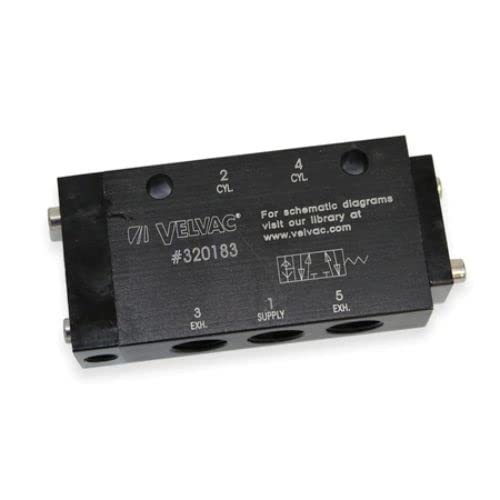

Figure 1: Generic image of a pneumatic valve component. This image represents a typical component and may not be an exact depiction of the Velvac 320183 valve.
4. Setup and Installation
Follow these steps for proper installation of the valve:
- Depressurize System: Before beginning installation, ensure that the entire pneumatic system is depressurized and locked out according to safety procedures.
- Mounting: Securely mount the valve in the desired location using appropriate fasteners. Ensure the mounting surface is stable and can support the valve's weight and operational forces.
- Connect Inlet: Connect the main air supply line to the inlet port. The inlet connection type is Flange or Barb. Ensure a tight, leak-free seal.
- Connect Outlets: Connect the lines to the actuators or other pneumatic devices to the outlet ports. The outlet connection type is NPT. Ensure proper sealing.
- Connect Pilot Air: Connect a separate air signal line to the air pilot port. This signal will actuate the valve.
- Exhaust Ports: Ensure exhaust ports are clear and unobstructed.
- Leak Check: Once all connections are made, slowly re-pressurize the system and check all connections for leaks using a suitable leak detection solution.
5. Operation
The Velvac 320183 valve operates based on an air pilot signal:
- Initial State: In its normal, de-energized state (without an air pilot signal), the spring return mechanism holds the valve in its default position. Air flows through specific ports as determined by this default state.
- Actuation: When an air signal is applied to the pilot port, the internal mechanism shifts, changing the flow path of the main air supply. This allows air to flow to different outlet ports, controlling the connected pneumatic device.
- Return: Upon removal of the air pilot signal, the spring return mechanism automatically shifts the valve back to its initial default position, restoring the original air flow path.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your valve:
- Inspection: Periodically inspect the valve and all connected lines for signs of wear, damage, or leaks. Pay close attention to seals and connections.
- Cleaning: Keep the valve and surrounding area clean. Dust and debris can affect performance. Use a soft, dry cloth for cleaning. Avoid harsh chemicals.
- Air Quality: Ensure the compressed air supply is clean, dry, and filtered to prevent contaminants from entering the valve and causing internal damage.
- Lubrication: This valve is typically designed for non-lubricated air or pre-lubricated for life. Consult manufacturer specifications if lubrication is suspected to be required.
- Replacement: If the valve shows signs of significant wear, damage, or consistent malfunction, it should be replaced with an original Velvac part.
7. Troubleshooting
Refer to the following table for common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Valve does not shift | No pilot air signal; insufficient pilot pressure; clogged pilot port; internal obstruction. | Check pilot air supply and pressure; inspect pilot port for blockages; check for foreign objects inside the valve (depressurize first). |
| Air leaks from valve | Loose connections; damaged seals; internal wear. | Tighten connections; replace damaged seals (if serviceable); replace valve if internal wear is significant. |
| Valve shifts slowly or inconsistently | Low pilot pressure; contaminated air supply; internal friction. | Verify pilot pressure; ensure clean and dry air supply; replace valve if internal friction persists. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 27A15415 |
| Part Number | 27A15415 |
| Material | Stainless Steel |
| Number of Ports | 4 |
| Inlet Connection Type | Flange or Barb |
| Outlet Connection Type | NPT |
| Item Dimensions (L x W x H) | 1 x 1 x 1 inches |
| Item Weight | 11 ounces |
| Manufacturer | Crimp Supply |
| ASIN | B0B1JBHBHR |
| Date First Available | May 13, 2022 |
9. Warranty and Support
For warranty information or technical support regarding your Velvac 320183-4 Way Air Pilot Shut Spring Return Valve, please contact the manufacturer, Crimp Supply, or your authorized distributor. Keep your purchase receipt and product model number (27A15415) handy when contacting support.
