Instruction Manual: YSMN Carburetor Replacement Kit

Product Overview

This YSMN carburetor replacement kit is designed to restore optimal fuel delivery and engine performance for compatible Briggs & Stratton lawnmower engines. It includes essential components required for a comprehensive carburetor overhaul or replacement, ensuring your equipment runs smoothly and efficiently.

Compatibility and Fitment

This replacement kit is compatible with various Briggs & Stratton lawnmower engines and specific models. Please verify your engine's model and part numbers against the list below to ensure proper fitment before installation.

Replacement for Briggs & Stratton Lawnmower Engines:

• 796077
• 590399 Carb

Replacement for Briggs & Stratton Engine Models:

• 21B902, 21B906, 21B907, 21B972, 21B976, 21B977, 21D807
• 21R502, 21R507, 21R602, 21R707, 21R777
• 21A907-0147-E1, 21A907-0147-E9, 21A907-0150-E1, 21A907-0150-E9

Replaces Parts Number:

• 21R707, 21R777, 21D807, 21R502, 21R507, 21R602, 21R707, 21R777

Reminder: Please carefully check your existing parts with the pictures and part numbers provided to ensure compatibility before purchasing.

Kit Contents

The YSMN Carburetor Replacement Kit includes the following components:

Image: All components included in the YSMN Carburetor Replacement Kit, featuring the carburetor, air filter, fuel line, clamps, valve, fuel filter, gasket, and pre-filter.

• 1x Carburetor
• 1x Air Filter
• 1x Fuel Line
• 4x Clamps
• 1x Valve
• 1x Fuel Filter
• 1x Gasket
• 1x Pre-filter
• 1x Admission Piece

Setup and Installation

Installation of a carburetor requires mechanical aptitude and adherence to safety procedures. If you are unsure about any step, it is recommended to consult a qualified technician or refer to your engine's specific service manual. Always ensure the engine is cool and disconnected from its power source (e.g., spark plug wire removed) before beginning any work.

Pre-Installation Checklist:

• Ensure the engine is off and cool.
• Disconnect the spark plug wire to prevent accidental starting.
• Have appropriate tools readily available (wrenches, screwdrivers, pliers, etc.).
• Work in a well-ventilated area.
• Have a container ready to catch any spilled fuel.

General Installation Steps (Consult Engine Manual for Specifics):

1. Drain Fuel: If necessary, drain the fuel tank or pinch off the fuel line to prevent spills.
2. Remove Air Filter Assembly: Carefully remove the existing air filter housing and filter.
3. Disconnect Fuel Line: Disconnect the fuel line from the old carburetor. Be prepared for minor fuel leakage.
4. Remove Old Carburetor: Unbolt and remove the old carburetor from the engine. Note the position of any linkages or springs.
5. Clean Mounting Surface: Ensure the engine's mounting surface is clean and free of old gasket material.
6. Install New Gasket: Place the new gasket (included in the kit) onto the engine's mounting studs.
7. Mount New Carburetor: Carefully position the new carburetor onto the studs, ensuring all linkages and springs are correctly attached.
8. Secure Carburetor: Bolt the new carburetor securely to the engine. Do not overtighten.
9. Connect Fuel Line: Attach the new fuel line (if replacing) and fuel filter, securing with clamps.
10. Install Air Filter Assembly: Reinstall the air filter and housing.
11. Reconnect Spark Plug: Reconnect the spark plug wire.
12. Refill Fuel: Refill the fuel tank with fresh, appropriate fuel.

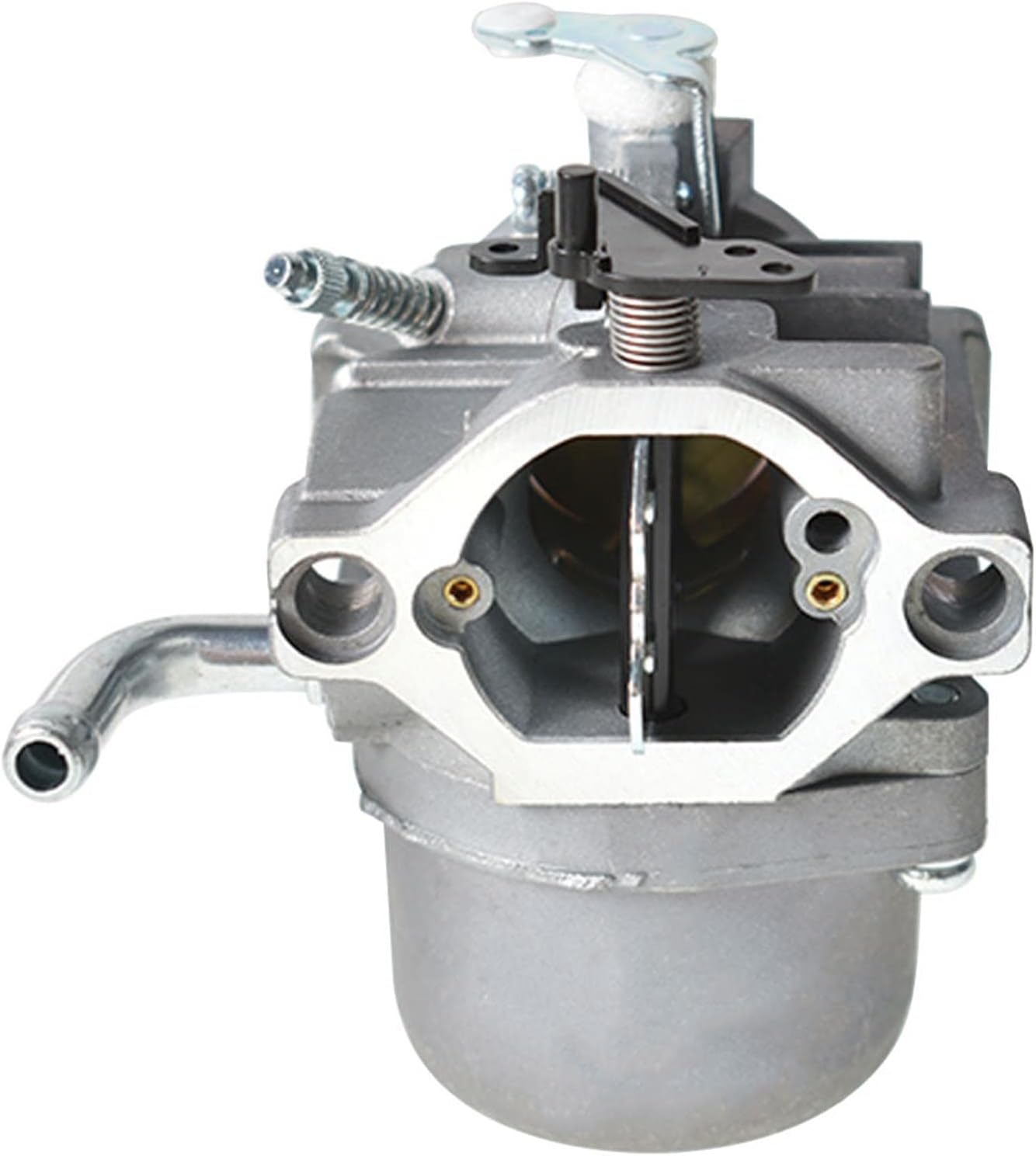

Images: Detailed views of the YSMN carburetor, showing various angles and components to assist with installation and identification.

Operating Instructions

After successful installation of the new carburetor, the engine should start and run more efficiently. Follow your engine manufacturer's specific operating instructions for starting, running, and shutting down the equipment. Allow the engine to warm up briefly before putting it under load.

• Ensure all connections are secure and there are no fuel leaks.
• Check engine oil levels before starting.
• Use fresh, clean fuel as recommended by your engine manufacturer.

Maintenance

Regular maintenance of your carburetor and associated components will extend the life of your engine and ensure consistent performance.

• Air Filter: Regularly inspect and clean or replace the air filter (included in this kit) to ensure proper air flow and prevent dirt from entering the carburetor.
• Fuel Filter: Replace the fuel filter periodically (one included in this kit) to prevent contaminants from reaching the carburetor.
• Fuel Quality: Always use fresh, clean, and high-quality fuel. Stale or contaminated fuel is a common cause of carburetor issues. Consider using a fuel stabilizer if storing the equipment for extended periods.
• Cleanliness: Keep the exterior of the carburetor clean.
• Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system to prevent gum and varnish buildup in the carburetor.

Troubleshooting

If you encounter issues after installing the new carburetor, consider the following common troubleshooting steps:

For persistent issues, it is recommended to consult a professional small engine mechanic or refer to the detailed service manual for your specific engine model.

Specifications

Important Reminders

• Always ensure the engine is clean before and after working on the carburetor.
• Verify all parts and connections are secure before operating the engine.
• Refer to your specific engine's service manual for detailed, model-specific instructions and safety warnings.

Warranty and Support

For information regarding warranty coverage, returns, or technical support for this YSMN carburetor replacement kit, please refer to the seller or manufacturer's official documentation provided at the time of purchase. Keep your purchase receipt as proof of purchase.

For engine-specific support or service, please contact Briggs & Stratton directly or consult an authorized service center.
