1. Introduction
The Victron Energy LiFePO4 25.6V 200Ah Smart Lithium Battery is a high-performance energy storage solution featuring integrated cell balancing and Bluetooth connectivity. This manual provides essential information for the safe and efficient use of your battery.

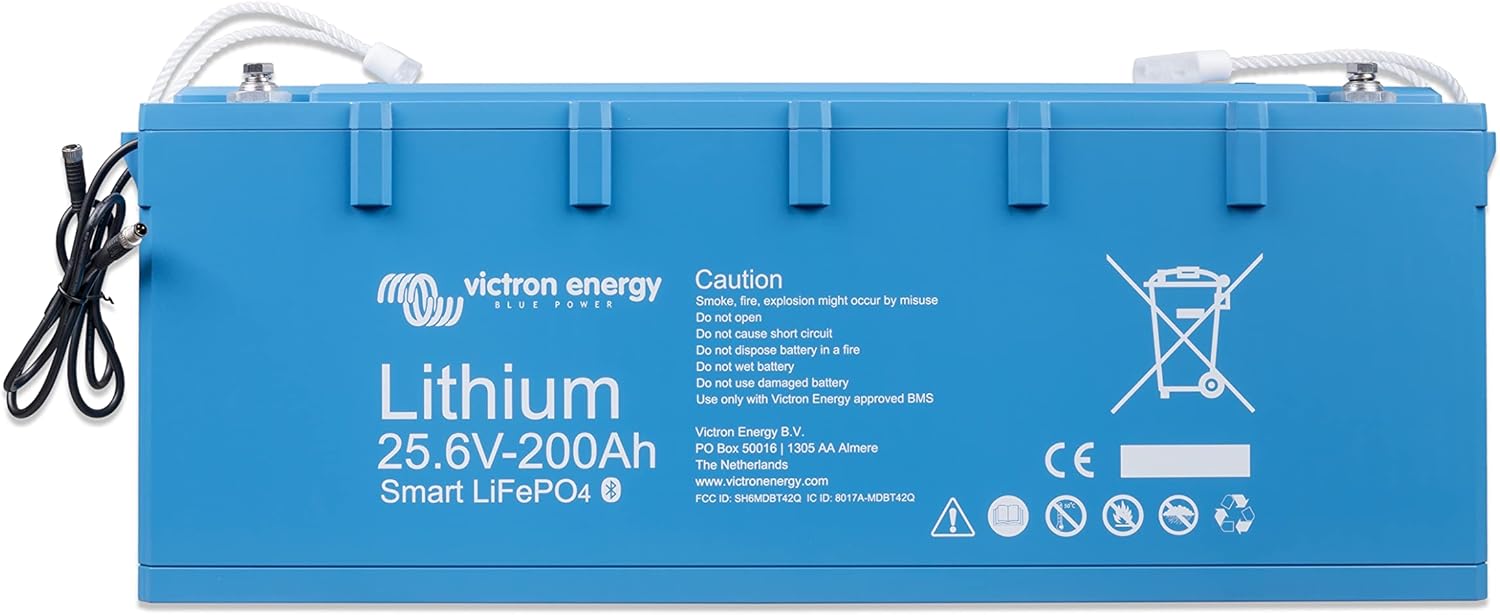

Figure 1: Victron Energy LiFePO4 25.6V 200Ah Smart Lithium Battery.
2. Safety Information
Observe the following safety precautions to prevent injury or damage to the battery:
- Each battery system requires one Battery Management System (BMS) to be properly wired. Victron Energy BMS units are sold separately.
- Do not open the battery casing.
- Do not cause a short circuit.
- Do not dispose of the battery in a fire.
- Do not wet the battery.
- Do not use a damaged battery.
- Use only with Victron Energy approved BMS.
Figure 2: A Battery Management System (BMS) is essential for proper battery operation and safety. Various Victron BMS models are available.
3. Product Overview
The Victron Energy LiFePO4 Smart Lithium Battery offers a safe and efficient power solution. Lithium Iron Phosphate (LiFePO4 or LFP) is known for its safety among mainstream Li-ion battery types. This battery features integrated cell balancing for optimal performance and longevity.
3.1. Dimensions and Weight
- Product Dimensions: 6.4 x 25.6 x 9.3 inches
- Item Weight: 132 pounds
Figure 3: Physical dimensions of the 25.6V 200Ah battery.
4. Setup and Installation
This battery can be connected in parallel and series to create larger battery banks. Up to 5 batteries can be paralleled, and up to two 25.6V batteries can be series connected to form a 48V battery bank.
4.1. Connecting Multiple Batteries
For a battery bank consisting of multiple batteries, interconnect each battery (daisy chain) and connect the first and last BMS cable to the BMS. The batteries can be interconnected in any order.
Figure 4: Example of connecting multiple batteries in a series-parallel configuration with a BMS.
4.2. BMS Requirement
A Battery Management System (BMS) is mandatory for safe operation and optimal performance of the LiFePO4 battery. The BMS monitors cell voltages, temperature, and alarm status, helping to localize potential problems like cell imbalance.
5. Operating Instructions
The Victron Energy LiFePO4 Smart Lithium Battery can be monitored and configured using the VictronConnect app via Bluetooth.
5.1. VictronConnect App Monitoring
The VictronConnect app allows you to get live status information and configure any Victron products with built-in Bluetooth or connected via a VE.Direct Bluetooth Smart Dongle. You can monitor cell voltages, temperature, and alarm status.
Figure 5: Monitoring battery status via the VictronConnect app.
Video 1: An overview of the VictronConnect App for monitoring performance of Victron Energy products.
6. Maintenance
LiFePO4 batteries are robust and require minimal maintenance. However, regular monitoring through the VictronConnect app or VRM portal is recommended to ensure optimal performance and identify any potential issues early.
6.1. Remote Monitoring with VRM Portal
The Victron Remote Management (VRM) portal allows for remote configuration and monitoring of your installation when connected to the internet via a Venus GX or Color Control GX device. This provides historical data and real-time insights into your battery's performance.
Video 2: Introduction to the VRM (Victron Remote Management) portal for monitoring Victron Energy systems.
6.2. SmartShunt Battery Monitor
For detailed battery monitoring, a SmartShunt can be integrated into your system. It provides precise state of charge, voltage, current, and consumed amp-hours, offering a more accurate understanding of your battery's status compared to voltage-only readings.
Video 3: Comparison of Victron Energy SmartShunt Battery Monitor and Waterproof SmartShunt IP65 Battery Monitor, highlighting features for accurate battery monitoring.
7. Troubleshooting
The VictronConnect app provides diagnostic information that can assist in troubleshooting. Common issues and their potential causes include:
- Low Input Voltage: The device may be disabled if the input voltage is too low. Ensure the input power supply has enough power.
- Disabled in Settings: The device might be intentionally disabled. Check the "Output enabled" setting in the main settings page of the VictronConnect app.
- Engine Shutdown Detected: If the battery is part of a vehicle system, the charger may turn off if an engine shutdown is detected to prevent draining the starter battery. Verify engine shutdown settings are correctly configured according to your alternator.
8. Specifications
| Feature | Specification |
|---|---|
| Product Dimensions | 6.4 x 25.6 x 9.3 inches |
| Item Weight | 132 pounds |
| ASIN | B0B12GTKM9 |
| Item Model Number | NT-1339 |
| Batteries Required | 1 Lithium Ion battery (included) |
| Manufacturer | Victron Energy |
| Battery Cell Composition | Lithium Ion (LiFePO4) |
| Battery Capacity | 200 Amp Hours |
| Recommended Uses | Indoor/Outdoor |
| Storage Temperature | -45°C to +70°C |
| Humidity | Max. 95% non-condensing |
| IP Protection | IP 22 Protected |
| Round-trip Energy Efficiency (LFP) | 92% |
Note: LFP batteries do not need to be fully charged. Service life improves in cases of partial charge instead of a full charge. They offer a wide operating temperature range, excellent cycling performance, low internal resistance, and high efficiency.
Figure 6: Key specifications and efficiency benefits of LiFePO4 technology.
9. Warranty and Support
For warranty information and technical support, please refer to the official Victron Energy website or contact your authorized dealer. Victron Energy offers a global network of professionals for assistance.
