Recaceik Queen Size Bed Frame Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Recaceik Queen Size Bed Frame. Please read this manual thoroughly before assembly and retain it for future reference.

Safety Information

• Ensure all parts are present and undamaged before beginning assembly.
• Assemble the bed frame on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly, as this may damage the components.
• Periodically check all connections to ensure they remain tight.
• Do not exceed the maximum weight recommendation of 800 pounds.
• Keep small parts away from children during assembly.

Package Contents

Verify that all components listed below are included in your package:

• Headboard (Leather Upholstered)
• Side Rails (Metal)
• Footboard (Metal)
• Center Support Beam(s)
• Metal Slats
• Support Legs
• Hardware Pack (Screws, bolts, Allen wrench)

Note: The exact number of components may vary slightly. Refer to the included assembly diagram for precise counts.

Setup and Assembly

Follow these steps carefully to assemble your Recaceik Queen Size Bed Frame. It is recommended to have two people for assembly.

Step 1: Prepare the Area and Identify Parts

Clear a spacious area for assembly. Lay out all components and hardware. Ensure you have the headboard, side rails, footboard, center support, metal slats, and all necessary screws and tools.

Figure 1: Exploded view of the bed frame with key dimensions. This image illustrates the overall structure and measurements of the assembled bed frame, including the headboard, frame, and under-bed clearance.

Step 2: Attach the Headboard to Side Rails

Connect the upholstered headboard to the main frame structure. Ensure the headboard is securely fastened to the vertical supports of the frame using the provided bolts and an Allen wrench.

Figure 2: Detail of the upholstered headboard connection. This image highlights how the green leather headboard integrates with the metal frame, showing the attachment points.

Step 3: Assemble the Main Frame

Connect the side rails to the footboard and the headboard assembly. Ensure all corner connections are tight and stable. The frame should form a rigid rectangular structure.

Figure 3: Corner joint detail. This image shows a close-up of a secure corner connection on the metal bed frame, illustrating the use of bolts for stability.

Step 4: Install Center Support and Slats

Place the center support beam(s) across the width of the frame, securing them as per the instructions. Then, lay the metal slats evenly across the frame, ensuring they are properly seated in their designated slots or attached with provided fasteners. This provides the mattress support.

Figure 4: Metal slat and support structure. This image displays the robust metal slat system and central support, designed to hold a mattress without a box spring.

Step 5: Final Inspection

Once all components are assembled, double-check all bolts and screws to ensure they are tightened securely. The frame should be stable and free of wobbling. Place your mattress directly on the slats.

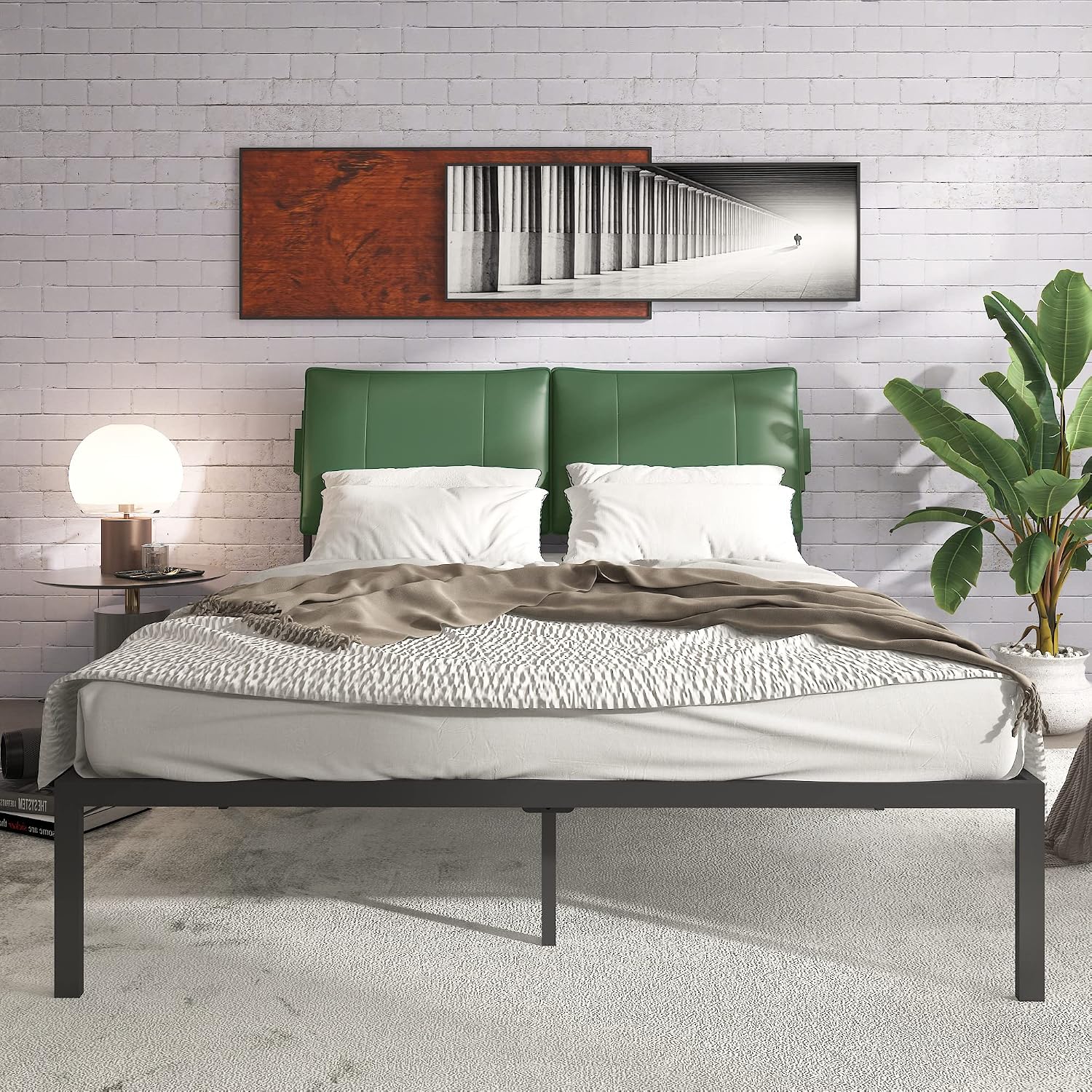

Figure 5: Assembled bed frame with mattress. This image shows the complete bed frame with a mattress and bedding, ready for use, highlighting its modern design and upholstered headboard.

Operating and Usage

• Mattress Placement: Place your queen-size mattress directly onto the metal slats. A box spring is not required for this bed frame.
• Weight Capacity: The bed frame is designed to support a maximum weight of 800 pounds, including the mattress and occupants.
• Under-Bed Storage: Utilize the 14 inches of under-bed clearance for storage boxes, luggage, or other items to maximize space in your bedroom.

Maintenance

• Cleaning the Frame: Wipe the metal frame with a damp cloth and mild detergent. Dry immediately to prevent rust. Avoid abrasive cleaners.
• Cleaning the Headboard: For the leather upholstered headboard, wipe with a soft, damp cloth. For deeper cleaning, use a leather-specific cleaner according to its instructions.
• Regular Inspection: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they are tight. Retighten if necessary to maintain stability and prevent noise.

Troubleshooting

Issue: Bed frame is wobbly or unstable.

Solution: Ensure all bolts and screws are fully tightened. Check that all legs are making firm contact with the floor. If on an uneven surface, consider using furniture pads to level the frame.

Issue: Squeaking noises from the bed frame.

Solution: Retighten all assembly hardware. Ensure metal slats are properly seated and not rubbing against each other or the frame. Applying a small amount of lubricant (e.g., silicone spray) to contact points between metal parts can help, but ensure it does not damage the finish.

Issue: Mattress sags or feels unsupported.

Solution: Verify that all metal slats are correctly installed and evenly spaced. Ensure the center support beam(s) are securely in place and their support legs are firm on the floor. This frame is designed for use without a box spring; ensure your mattress is compatible with a slat support system.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact Recaceik customer service directly. Keep your purchase receipt for warranty claims.

You can often find support contact information on the manufacturer's official website: Recaceik Store on Amazon
