LLIVEKIT 26L Air Fryer Oven User Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and similar products.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
• Exercise extreme caution when removing tray or disposing of hot grease.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Product Overview

The LLIVEKIT 26L Air Fryer Oven combines the functions of an air fryer and a mini oven, offering versatile cooking options with 360° circulating hot air technology for healthier meals.

Front view of the LLIVEKIT 26L Air Fryer Oven, showcasing its digital LED display and large viewing window.

Key Features:

• 1700W Power: For efficient and fast cooking.
• 26L Capacity: Suitable for 8-10 people, with 3 cooking levels.
• Smart LED Touchscreen: Easy control for time (0-90 min) and temperature (60-230 °C).
• 12 Preset Programs: For various foods like meat, seafood, roasts, vegetables, cakes, cookies, bread, etc.
• Preheat and Dual Cooking Modes: Enhance cooking flexibility.
• Internal Lighting: For clear visibility of food during cooking.
• Easy to Clean: All-metal interior and dishwasher-safe accessories.

Components and Accessories:

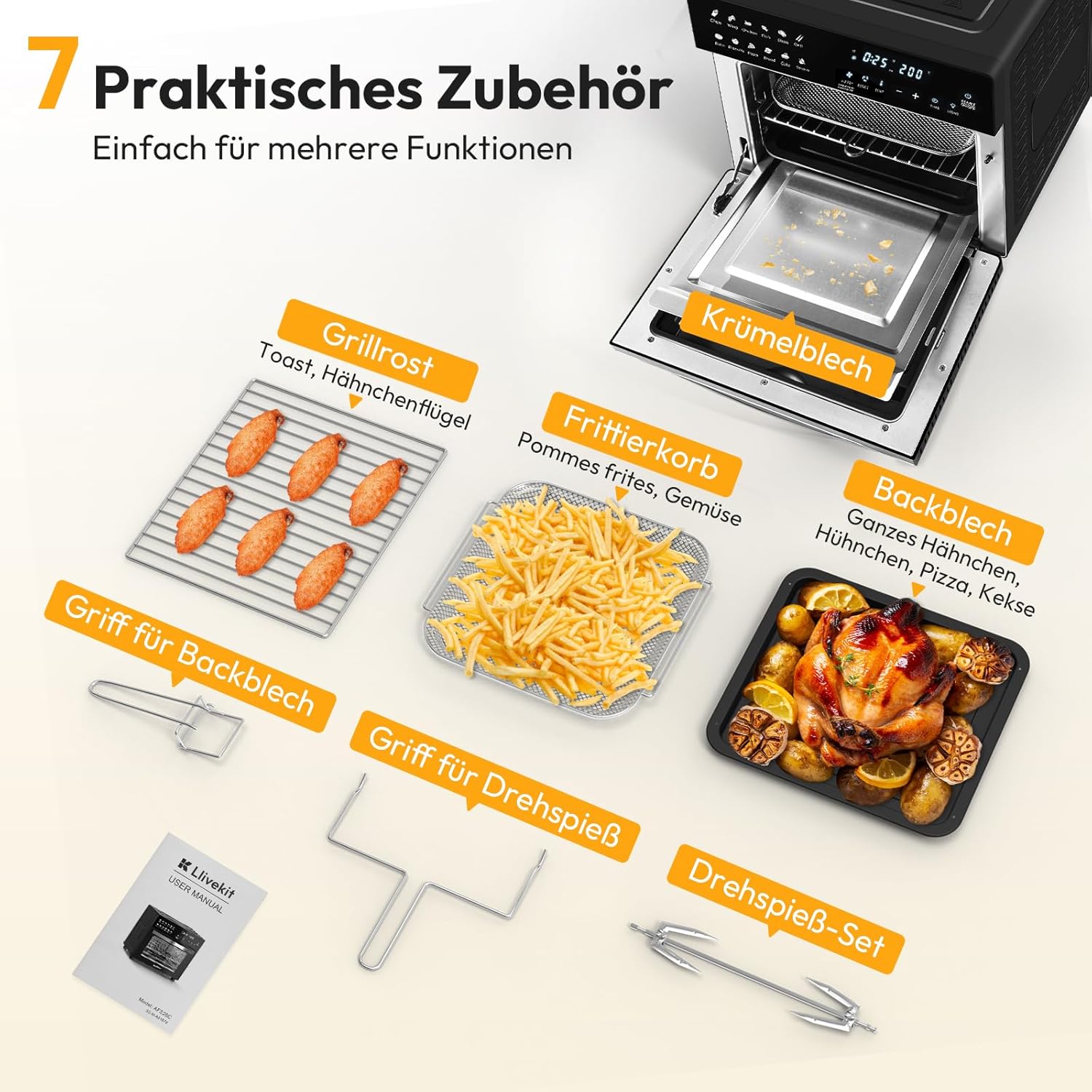

Included accessories: Baking Tray, Grill Rack, Rotisserie Spit, Rotisserie Handle, Fry Basket, Crumb Tray, and Removal Handle.

• Baking Tray: For baking, roasting, and catching drips.
• Grill Rack: For grilling and toasting.
• Rotisserie Spit: For roasting whole chickens or larger cuts of meat.
• Rotisserie Handle: For safe insertion and removal of the rotisserie spit.
• Fry Basket: Ideal for air frying items like fries and vegetables.
• Crumb Tray: Collects crumbs and drips for easy cleaning.
• Removal Handle: For safely handling hot trays and racks.

Setup and First Use

Unpacking:

1. Carefully remove all packaging materials and accessories.
2. Ensure all components listed in the "Components and Accessories" section are present.
3. Remove any stickers or labels from the appliance.

Placement:

• Place the oven on a stable, heat-resistant, and level surface.
• Ensure there is adequate space (at least 10 cm) around all sides of the oven for proper ventilation.
• Do not place the oven near flammable materials or heat sources.

Before First Use:

1. Clean all accessories (baking tray, grill rack, fry basket, etc.) with warm soapy water. Rinse thoroughly and dry completely.
2. Wipe the interior and exterior of the oven with a damp cloth.
3. To eliminate any manufacturing odors, operate the oven empty for approximately 15-20 minutes at 200°C (390°F). Ensure the area is well-ventilated during this process. A slight odor or smoke may be present, which is normal.
4. Allow the oven to cool completely before its first cooking use.

Operating Instructions

The LLIVEKIT Air Fryer Oven features an intuitive LED touchscreen for easy operation. Refer to the image below for control panel layout.

Detailed view of the smart LED touchscreen and control features, including DIY time/temperature control and internal lighting.

Basic Operation:

1. Power On: Plug the appliance into a grounded electrical outlet. The display will light up.
2. Select Function: Choose from the 12 preset programs by touching the corresponding icon on the LED display (e.g., Chips, Wing, Fish, Steak, Grill, Bake, Biscuits, Pizza, Bread, Cake, Dehydrate).
3. Adjust Time and Temperature: Use the TEMP +/- buttons to adjust the cooking temperature (60-230 °C) and the TIME +/- buttons to set the cooking time (0-90 minutes).
4. Start Cooking: Press the START/ON/OFF button to begin the cooking process.
5. Pause/Stop: Press the START/ON/OFF button again to pause or stop cooking.
6. Internal Light: Press the LIGHT button to turn the internal oven light on or off.
7. Rotation Function: For rotisserie cooking, press the ROTATE button to activate the rotation.

Using Preset Programs:

The oven comes with 12 pre-programmed settings for common dishes. These settings provide optimal time and temperature for best results. You can adjust these settings manually after selecting a preset if needed.

Visual representation of the 12 versatile cooking functions, including air frying, baking, and grilling.

• Chips/Fries: For crispy French fries.
• Wing: For chicken wings.
• Fish: For various fish dishes.
• Steak: For perfectly cooked steaks.
• Grill: For grilling meats and vegetables.
• Bake: For general baking needs.
• Biscuits: For baking cookies and biscuits.
• Pizza: For fresh or frozen pizzas.
• Bread: For baking bread.
• Cake: For baking cakes.
• Dehydrate: For dehydrating fruits and vegetables.
• Roast Chicken: (Implied from images, often a rotisserie function) For roasting whole poultry.

Cooking Tips:

• For best air frying results, shake or turn food halfway through cooking to ensure even crisping.
• Preheating the oven for 5-10 minutes before adding food can improve cooking results.
• Use the appropriate accessory for the food type (e.g., fry basket for fries, baking tray for cakes).
• Do not overcrowd the oven; cook in batches if necessary to ensure proper air circulation.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your LLIVEKIT Air Fryer Oven.

Illustration of cleaning the oven interior with a cloth and accessories in a dishwasher.

Cleaning the Oven Interior:

1. Always unplug the oven and allow it to cool completely before cleaning.
2. Remove the crumb tray and empty any food debris.
3. Wipe the interior walls, bottom, and glass door with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive sponge.
4. Do not use abrasive cleaners, scouring pads, or steel wool, as they can damage the non-stick coating and stainless steel surfaces.
5. Ensure the interior is completely dry before plugging the oven back in.

Cleaning Accessories:

• All accessories, including the baking tray, grill rack, rotisserie spit, and fry basket, are dishwasher safe.
• For hand washing, use warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry immediately to prevent water spots or rust.

Exterior Cleaning:

• Wipe the exterior surface with a soft, damp cloth.
• Do not use harsh chemicals or abrasive cleaners.

Troubleshooting

If you encounter issues with your LLIVEKIT Air Fryer Oven, refer to the following common problems and solutions:

Specifications

Warranty and Support

Your LLIVEKIT Air Fryer Oven comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For technical support, warranty claims, or any questions regarding your product, please contact LLIVEKIT customer service through the retailer where you purchased the product or visit the official LLIVEKIT website for contact information.

Online Support: Visit the LLIVEKIT Store on Amazon
