palart Single Speed Drive Cable Instruction Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of the palart Single Speed Drive Cable, replacement part numbers 746-04728 and 946-04728. This cable is designed to restore the self-propel function on compatible lawn mowers by connecting the drive control lever to the transmission mechanism.

1.1 Compatibility

This drive cable is compatible with various lawn mower models from MTD, Troy-BILT, YARDMAN, and Toro. Specifically, it is known to fit the following Toro models:

• 10603, 10604, 10606, 10623, 10624, 10634, 10640, 10640C, 10641, 10641C, 10642, 10642C, 10643C, 10644C, 10645, 10646, 10647, 10648C, 10649C, 10650C
• 10732, 10734, 10738, 17732, 17734, 20314, 20316, 20318, 20323, 20330, 20330C, 20331, 20331C, 20338, 20339, 20339C, 20350, 20351, 20370, 20371, 20377, 20378
• 20954, 20959, 29639, 29641, 29642, 29643, 29732, 29734

2. Product Overview

The palart Single Speed Drive Cable is a critical component for the self-propel system of compatible lawn mowers. It features a durable outer conduit and a flexible inner wire, designed for reliable performance in outdoor conditions.

2.1 Key Features and Dimensions

• Replacement Part Numbers: 946-04728, 746-04728
• Inner Wire Length: 65-13/32 inches
• Conduit Length: 53 inches
• Exposed Wire Length: 6-9/16 inches
• Cable Type: Coaxial
• Special Feature: Weatherproof design

Figure 1: Overall view of the palart Single Speed Drive Cable, coiled, showing both end connectors.

3. Setup and Installation

3.1 Safety Precautions

Before beginning any installation or maintenance, ensure the following safety measures are taken:

• Always disconnect the spark plug wire from the spark plug to prevent accidental engine starting.
• Wear appropriate personal protective equipment, such as gloves, to protect your hands.
• Ensure the engine is cool to the touch before handling any components.
• Refer to your specific lawn mower's owner's manual for detailed safety information and component locations.

3.2 Installation Steps

Follow these general steps to replace the single speed drive cable. Specific routing and attachment points may vary by mower model.

1. Prepare the Mower: Disconnect the spark plug wire. Position the mower on a flat, stable surface.
2. Locate the Old Cable: Identify the existing drive cable. It typically runs from the drive control lever on the handle to the transmission or drive mechanism near the deck.
3. Disconnect Old Cable: Carefully detach both ends of the old cable. Note how it is routed and secured with clips or ties along the handle and chassis.
4. Remove Old Cable: Once disconnected, remove the old cable from the mower.
5. Route New Cable: Route the new palart drive cable along the same path as the old one. Ensure it is not pinched, kinked, or rubbing against moving parts. Use existing clips or new zip ties to secure it properly.
6. Connect Handle End: Attach the upper end of the new cable to the drive control lever on the mower handle. Ensure it is securely seated.
7. Connect Drive End: Attach the lower end of the new cable to the drive mechanism or transmission. This often involves a spring-loaded connection.

Figure 2: The spring-loaded end of the cable, typically connecting to the drive mechanism.

Figure 3: The opposite end of the cable, often connecting to the control lever.

Figure 4: Detailed view of the spring-loaded connection point.

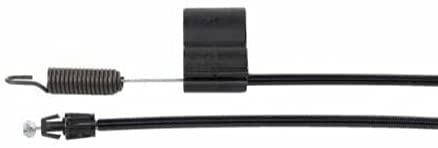

Figure 5: Detailed view of the cable's routing clip and connection point.

7. Adjust Tension (if applicable): Some mowers may require tension adjustment for the drive cable. Consult your mower's owner's manual for specific instructions on how to adjust the cable to ensure proper engagement and disengagement of the drive system.
8. Test Operation: Reconnect the spark plug wire. Start the mower and test the self-propel function in a safe, open area. Ensure the drive engages smoothly and disengages completely when the lever is released.

4. Operation

The palart Single Speed Drive Cable facilitates the operation of your lawn mower's self-propel system. When the drive control lever on the handle is engaged, the cable pulls on the transmission mechanism, causing the drive wheels to turn and propel the mower forward. Releasing the lever disengages the cable, stopping the drive wheels.

Ensure the cable operates smoothly, allowing for full engagement and disengagement of the drive system. If the mower does not propel or continues to propel when the lever is released, refer to the Troubleshooting section.

5. Maintenance

Regular inspection and maintenance of the drive cable can extend its lifespan and ensure reliable operation of your lawn mower's self-propel system.

• Visual Inspection: Periodically inspect the entire length of the cable for signs of wear, fraying, kinks, or damage to the outer conduit. Check the connection points for looseness or corrosion.
• Cleaning: Keep the cable and its connection points free from dirt, grass clippings, and debris. A clean cable operates more smoothly.
• Lubrication: Apply a light lubricant (such as a silicone spray or dry lubricant) to the inner wire where it enters the conduit, especially at the ends. This helps reduce friction and prevents corrosion. Avoid excessive lubrication that could attract dirt.
• Routing: Ensure the cable remains properly routed and secured with clips. Improper routing can lead to premature wear or damage.

6. Troubleshooting

If you experience issues with your lawn mower's self-propel system after installing or while using the palart drive cable, consult the table below for common problems and solutions.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your palart Single Speed Drive Cable, please refer to the original purchase documentation or contact the seller directly. Specific warranty terms may vary depending on the retailer and purchase date.
