LEBENLANG Portable Garment Steamer QH09 User Manual

Introduction

Thank you for choosing the LEBENLANG Portable Garment Steamer QH09. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and keep them for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.

• Always ensure the voltage of your power outlet matches the voltage specified on the appliance.
• Do not immerse the steamer unit, cord, or plug in water or other liquids.
• Unplug the steamer from the power outlet when not in use, before filling or emptying the water tank, and before cleaning.
• Exercise caution when handling hot steam. Keep hands and face away from the steam nozzle.
• Do not operate the steamer with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
• Keep the appliance out of reach of children and pets.
• Never steam clothes while they are being worn on the body.
• Use only distilled or demineralized water to prevent mineral buildup and extend the life of the steamer.
• Do not overfill the water tank.

Package Contents

Please check the package for the following items:

• LEBENLANG Portable Garment Steamer Unit
• Anti-Lint Brush attachment
• Multi-Material Brush attachment
• Ironing Glove

Image: The LEBENLANG Portable Garment Steamer shown with its two included brush attachments, ready for use.

Product Overview

Familiarize yourself with the components of your LEBENLANG Garment Steamer:

Image: A detailed diagram of the LEBENLANG Portable Garment Steamer, highlighting key features such as the gentle steel ironing sole, steam button with locking mechanism, leak-proof 10.14 fl oz tank, ECO & POWER mode selection, and included accessories.

• Steam Nozzle: Emits steam for wrinkle removal.
• Gentle Steel Ironing Sole: For direct contact with fabrics.
• Water Tank: Transparent tank with a 10.14 oz (300 ml) capacity.
• Steam Button with Locking Mechanism: Activates steam flow.
• LCD Display: Shows selected steaming mode (ECO/POWER).
• Power Cable: Extra-long 8.2 ft cable for flexible use.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Fill Water Tank: Ensure the steamer is unplugged. Open the water tank cap and fill the tank with distilled or demineralized water up to the MAX fill line. Close the cap securely.
3. Attach Accessory (Optional): If desired, attach the Anti-Lint Brush or Multi-Material Brush to the steam nozzle until it clicks into place.
4. Connect Power: Plug the power cord into a suitable electrical outlet.

Operating Instructions

1. Power On and Pre-heating

• Press the power button. The steamer will begin to heat up.
• Wait approximately 25 seconds for the steamer to reach operating temperature. The indicator light on the LCD display will change to indicate readiness.

2. Select Steaming Mode

The steamer offers two modes for different fabric types:

Image: The steamer's LCD display illustrating the ECO mode for thin fabrics like T-shirts and shirts, and the POWER mode for thicker fabrics such as dresses and curtains.

• ECO Mode: Ideal for delicate and thin fabrics like T-shirts, shirts, and suits.
• POWER Mode: Suitable for thicker fabrics such as dresses, curtains, and upholstery.
• Press the mode selection button on the handle to switch between ECO and POWER modes as displayed on the LCD.

3. Steaming Your Garments

Hold the garment taut with one hand. With the other hand, hold the steamer and press the steam trigger to release steam. For continuous steam, engage the locking mechanism on the steam button.

Image: The LEBENLANG steamer being used for both vertical steaming of hanging clothes and horizontal steaming on a flat surface, demonstrating its versatility.

• Vertical Steaming: Hang the garment on a hanger. Hold the steamer upright and move it slowly over the fabric, allowing the steam to penetrate and relax the fibers.
• Horizontal Steaming: For more stubborn wrinkles or specific areas, lay the garment flat on a heat-resistant surface. The steamer is designed to be leak-proof for both vertical and horizontal use.
• Using Attachments: The Anti-Lint Brush helps remove lint and pet hair while steaming. The Multi-Material Brush is effective for deeper penetration on thicker fabrics.
• Ironing Glove: Wear the included ironing glove on the hand holding the garment to protect it from the hot steam and provide a firm surface for steaming.

Image: The LEBENLANG steamer in use with the ironing glove for hand protection, and close-ups of the lint brush attachment and the attachment for thick fabrics, demonstrating their application.

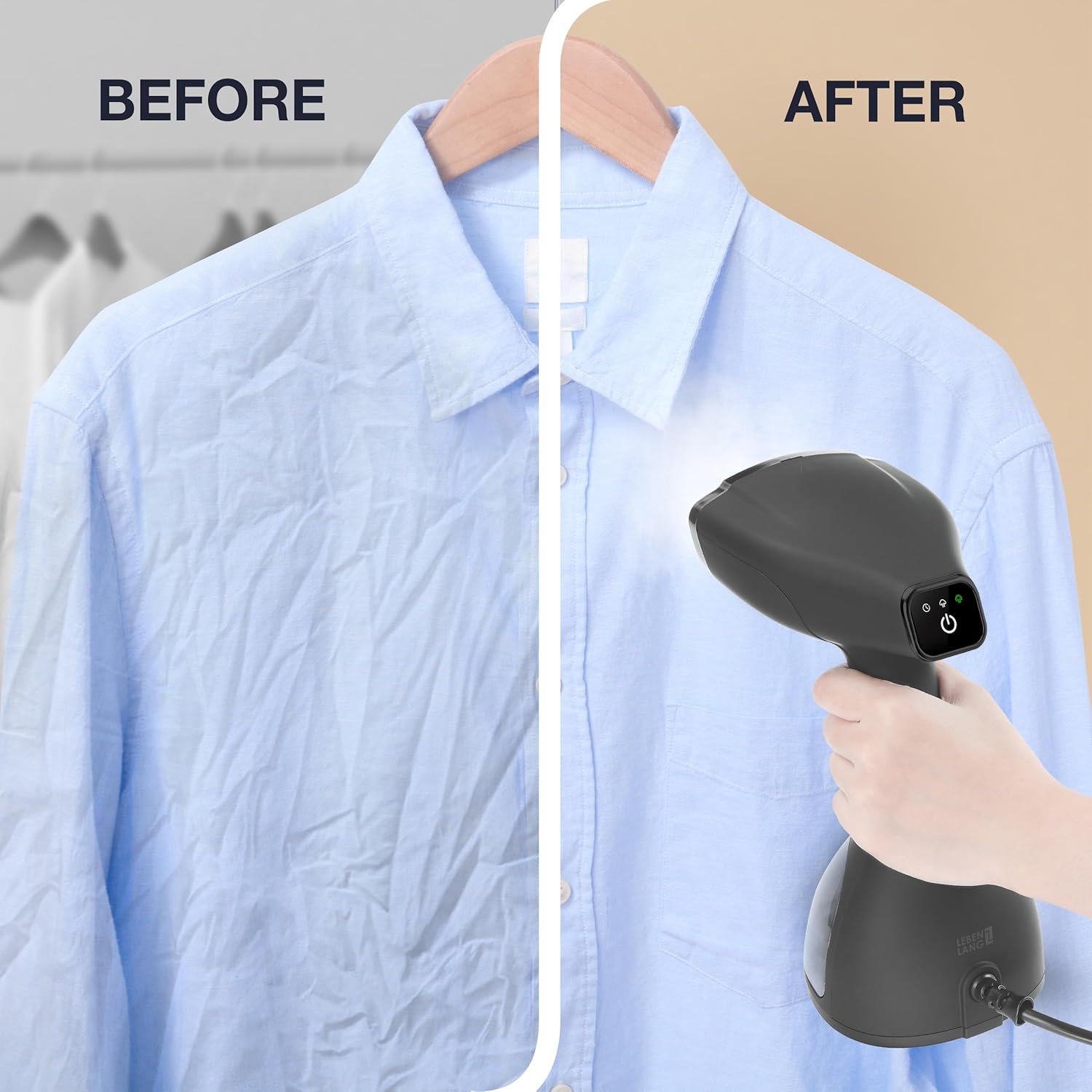

Image: A visual comparison showing a heavily wrinkled shirt before steaming and the same shirt appearing smooth and refreshed after being treated with the LEBENLANG steamer.

4. After Use

• Press the power button to turn off the steamer.
• Unplug the power cord from the outlet.
• Allow the steamer to cool down completely before emptying the water tank and storing.

Maintenance

1. Empty Water Tank: After each use, ensure the steamer is cool and unplugged. Open the water tank cap and carefully empty any remaining water. This prevents mineral buildup.
2. Clean Exterior: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Descaling (Periodically): If you notice reduced steam output or mineral residue, mix a solution of 50% white vinegar and 50% water. Fill the tank with this solution and run the steamer until half the solution is used. Turn off, unplug, and let it sit for 30 minutes. Then, run the rest of the solution through. Rinse the tank thoroughly with fresh water and run fresh water through the steamer to clear any vinegar residue.
4. Storage: Store the steamer in a cool, dry place, away from direct sunlight and moisture. Ensure the water tank is empty before storage.

Troubleshooting

Specifications

Warranty and Support

The LEBENLANG Portable Garment Steamer QH09 comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical support, troubleshooting beyond this manual, or warranty claims, please contact LEBENLANG customer service. Contact information can typically be found on the product packaging or the official LEBENLANG website.
