Panasonic Inverter Refrigerator NR-BT43PV1TB User Manual
Model: NR-BT43PV1TB | Brand: Panasonic
Product Overview
This manual provides essential information for the safe and efficient operation of your Panasonic Inverter Refrigerator, model NR-BT43PV1TB. This two-door, top-freezer refrigerator offers a total capacity of 387 liters and features advanced technologies for energy efficiency and food preservation.
- Frost Free: Eliminates the need for manual defrosting.
- Titanium Finish: Durable and stylish exterior.
- 387L Capacity: Ample storage space for fresh and frozen foods.
- Inverter Technology: Achieves up to 45% energy savings by optimizing compressor speed.
- Smartsense: Intelligent sensors adapt cooling based on usage patterns.
- Antibacteria AG: Helps maintain a hygienic environment inside the refrigerator.
- 95L Jumbo Freezer: Spacious freezer compartment.
- Electronic Panel: Intuitive controls for easy temperature adjustment and feature management.
Image: Front view of the Panasonic Inverter Refrigerator NR-BT43PV1TB, showcasing its sleek dark finish and top-mounted freezer door.

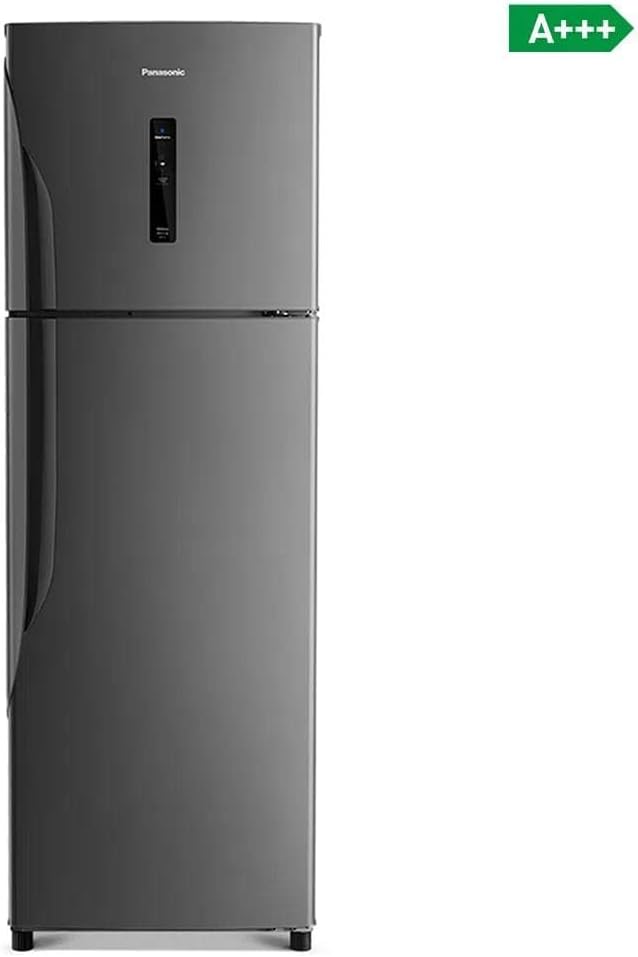

Image: The refrigerator's front, highlighting its A+++ energy efficiency rating, indicating high energy savings.
Setup and Installation
1. Unpacking
Carefully remove all packaging materials, including tape and protective films. Retain packaging for future transport if needed. Inspect the refrigerator for any damage incurred during shipping.
2. Placement
- Place the refrigerator on a firm, level floor.
- Ensure adequate clearance around the unit for proper ventilation (minimum 10 cm at the back and sides, 30 cm at the top).
- Avoid direct sunlight or heat sources (e.g., stoves, radiators) to optimize energy efficiency.
- The product dimensions are approximately 64 cm (depth) x 64 cm (width) x 186 cm (height).
Image: Dimensional diagram of the refrigerator, indicating its height (186cm), width (64cm), and depth (64cm) for proper placement planning.
Image: Side view of the refrigerator, illustrating its compact depth suitable for various kitchen layouts.
3. Leveling
Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
4. Power Connection
Connect the refrigerator to a dedicated 110V power outlet. Allow the unit to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Image: The empty interior of the refrigerator, displaying the arrangement of shelves, door bins, and the crisper drawer before food loading.
Operating Instructions
1. Initial Operation
After plugging in, the refrigerator will begin cooling. It may take several hours for the internal temperature to reach optimal levels. Avoid placing large quantities of food inside during the initial cooling period.
2. Temperature Control (Electronic Panel)
The electronic control panel, located on the freezer door, allows for precise temperature adjustments. Refer to the panel for specific settings and modes.

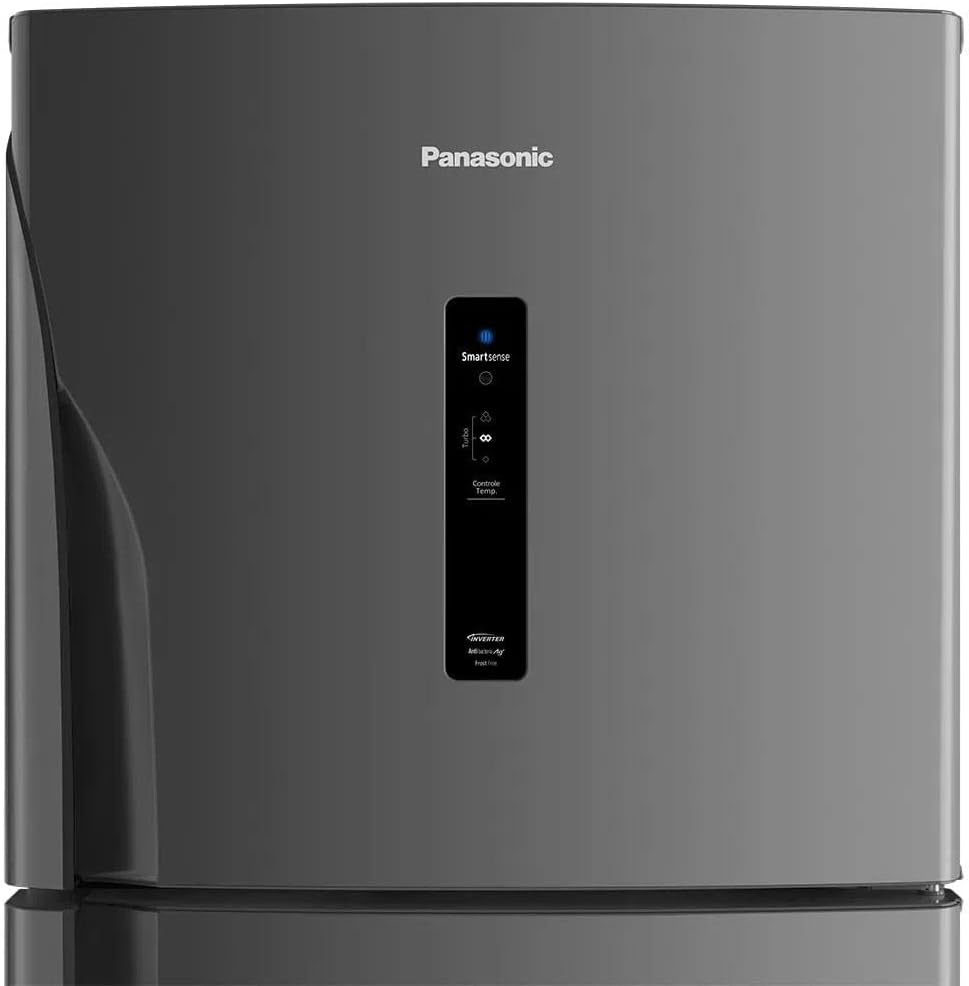

Image: Detail of the electronic control panel, featuring the Smartsense indicator and temperature adjustment buttons for the refrigerator.
3. Smartsense Feature
The Smartsense technology uses sensors to monitor usage patterns and ambient conditions, automatically adjusting cooling to maintain optimal temperatures and save energy.
4. Food Storage
- Refrigerator Compartment (292 Liters): Ideal for fresh foods, dairy, and beverages. Utilize the adjustable shelves and door bins for organized storage.
- Vegetable Crisper: Designed to maintain humidity levels for fruits and vegetables, extending their freshness.
- Freezer Compartment (95 Liters): Suitable for long-term storage of frozen foods.
Image: The refrigerator's interior, showcasing organized food storage across multiple shelves, door bins, and the dedicated vegetable crisper.
Image: A detailed view of the spacious vegetable crisper, filled with a variety of fresh produce, highlighting its capacity for fruits and vegetables.
Image: The refrigerator door shelves, demonstrating their capacity to hold multiple bottles, jars, and cans, providing convenient access to frequently used items.
Care and Maintenance
1. Cleaning the Interior
Regularly clean the interior with a mild detergent and warm water. Wipe dry with a soft cloth. Avoid abrasive cleaners or solvents. Remove shelves and drawers for thorough cleaning.
2. Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. For the titanium finish, use a non-abrasive cleaner specifically designed for stainless steel or similar finishes. Ensure the refrigerator is unplugged before cleaning.
3. Frost Free System
This refrigerator features a Frost Free system, eliminating the need for manual defrosting. If excessive frost builds up, check if the door is sealing properly or if the temperature setting is too low.
4. Power Outages
During a power outage, keep the refrigerator and freezer doors closed to maintain internal temperatures for as long as possible. Food can remain frozen for several hours if the doors are not opened.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | Not plugged in; power outage; circuit breaker tripped. | Check power cord connection; verify power supply; reset circuit breaker. |
| Refrigerator is not cold enough. | Temperature setting too high; door left open; excessive food load; poor ventilation. | Adjust temperature setting; ensure door is closed; allow space for air circulation; check clearances. |
| Unusual noises. | Refrigerator not level; items vibrating inside; normal operating sounds (e.g., refrigerant flow). | Level the refrigerator; rearrange items; consult a technician if noises are persistent and abnormal. |
| Water on floor or inside. | Drain tube clogged; door not sealing properly. | Clear drain tube; check door gasket for obstructions or damage. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | Panasonic |
| Model Number | NR-BT43PV1TB (Part Number), NR-BT43PV1TA (Model Information) |
| Configuration | Top Freezer, Two-Door Refrigerator |
| Total Capacity | 387 Liters |
| Refrigerator Capacity | 292 Liters (Vegetable/Fresh Food Space) |
| Freezer Capacity | 95 Liters |
| Dimensions (WxDxH) | 64 cm x 64 cm x 186 cm |
| Weight | 59 Kilograms |
| Energy Efficiency | A+++ (BEE 5 Stars) |
| Annual Energy Consumption | 375 Kilowatt Hours Per Year |
| Voltage | 110 Volts |
| Defrost System | Frost Free |
| Special Features | Inverter Compressor, Smartsense, Antibacteria AG, Electronic Panel |
| Material Type | Stainless Steel |
| Color | Black |
| Number of Shelves | 7 |
| Number of Drawers | 1 |
| Door Hinges | Right |
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Panasonic website. Ensure you have your model number (NR-BT43PV1TB) and purchase date available when contacting support.
You can also visit the Panasonic Store on Amazon for additional product information and support resources.
