Fenix GL19R Tactical Flashlight User Manual

1. Introduction

The Fenix GL19R is a high-performance, rechargeable LED tactical flashlight designed for handguns and pistols. It features a powerful 1200 lumen output, ambidextrous switches for easy operation, and a robust, recoil-resistant aluminum body. This manual provides detailed instructions for the safe and effective use, setup, and maintenance of your GL19R flashlight.

2. Package Contents

Image: Contents of the Fenix GL19R package, showing the flashlight, battery, USB-C charging cable, GL and 1913 rail plates, spare O-ring, user manual, and warranty card.

Please verify that all items listed below are included in your package:

• Fenix GL19R Tactical Mountable Light
• ARB-L18-1100P Li-ion Rechargeable Battery
• USB Type-C Charging Cable
• GL Rail Plate (pre-installed)
• 1913 Rail Plate (alternative)
• Spare O-Ring
• User Manual
• Warranty Card
• EdisonBright charging cable carry case (bundle specific)

3. Key Features

Image: The Fenix GL19R flashlight mounted on a firearm, illustrating its compact design and high output capabilities.

• Max 1200 Lumen Output: Utilizes a Luminus SFT40 LED for powerful illumination.
• Rechargeable Design: Convenient USB Type-C charging without removing the battery.
• Ambidextrous Switches: Dual switches for momentary-on or constant-on activation.
• Rail Compatibility: Includes GL and 1913 (Picatinny) rail plates for broad compatibility.
• Battery Level Indicator: Provides real-time battery status.
• Durable Construction: Made from aluminum, recoil resistant, and IP66 rated for protection against dust and strong water jets.
• Compact and Lightweight: Weighs only 3.5 ounces (including battery).

4. Setup and Installation

4.1 Battery Installation

The Fenix GL19R comes with an ARB-L18-1100P Li-ion rechargeable battery pre-installed. If you need to access or replace the battery:

1. Unscrew the tail cap of the flashlight.
2. Insert the ARB-L18-1100P battery with the positive (+) end facing towards the head of the flashlight.
3. Screw the tail cap back on securely.

4.2 Rail Plate Installation

The GL19R is compatible with most full-size pistols featuring a GL or MIL-STD-1913 (Picatinny) rail. It comes with the GL rail plate pre-installed. To change the rail plate:

1. Locate the small screw on the side of the flashlight that secures the rail plate.
2. Unscrew and remove the existing rail plate.
3. Align the desired rail plate (GL or 1913) with the flashlight body.
4. Secure the new rail plate with the screw. Ensure it is tightened firmly.

4.3 Mounting the Flashlight

To mount the GL19R onto your firearm's rail:

1. Loosen the mounting clamp screw on the side of the flashlight.
2. Slide the flashlight onto the firearm's accessory rail until it clicks into place.
3. Tighten the mounting clamp screw firmly to secure the flashlight. Ensure it is stable and does not wobble.

5. Operation

Image: Close-up of the Fenix GL19R's ambidextrous switches, detailing their functions for momentary-on, output selection, and locking the device.

5.1 Power On/Off

• Momentary-On: Press and hold either of the ambidextrous switches for over 1 second. Release to turn off.
• Constant-On: Single click either switch to turn the light on. Single click again to turn off.

5.2 Output Selection

With the light on, press and hold either switch and simultaneously single click the other switch to cycle through Turbo and High modes.

5.3 Strobe Mode

With the light on, double click either switch to activate Strobe mode. Single click either switch to return to the previously used mode.

5.4 Lockout Function

To prevent accidental activation, the GL19R features a lockout function:

• Lock: With the light off, press and hold both switches simultaneously for 5 seconds. The light will flash twice to indicate it is locked.
• Unlock: Press and hold both switches simultaneously for 5 seconds. The light will flash twice and then turn on in the last used mode, indicating it is unlocked.

6. Charging

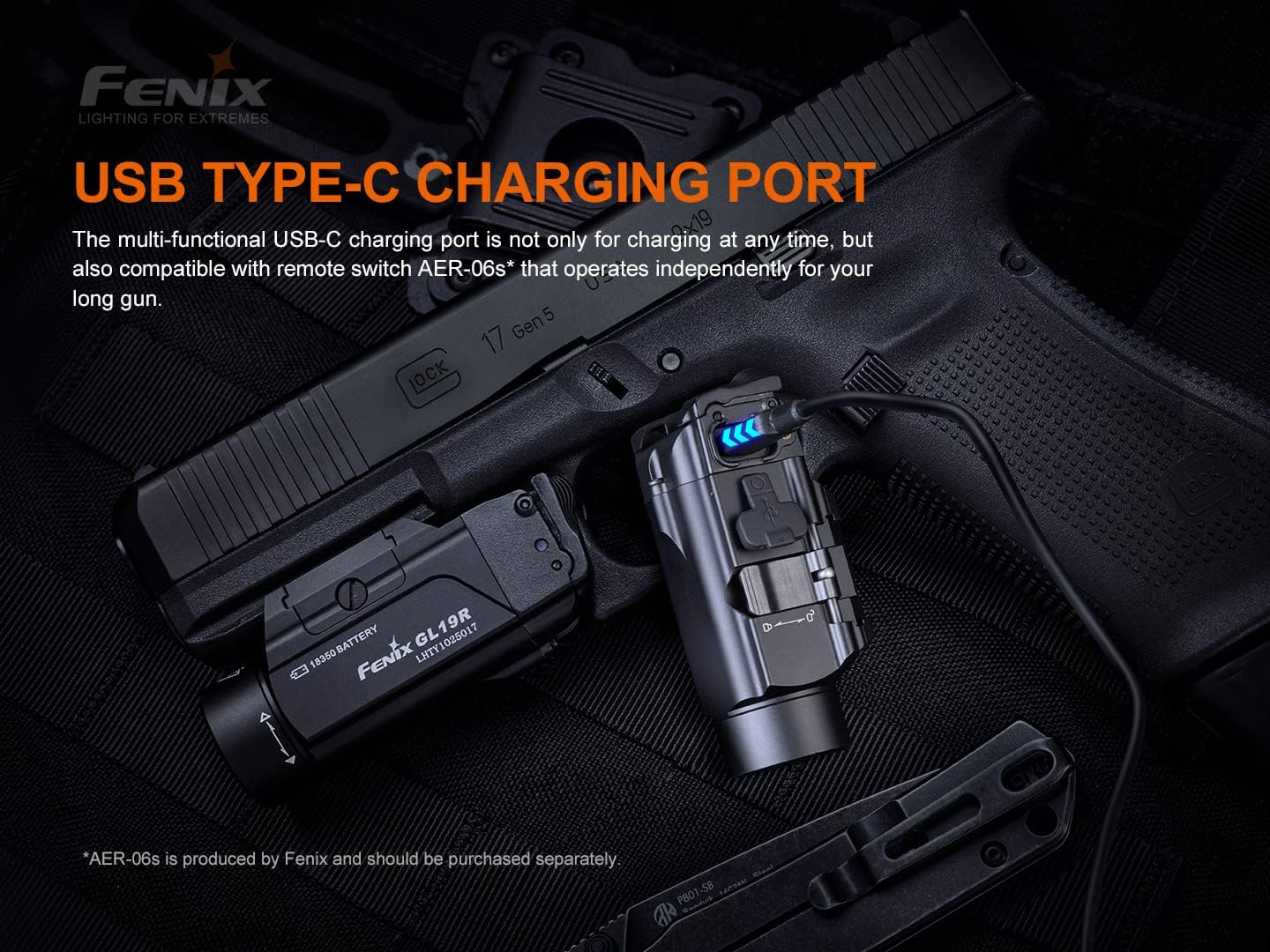

Image: The Fenix GL19R flashlight being charged via its USB Type-C port, with the blue indicator lights showing charging status.

The Fenix GL19R features a built-in USB Type-C charging port for convenient recharging of the ARB-L18-1100P battery.

1. Locate the USB Type-C charging port on the side of the flashlight.
2. Open the protective rubber cover.
3. Connect the supplied USB Type-C charging cable to the flashlight and plug the other end into a USB power source (e.g., computer, wall adapter, power bank).
4. The charging indicator lights will illuminate to show the charging status. Typically, blue lights indicate charging progress, and solid blue lights indicate a full charge.
5. Once charging is complete, disconnect the cable and securely close the rubber cover to maintain the IP66 rating.

6.1 Battery Level Indication

The GL19R features a battery level indicator to help you monitor the battery status:

• Solid Blue: 100% - 85%
• Flashing Blue: 85% - 50%
• Solid Red: 50% - 25%
• Flashing Red: 25% - 0% (Recharge immediately)

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Fenix GL19R flashlight.

• Cleaning: Clean the body of the flashlight with a soft cloth. For optical lens, use a lens cleaning cloth.
• O-Ring Maintenance: Regularly inspect the O-ring for wear and tear. Replace if damaged to maintain the IP66 water resistance. A spare O-ring is included.
• Thread Lubrication: Apply a thin layer of silicone grease to the threads of the tail cap periodically to ensure smooth operation and water resistance.
• Battery Care: If the flashlight will not be used for an extended period, remove the battery to prevent leakage and damage. Store the battery in a cool, dry place.
• Avoid Disassembly: Do not disassemble the sealed head of the flashlight as it may damage the light and void the warranty.

8. Troubleshooting

If your Fenix GL19R is not functioning correctly, please refer to the following common issues and solutions:

If the problem persists, please contact Fenix customer support for further assistance.

9. Specifications

Image: A detailed table outlining the technical specifications and performance parameters of the Fenix GL19R flashlight.

Output Modes:

• Turbo: 1200 Lumens / 1 hour runtime / 210 meters beam distance
• High: 350 Lumens / 2 hours runtime / 110 meters beam distance
• Strobe: 1200 Lumens

Note: The above specifications are from the results produced by Fenix through its laboratory testing using one Fenix ARB-L18-1100P rechargeable power battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery used.

10. Warranty and Support

Fenix provides a warranty for its products. Please refer to the warranty card included in your package for specific terms and conditions. Generally, Fenix flashlights are warranted against defects in material and workmanship for a period of 5 years from the date of purchase (excluding battery and accessories).

For technical support, warranty claims, or any inquiries regarding your Fenix GL19R flashlight, please contact Fenix customer service or visit the official Fenix website. Contact information can typically be found on the warranty card or the Fenix brand store page.

Fenix Official Website: www.fenixlight.com
Fenix Amazon Store: Visit the Fenix Store on Amazon
