1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your JYLH JOYSEEKER Foldable Mobile Standing Desk. Please read this manual thoroughly before use to ensure proper function and safety.
Image: The JYLH JOYSEEKER Foldable Mobile Standing Desk shown in both its upright, in-use configuration with a laptop, and its compact, folded state for storage.
2. Safety Information
WARNING: Failure to follow these safety guidelines may result in injury or damage to the product.
- Always assemble the desk according to the provided instructions.
- Keep the desk on a stable and level surface. Ensure all locking mechanisms are properly engaged when the desk is in use or stationary.
- Never leave children unattended near the desk to prevent tip-over injuries.
- Do not exceed the weight capacity of the desk to maintain stability. The dynamic state weight capacity is 17.6 lbs, and the static state weight capacity is 50 lbs.
- Avoid placing hot items directly on the desktop surface.
- Keep hands and fingers clear of moving parts during height and tilt adjustments.
3. Package Contents
Verify that all components are present before beginning assembly:
- Desktop Surface with integrated tilt mechanism
- Main Support Column with gas spring mechanism
- Base Frame with pre-installed wheels
- Casters (4 total, 2 lockable)
- Assembly Hardware (screws, wrench)
- User Manual (this document)
4. Assembly Instructions
Follow these steps carefully to assemble your mobile standing desk. For a visual guide, please refer to the installation videos provided below.

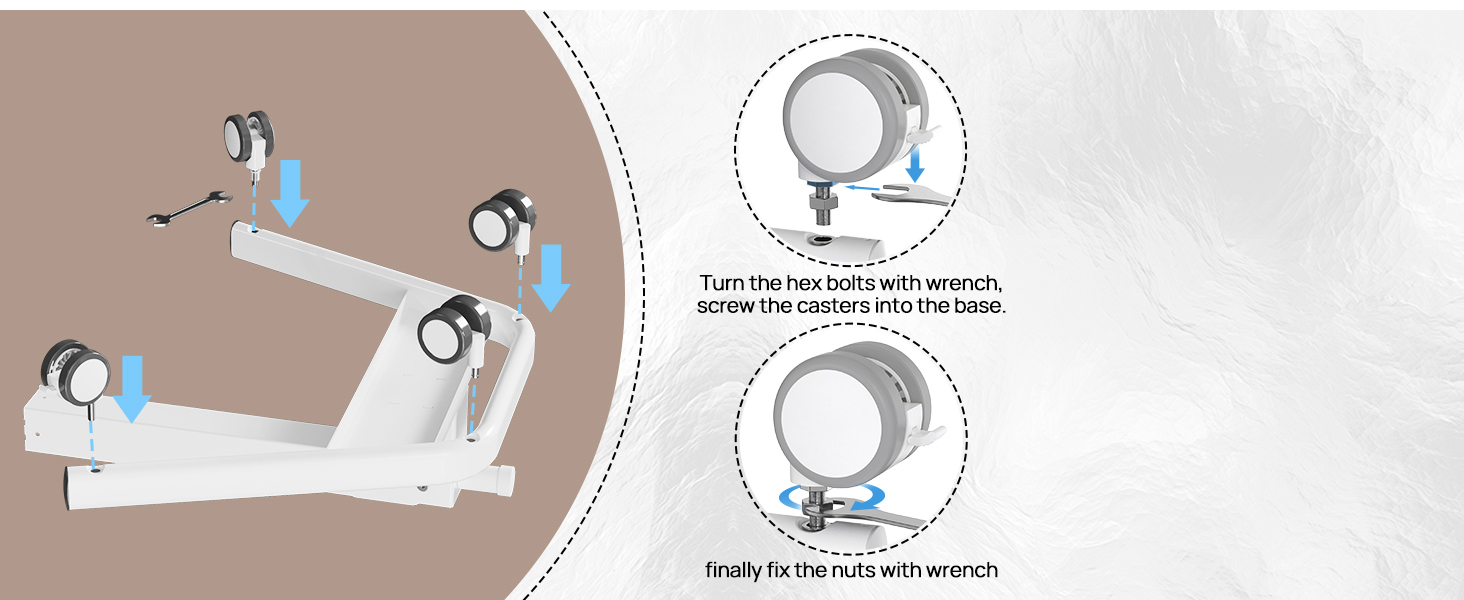

4.1. Attaching the Casters
The base frame comes with pre-installed wheels. Ensure the casters are securely tightened. Two of the four casters are lockable for stability.
Image: The desk's base with 360-degree swivel casters, highlighting the lockable feature for stability.
Video Guide: Lockable Wheels Installation
Video: A short demonstration on how to install and secure the lockable wheels on the desk's base.
4.2. Assembling the Desktop to the Column

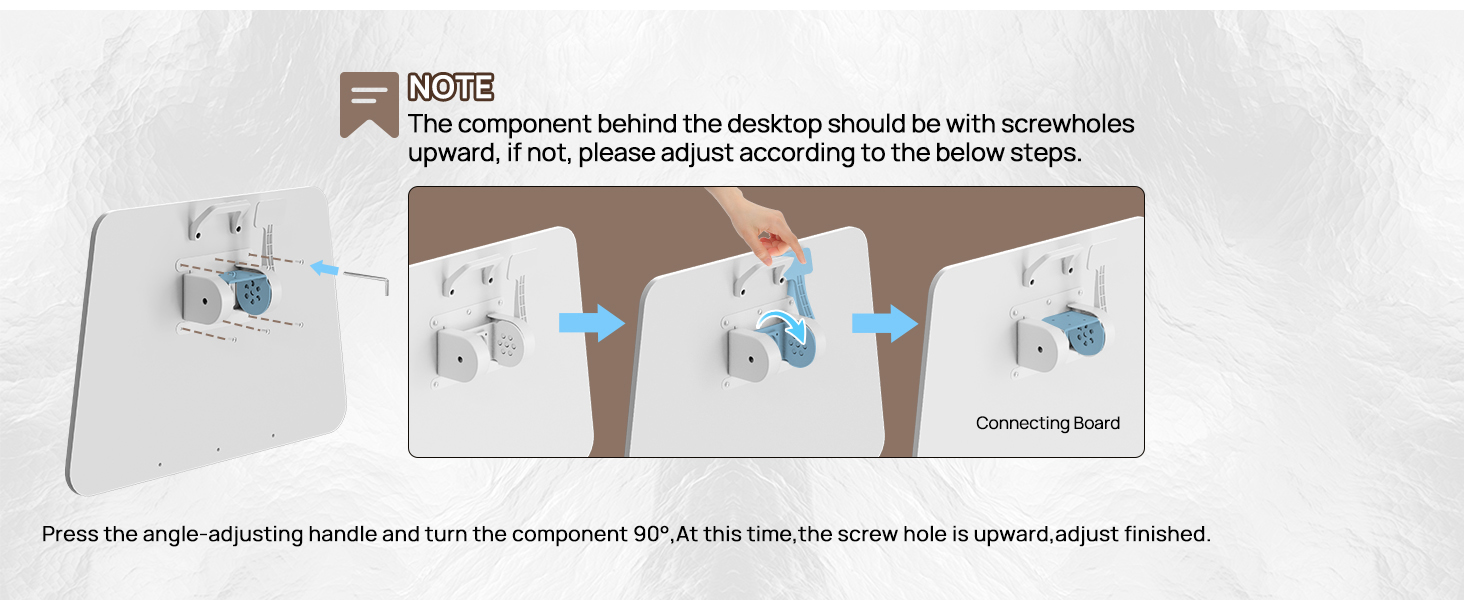

Carefully attach the desktop to the main support column. Ensure the component behind the desktop has its screw holes facing upward. If not, adjust its orientation by pressing the angle-adjusting handle and turning the component 90 degrees until the screw hole is upward.
Image: Step-by-step visual guide for attaching the desktop to the support column, including a note on adjusting the connecting board's orientation.
Video Guide: Foldable Mobile Standing Desk Installation
Video: A comprehensive installation video demonstrating the full assembly process of the foldable mobile standing desk.
5. Operating Instructions
5.1. Height Adjustment
The desk features a powerful gas spring mechanism for smooth height adjustment. To adjust the height, locate the handle on the side of the main support column. Squeeze the handle and gently raise or lower the desktop to your desired height between 29.9 inches and 42.9 inches. Release the handle to lock the desk in position.

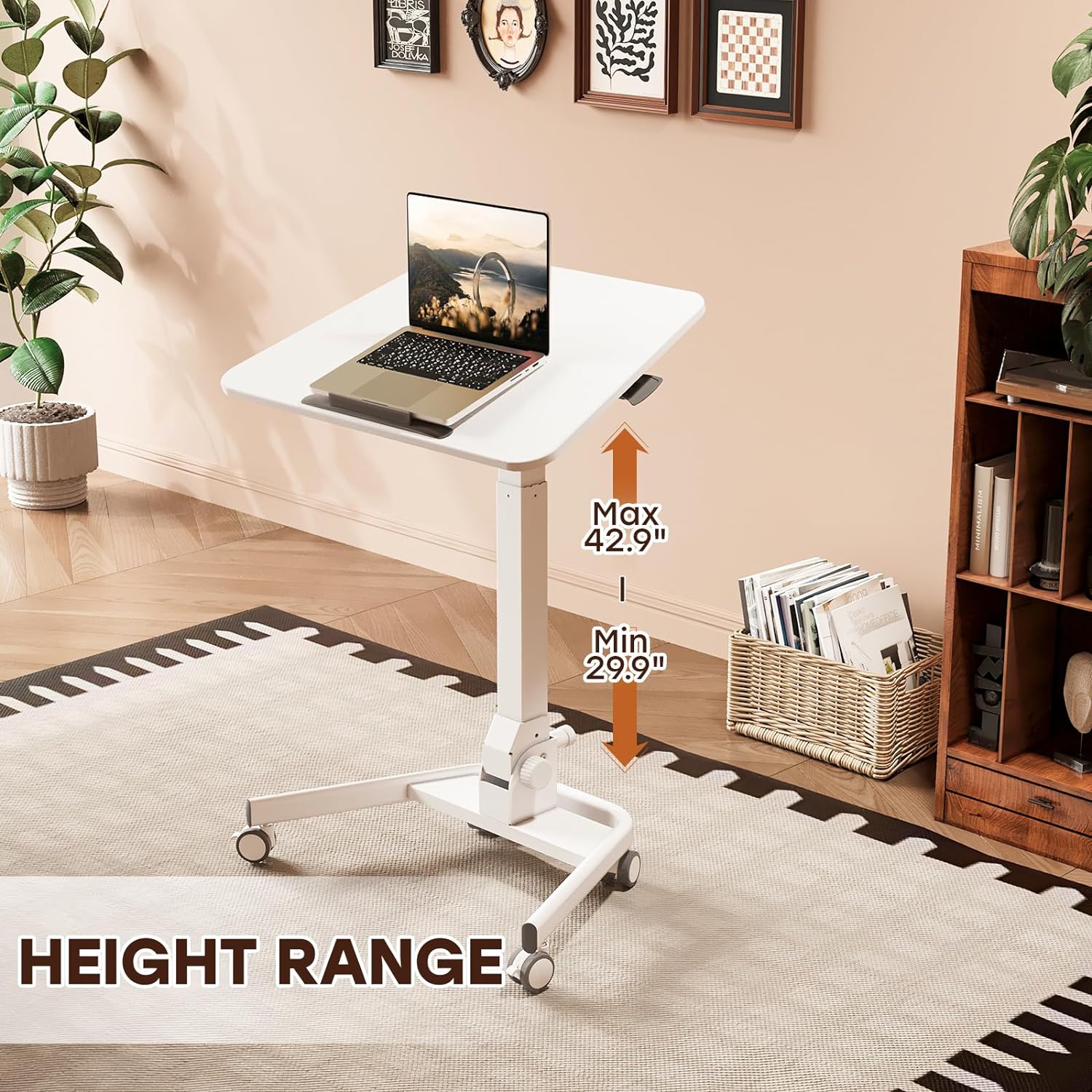

Image: Visual representation of the desk's adjustable height range, from a minimum of 29.9 inches to a maximum of 42.9 inches.
Video Guide: Component Adjust Video
Video: A brief demonstration of how to adjust the desk's components, including height adjustment.
5.2. Desktop Tilt Adjustment
The desktop can be tilted from 0° to 90° to provide ergonomic comfort for various activities like writing, reading, or drawing. To adjust the tilt, locate the tilt adjustment handle (often near the desktop hinge). Squeeze the handle and adjust the desktop to your preferred angle. Release the handle to lock the tilt.
Image: The desk demonstrating its 0-90 degree tilt capability, suitable for writing, reading, or compact storage.
Image: Detail of the adjustable edge stopper, designed to securely hold laptops or books when the desktop is tilted.
5.3. Folding and Storage
The desk is designed for easy folding and compact storage. To fold the desk:
- Lower the desktop to its lowest height (29.9 inches) by squeezing the height adjustment handle.
- Flip the desktop to a 90-degree vertical position using the tilt adjustment.
- Loosen the knob located on the main column to allow the base to fold inward.
- Fold the base until the desk is in its compact, upright storage position.
Image: A four-step diagram illustrating the process of folding the desk for easy storage.

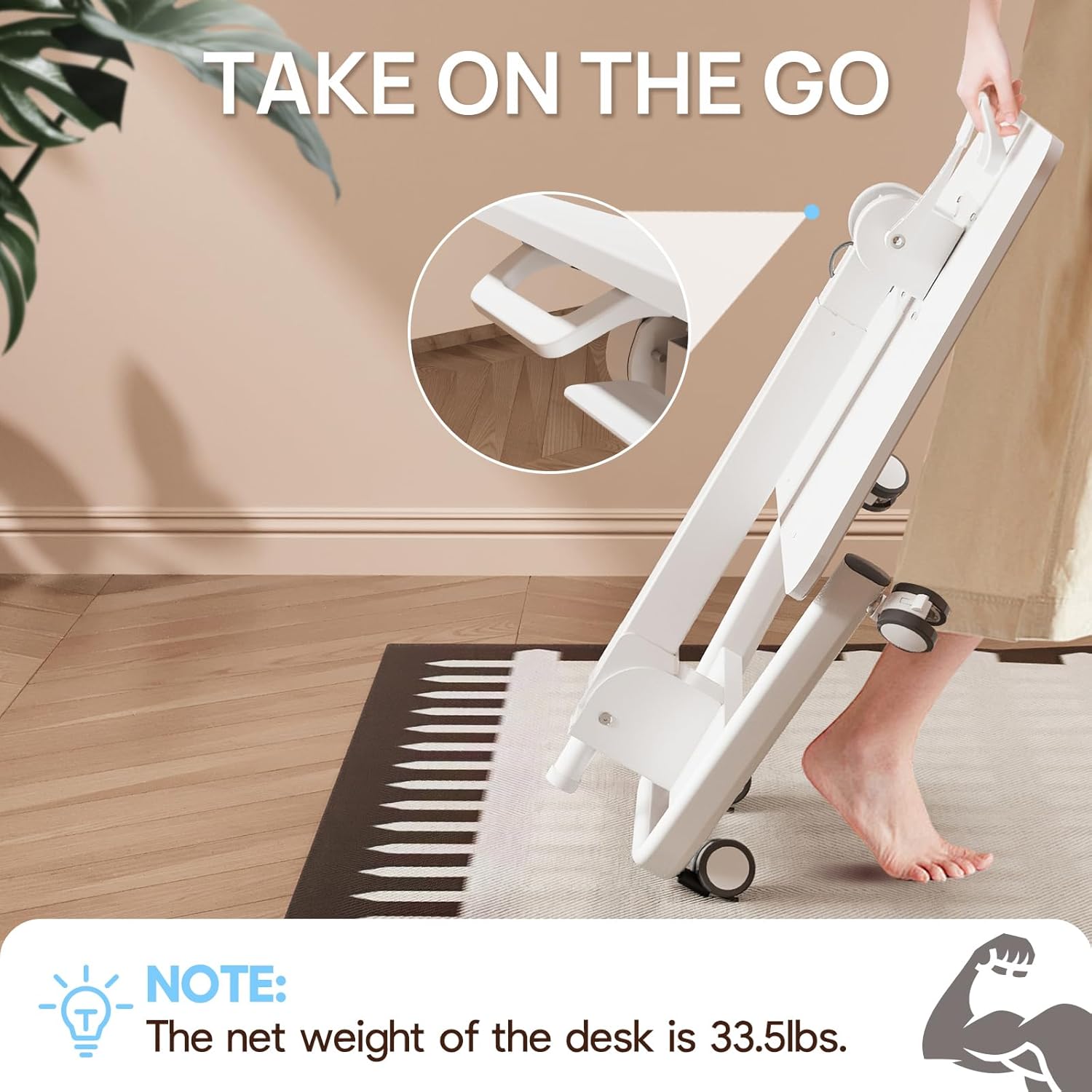

Image: A person demonstrating the ease of moving the folded desk, highlighting its portability.
6. Maintenance
To ensure the longevity and optimal performance of your desk, follow these simple maintenance tips:
- Cleaning: Wipe the desktop and frame with a dry cloth. For stubborn marks, use a slightly damp cloth with mild soap, then dry immediately. Avoid abrasive cleaners.
- Casters: Periodically check the casters for debris (hair, lint) and clean as needed to ensure smooth rolling. Ensure the caster nuts are tightened to prevent wobbling.
- Gas Spring: The gas spring mechanism is maintenance-free. If you notice any issues with height adjustment, contact customer support.
- Hardware: Occasionally check all screws and bolts to ensure they are tight. Retighten if necessary.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Desk is wobbly or unstable. | Loose assembly hardware; uneven floor; casters not locked. | Ensure all screws and bolts are tightened. Move the desk to a level surface. Engage the locks on the casters. |
| Difficulty adjusting height. | Handle not fully squeezed; excessive weight on desktop. | Ensure the handle is fully squeezed during adjustment. Reduce weight on the desktop if it exceeds capacity. |
| Desktop does not tilt or lock in place. | Tilt handle not fully engaged/released; obstruction. | Ensure the tilt handle is properly squeezed to adjust and released to lock. Check for any obstructions. |
| Desk does not fold easily. | Knob not loosened; desktop not vertical. | Ensure the folding knob on the column is loosened. Make sure the desktop is in the 90-degree vertical position before attempting to fold the base. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | B09Z6LK2QN |
| Brand | JYLH JOYSEEKER |
| Color | White |
| Material Type | Engineered Wood, Strong Steel Frame |
| Item Dimensions (L x W x H) | 28 x 19 x 30 inches (unfolded, lowest height) |
| Desktop Dimensions (W x L) | 19.7" x 23.6"/28.7" (irregular surface) |
| Height Adjustment Range | 29.9" to 42.9" |
| Desktop Tilt Range | 0° to 90° |
| Dynamic State Weight Capacity | 17.6 lbs |
| Static State Weight Capacity | 50 lbs |
| Item Weight | 37 Pounds |
| Assembly Required | Yes |
| Casters | 4 (2 lockable, 360° swivel) |
Image: Detailed product dimensions and weight capacities (static and dynamic) for the desk.
Image: A visual representation of the desk's weight capacity, showing it holding several books.
9. Warranty and Support
JYLH JOYSEEKER is committed to providing high-quality products. For any questions, concerns, or support needs regarding your Foldable Mobile Standing Desk, please contact our customer service team. Please refer to your purchase documentation for specific warranty details.
For further assistance, visit the official JYLH JOYSEEKER store: JYLH JOYSEEKER Store
