DAOKAI 4-Bit Digital Electronic Clock DIY Kit Instruction Manual

Introduction

This document provides comprehensive instructions for assembling and operating your DAOKAI 4-Bit Digital Electronic Clock DIY Kit. This kit is designed for electronics enthusiasts and those looking to practice soldering skills while building a functional digital clock. Please read all instructions carefully before beginning assembly.

Important Note: This product is a DIY kit and requires manual assembly, including soldering. Basic electronic knowledge and practical skills are necessary. If you plan to use the clock for extended periods, a DC power supply is recommended over standard AA batteries due to faster power consumption with batteries.

Product Features

• Time Display: Shows hours and minutes.
• Adjustable Time: Hours and minutes can be set independently.
• Time Correction: Includes a seconds correction function.
• Clock Speed Fine-tuning: Adjustable in 0-9 gears, with a default setting of 5.
• Dual Alarm Clock: Two independent alarm settings with individual on/off switches.
• Hourly Chime: Function can be enabled or disabled.
• Countdown Timer: Up to 99 minutes countdown with an alarm upon completion.
• Stopwatch Function: Features pause and clear options.
• Counter Function: Records key presses or external pulses.
• Display: Utilizes a 0.44-inch dedicated red digital tube.
• Accuracy: Error range of approximately 3 seconds per month.
• PCB Quality: Made from 1.6mm thick FR-4 sheet with clearly mapped and labeled connections.

Kit Contents

Your DAOKAI 4-Bit Digital Electronic Clock DIY Kit includes all necessary components for assembly. The kit consists of a high-quality PCB and various electronic parts that need to be soldered onto the board.

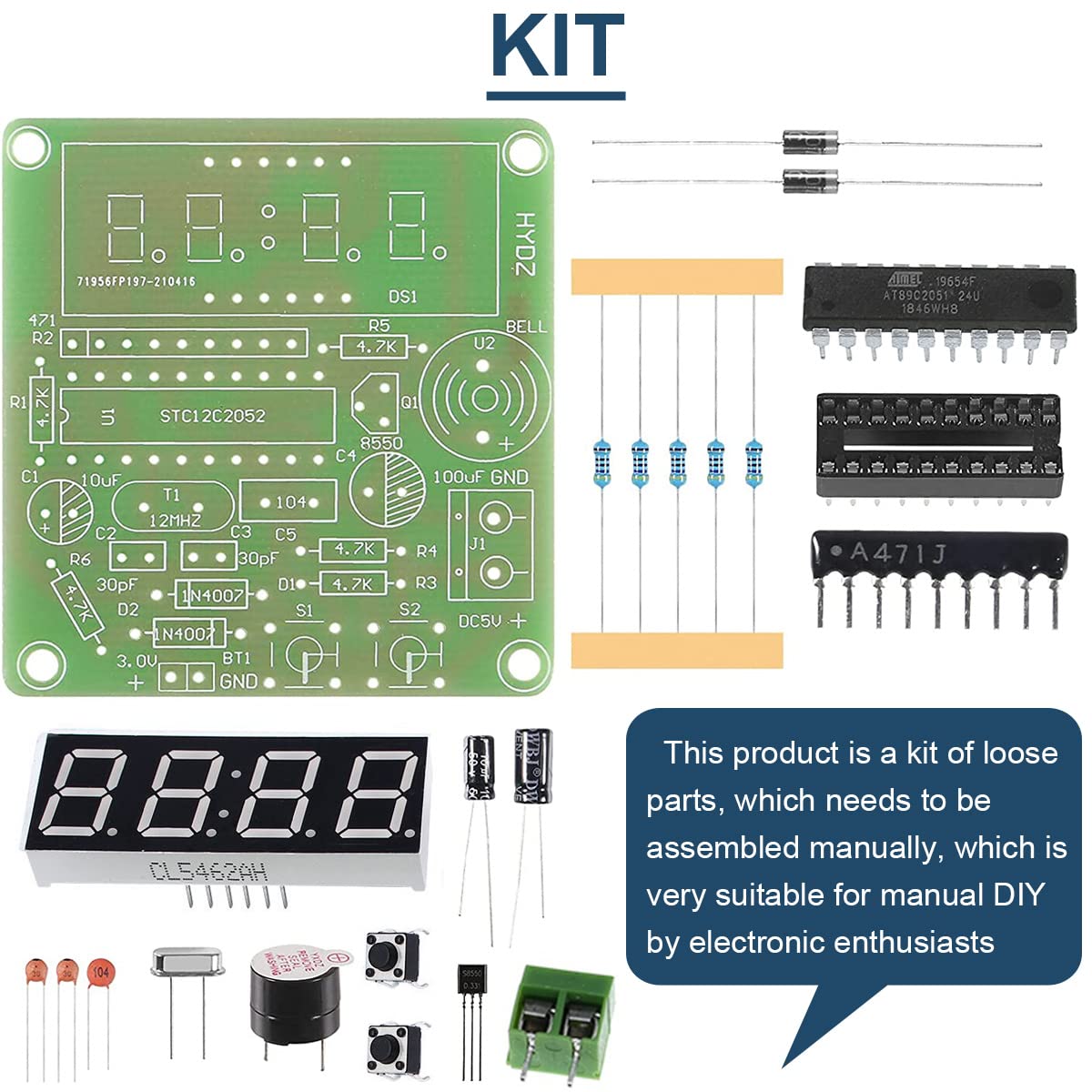

Description: This image displays the complete set of components provided in the kit, including the main PCB, integrated circuits, resistors, capacitors, buttons, a buzzer, the 4-digit display, and other small parts. These components are designed for manual assembly and soldering.

The PCB dimensions are approximately 54 x 51 mm (2.12 x 2.01 inches).

Assembly Instructions (Setup)

Assembly of this kit requires basic soldering skills. Follow the circuit diagram and component labels on the PCB for correct placement and soldering.

1. Component Identification

Before starting, familiarize yourself with all the components provided in the kit. Refer to the 'KIT' image in the previous section to identify each part.

2. Circuit Diagram Reference

The circuit diagram is essential for correct component placement and understanding the connections. Ensure you match each component to its designated spot on the PCB.

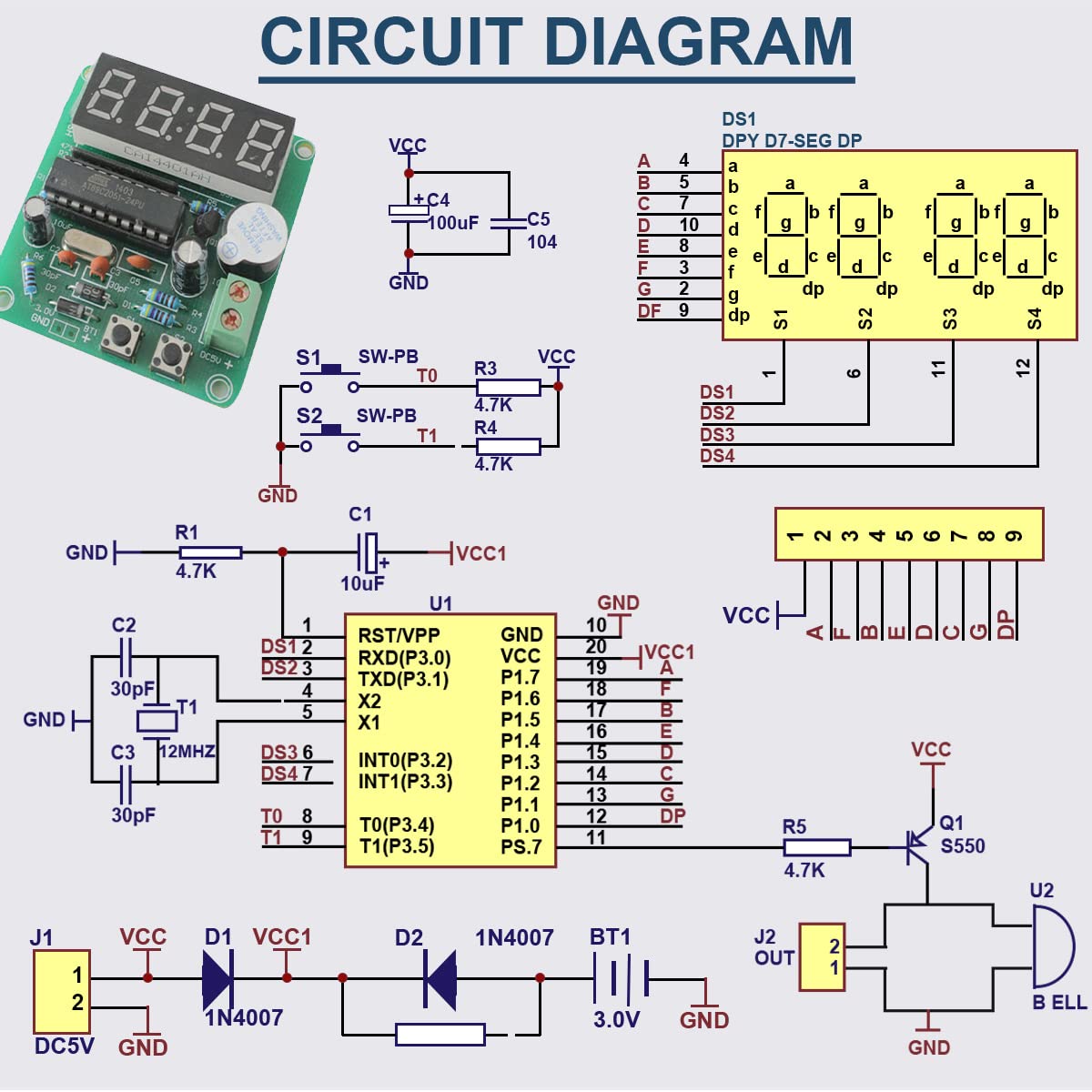

Description: This image presents the detailed circuit diagram, illustrating how each electronic component connects to form the functional clock circuit. It includes pin assignments for the microcontroller (U1), connections for the 7-segment display (DS1), and other passive and active components.

3. Soldering Process

• Start with smaller components like resistors and diodes, then move to capacitors, IC sockets (if provided, or directly solder ICs), and finally larger components like the display and buttons.
• Ensure correct polarity for diodes, electrolytic capacitors, and integrated circuits. The PCB is clearly labeled to assist with this.
• Solder each component securely, ensuring good solder joints without bridges between pads.

4. Power Supply Connection

The clock operates with a supply voltage of DC 3.7V-5.5V. Connect your power source to the designated terminals on the PCB. There is also a battery memory data backup interface for a 3.0V battery (BT1).

Description: This image highlights the power input terminals (Power DC 3.3V-5V) and the battery memory data backup interface (3.0V) on the assembled PCB. It also shows the 4-digit display and control buttons.

Operating Instructions

Once assembled and powered, your digital clock is ready for operation. The kit typically includes two buttons (S1 and S2) for control.

1. Setting the Time

• Press a specific button (e.g., S1) to enter time setting mode. The hour digits may start flashing.
• Use another button (e.g., S2) to increment the hour.
• Press S1 again to switch to minute setting mode, then use S2 to increment minutes.
• Press S1 a third time to exit time setting mode.

2. Adjusting Clock Speed (Fine-tuning)

The clock's speed can be fine-tuned from 0 to 9 gears. Consult the specific button combination or sequence in the kit's detailed instructions (if provided) to access and adjust this setting. The default is typically gear 5.

3. Setting Alarms

The clock supports two independent alarms. The process is similar to setting the time, but you will enter alarm setting mode first. Look for a button press that cycles through time, alarm 1, and alarm 2 settings. Each alarm can be independently enabled or disabled.

4. Using Countdown Timer

Activate the countdown function, set the desired time (up to 99 minutes), and start the countdown. An alarm will sound when the timer reaches zero.

5. Using Stopwatch

The stopwatch function allows you to measure elapsed time. It typically includes controls to start, pause, and clear the stopwatch.

6. Using Counter

The counter function can record key presses or external pulses. Refer to the kit's specific documentation for details on how to connect an external pulse source if applicable.

Maintenance

• Power Supply: For long-term use, it is highly recommended to use a stable DC power supply (3.7V-5.5V) instead of 3 AA batteries, as batteries will drain quickly.
• Cleaning: Keep the PCB and components clean and free from dust. Use a soft, dry cloth for cleaning. Avoid using liquids.
• Environment: Store and operate the clock in a dry environment, away from extreme temperatures and humidity, to prevent damage to electronic components.
• Handling: Handle the assembled board with care to avoid bending the PCB or damaging soldered connections.

Troubleshooting

• Clock Does Not Power On:
  • Check power supply connections and ensure correct voltage (DC 3.7V-5.5V).
  • Verify polarity of power connections.
  • Inspect all solder joints for cold joints or bridges.
• Incorrect Time Display:
  • Ensure the crystal oscillator (e.g., 12MHz) is correctly soldered and functional.
  • Check connections to the 7-segment display.
  • Recalibrate the clock speed if necessary.
• Buttons Not Responding:
  • Check solder joints for the buttons.
  • Ensure buttons are not stuck.
• Intermittent Operation:
  • Review all solder joints for any loose connections.
  • Ensure power supply is stable.

Specifications

Description: This image clearly illustrates the physical dimensions of the PCB, indicating its length and width as 54mm (2.12in) and 51mm (2.01in) respectively.

Warranty and Support

Information regarding specific warranty terms for this DIY kit is not provided. As this is a self-assembly product, successful operation largely depends on the user's assembly skills. For any product-related inquiries or technical assistance, please contact the manufacturer, DAOKAI, through their official support channels.
