Uetmulik Power Recliner Lift Chairs Emomo Model 3MTR 3MR157-203E Linear Actuator Motor Replacement User Manual

Product Overview

The Uetmulik Linear Actuator Motor is a direct replacement for the Emomo Model 3MTR 3MR157-203E motor, commonly found in electric sofas, massage chairs, and power recliners. This component is essential for the smooth and reliable operation of your furniture's reclining and lifting mechanisms.

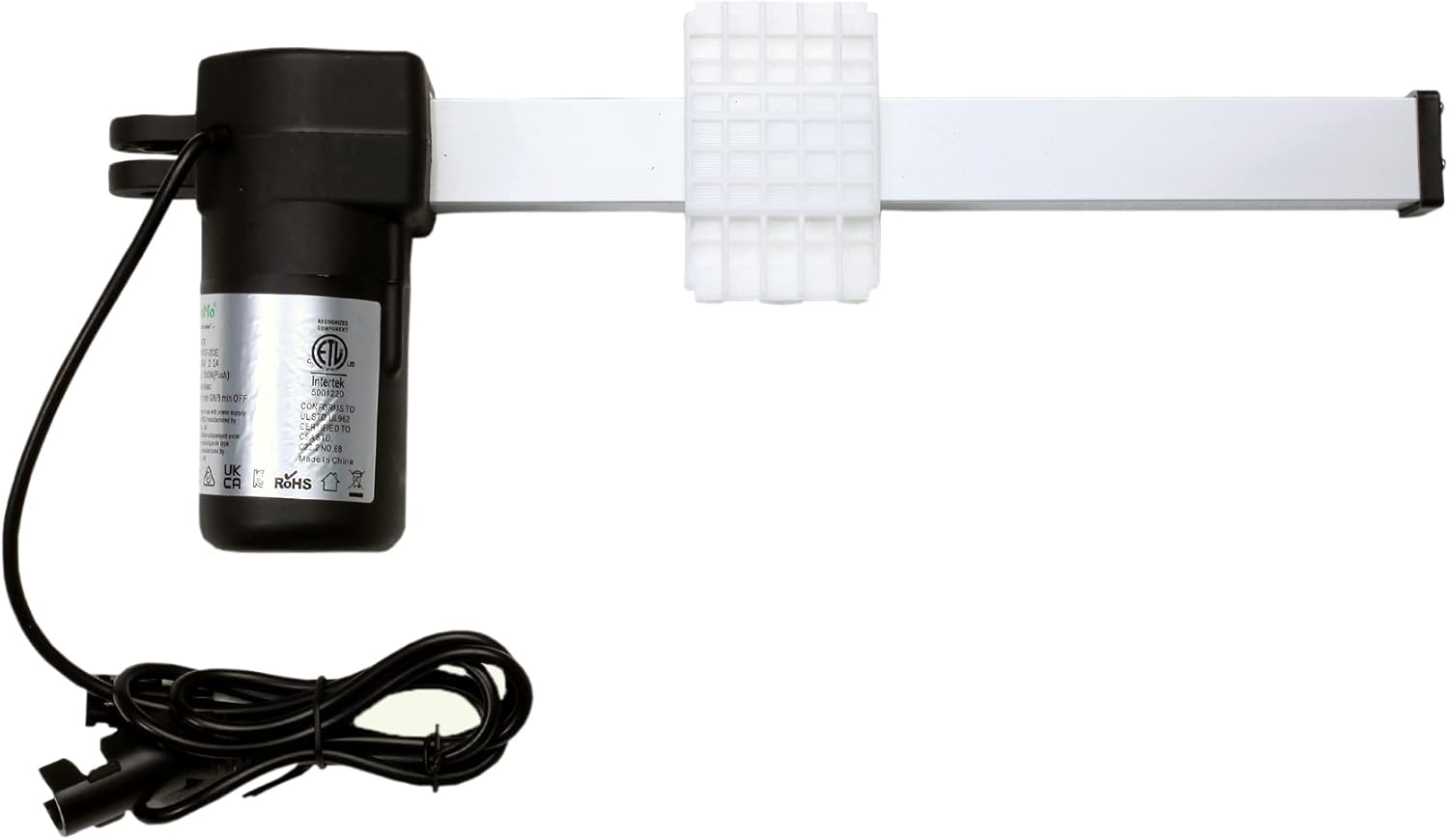

Figure 1: Overview of the Uetmulik Linear Actuator Motor, showing the motor housing, linear rail, and power cable.

Key Features

• Direct replacement for Emomo Model 3MR157-203E Recliner Motor Actuator.
• Minimum install size: 157mm (6.18 inches).
• Stroke length: 203mm (8.00 inches).
• Features a 2-pin flat round power transformer connection.
• Equipped with a 5-pin hand control plug connection.

Important Safety Information

Always ensure the recliner is securely assembled and the motor is properly connected before use. Exceeding the maximum weight capacity may result in damage or injury.

This product is designed for indoor use only. Ensure the installation area is clear of obstructions and that all electrical connections are secure and free from damage.

Setup and Installation

Before beginning installation, ensure the power to the recliner is disconnected. It is recommended to have a second person assist with holding or moving the footrest during installation to ensure safety and ease of assembly.

Pre-Installation Checks

Before ordering and installing the replacement motor, it is crucial to verify the model number and troubleshoot existing components. Check the label on your current motor to confirm it matches Emomo Model 3MTR 3MR157-203E. Also, troubleshoot the recliner's switch/remote and power supply to rule out issues with those components.

Figure 2: Close-up view of the motor label, displaying model number (3MTR 3MR157-203E), input voltage (DC24V 2.2A), max load (1500N), speed (25mm/sec), and duty cycle (1 min ON/8 min OFF).

Installation Steps

1. Disconnect Power: Unplug the recliner from the wall outlet to prevent electrical hazards.
2. Remove Old Motor: Carefully detach the old motor. This typically involves removing four bolts that secure the motor to its bracket and detaching the solid pin with its cotter pin. You may need to cut existing cable ties to free the old cables.
3. Position New Motor: Align the new Uetmulik motor in the correct position.
4. Secure Motor: Attach the new motor by securing the four bolts to the bracket. Then, insert the solid pin and secure it with the cotter pin.
5. Connect Cables: Connect the 2-pin flat round power transformer connection and the 5-pin hand control plug connection. Ensure all connections are firm and correctly seated.
6. Organize Cables: Use small cable ties (not included) to neatly dress and secure the cables, preventing them from interfering with moving parts.
7. Test Functionality: Once installed, plug the recliner back into the power outlet and test the motor's operation using the hand control.

Figure 3: The linear actuator motor showing the attached power and control cables, ready for connection.

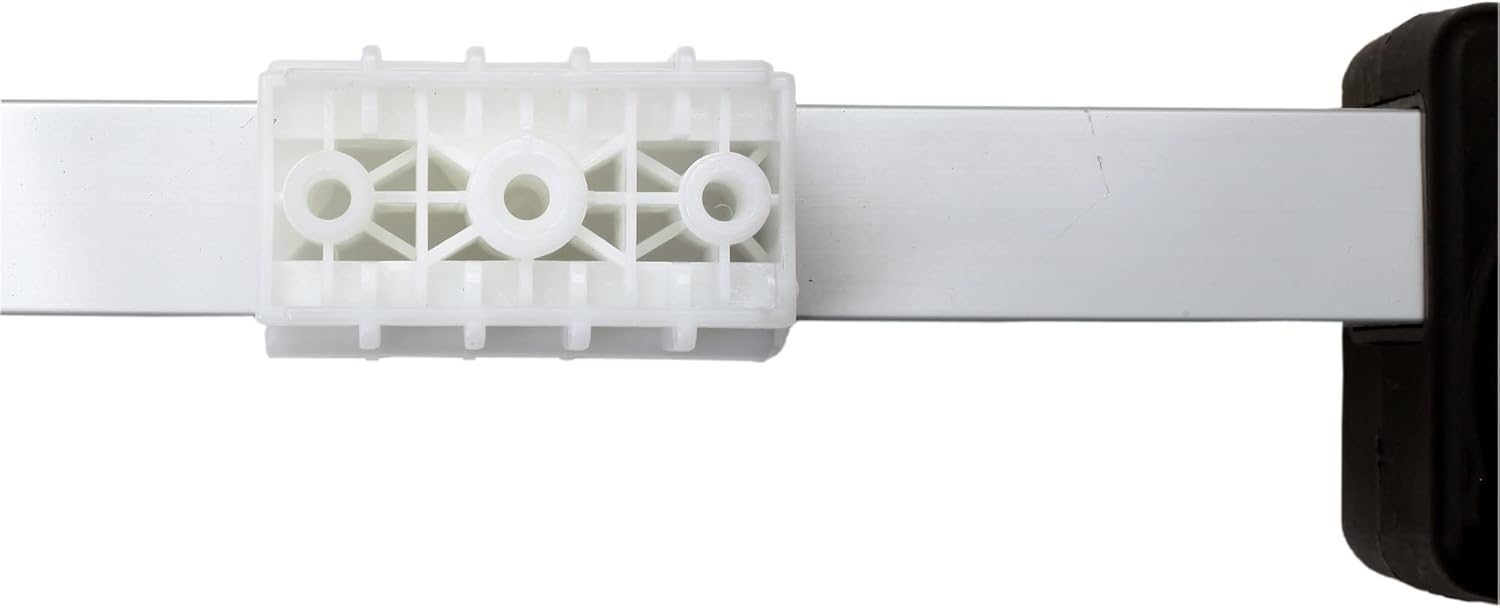

Figure 4: Detail of the white plastic mounting block on the linear rail, which connects to the recliner mechanism.

Operation

The linear actuator motor facilitates the movement of your power recliner's footrest and backrest. Once properly installed and connected to the power supply and hand control, the motor will extend or retract the linear rail based on the commands from your recliner's remote or switch.

Ensure the recliner is placed on a hard, stable surface for optimal operation. Avoid placing objects that could obstruct the movement of the recliner mechanism.

Maintenance

To ensure the longevity and smooth operation of your linear actuator motor, follow these simple maintenance guidelines:

• Cleaning: Wipe clean the motor and rail assembly with a dry or slightly damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Connection Checks: Periodically inspect all electrical connections (power transformer and hand control plugs) to ensure they are secure and free from corrosion or damage.
• Cable Management: Ensure cables remain neatly tied and do not get pinched or tangled in the recliner's moving parts.
• Lubrication: The linear rail mechanism is generally self-lubricating. Do not apply additional lubricants unless specifically instructed by the manufacturer.

Troubleshooting

If your recliner motor is not functioning as expected, consider the following troubleshooting steps:

If troubleshooting steps do not resolve the issue, contact customer support for further assistance.

Technical Specifications

Warranty and Support

Uetmulik stands behind its products. While specific warranty terms are not detailed in this manual, customer feedback indicates strong support from the company, including instances of full refunds for product issues. For any questions, technical assistance, or warranty claims, please contact Uetmulik customer service through the retailer where the product was purchased or via the official Uetmulik brand store on Amazon.

For direct support, please refer to the contact information provided with your purchase or visit the Uetmulik store page on Amazon. (Link: Uetmulik Amazon Store)
