Belifu Dual Channel TENS EMS Unit (Model W-ZZA550) Instruction Manual

Your comprehensive guide to effective pain relief and muscle stimulation.

1. Introduction

The Belifu Dual Channel TENS EMS Unit is designed to provide temporary relief from pain associated with aching and fatigued muscles. This device utilizes Transcutaneous Electrical Nerve Stimulation (TENS) and Electrical Muscle Stimulation (EMS) technologies to deliver therapeutic electrical impulses. It features 24 preprogrammed massage modes and independent A/B dual channels for customized treatment.

2. Safety Information

  • For external use only.
  • Do not use while driving or operating machinery.
  • Consult with a healthcare provider before use if you have a pacemaker or other medical device, are pregnant, or have any health conditions.
  • Stop use if you experience discomfort or pain.

3. Package Contents

Your Belifu TENS EMS Unit package includes the following items:

  • Belifu Dual Channel TENS EMS Unit (1x)
  • Self-Adhesive Electrode Pads (12x): Includes various sizes for different body areas.
  • Lead Wires (3x): For connecting pads to the device.
  • USB Charging Cable (1x)
  • Reusable Fastening Cable Ties: For lead wire management.
  • Dust-Proof Drawstring Storage Bag (1x)
  • Instruction Manual (1x)
Belifu TENS EMS Unit package contents including device, pads, wires, and storage bag

Image: All components included in the Belifu TENS EMS Unit package.

4. Device Features and Controls

The Belifu TENS EMS Unit is designed for user-friendly operation with a clear display and intuitive controls.

Belifu TENS EMS Unit with labeled controls and ports

Image: Detailed view of the device with labels for the On/Off switch, USB port, battery indicator, time display, intensity adjustments (A/B channels), mode selector, pause button, and output connectors.

Key Features:

  • 24 Preprogrammed Modes: Offers a variety of massage sensations for pain and muscle relief.
  • Independent A/B Dual Channels: Allows for different modes and intensities on two separate sets of pads simultaneously.
  • 20 Intensity Levels: Fine-tune the stimulation strength for optimal comfort and effectiveness.
  • Adjustable Timer: Set treatment duration from 10 to 60 minutes.
  • Rechargeable Battery: Provides up to 20 hours of continuous use on a single charge.
  • Pocket-Sized Design: Compact and portable for use anywhere.
Icons representing key features: 24 modes, 20H usage, pocket size, A/B dual channel, adjustable timing, rechargeable design

Image: Visual representation of the unit's core features.

5. Setup

  1. Charge the Device: Connect the USB charging cable to the unit's USB port and plug it into a wall charger, power bank, or laptop USB port. The battery indicator on the screen will show charging status.
  2. Prepare Application Area: Ensure the skin where electrode pads will be placed is clean, dry, and free of oils or lotions for optimal adhesion.
  3. Connect Pads to Lead Wires: Snap the electrode pads onto the lead wires.
  4. Connect Lead Wires to Device: Plug the lead wires into the A and/or B output connectors at the top of the device.
  5. Apply Electrode Pads: Carefully peel the protective film from the pads and firmly stick them onto the desired body area.

Video: This video demonstrates the connection of pads to the device and application for pain relief therapy.

6. Operating Instructions

  1. Turn On: Slide the On/Off switch located at the top of the device to the 'On' position. The screen will illuminate.
  2. Select Mode: Press the 'M' (Mode) button to cycle through the 24 preprogrammed massage modes. The screen will display icons representing different massage types (e.g., hammering, kneading, shiatsu).
  3. Adjust Intensity: Use the '+' and '-' buttons for Channel A and Channel B independently to increase or decrease the intensity level (0-20). Start with a low intensity and gradually increase until a comfortable sensation is felt.
  4. Set Timer: Press the 'T' (Time) button to adjust the treatment duration in 10-minute increments, up to 60 minutes. The device will automatically shut off when the time expires.
  5. Lock/Unlock Screen: To prevent accidental changes during use, long-press the central round button to lock the screen. Long-press again to unlock.
  6. Pause Function: Press the central round button briefly to pause the treatment. Press again to resume.
Step-by-step guide on how to use the Belifu TENS EMS Unit, including connecting pads, turning on, selecting mode, adjusting intensity, and setting time.

Image: Visual guide for basic operation of the TENS EMS unit.

7. Modes and Pad Placement Suggestions

The Belifu TENS EMS Unit offers 24 modes, including hammering, kneading, shiatsu, and more, to address various types of muscle discomfort. The device is suitable for use on the neck, shoulder, back, ankles, wrists, and elbows.

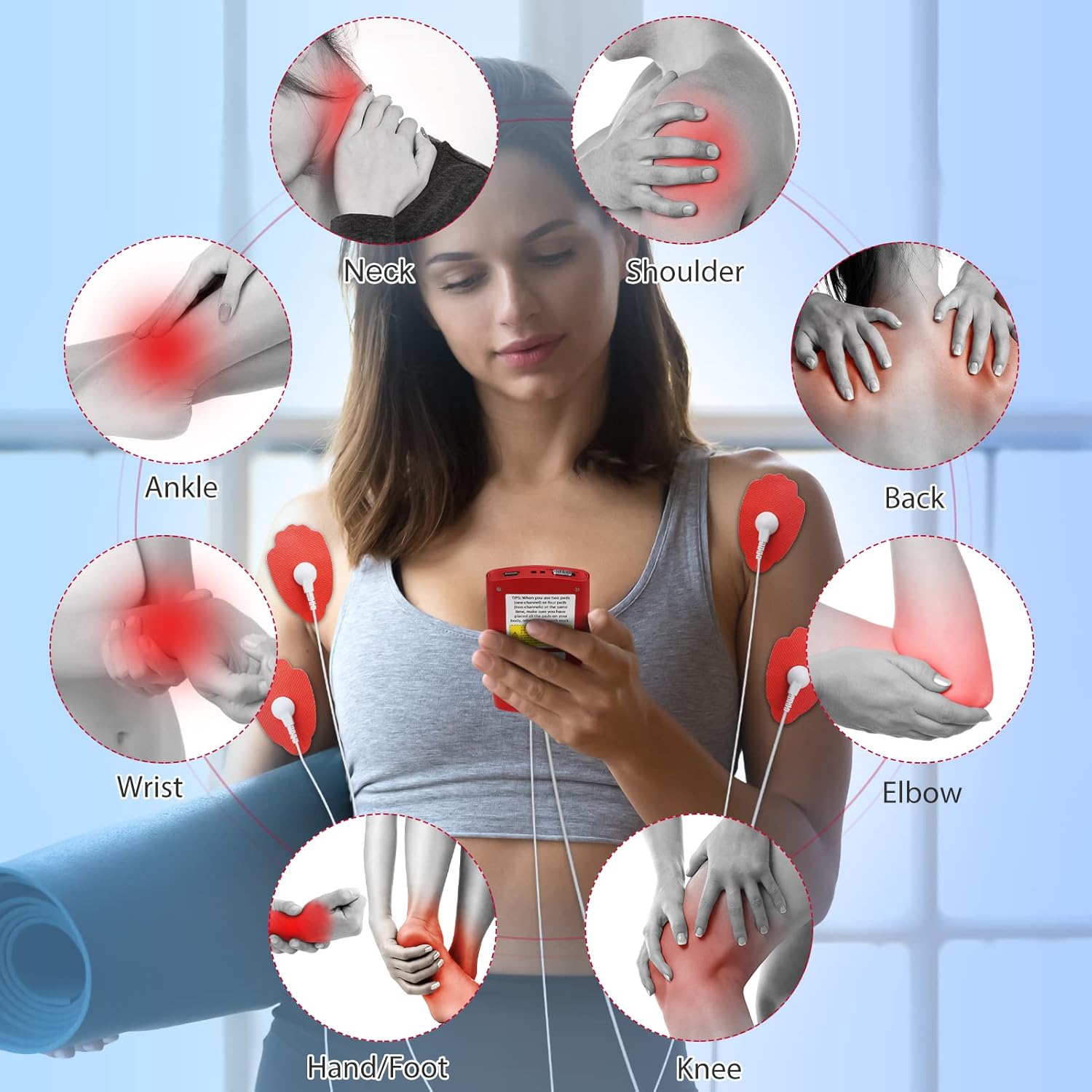

Diagram showing various body parts where the TENS EMS unit can be applied for pain relief, including neck, shoulder, back, elbow, knee, hand/foot, wrist, and ankle.

Image: Recommended body areas for electrode pad placement.

Pad Placement Examples:

  • Neck/Shoulder: Place pads on either side of the spine or on the top of the shoulders.
  • Back: Position pads on either side of the affected area, avoiding direct placement on the spine.
  • Limbs (Arms/Legs): Place pads on the muscle belly or near the joint experiencing discomfort.
Example of electrode pad placement on the back of a person's neck and shoulders.

Image: Example of pad placement for neck and shoulder areas.

Example of electrode pad placement on a person's knee.

Image: Example of pad placement for knee pain.

8. Maintenance and Storage

  • Cleaning Pads: If pads lose stickiness, gently wipe the adhesive surface with a damp cloth and air dry. Do not use harsh chemicals.
  • Storing Pads: After each use, reattach the protective film to the pads and store them in the dust-proof drawstring bag to prevent dust and maintain adhesion.
  • Device Storage: Store the unit and all accessories in the provided drawstring bag in a cool, dry place, away from direct sunlight.
  • Battery Care: Recharge the device regularly, even if not in frequent use, to maintain battery health.

9. Troubleshooting

If you encounter any issues with your Belifu TENS EMS Unit, please refer to the detailed user manual for troubleshooting steps. For further assistance, contact Belifu customer support.

Video: This video provides a brief overview of the TENS unit, which may assist with basic operation.

10. Specifications

  • Model Number: W-ZZA550
  • Brand: Belifu
  • Color: Red
  • Material: Plastic, Rubber, Silicone
  • Power Source: Battery Powered (Rechargeable Lithium Battery)
  • Battery Life: Up to 20 hours of continuous use
  • Package Dimensions: 6.18 x 3.62 x 2.64 inches
  • Item Weight: 10.86 ounces
  • Manufacturer: Belifu

11. Warranty and Support

Belifu is committed to providing quality products and excellent customer service. For any questions, concerns, or support needs regarding your TENS EMS Unit, please refer to the contact information provided in your user manual or visit the official Belifu website. The product typically includes a 24-month limited warranty.

Video: This video highlights the non-invasive and drug-free nature of the product, emphasizing its benefits.
