Introduction
This manual provides essential information for the installation, operation, and maintenance of your deawater 734-04581 8-inch replacement wheels. These wheels are designed to replace original equipment manufacturer (OEM) parts on various lawn mower models from brands such as MTD, Craftsman, Huskee, Troy Bilt, and Yard Man. Please read these instructions carefully before proceeding with installation to ensure proper fit and safe operation.
Safety Information
Always prioritize safety when performing maintenance or repairs on power equipment. Failure to follow safety precautions can result in injury or damage to equipment.
- Disconnect Power: Before beginning any work, ensure the lawn mower's spark plug wire is disconnected to prevent accidental starting. For electric mowers, unplug the power cord.
- Wear Protective Gear: Always wear appropriate personal protective equipment, including gloves and eye protection, to prevent cuts, scrapes, or other injuries.
- Stable Surface: Work on a flat, stable surface. If tilting the mower, ensure it is securely supported to prevent it from falling.
- Refer to Mower Manual: Consult your specific lawn mower's owner's manual for detailed safety instructions and procedures related to wheel replacement.
Package Contents
Verify that all items are present and undamaged upon opening the package.
- 2 x 8-inch Replacement Wheels (Part Number 734-04581)
Image: Two 8-inch replacement wheels, showing the tread pattern and hub design. The part number 734-04581 is visible.
Specifications
Key technical specifications for the deawater 734-04581 replacement wheels:
| Size | 8 inches (20.23 cm) |
| Bore Size | 0.5 inches (1.27 cm) |
| Width | 1.75 inches (4.45 cm) |
| Material | Metal, Plastic (Durable Rubber Tire) |
| Item Weight | Approximately 3.3 Pounds (per pair) |
| Part Number | 734-04581, 247374400, 12A-A23P799, 247374401 |
Image: Detailed product size diagram illustrating the 8-inch diameter, 0.5-inch bore, and 1.75-inch width of the wheel.

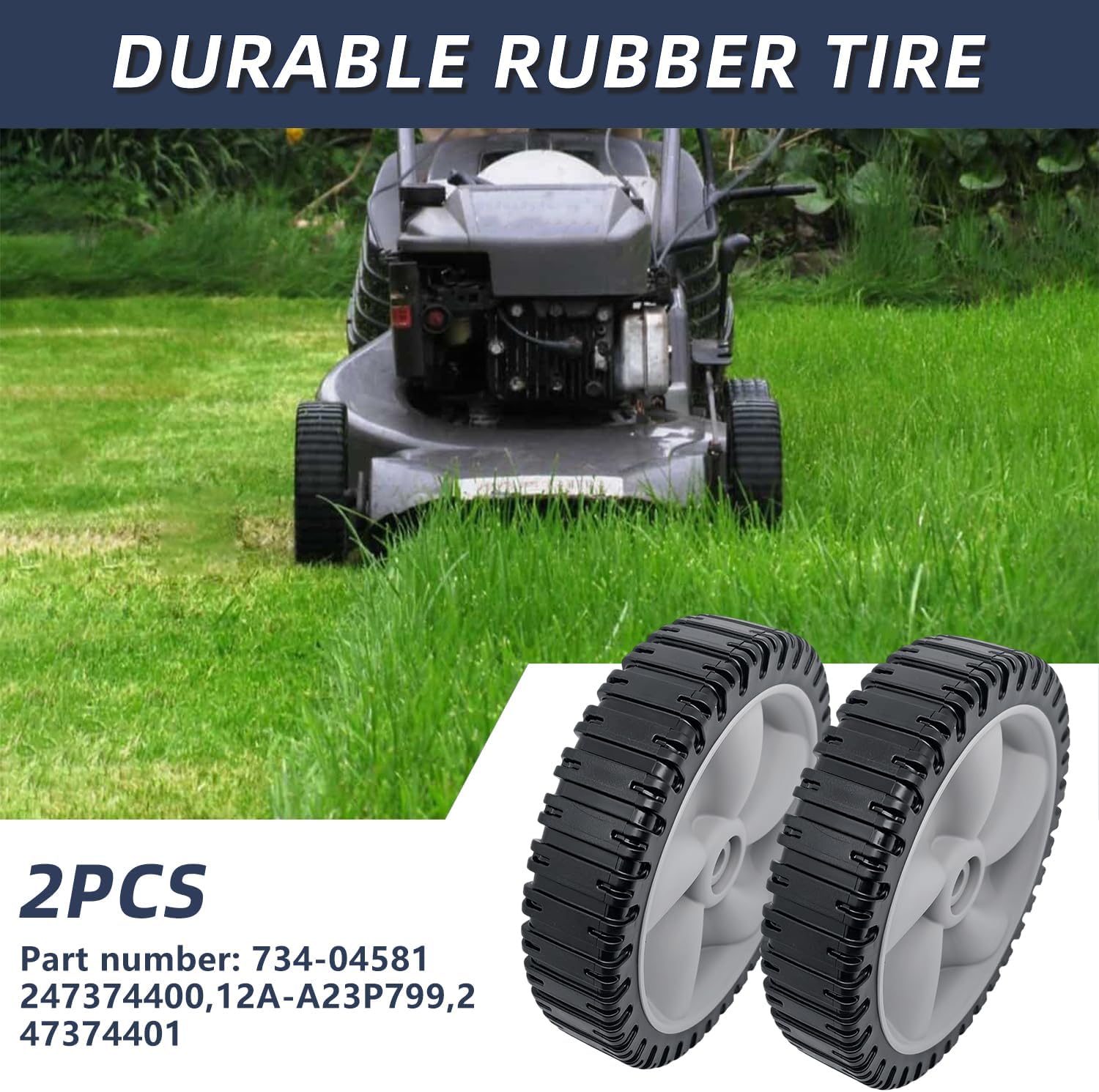

Image: Close-up of the wheel, emphasizing the high-quality material construction, including the rubber tire and plastic hub.
Compatibility
These replacement wheels are compatible with various lawn mower models. Please verify your mower's part number or model number against the list below to ensure proper fitment.
Compatible Part Numbers: 734-04581, 247374400, 12A-A23P799, 247374401
Compatible Models Include:
- Craftsman: 247374400, 247374401
- Yard Machines: 12A-A02J700 (2016), 12A-A0M5700 (2017), 12A-A13J029 (2012), 12A-A13K229 (2012), 12A-A04A000 (2011), 12A-A14O029 (2011)
- Yard Man: 12A-B29Q701 (2011), 12AEB2JA001 (2011), 12A-B29Q701 (2013), 12A-B29Q701 (2012), 12A-B2AQ701 (2014), 12AEB2JZ701 (2013), 12AEB2JZ701 (2012), 12AVB22J701 (2014), 12AVB22J701 (2013), 12A-A1JY701 Mower, 12AGB2S6001 (2014), 12AGB2S6701 (2014), 12AEB2JZ001 (2013), 12A-A1M9001 (2012)

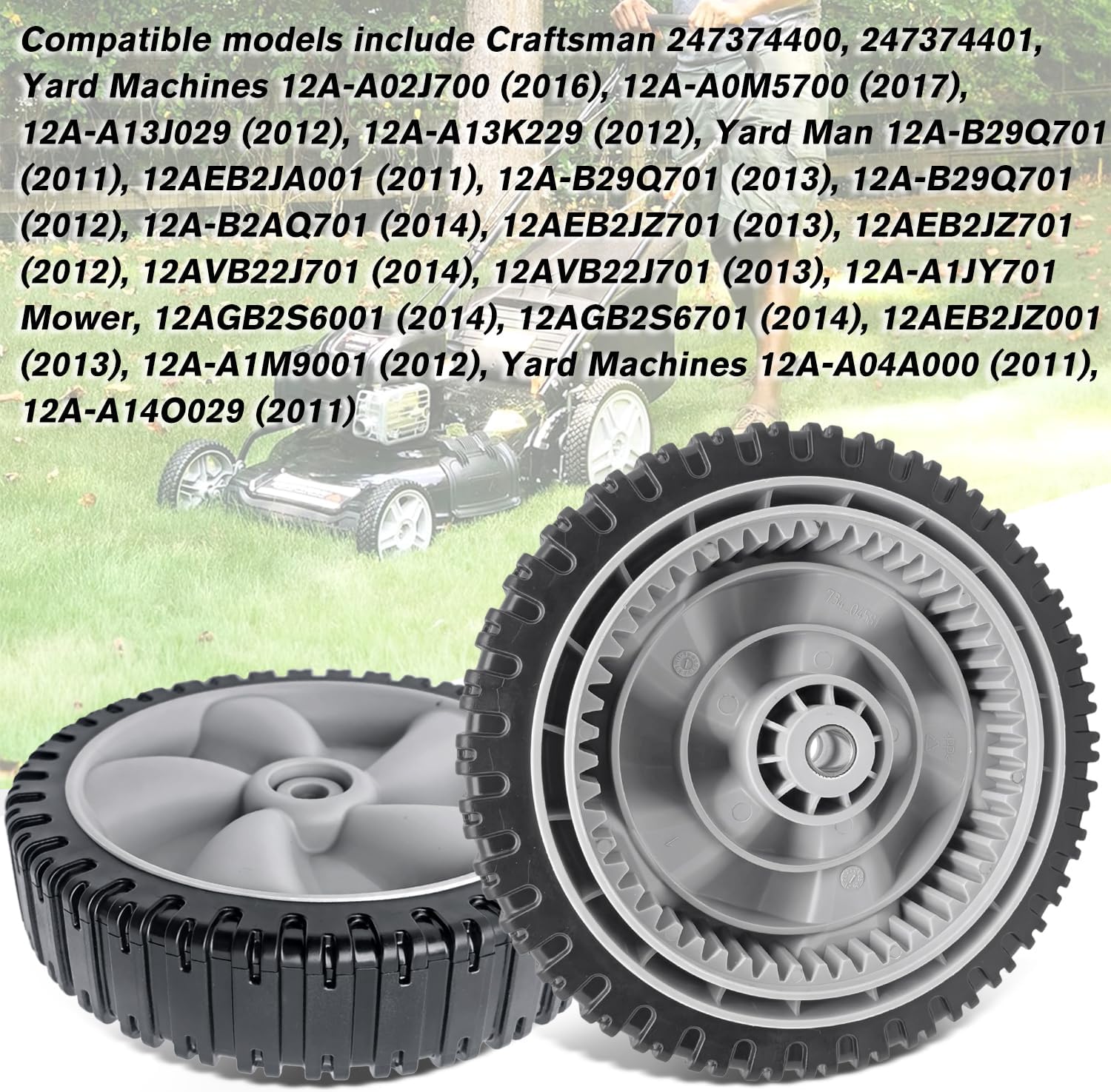

Image: Visual representation of the wheels and a list of compatible lawn mower models and part numbers.
Setup and Installation
Follow these general steps to replace a lawn mower wheel. Specific procedures may vary slightly depending on your mower model. Always refer to your mower's owner's manual for precise instructions.
- Prepare the Mower:
- Ensure the engine is off and cool.
- Disconnect the spark plug wire (for gasoline mowers) or unplug the power cord (for electric mowers) to prevent accidental starting.
- If necessary, drain the fuel tank to prevent spills if tilting the mower.
- Access the Wheel:
- Carefully tilt the mower onto its side, ensuring the carburetor and air filter are facing upwards to prevent oil or fuel from leaking. Alternatively, use a jack or sturdy blocks to lift the mower safely.
- Locate the wheel you intend to replace.
- Remove the Old Wheel:
- Depending on your mower model, the wheel may be secured by a nut, bolt, E-clip, or a combination of fasteners.
- Use appropriate tools (e.g., wrench, pliers, screwdriver) to remove the retaining hardware.
- Carefully pull the old wheel off the axle. Note the order and orientation of any washers or spacers.
- Install the New Wheel:
- Slide the new deawater replacement wheel onto the axle, ensuring any washers or spacers are reinstalled in their correct positions.
- Align the wheel bore with the axle.
- Reattach the retaining hardware. Tighten nuts or bolts securely, but do not overtighten, which could damage the wheel or axle.
- Ensure the wheel spins freely without excessive wobble.
- Final Checks:
- Return the mower to its upright position.
- Reconnect the spark plug wire or power cord.
- Test the mower's movement to ensure the new wheels function correctly.
Image: Examples of lawn mowers in operation, demonstrating the typical application where these replacement wheels would be used.
Operating
Once the new wheels are installed, operate your lawn mower as usual. The new wheels are designed to provide smooth movement and traction. Pay attention to any unusual noises or resistance during the first few uses, which could indicate an installation issue.
Maintenance
Regular maintenance helps extend the life of your replacement wheels and ensures optimal performance.
- Cleaning: Periodically clean dirt, grass clippings, and debris from the wheels and axle area. This prevents buildup that can hinder movement or cause wear.
- Inspection: Regularly inspect the wheels for signs of wear, cracks, or damage to the tire tread or hub. Check that the retaining hardware is secure.
- Lubrication: Some mower axles may benefit from light lubrication. Consult your mower's manual for recommendations on axle lubrication.
Troubleshooting
If you encounter issues after installing the new wheels, consider the following:
- Wheel Does Not Fit:
- Double-check the part numbers and compatible models listed in this manual and your mower's owner's manual.
- Ensure the bore size of the wheel matches your mower's axle diameter.
- Verify that all spacers and washers are correctly positioned.
- Wheel Wobbles or is Loose:
- Ensure all retaining hardware (nuts, bolts, clips) is securely tightened.
- Check for any missing washers or spacers that might be causing play.
- Inspect the axle for damage or bending.
- Difficulty Rolling Mower:
- Clear any debris from around the axle and wheel.
- Ensure the wheel is not rubbing against any part of the mower deck or frame.
- For self-propelled mowers, check the drive mechanism if the issue persists.
Warranty and Support
For specific warranty information or technical support regarding your deawater replacement wheels, please refer to the seller's return policy or contact the manufacturer directly through the platform where the purchase was made. Keep your purchase receipt as proof of purchase.
