Glem Gas HT167GIFSMF 100cm Freestanding Gas Oven with 5 Burners and Full Safety

1. Introduction

Thank you for choosing the Glem Gas HT167GIFSMF Freestanding Gas Oven. This appliance combines a 5-burner gas hob with a multi-function gas oven, designed for efficient and safe cooking. This manual provides important information regarding the installation, operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and keep it for future reference.

The Glem Gas HT167GIFSMF features a durable stainless steel construction, titanium enamel oven interior, cast iron pan supports, and full safety options for both the hob and oven, ensuring high efficiency and safety during use.

2. Safety Information

Your safety and the safety of others are paramount. Please read all instructions before operating the appliance to prevent potential hazards.

• Gas Safety: Ensure proper ventilation when using gas burners or the oven. Do not store flammable materials near the appliance. In case of a gas leak, immediately shut off the gas supply, open windows, and do not operate any electrical switches or appliances. Contact a qualified technician.
• Electrical Safety: The appliance requires a 220V electrical supply for ignition and the oven fan. Ensure the appliance is properly grounded. Do not use extension cords. Disconnect power before cleaning or servicing.
• Burn Hazard: Surfaces of the appliance become hot during use. Use oven mitts and exercise caution. Keep children and pets away from the appliance during operation.
• Installation: Installation must be performed by a qualified technician in accordance with local regulations and standards. Improper installation can lead to gas leaks, electric shock, or fire.
• Cleaning: Always allow the appliance to cool down before cleaning. Use non-abrasive cleaners.
• General: Do not modify the appliance. Do not use the oven for storage. Never leave the appliance unattended during operation.

3. Setup and Installation

The Glem Gas HT167GIFSMF is a freestanding appliance. Professional installation is highly recommended to ensure correct gas and electrical connections.

3.1 Unpacking

Carefully remove all packaging materials. Inspect the appliance for any damage. Report any damage to your retailer immediately.

3.2 Positioning

Place the appliance on a flat, stable surface. Ensure adequate clearance from adjacent walls and cabinets as specified in the installation guide (not included in this manual, refer to separate installation instructions). The appliance dimensions are 60 cm (Depth) x 100 cm (Width) x 90 cm (Height).

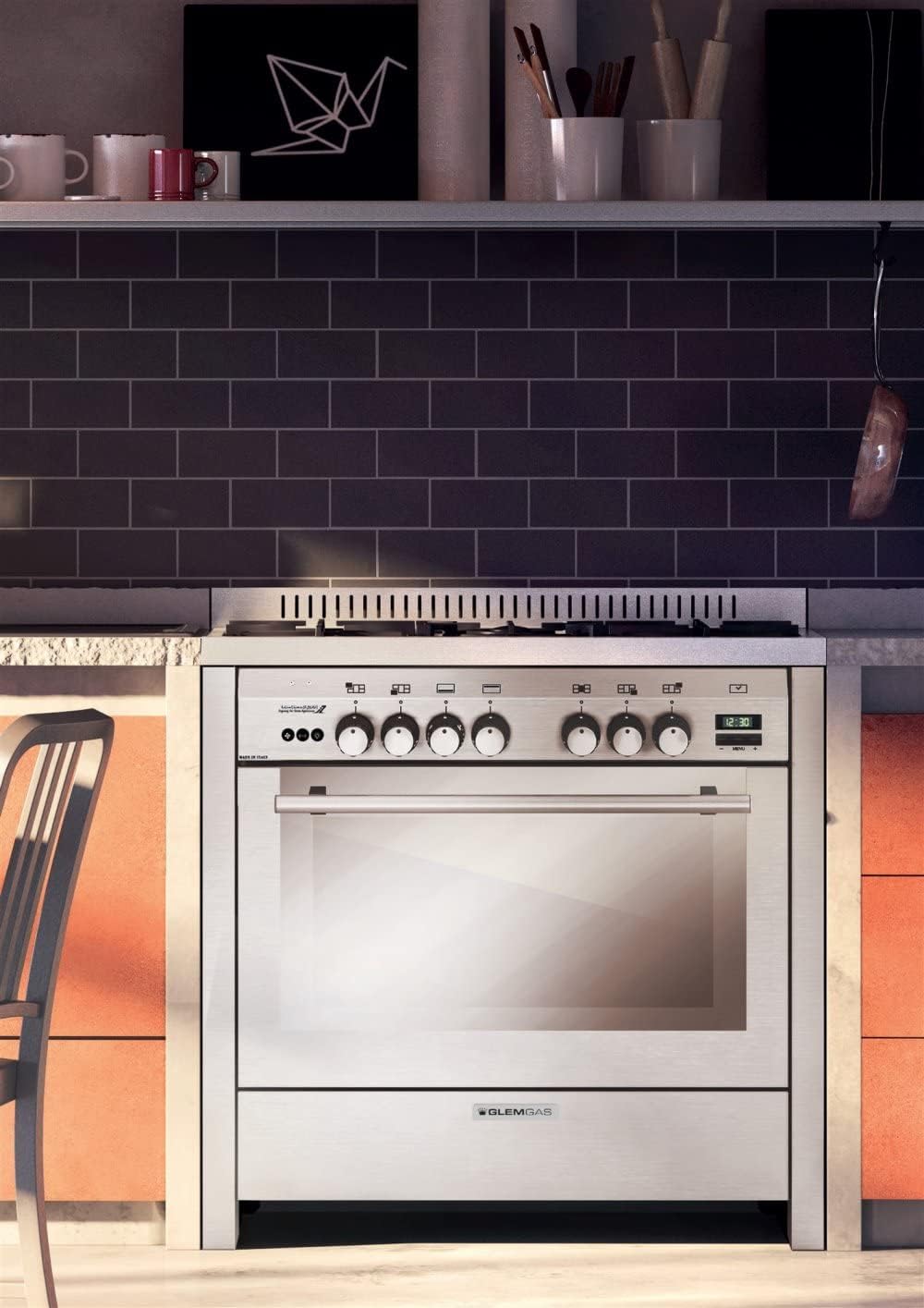

Figure 1: Full view of the Glem Gas HT167GIFSMF freestanding gas oven in a kitchen environment. This image shows the overall design and placement of the appliance.

3.3 Gas Connection

Connect the appliance to the gas supply using appropriate fittings and flexible hoses, ensuring all connections are leak-free. This procedure must be carried out by a certified gas technician.

3.4 Electrical Connection

Connect the appliance to a grounded 220V electrical outlet. The electrical power consumption is 18100 Watts (for ignition, fan, and internal lighting). Ensure the circuit can handle the load. This connection should also be performed by a qualified electrician.

3.5 Initial Cleaning

Before first use, clean the oven interior and hob surfaces with a damp cloth and mild detergent. Run the oven empty for approximately 30 minutes at maximum temperature to burn off any manufacturing residues. Ensure good ventilation during this process.

4. Operating Instructions

4.1 Gas Hob Operation

The hob features 5 gas burners with cast iron pan supports and one-hand ignition.

1. Ignition: Push and turn the desired burner control knob counter-clockwise to the maximum flame setting. The integrated igniter will spark, lighting the burner. Hold the knob for a few seconds after ignition to allow the safety device to activate.
2. Flame Adjustment: Once lit, adjust the flame size by turning the control knob between the maximum and minimum settings.
3. Turning Off: Turn the control knob clockwise to the 'off' position.

Figure 2: A hand adjusting one of the control knobs on the appliance's front panel. This illustrates the one-hand ignition and flame adjustment mechanism.

4.2 Gas Oven Operation

The multi-function gas oven has a capacity of 112 liters and features a titanium enamel interior for easy cleaning.

Figure 3: The interior of the Glem Gas oven, showing the multiple rack positions and the titanium enamel finish. This highlights the oven's capacity and design.

1. Preheating: Turn the oven control knob to the desired temperature. The oven will begin to heat. Allow sufficient time for the oven to reach the set temperature before placing food inside.
2. Cooking Modes: The oven supports convection cooking, indicated by the fan symbol. This mode ensures even heat distribution.
3. Grilling: The oven supports closed-door grilling. Turn the oven control knob to the grill setting. Ensure the oven door remains closed during grilling for optimal performance and safety.
4. Automatic Defrost: The oven includes an automatic defrost function. Refer to the specific symbol on the control panel for this setting.
5. Shelves: The oven is equipped with 5 shelves, allowing for flexible cooking arrangements.

Figure 4: The Glem Gas oven with its door open, providing a clear view of the interior racks and the oven cavity. This demonstrates accessibility for loading and unloading food.

4.3 Timer Function

The appliance may include a digital timer. Consult the specific symbols and buttons on the control panel for setting cooking duration or an alarm.

5. Maintenance and Cleaning

Regular cleaning and maintenance will prolong the life of your appliance and ensure safe operation. Always ensure the appliance is cool and disconnected from the power and gas supply before cleaning.

5.1 Exterior Cleaning

Wipe stainless steel surfaces with a soft cloth and a mild, non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads that can scratch the surface.

5.2 Hob Cleaning

Remove the cast iron pan supports and burner caps/crowns. Clean them with warm soapy water. Clean the hob surface with a damp cloth and mild detergent. Ensure all parts are completely dry before reassembling.

5.3 Oven Interior Cleaning

The titanium enamel interior is designed for easy cleaning. Use a damp cloth and a non-abrasive oven cleaner. For stubborn stains, follow the instructions on your chosen oven cleaner product. Remove oven racks and clean them separately.

5.4 General Maintenance

Periodically check gas connections for any signs of wear or leaks. Ensure burner ports are clear of food debris. For any complex maintenance or repairs, contact a qualified service technician.

6. Troubleshooting

Before contacting customer service, please refer to the following common issues and solutions:

• Burner not lighting: Check if the gas supply is on. Ensure the burner cap and crown are correctly positioned. Clean any food debris from the burner ports. If using one-hand ignition, ensure you hold the knob for a few seconds after ignition.
• Oven not heating: Verify the gas supply is on. Ensure the oven control knob is set correctly. Check if the electrical supply is connected and working (for ignition and fan).
• Uneven cooking in oven: Ensure the oven is preheated properly. Avoid overcrowding the oven. Use the convection fan function if available for more even heat distribution.
• Gas smell: Immediately turn off all burners and the oven. Shut off the main gas supply. Open windows for ventilation. Do not operate any electrical switches. Contact a qualified gas technician immediately.

If the problem persists after attempting these solutions, please contact Glem Gas customer support or a qualified service technician.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact Glem Gas customer service through their official website or the contact details provided with your appliance.
