1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your YOUNGTREE T33-12V Water Diaphragm Pump. This 12 Volt DC self-priming pump is designed for on-demand water transfer and pressure boosting in various applications, including RVs, caravans, marine vessels, campers, and sprayers. Please read these instructions thoroughly before use to ensure proper function and longevity of the product.
1.1 Safety Information
- Always disconnect power before performing any service or maintenance.
- Ensure proper electrical connections and observe correct polarity (red for positive, black for negative).
- Do not operate the pump with flammable liquids.
- Protect the pump from freezing temperatures to prevent damage.
- Ensure adequate ventilation around the pump during operation.
2. Product Features
The YOUNGTREE T33-12V Water Diaphragm Pump is engineered with several features to provide reliable performance:
- 12V DC Power: Operates on a standard 12-volt direct current power supply.
- High Flow Rate: Delivers up to 3.5 Gallons Per Minute (GPM).
- On-Demand Pressure Switch: Automatically turns the pump on and off based on water demand, with a shut-off pressure of 45 PSI.
- Self-Priming: Capable of drawing water from a source without external priming.
- Thermal Protection: Built-in protection prevents motor overheating.
- Durable Construction: Features a copper motor, anti-corrosion housing, and Santoprene diaphragm material for longevity.
- Stable Rubber Feet: Reduces vibration and noise during operation.
3. Package Contents
Verify that all items are present in the package:
- 1 x YOUNGTREE T33-12V Water Diaphragm Pump
- 1 x 50 Mesh Stainless Strainer (for inlet connection)
- 2 x 1/2" Barbed Hose Adapters
4. Specifications
| Specification | Value |
|---|---|
| Model Number | T33-12V |
| Voltage | 12 Volts DC |
| Maximum Flow Rate | 3.5 Gallons Per Minute (GPM) |
| Shut-off Pressure | 45 PSI |
| Maximum Amps | 6.74 Amps |
| Wattage | 55 Watts |
| Maximum Lifting Height | 131 Feet |
| Product Dimensions (L x W x H) | 8.86" x 5.51" x 5.12" |
| Item Weight | 4.8 Pounds |
| Housing Material | Nylon / Polypropylene |
| Diaphragm Material | Santoprene |
| Valves/Seals Material | EPDM / Viton |
| Special Features | Pressure Switch, Thermal Protection |
5. Setup and Installation
5.1 Mounting
Mount the pump in a dry, well-ventilated area. The pump can be mounted horizontally or vertically. Use the integrated rubber feet to minimize vibration and noise. Ensure the mounting surface is stable and secure.
5.2 Plumbing Connections
- Inlet Connection: Connect the water source to the pump's inlet port. It is highly recommended to install the provided 50 mesh stainless strainer on the inlet line to prevent debris from entering the pump. Ensure all connections are tight to prevent air leaks, which can affect pump performance.
- Outlet Connection: Connect the pump's outlet port to your water system. The pump features 1/2" NPT external pipe threads. Use the provided 1/2" barbed hose adapters for hose connections, securing them with hose clamps (not included) for a leak-free seal.
- Ensure all hoses are free of kinks and are adequately supported.
5.3 Electrical Connections
- Connect the pump's red wire to the positive (+) terminal of your 12V DC power source.
- Connect the pump's black wire to the negative (-) terminal of your 12V DC power source.
- It is recommended to install an appropriate fuse (e.g., 10A) in the positive power line to protect the pump and electrical system.
- Ensure all electrical connections are secure and protected from moisture.
6. Operating Instructions
6.1 Initial Priming
Before first use, ensure the water source is connected and open. Turn on the power to the pump. Open a faucet in your system to allow air to escape. The pump will self-prime and begin pumping water. Once a steady stream of water flows from the faucet, close the faucet. The pump will build pressure and then shut off automatically.
6.2 Automatic Operation

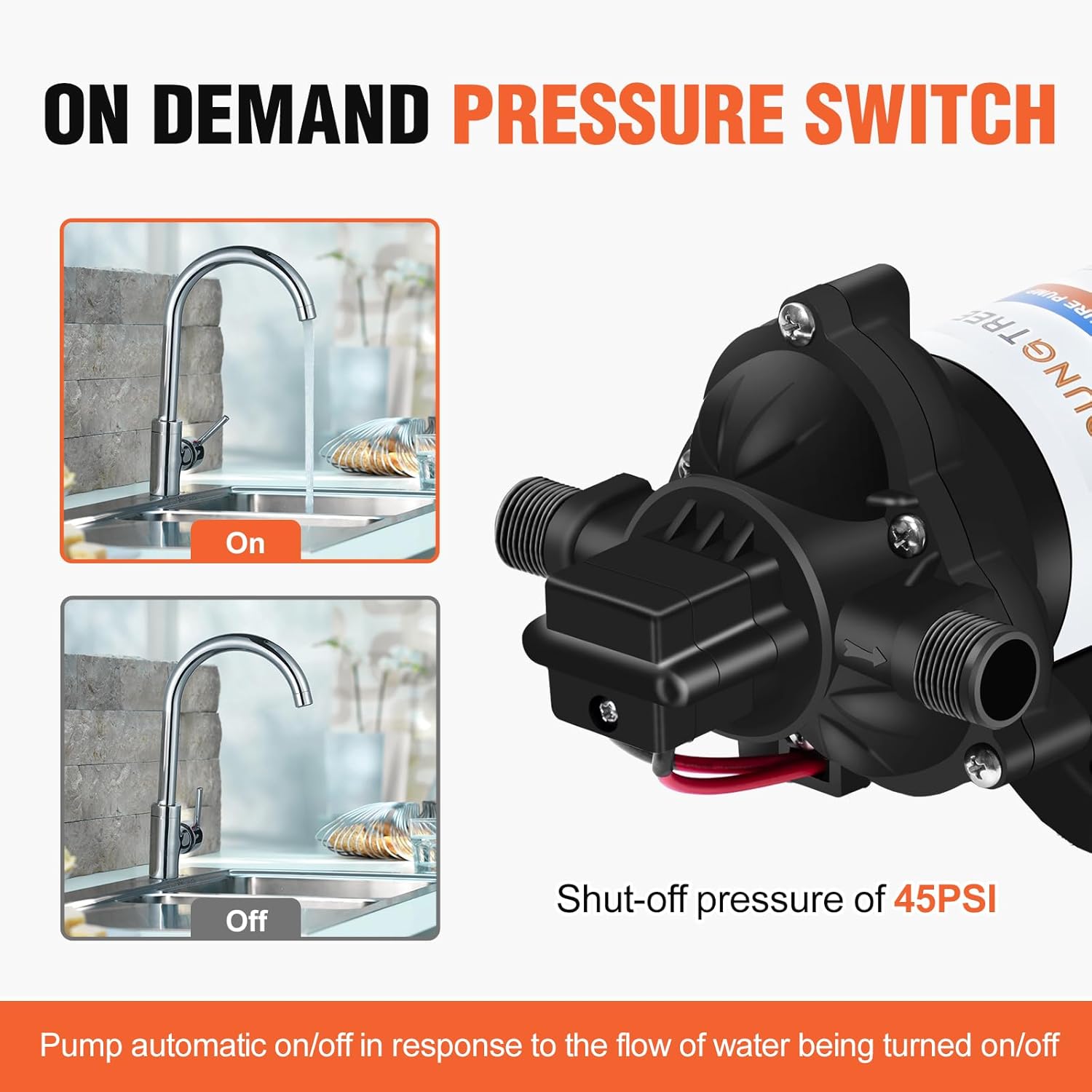

The pump is equipped with an on-demand pressure switch. When a faucet or fixture is opened, the system pressure drops, and the pump automatically turns on to supply water. When the faucet is closed, the pressure builds up, and the pump automatically shuts off. This ensures water is only pumped when needed.
6.3 Pressure Switch Adjustment (Advanced Users Only)
The pressure switch is factory-set to 45 PSI. For specific applications, the pressure switch may be adjustable within a certain range (typically 40-80 PSI). This adjustment should only be performed by experienced users. Refer to the pump's label for specific adjustment screw location and procedure. Incorrect adjustment can lead to pump malfunction or damage.
7. Maintenance
7.1 Inlet Strainer Cleaning
Regularly inspect and clean the 50 mesh stainless strainer on the inlet line. Debris can accumulate and restrict water flow, leading to reduced performance or pump damage. To clean, disconnect power, unscrew the strainer housing, remove the mesh filter, rinse thoroughly, and reassemble.
7.2 Winterization
If the pump will be exposed to freezing temperatures, it must be properly winterized to prevent damage. Drain all water from the pump and connected plumbing lines. This can be done by disconnecting the inlet and outlet lines and allowing the water to flow out. Running non-toxic RV antifreeze through the pump is also an option, following the antifreeze manufacturer's instructions.
7.3 General Care
- Keep the pump clean and free of dirt and debris.
- Periodically check all connections for leaks.
- Ensure the power supply is stable and within the specified voltage range.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not run | No power; Blown fuse; Loose wiring; Motor fault | Check power supply and connections; Replace fuse; Secure wiring; Contact support if motor is faulty. |
| Low flow or pressure | Clogged strainer; Kinked hose; Air leak in inlet line; Low voltage; Worn pump head | Clean strainer; Straighten hose; Check and seal inlet connections; Verify 12V DC supply; Contact support. |
| Pump runs but no water flows | No water in source; Air lock; Significant air leak in inlet | Ensure water source is available; Open faucet to release air; Check inlet connections for leaks. |
| Pump cycles on and off rapidly (intermittent running) | Leak in system (faucet, toilet, pipe); Pressure switch setting too sensitive; Insufficient water supply | Check all plumbing for leaks; Adjust pressure switch (if applicable, with caution); Ensure adequate water supply. |
| Pump is noisy | Vibration; Air in system; Loose mounting | Ensure pump is securely mounted on rubber feet; Bleed air from system; Tighten mounting screws. |
9. Warranty and Support
YOUNGTREE products are manufactured to high-quality standards and are backed by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, claims, or technical assistance, please refer to the product packaging or contact YOUNGTREE customer support directly. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the YoungTree Store on Amazon.
