1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Aeagle 46" Deck Spindle Assembly. This spindle assembly is designed as a direct replacement for MTD and Cub Cadet part numbers 918-06977, 918-06977A, 618-06977, and 618-06977A.
It is compatible with various 46" deck models, including:
- Cub Cadet: XT1-LT46, XT1-LT46 KH, XT1-LT46 EFI FAB, XT2-LX46, XT2-LX46 EFI, XT2-LX46 FAB, XT2-LX46 LE FAB, XT2-LX46 EFI FAB, XT2-LX46 KH, XT2-LX46 KH FAB
- MTD: 131AQ1ZT099, 132QA1ZT099, 13AQA1ZT099, 13AQA1ZT299, 13A8A1ZT099, 13ATA1ZT099, 13BQA1ZT099, 13APA1ZT093, 13ALA1ZT091, 13APA1KT897, 13AZA1KT897, CYT4622SE
- Craftsman: T225, T240, T2800, T3100, T8200, T8600
- Troy-Bilt: TB2246, LT46 FAB, Super Bronco 46 Hydro
Please read this manual thoroughly before proceeding with installation or maintenance to ensure safe and correct usage.

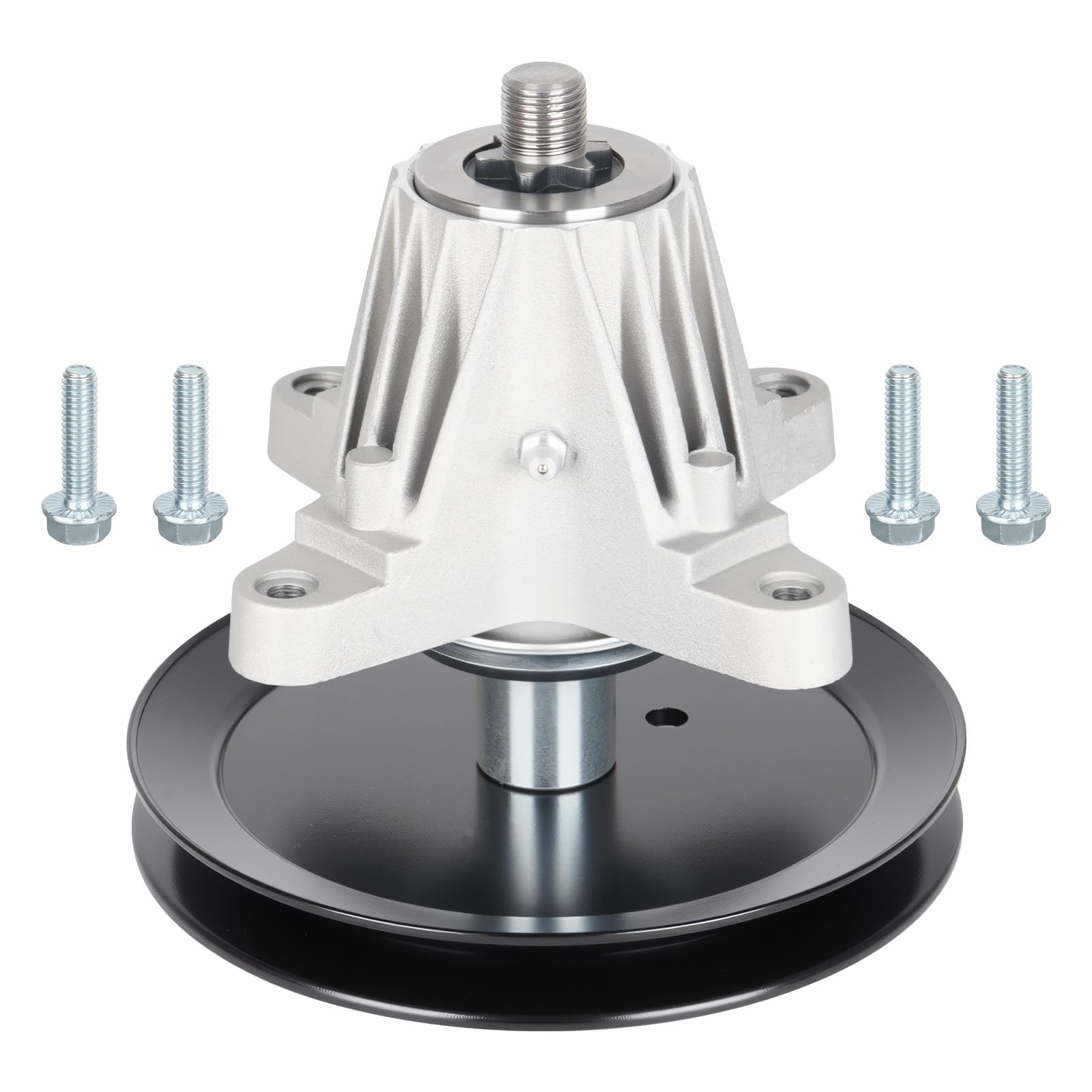

Figure 1: Aeagle 46" Deck Spindle Assembly (1 Spindle, 1 Pulley)
2. Safety Information
Always prioritize safety when working with power equipment and replacement parts. Failure to follow these safety guidelines may result in injury or damage to equipment.
- Disconnect Power: Before beginning any work on the mower deck, always disconnect the spark plug wire to prevent accidental engine starting.
- Personal Protective Equipment (PPE): Wear safety glasses, gloves, and appropriate work attire to protect against cuts, scrapes, and debris.
- Secure the Mower: Ensure the lawn mower is on a flat, stable surface and securely supported if you need to tilt it or work underneath the deck.
- Sharp Edges: Mower blades are sharp. Handle them with extreme care and wear heavy-duty gloves.
- Read Instructions: Familiarize yourself with your mower's specific service manual for deck removal and reinstallation procedures.
3. Package Contents
Verify that all components are present and undamaged upon opening the package.
- 1 x Spindle Assembly
- 1 x Pulley (pre-assembled)
- 4 x Mounting Bolts
Figure 2: Included components: Spindle Assembly and Mounting Bolts.
4. Specifications
Key dimensions and features of the Aeagle 46" Deck Spindle Assembly:
- Spindle Height: 6 1/2 inches (164mm)
- Pulley Outer Diameter (OD): 6 1/4 inches (160mm)
- Material: Durable Metal Construction
- Mounting Holes: 4 threaded mounting holes
- Blade Mount: 6-point star shaped
- Lubrication: Features a grease fitting for re-greasing
Figure 3: Spindle Assembly Dimensions.
Figure 4: Spindle Principal Views.
Figure 5: Spindle Detailed Features.
5. Installation / Setup
Follow these steps to replace your old spindle assembly with the new Aeagle unit. Refer to your mower's specific service manual for detailed deck removal and reinstallation instructions.
5.1 Preparation
- Park the mower on a level surface.
- Engage the parking brake.
- Disconnect the spark plug wire to prevent accidental starting.
- Remove the mower deck from the tractor according to your mower's manual.
- Clean the area around the spindle to remove grass clippings and debris.
5.2 Removing the Old Spindle
- Carefully remove the mower blade attached to the bottom of the spindle. Note the orientation of the blade for correct reinstallation.
- Locate and remove the mounting bolts that secure the spindle assembly to the mower deck.
- Remove the old spindle assembly from the deck.
5.3 Installing the New Spindle
- Position the new Aeagle spindle assembly onto the mower deck, aligning the mounting holes.
- Insert the provided mounting bolts and tighten them securely. Do not overtighten.
- Reattach the mower blade to the bottom of the new spindle, ensuring it is oriented correctly. Tighten the blade bolt to the manufacturer's specified torque.
- Reinstall the mower deck onto the tractor according to your mower's manual.
- Reconnect the spark plug wire.
6. Operation
After successful installation, ensure all components are securely fastened and the deck is properly leveled. Test the mower in a safe, open area at a low speed before resuming normal operation. Listen for any unusual noises or vibrations, which may indicate an issue with installation or a faulty component.
7. Maintenance
Regular maintenance of your spindle assembly will ensure optimal performance and extend its lifespan.
- Lubrication: The Aeagle spindle assembly features a grease fitting (zerk). Periodically apply grease using a grease gun to ensure proper lubrication of the bearings. This helps reduce friction and wear.
- Inspection: Regularly inspect the spindle for any signs of wear, damage, or looseness. Check for excessive play in the shaft or unusual noises during operation.
- Cleaning: Keep the area around the spindle free of grass clippings and debris, which can interfere with proper function and lead to premature wear.
Figure 6: Grease Fitting Location.
8. Troubleshooting
If you encounter issues after installing the spindle assembly, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive Vibration | Loose mounting bolts, unbalanced blade, bent blade, damaged spindle bearings. | Check and tighten mounting bolts. Inspect blade for damage or balance issues. If bearings are damaged, replace the spindle. |
| Unusual Noise (Grinding, Squealing) | Lack of lubrication, worn bearings, debris in spindle. | Apply grease to the fitting. Inspect for debris. If noise persists, bearings may be worn and require spindle replacement. |
| Poor Cut Quality | Dull or bent blade, incorrect blade installation, deck not level, worn spindle. | Sharpen or replace blade. Ensure blade is installed correctly. Level the mower deck. Inspect spindle for excessive play. |
9. Warranty and Support
For specific warranty information regarding your Aeagle 46" Deck Spindle Assembly, please refer to the product packaging or contact Aeagle customer service directly. For technical assistance or further inquiries, please visit the official Aeagle website or contact their support team.
