CEESC 2.5L Automatic Pet Water Fountain (Model DU2L-KY)

Introduction

Thank you for choosing the CEESC 2.5L Automatic Pet Water Fountain. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your pet water fountain. Please read these instructions carefully before use and retain them for future reference.

CEESC 2.5L Automatic Pet Water Fountain with a cat nearby

Image: The CEESC 2.5L Automatic Pet Water Fountain, showcasing its compact design and 2.5-liter capacity, suitable for small to medium-sized pets.

Product Components

Before assembly, ensure all components are present and undamaged. The package typically includes:

Water Fountain Base (2.5L capacity)
Water Bowl/Tray
Water Pump with pre-filter sponge
Filter Element (Activated Carbon + Filter Fiber + Ionic Resin)
Power Cable (USB cable, power adapter not included)

Diagram showing the internal components of the CEESC pet water fountain, including the pump and filter

Image: An illustration detailing the internal structure of the water fountain, highlighting the ultra-quiet pump and its pre-filter sponge.

Setup Instructions

Clean Components: Thoroughly rinse all parts of the fountain (base, tray, pump, filter) with water before first use.
Assemble Pump: Insert the water pump into its designated slot at the bottom of the fountain base. Ensure the pre-filter sponge is attached to the pump intake.
Install Filter: Place the filter element into the filter tray. Ensure the filter is properly seated.
Fill with Water: Fill the fountain base with clean water up to the maximum fill line. Do not overfill. The capacity is 2.5 liters.
Place Tray: Position the water bowl/tray on top of the fountain base, ensuring it is securely fitted.
Connect Power: Connect the USB power cable to the fountain and plug it into a 5V/1A USB power adapter (not included). A standard mobile phone charger can be used.
Initial Operation: Once plugged in, the fountain will start circulating water. Allow a few minutes for the water to circulate and the filter to become fully saturated.

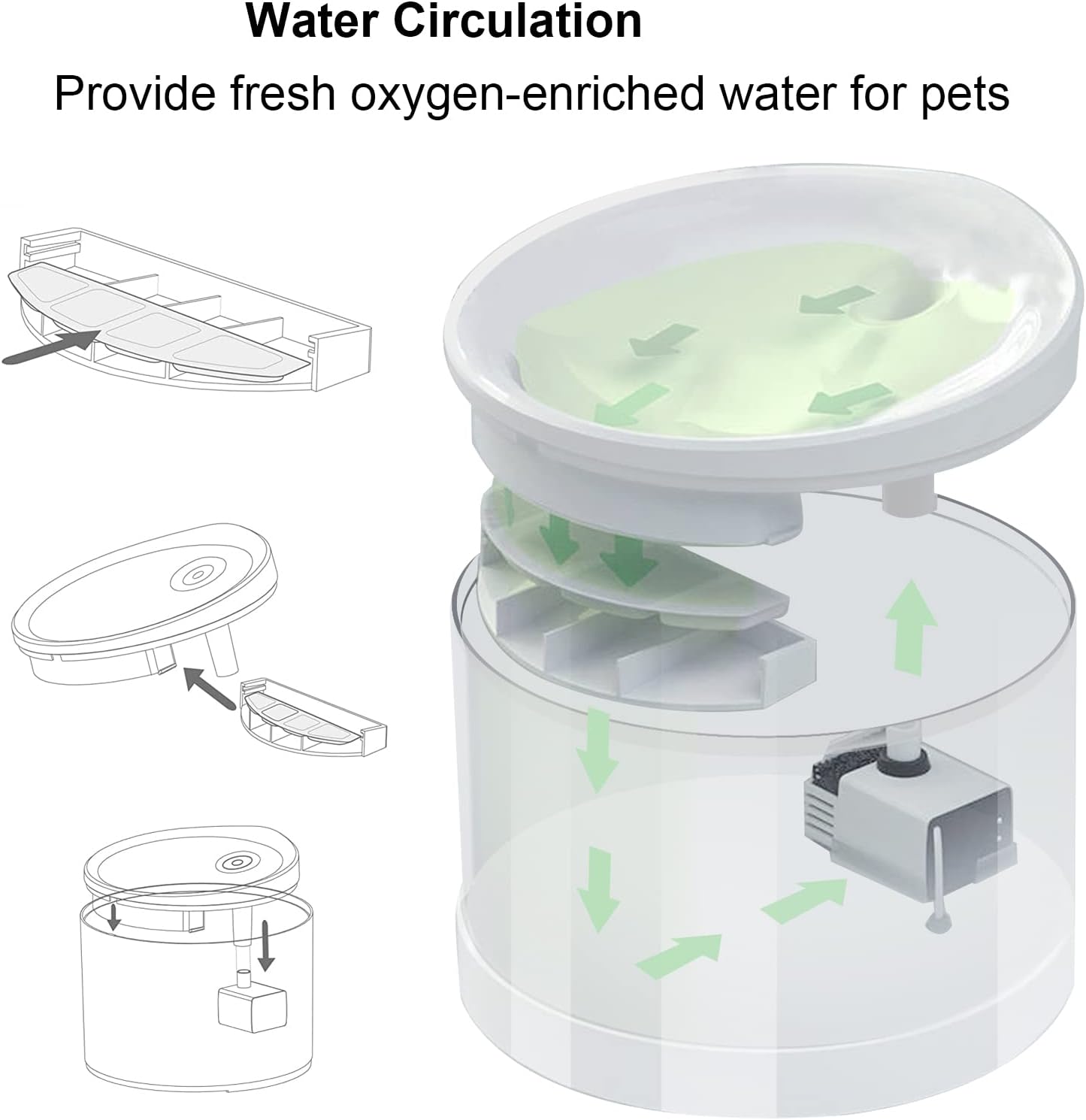

Diagram illustrating the water circulation path and assembly steps for the pet water fountain

Image: A visual guide demonstrating the water circulation system and key assembly points, including pump placement and water flow.

Operating Instructions

The CEESC Pet Water Fountain is designed for continuous operation to provide fresh, filtered water for your pet.

Continuous Operation: The fountain operates continuously when plugged in. There is no on/off switch on the unit itself.
Water Level Monitoring: Regularly check the water level. The fountain has a water shortage reminder.
Water Shortage Indicator: A red flashing light indicates a low water level.
Automatic Shutdown: The fountain will automatically shut down the pump when the water level is critically low to prevent dry running and pump damage. Refill water promptly.
Filter Change Indicator: A blue flashing light indicates it is time to change the filter.

Close-up view of the fountain's internal features, including the pre-filter sponge and indicator light area

Image: A detailed view of the fountain's internal components, showing the pre-filter sponge and the area where the indicator light is located, signaling water levels or filter status.

Maintenance

Regular cleaning and filter replacement are crucial for maintaining water quality and extending the life of your fountain.

Weekly Cleaning: Disassemble and clean the fountain (base, tray, pump, and pre-filter sponge) at least once a week. Use mild soap and water, then rinse thoroughly.
Pump Cleaning: The pump should be cleaned weekly to prevent mineral buildup and ensure quiet operation. Disassemble the pump, clean the impeller and housing with a small brush, and rinse.
Filter Replacement: Replace the filter element every 14 to 20 days, or sooner if the blue indicator light flashes, or if water flow decreases significantly, or if the water appears dirty. Rinse the new filter thoroughly before placing it in the fountain.

Diagram explaining the triple filtration system components: cotton, activated carbon, and ion exchange resin

Image: An illustration detailing the triple filtration system, showing how the filter fiber, activated carbon, and ion exchange resin work together to purify water.

Troubleshooting

Problem	Possible Cause	Solution
Fountain not dispensing water.	No power supply. Water level too low (red light flashing). Pump clogged or damaged.	Check power connection and adapter. Refill water to the appropriate level. Clean the pump and impeller. If still not working, the pump may need replacement.
Excessive noise from fountain.	Low water level. Pump or impeller is dirty/clogged. Pump not properly seated.	Add water to the fountain. Clean the pump and impeller thoroughly. Ensure the pump is securely placed in its slot.
Water leakage.	Fountain components not assembled correctly. Overfilling the water reservoir.	Disassemble and reassemble all parts, ensuring a tight fit. Ensure water is filled only up to the maximum fill line.
Blue filter indicator light flashing.	Filter needs replacement.	Replace the filter element as per maintenance instructions.

Specifications

Model Number	DU2L-KY
Capacity	2.5 Liters
Body Material	ABS + PP
Dimensions (L x W x H)	18.5 x 18.5 x 15.3 cm
Net Weight	0.57 kg
Power Input	AC 110V-220V
Power Output	DC 5V 0.5A
Actual Power Consumption	3W
Pump Flow	0-220 L/H
Noise Level	<40dB (Ultra Quiet)
Filter Material	Activated Carbon + Filter Fiber + Ionic Resin

Warranty and Support

For warranty information, technical support, or inquiries regarding replacement parts (such as filters or pumps), please contact CEESC customer service directly. Refer to the product packaging or the retailer's website for specific contact details.

Note: This product does not include a power adapter by default. It is designed to be compatible with standard 5V/1A mobile phone chargers.

CEESC DU2L-KY
