HCMOTIONZ Tail Light Assembly Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your new HCMOTIONZ Tail Light Assembly. Designed for specific Lexus models, these tail lights enhance visibility and modernize your vehicle's appearance with advanced LED technology.

1.1. Compatibility

The tail light assembly is compatible with the following models:

• 2006-2012 Lexus IS250
• 2006-2012 Lexus IS350
• 2008-2015 Lexus IS F Model
• 2006-2012 Lexus IS 220d

Note: NOT compatible with Lexus IS 250C / Convertible models.

2. What's in the Box

Your package should contain the following items:

• A pair of tail lights (Driver & Passenger Side)

3. Product Features

• Full LED Lighting: Provides stronger, concentrated light output compared to ordinary tail lamps.
• Start-Up Animation: Features a dynamic scanning welcome animation when the vehicle is unlocked.
• Amber Sequential Indicator: Modern sequential turn signal functionality.
• Integrated Functions: Includes Brake Lights, Fog Lights, and Reverse Lights.
• Durability: Designed to be dustproof and waterproof, ensuring longevity and reliable performance in various weather conditions.
• Quality Assurance: DOT and SAE approved, complying with rigorous quality and safety standards.

Figure 1: Illustration of the five integrated light functions.

Figure 2: Dynamic start-up animation sequence.

Figure 3: Sequential amber turn signal in action.

4. Setup and Installation

The HCMOTIONZ Tail Light Assembly is designed for a direct plug-and-play installation, requiring no modifications to the vehicle's existing wiring harness. However, professional installation is recommended to ensure proper fitment and functionality.

4.1. Pre-Installation Check

• Ensure your vehicle is turned off and the parking brake is engaged.
• Verify all components listed in the 'What's in the Box' section are present and undamaged.

4.2. Installation Steps

1. Open the Trunk: Access the rear of the vehicle by opening the trunk.
2. Remove Trunk Liner Buckles: Carefully remove the buckles securing the trunk liner to expose the tail light wiring and mounting points. Use a trim removal tool if necessary.
3. Disconnect Wiring: Locate and unplug the wiring harness connected to the original tail light assembly.
4. Remove Original Tail Lights: Unscrew any bolts or nuts holding the original tail light assembly in place. Gently pull the tail light assembly away from the vehicle body.
5. Clean Mounting Area: Clean any dust or debris from the tail light mounting area on the vehicle.
6. Install New Tail Lights: Carefully position the new HCMOTIONZ Tail Light Assembly into the opening. Ensure it aligns correctly with the mounting points.
7. Connect Wiring: Plug the new tail light's wiring harness into the vehicle's existing connector.
8. Secure New Tail Lights: Reinstall the screws or nuts to firmly secure the new tail light assembly.
9. Reinstall Trunk Liner: Secure the trunk liner back in place using the buckles.
10. Repeat for Other Side: Follow the same steps for the opposite side of the vehicle.
11. Test Functionality: After installation, test all light functions (DRL, turn signals, brake lights, reverse lights, fog lights, and start-up animation) to ensure they are working correctly.

Figure 4: Rear view of the tail light assembly showing wiring and connectors for plug-and-play installation.

5. Operating Instructions

Your HCMOTIONZ Tail Light Assembly integrates seamlessly with your vehicle's existing lighting system. The following functions will operate automatically:

• Daytime Running Lights (DRL): Illuminates with a distinct LED pattern for enhanced daytime visibility.
• Brake Lights: Activates brightly when the brake pedal is pressed.
• Reverse Lights: Provides clear white illumination when the vehicle is in reverse gear.
• Fog Lights: Enhances visibility in foggy conditions.
• Turn Signals: The amber sequential indicator lights up in a dynamic, flowing pattern when activated.
• Start-Up Animation: A unique dynamic scanning welcome light sequence will play when the vehicle is unlocked.

6. Maintenance

To ensure the longevity and optimal performance of your HCMOTIONZ Tail Light Assembly, follow these simple maintenance guidelines:

• Regular Cleaning: Clean the lens with a soft cloth and mild automotive soap. Avoid abrasive cleaners that could scratch the surface.
• Inspect for Damage: Periodically check for any signs of physical damage or moisture intrusion. Although the lights are designed to be waterproof and dustproof, extreme conditions or impacts can compromise their integrity.
• Wiring Check: Ensure all wiring connections remain secure and free from corrosion.

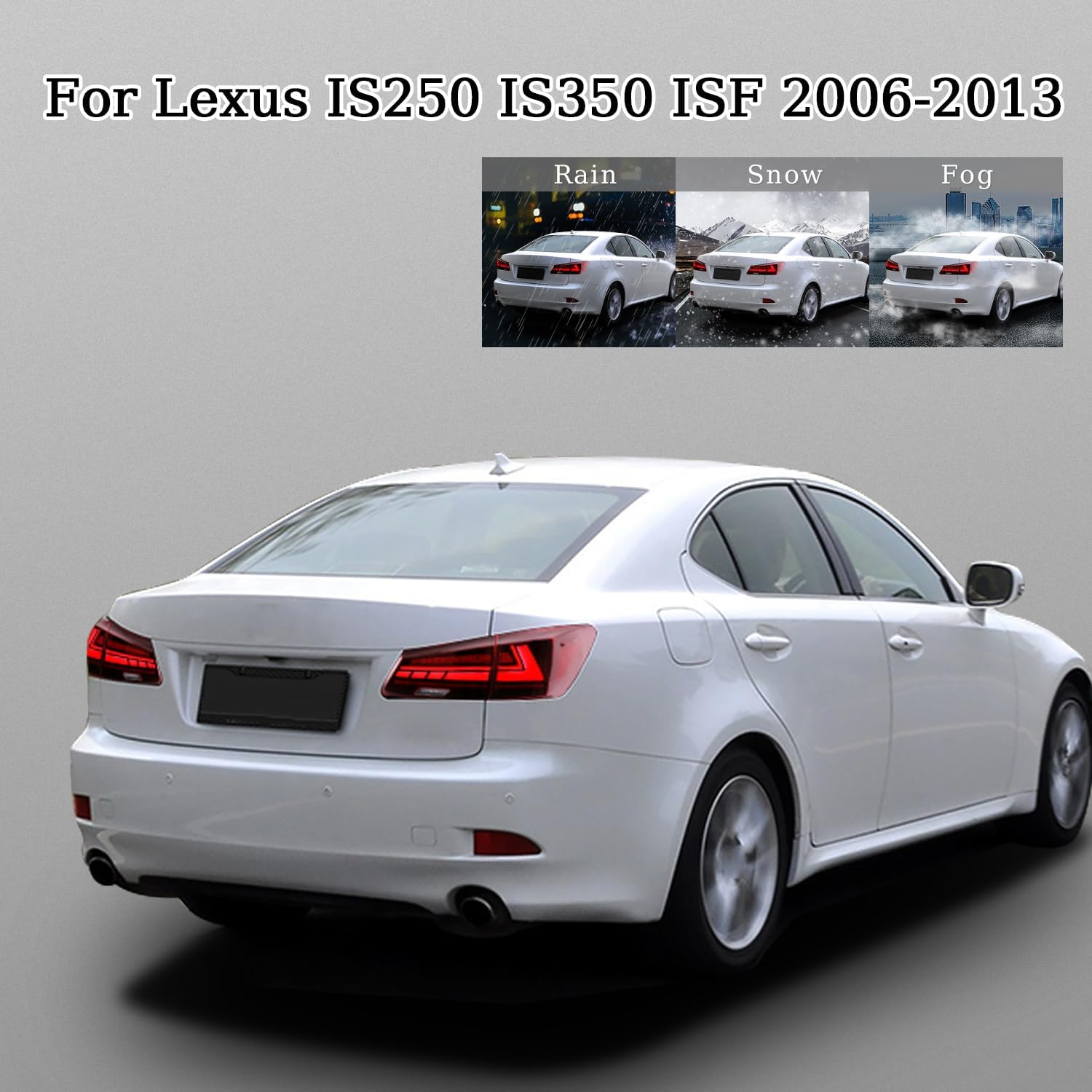

Figure 5: Tail lights performing reliably in diverse weather conditions, highlighting their dustproof and waterproof design.

7. Troubleshooting

If you experience any issues with your tail light assembly, consider the following:

• Lights Not Working: Check all electrical connections to ensure they are securely plugged in. Verify that the vehicle's fuses related to the tail lights are intact.
• Flickering Lights: This could indicate a loose connection or an issue with the vehicle's electrical system. Recheck connections.
• Moisture Inside Lens: While designed to be hermetically sealed, extreme temperature changes can sometimes cause temporary condensation. If moisture persists, inspect the seal for damage.
• Dynamic Functions Not Operating: Ensure all connections are correct. If the issue persists, professional diagnosis may be required.

For persistent problems, please contact HCMOTIONZ customer support.

8. Specifications

9. Warranty and Support

HCMOTIONZ products are rigorously tested to meet high-quality standards. For any warranty claims, technical support, or inquiries, please refer to the contact information provided with your purchase or visit the official HCMOTIONZ website.

Please retain your proof of purchase for warranty purposes.
