Knocbel Twin Over Twin Bunk Bed with Ladder

1. Introduction

This instruction manual provides comprehensive guidance for the assembly, safe use, and maintenance of your Knocbel Twin Over Twin Bunk Bed. Please read this manual thoroughly before assembly and retain it for future reference. This bunk bed is designed to optimize space, featuring a twin size upper bunk and a twin size bottom bunk. It can also be configured as two individual beds.

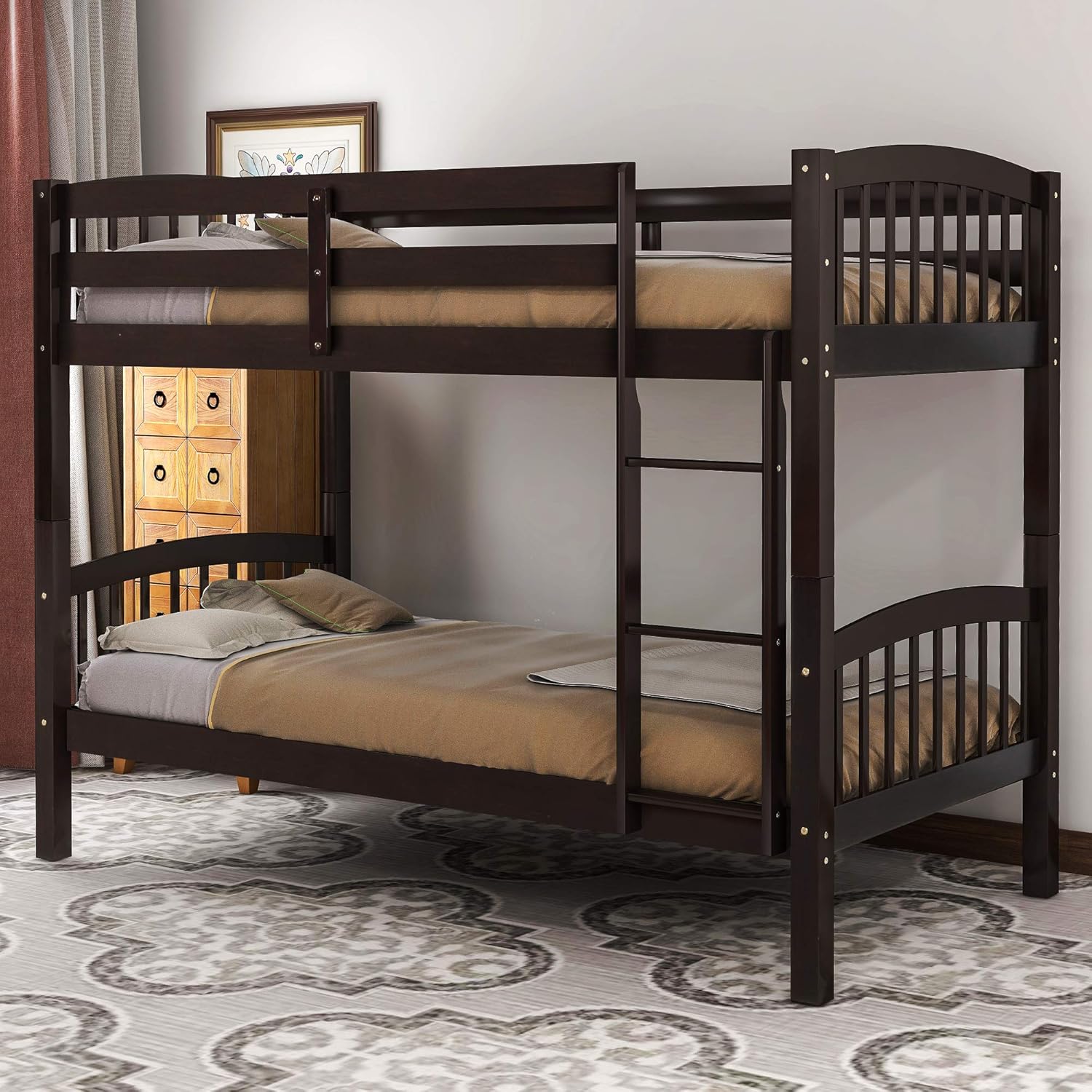

Image 1: Assembled Knocbel Twin Over Twin Bunk Bed in Espresso.

2. Safety Information

Adherence to the following safety guidelines is crucial for preventing injury and ensuring the longevity of your bunk bed.

• Weight Capacity: The upper bunk has a maximum weight capacity of 175 lbs. The bottom bunk has a maximum weight capacity of 275 lbs. Do not exceed these limits.
• Mattress Thickness: For the upper bunk, the recommended mattress thickness is 6 inches. For the bottom bunk, the recommended mattress thickness is 8 inches. Ensure the mattress on the upper bunk is not too thick, as it could reduce the effectiveness of the guardrail.
• Guardrails: The upper bunk is equipped with a full-length guardrail. Always ensure the guardrail is properly installed and secured before use.
• Ladder: Use the provided ladder for accessing the upper bunk. Ensure the ladder is securely attached and stable before climbing.
• Assembly: Ensure all components are correctly assembled and tightened according to the instructions. Regularly check and re-tighten all bolts and fasteners.
• Children: Children under 6 years of age should not use the upper bunk.
• Ventilation: Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.

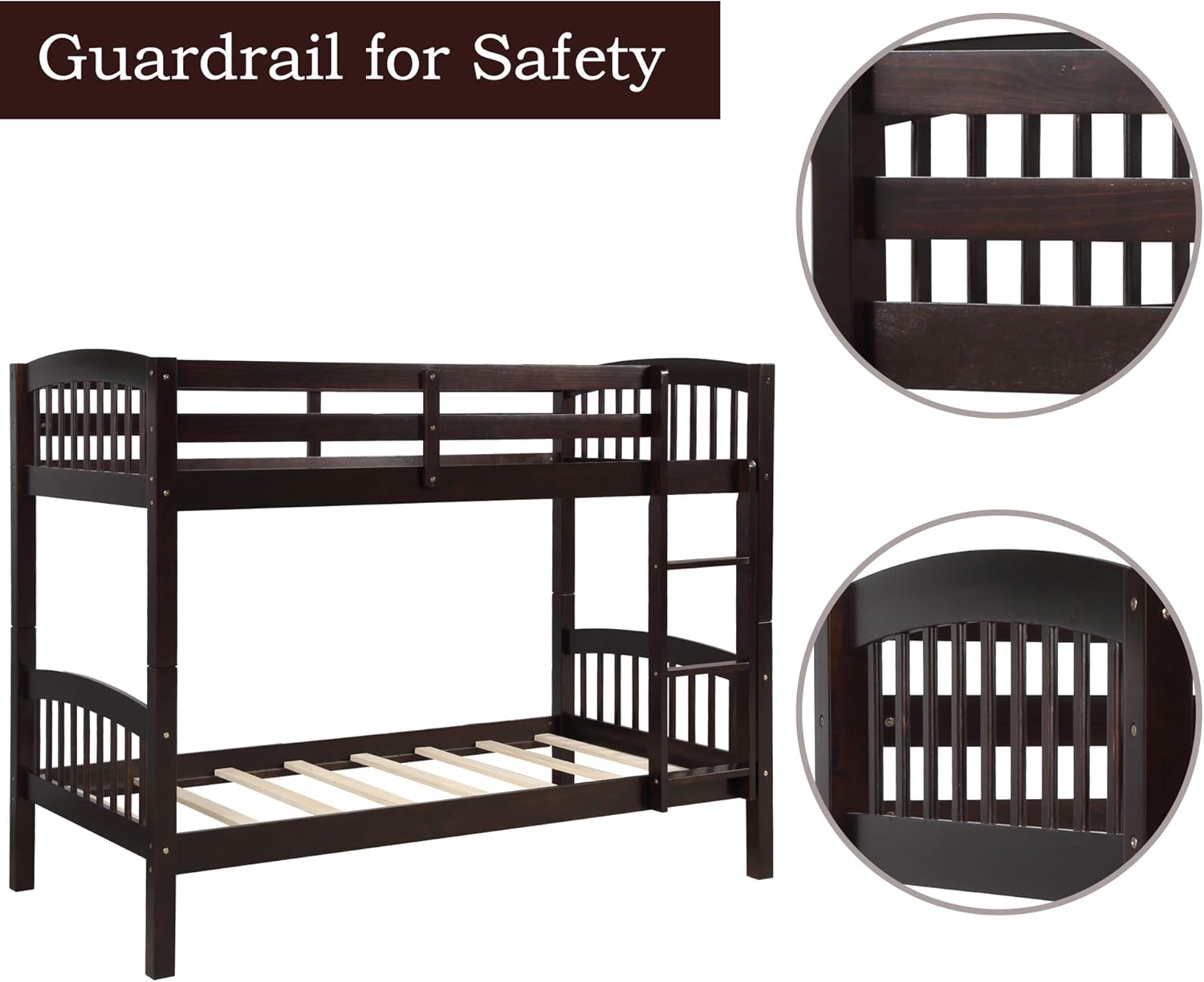

Image 2: Detail of the full-length guardrail on the upper bunk, designed for user safety.

3. Package Contents

Your Knocbel Twin Over Twin Bunk Bed is shipped in two packages. Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Bed Frame components (Plywood, MDF, Pinewood)
• Ladder
• Full-length guardrail for upper bunk
• Bed slats (Plywood) for both upper and lower bunks
• Assembly hardware (bolts, screws, tools)

Image 3: The bunk bed frame, illustrating the slat system and ladder attachment points.

4. Setup and Assembly Instructions

Partial assembly is required for this bunk bed. It is recommended that two people participate in the assembly process, which is estimated to take approximately 45 minutes. All necessary tools are included.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Identify Parts: Refer to the included assembly diagram to identify each component.
3. Assemble Lower Bed: Begin by assembling the headboard, footboard, and side rails for the lower bed. Secure all connections with the provided hardware.
4. Install Lower Bed Slats: Place the plywood slats onto the designated supports for the lower bed. Ensure they are evenly spaced and secured if applicable.
5. Assemble Upper Bed: Follow similar steps to assemble the headboard, footboard, and side rails for the upper bed.
6. Install Upper Bed Slats: Place the plywood slats onto the designated supports for the upper bed.
7. Attach Guardrail: Secure the full-length guardrail to the upper bunk according to the diagram.
8. Attach Ladder: Securely attach the ladder to the bunk bed frame.
9. Connect Bunks: Carefully lift and align the upper bunk onto the lower bunk, securing them together with the specified hardware.
10. Final Tightening: Once fully assembled, re-check and tighten all bolts and fasteners to ensure stability. Do not overtighten.

Note: This bunk bed does not require a box spring. Mattresses are not included.

Image 4: Detailed dimensions of the bunk bed, including height, length, width, and slat spacing.

Conversion to Two Individual Beds: This bunk bed can be separated into two individual twin beds. To do so, carefully reverse the steps for connecting the bunks, ensuring all components are safely detached and reconfigured as two separate bed frames. Refer to the assembly diagram for specific instructions on this conversion.

Image 5: The bunk bed reconfigured into two separate twin beds.

5. Operating Instructions (Usage)

Once assembled, the bunk bed is ready for use. Ensure mattresses are placed correctly on the slats.

• Upper Bunk Access: Always use the provided ladder to access the upper bunk. Do not jump onto or off the upper bunk.
• Guardrail Functionality: The guardrail on the upper bunk is a critical safety feature. Ensure it is always in place and secure.
• Weight Distribution: Avoid concentrating weight in one area of either bunk. Distribute weight evenly.

6. Maintenance

Regular maintenance will help preserve the appearance and structural integrity of your bunk bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the wood finish.
• Hardware Check: Periodically (e.g., every 3-6 months) check all bolts, screws, and fasteners. Tighten any that have become loose. Do not overtighten.
• Environmental Conditions: Avoid placing the bed in direct sunlight or near heat sources, which can cause wood to dry out or warp. Maintain a stable room temperature and humidity.

7. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions:

8. Specifications

9. Warranty Information

Specific warranty details for the Knocbel Twin Over Twin Bunk Bed (Model Beds-HOMEN0065) may vary. Please refer to the warranty documentation included with your purchase or visit the official Knocbel website or your retailer's website for the most current and detailed warranty information.

10. Customer Support

For any questions, missing parts, or assistance with assembly or troubleshooting, please contact Knocbel customer support or the retailer from whom you purchased this product. Have your model number (Beds-HOMEN0065) and ASIN (B09XQJGDQ7) ready when contacting support.
