1. Introduction
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Zcargel Air Vent Louver, Model QC1955WLJ. This product is designed to provide adjustable ventilation for various applications, including marine vessels, boats, yachts, buses, and RVs. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.
Figure 1: Zcargel Air Vent Louver (Model QC1955WLJ) and mounting screws.
2. Safety Information
Please observe the following safety precautions during installation and use:
- Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during installation.
- Ensure the installation surface is stable and capable of supporting the louver.
- Do not overtighten screws, as this may damage the plastic material.
- Keep small parts, such as screws, out of reach of children to prevent choking hazards.
- If replacing an existing vent, ensure the power to any associated electrical components (e.g., fans) is disconnected before beginning work.
3. Package Contents
Verify that all items listed below are present in your package:
- 1x Zcargel Air Vent Louver (Ventilation Panel)
- 6x Mounting Screws

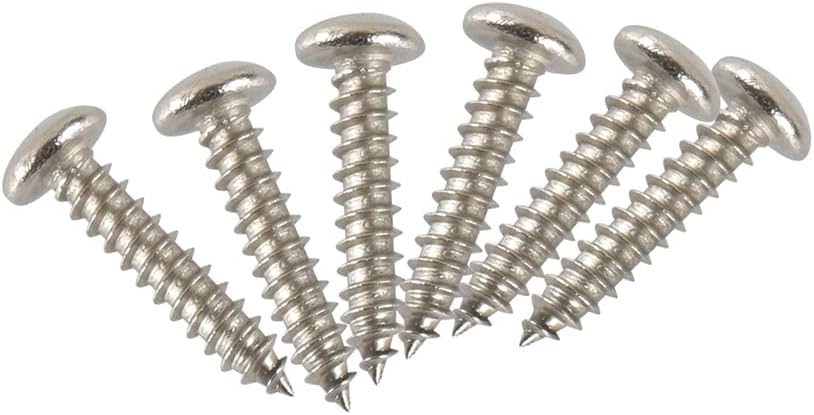

Figure 2: Included mounting screws.
4. Specifications
| Feature | Detail |
|---|---|
| Product Name | Air Vent Louver |
| Model Number | QC1955WLJ |
| Material | High-quality ABS Plastic |
| Color | Beige |
| Dimensions (L x W x H) | 40 cm x 11 cm x 1 cm (approx. 15.75 in x 4.33 in x 0.39 in) |
| Item Weight | 147 grams (approx. 5.18 ounces) |
| Screw Hole Diameter | 5 mm |
| Application | Marine, Boat, Yacht, Bus, RV Air Conditioning Vents |
5. Setup and Installation
Follow these steps to properly install your Zcargel Air Vent Louver:
- Prepare the Installation Area: Identify the desired location for the louver. Ensure the surface is clean, flat, and provides adequate space for the louver's dimensions (40cm x 11cm). If replacing an old vent, carefully remove the existing unit.
- Mark Screw Holes: Place the Zcargel Air Vent Louver in the intended position. Using a pencil or marker, carefully mark the locations for the six mounting screws through the pre-drilled holes on the louver.
- Pre-drill Pilot Holes (Recommended): For easier installation and to prevent material splitting, especially in wood or fiberglass, it is recommended to pre-drill pilot holes at the marked locations. Use a drill bit slightly smaller than the diameter of the mounting screws (e.g., 3-4mm).
- Mount the Louver: Align the louver with the pre-drilled holes. Insert the provided screws into the holes and gently tighten them using a screwdriver.
- Secure the Louver: Continue tightening the screws until the louver is firmly secured against the surface. Do not overtighten to avoid cracking the plastic or stripping the screw threads.
Figure 3: Top view of the louver, highlighting mounting points.
6. Operating Instructions
The Zcargel Air Vent Louver is a passive ventilation component. Its primary function is to allow air circulation while providing a finished appearance. The slats are fixed and not adjustable.
- Airflow: The louver facilitates the passage of air through its grille design.
- Direction: The louver is designed for general air intake or exhaust, depending on its placement and the overall ventilation system of the vehicle or vessel.
No active operation is required for this component.
7. Maintenance
Regular maintenance will help preserve the appearance and functionality of your air vent louver:
- Cleaning: Periodically wipe the louver surface with a soft, damp cloth to remove dust and debris. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners or solvents, as they may damage the plastic.
- Inspection: Occasionally inspect the louver for any signs of damage, cracks, or loose screws. Tighten any loose screws as needed, being careful not to overtighten.
- Obstruction: Ensure the louver openings are free from obstructions (e.g., leaves, insects, debris) that could impede airflow.
8. Troubleshooting
This product is a simple, passive component, so troubleshooting is generally minimal. However, consider the following if issues arise:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Airflow | Louver obstructed by debris; associated ducting or fan issues. | Clean the louver openings. Check the connected ventilation system (ducting, fan, filter) for blockages or malfunctions. |
| Louver is Loose | Mounting screws have loosened over time. | Gently tighten the mounting screws. Avoid overtightening. |
| Cracked Plastic | Overtightening during installation; impact damage. | If the damage affects functionality or appearance significantly, replacement may be necessary. Ensure proper installation technique for new units. |
9. Warranty and Support
Zcargel is committed to providing quality products. While specific warranty details are not provided in the product description, if you encounter any quality problems or damage to the package that renders the product unusable, please contact the seller or Zcargel customer support directly. They will assist you as soon as possible.
For further assistance, please refer to the seller's contact information on your purchase receipt or visit the official Zcargel store on Amazon:
