Introduction
The Effeuno P134H 509 is a professional-grade electric pizza oven designed for commercial, restaurant, and home use. Engineered for exceptional performance, this compact oven can reach temperatures up to 509°C (948°F), allowing you to cook a perfect Neapolitan pizza in as little as 60-90 seconds. It features new, improved heaters for more even baking, a flat bulb cover for easy handling, and two independent thermostats for precise control over upper and lower heating elements. Constructed from 100% high-quality stainless steel, with tempered and ceramic glass in the door, this oven is built for durability and efficiency.
Image: Front view of the Effeuno P134H 509 Professional Pizza Oven, showcasing its sleek design and control panel.
Setup
Before operating your Effeuno P134H 509 oven, please follow these setup instructions carefully:
- Unpacking: Carefully remove the oven from its packaging. Inspect for any signs of damage during transit. Retain packaging for future transport or storage.
- Placement: Place the oven on a stable, heat-resistant, and level surface. Ensure adequate clearance around the oven for ventilation (minimum 4 inches from walls or other appliances). This oven is designed for countertop use.
- Power Connection: Connect the oven to a standard home electrical socket. Ensure the power supply matches the oven's requirements (3kW maximum power).
- Stone Installation: Your oven comes with two types of baking stones: a Chamotte stone and a Biscotto clay stone. The Chamotte stone is ideal for Classic, Teglia, Pins, and Focaccia pizzas, while the Biscotto stone is best for traditional Neapolitan pizza. Carefully place your desired stone onto the baking chamber's support frame inside the oven.

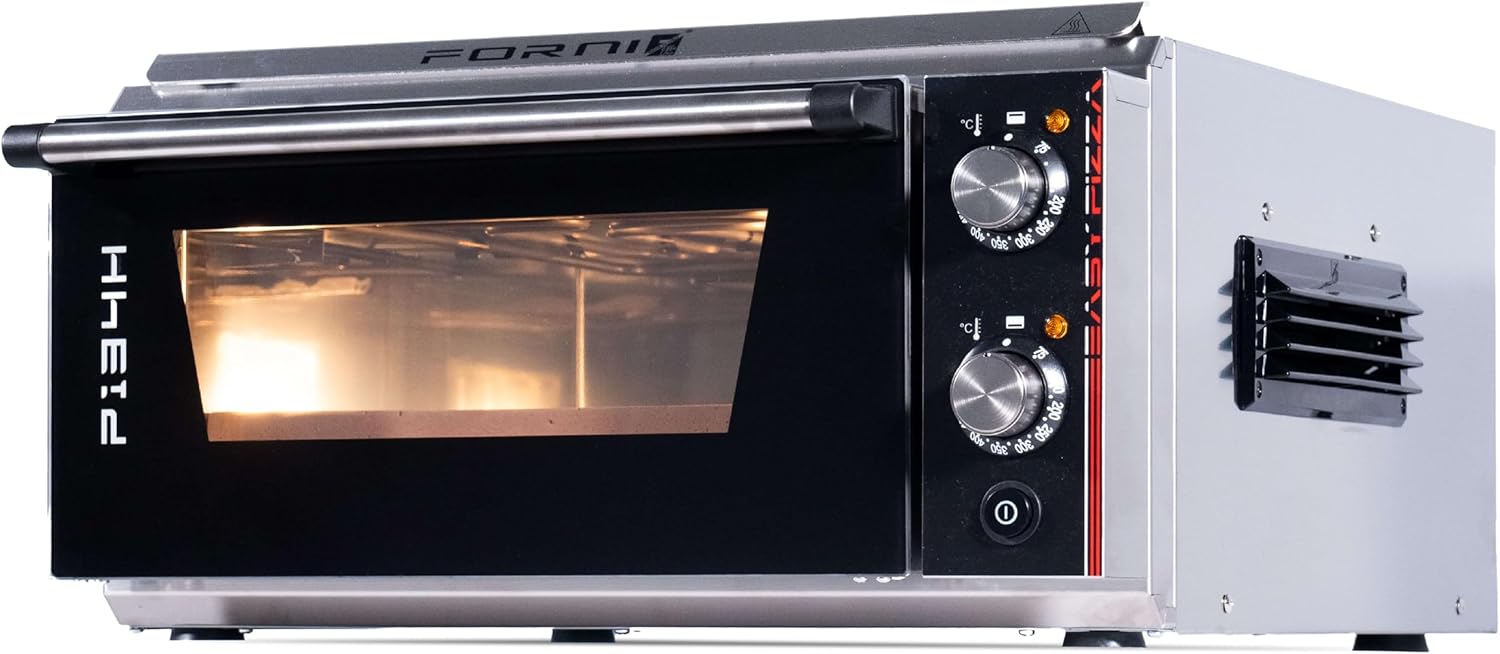

Image: Side view of the Effeuno P134H 509 Pizza Oven, illustrating its compact dimensions suitable for various contexts.
Operating Instructions
Operating your Effeuno P134H 509 oven for optimal pizza baking:
- Preheating: Turn the oven on using the power button. Set the desired temperature using the two independent thermostats. The upper thermostat controls the top heating element, and the lower thermostat controls the bottom element. For Neapolitan pizza, preheat to 509°C (948°F). Allow sufficient time for the oven and stone to reach the set temperature, typically 15-20 minutes.
- Temperature Control: Adjust the upper and lower thermostats independently to achieve the perfect balance for your pizza. For example, if the bottom of your pizza is cooking too fast, slightly reduce the lower thermostat setting.
- Loading Pizza: Use a pizza peel (a complimentary one is included with your purchase) to carefully slide the pizza onto the preheated baking stone.
- Cooking Time: Cooking times will vary based on pizza type and desired crispness. Neapolitan pizzas can cook in as little as 60-90 seconds. Monitor the pizza closely through the tempered glass door.
- Unloading Pizza: Once cooked, use the pizza peel to carefully remove the pizza from the oven.
- Cool Down: After use, turn off the oven and allow it to cool down completely before cleaning or moving.
Image: Close-up of the Effeuno P134H 509 oven's control knobs, showing the independent thermostats for upper and lower heating elements.
Image: The Biscotto clay stone positioned inside the Effeuno P134H 509 Pizza Oven, ideal for Neapolitan pizza.
Maintenance and Care
Proper maintenance ensures the longevity and performance of your Effeuno P134H 509 oven:
- Cleaning the Exterior: Ensure the oven is unplugged and completely cool. Wipe the stainless steel exterior with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads.
- Cleaning the Interior: After the oven has cooled, gently brush off any food debris from the baking stone. Do not use water or soap on the stone, as it is porous and can absorb liquids, leading to cracking. For the interior walls, a damp cloth can be used once the oven is cool.
- Glass Door: Clean the tempered glass door with a glass cleaner or a damp cloth. Ensure no cleaning solution drips into the oven interior.
- Storage: If storing the oven for an extended period, ensure it is clean, dry, and stored in a cool, dry place.
Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating | Not plugged in, power outage, thermostat setting too low, circuit breaker tripped. | Check power connection, verify power supply, adjust thermostat to desired temperature, reset circuit breaker if necessary. |
| Pizza burning on top/bottom | Incorrect temperature balance between upper and lower elements, oven too hot. | Adjust independent thermostats to balance heat distribution (e.g., lower top heat, increase bottom heat). Reduce overall temperature if consistently burning. |
| Uneven cooking | Oven not fully preheated, uneven dough thickness. | Ensure oven is fully preheated to the set temperature. Distribute dough evenly. Rotate pizza halfway through cooking if necessary. |
| Smoke or odor during first use | Protective coatings burning off. | This is normal for initial use. Operate the oven empty at maximum temperature for 30 minutes in a well-ventilated area. |
Specifications
- Model: P134H 509
- Brand: Black Rock Grill
- Power Source: Electric
- Maximum Temperature: 509°C (948°F)
- Power Consumption: Up to 3kW
- Product Dimensions (L x W x H): 17.32 x 23.23 x 12.6 inches
- Item Weight: 55 pounds
- Included Components: Chamotte Stone, Biscotto Stone, Pizza Peel
- Control Type: Knob (Electromechanical)
- Door Material: Tempered Glass (outer/inner), Ceramic Glass (inside)
- Construction Material: High-quality Stainless Steel
Warranty and Support
For any inquiries regarding your Effeuno P134H 509 Pizza Oven, including operational questions, technical support, or warranty claims, please contact Black Rock Grill customer service. While specific warranty details are not provided in this manual, please refer to your purchase documentation or contact the seller for comprehensive warranty information.
A complimentary pizza peel is included with each oven purchase to enhance your pizza-making experience.
For additional support and product information, you may visit the Black Rock Grill Store on Amazon.
