ARLIME 4-IN-1 Evaporative Air Cooler, Heater, and Humidifier Combo

Introduction

Thank you for choosing the ARLIME 4-IN-1 Evaporative Air Cooler, Heater, and Humidifier Combo. This versatile appliance is designed to provide comfort throughout the year, functioning as an evaporative air cooler, heater, humidifier, and fan. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before using this appliance.
• Ensure the power supply voltage matches the rating label on the appliance.
• Do not operate the appliance with a damaged cord or plug. If the cord or plug is damaged, contact customer service for replacement.
• Keep the appliance away from water and other liquids. Do not immerse the unit in water.
• Unplug the appliance from the power outlet when not in use, before filling water, or before cleaning.
• Do not insert fingers or foreign objects into the air inlets or outlets.
• Place the appliance on a stable, level surface to prevent tipping.
• This appliance is for indoor use only.
• Supervise children and pets when the appliance is in use. The bladeless design and overheating protection enhance safety.
• Do not block air vents or operate near curtains or other objects that could obstruct airflow.

Product Overview

The ARLIME 4-IN-1 unit combines multiple functions for year-round comfort. It features a user-friendly control panel and comes with a remote for convenient operation.

Key Components:

• Control Panel: Located on top for easy access to settings.
• Air Outlet: Front grille for air distribution.
• Water Tank: Large 1.85 Gallon (7L) capacity for extended operation.
• Ice Crystal Boxes: Two reusable ice crystal boxes included to enhance cooling.
• Remote Control: For convenient operation from a distance.
• Casters: Four rollers at the base for easy mobility.

Setup Instructions

Unpacking:

1. Carefully remove the appliance from its packaging.
2. Check for any damage during transit. If damaged, do not operate and contact customer service.
3. Ensure all components are present: main unit, remote control, and two ice crystal boxes.

Filling the Water Tank (for Cooling/Humidifying):

1. Ensure the unit is unplugged from the power outlet.
2. Pull out the water tank from the bottom rear of the unit.
3. Fill the water tank with clean water up to the 'MAX' line. Do not overfill.
4. Carefully slide the water tank back into the unit until it clicks into place.

Using Ice Crystal Boxes (for Enhanced Cooling):

1. Take the two ice crystal boxes and fill them with water (if not pre-filled).
2. Place the filled ice crystal boxes in a freezer for at least 4 hours until completely frozen.
3. Once frozen, place the ice crystal boxes into the water tank of the unit.
4. Note: Do not overfill the ice crystal boxes to prevent breakage when frozen.

Operating Instructions

The unit can be operated using the control panel on top or the included remote control.

Power On/Off:

• Plug the power cord into a suitable electrical outlet.
• Press the 'Power' button on the control panel or remote to turn the unit ON or OFF.

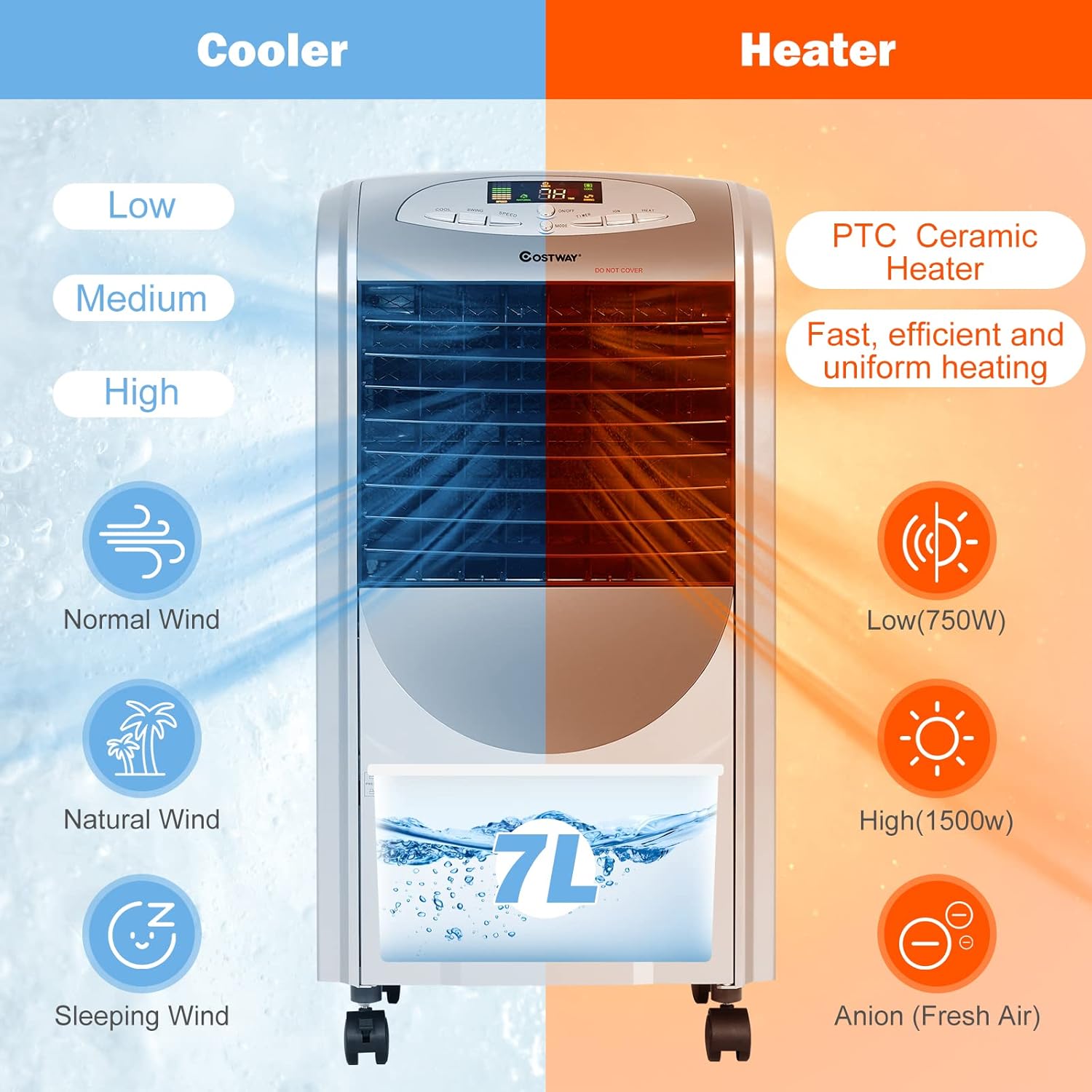

Selecting Modes:

Press the 'Mode' button to cycle through the available functions:

• Fan Mode: Operates as a standard fan, circulating air.
• Cooling/Humidifying Mode: Activates the evaporative cooling and humidification function. Ensure the water tank is filled.
• Heating Mode: Activates the PTC ceramic heater for warmth.

Adjusting Fan Speed:

Press the 'Speed' button to select from three fan speeds: Low, Medium, or High.

Timer Function:

The 8-hour timer allows you to set the unit to automatically shut off after a specified duration. Press the 'Timer' button to set the desired operating time.

Oscillation:

The unit features wide-angle oscillation for broad air distribution. The internal louvers automatically swing left and right. The external louvers can be manually adjusted up and down to direct airflow.

Water Shortage Protection:

If the water level in the tank is too low during cooling or humidifying operation, the humidification indicator will flash and an audible alert will sound to remind you to refill the tank.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your appliance.

Cleaning the Exterior:

• Always unplug the unit before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Cleaning the Water Tank:

• Empty and rinse the water tank regularly, especially if using the cooling/humidifying function frequently.
• Use a mild detergent and water if necessary, then rinse thoroughly to remove any residue.
• Allow the tank to air dry completely before reinserting.

Filter Drying Procedure:

• After using the humidification/cooling function, it is recommended to turn off these functions 10 minutes before completely shutting down the unit.
• Allow the unit to run in fan-only mode for these 10 minutes to dry the internal filter, which helps prevent mold and prolongs product life.

Troubleshooting

If you encounter issues, please refer to the following common problems and solutions:

Specifications

Technical details for the ARLIME 4-IN-1 Evaporative Air Cooler, Heater, and Humidifier Combo.

Warranty and Support

ARLIME products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase documentation or visit the official ARLIME website. Please retain your proof of purchase for warranty claims.
