OGORI Cordless Electric Mop B07 User Manual

Introduction

Thank you for choosing the OGORI Cordless Electric Mop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric mop. Please read these instructions carefully before first use and retain them for future reference.

Image: The OGORI Cordless Electric Mop in operation, highlighting its key features such as LED light, detachable battery, dual motor, cordless design, self-standing capability, and one-click spray function.

Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance.

• Read all instructions before using the appliance.
• Do not immerse the appliance in water or other liquids.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not handle the charger or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Exercise extreme caution when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing the appliance.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer.
• Do not modify or attempt to repair the appliance or the battery pack.

Package Contents

Please check the package contents to ensure all items are present and undamaged:

• OGORI Cordless Electric Mop (Main Unit)
• Adjustable Handle
• Detachable Battery Pack (2550mAh)
• Power Adapter/Charger
• Cleaning Pads (Pink, 2 pairs)
• Waxing Pads (Blue, 2 pairs)
• Measuring Cup/Funnel
• User Manual

Image: An illustration showing all components included in the OGORI Cordless Electric Mop package, such as the mop head, handle, battery, charger, various pads, and a funnel.

Setup

1. Assembly

1. Attach the Handle: Insert the adjustable handle into the main mop body until it clicks securely into place.
2. Attach Cleaning Pads: Align the cleaning pads with the hook-and-loop fasteners on the bottom of the mop head and press firmly to secure them. Use pink pads for general cleaning and blue pads for waxing/polishing.

2. Charging the Battery

The mop is equipped with a detachable 2550mAh Lithium-ion battery. For optimal performance, fully charge the battery before first use.

• Remove the battery pack from the mop by pressing the release button and pulling it out.
• Connect the power adapter to the charging port on the battery pack.
• Plug the adapter into a standard wall outlet.
• The charging indicator lights on the battery will illuminate. A full charge typically takes approximately 3 hours.
• Once fully charged, disconnect the adapter and reinsert the battery into the mop until it clicks.

Image: The detachable battery pack of the OGORI Electric Mop shown being charged separately, with indicators for battery life and charging time.

3. Filling the Water Tank

The mop features a built-in 300ml water tank for wet cleaning and polishing.

• Locate the water tank cap on the mop head.
• Open the cap and use the provided measuring cup/funnel to fill the tank with clean water for wet mopping.
• For polishing or waxing, add appropriate floor wax or polishing solution to the tank. Do not use corrosive liquids or hot water.
• Close the cap securely after filling.

Image: The OGORI Electric Mop demonstrating its spray function and the transparent 300ml water tank, along with instructions for easy filling.

Operating Instructions

1. Powering On/Off

• To turn on the mop, press the power button located on the handle. The LED headlights will illuminate, and the mop pads will begin to rotate.
• To turn off the mop, press the power button again.

2. Cleaning Operation

The dual spinning motors provide powerful cleaning at 260 RPM, propelling the mop forward for effortless cleaning.

• Gently guide the mop across the floor. The self-propelling action reduces user effort.
• For stubborn stains, hold the mop over the area for a few seconds to allow the rotating pads to work.

Image: Close-up of the OGORI Electric Mop head, illustrating the powerful dual motor system that provides 260 RPM for efficient cleaning.

3. Using the Spray Function

The integrated spray function allows for on-demand application of water or cleaning solution.

• Press the "spray" button on the handle to release a fine mist from the front of the mop head.
• Release the button to stop spraying.

4. LED Headlights

The LED headlights automatically turn on with the mop, illuminating dark areas and making dirt and debris more visible, especially under furniture.

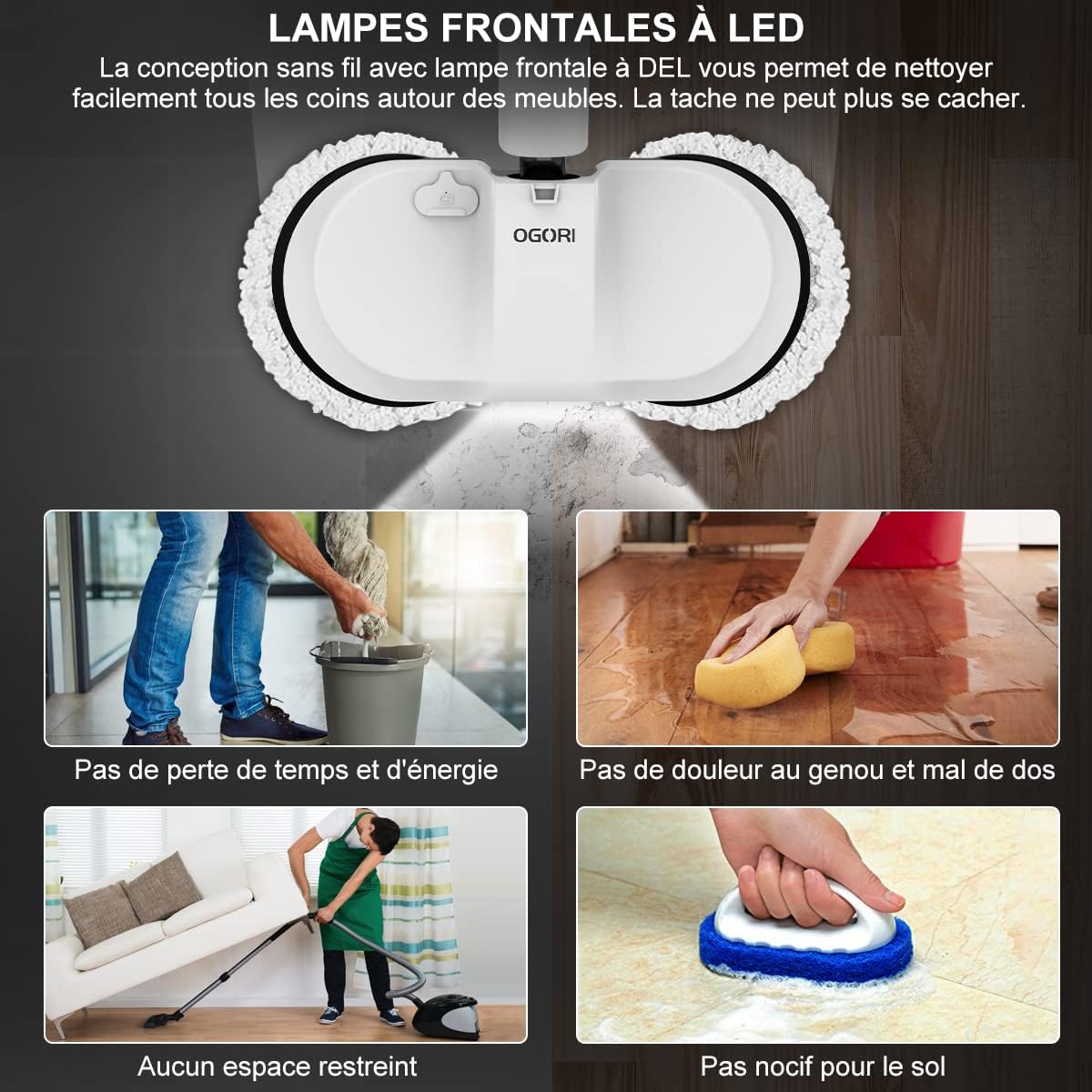

Image: The OGORI Electric Mop's LED headlights shining on the floor, highlighting its ability to reveal hidden dirt and clean under furniture.

5. Maneuverability and Adjustable Height

The mop head offers 180° horizontal rotation and 90° vertical rotation, allowing easy access under and around furniture. The handle height is adjustable from 101 cm to 127 cm for comfortable use by various users.

Image: The OGORI Electric Mop showcasing its flexible pivoting head, capable of 180-degree horizontal and 90-degree vertical rotation for reaching difficult areas.

Image: The OGORI Electric Mop illustrating its adjustable handle height (101cm to 127cm) and convenient self-standing design for easy storage.

Maintenance

1. Cleaning Mop Pads

The cleaning and waxing pads are reusable and machine washable.

• After each use, remove the pads from the mop head.
• Machine wash the pads with mild detergent. Do not use bleach or fabric softener.
• Air dry the pads completely before reattaching them to the mop or storing.

Image: The pink cleaning pads and blue waxing pads for the OGORI Electric Mop, indicating they are machine washable for easy maintenance.

2. Emptying and Refilling Water Tank

• After each wet cleaning session, empty any remaining liquid from the water tank.
• Rinse the tank with clean water to prevent residue buildup.
• Allow the tank to air dry before storing the mop.

3. Battery Care

• To prolong battery life, avoid completely draining the battery before recharging.
• Store the mop and battery in a cool, dry place when not in use.
• If storing for an extended period, charge the battery every 3-6 months to maintain its health.

4. General Cleaning

• Wipe the exterior of the mop with a soft, damp cloth.
• Do not use harsh chemicals or abrasive cleaners.

Troubleshooting

Specifications

Warranty and Support

Warranty Information

The OGORI Cordless Electric Mop comes with a 12-month worry-free warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

Please retain your proof of purchase for warranty claims.

Customer Support

If you encounter any issues or have questions regarding your OGORI Cordless Electric Mop, please do not hesitate to contact our customer support team. We are committed to providing prompt and professional assistance.

Contact Information:

• For support, please refer to the contact details provided on the product packaging or the official OGORI website.
• When contacting support, please have your model number (B07) and purchase date ready.
