Extrastar 3-Outlet Power Strip with Flat Plug and Switch - User Manual

Introduction

Thank you for choosing the Extrastar 3-Outlet Power Strip. This manual provides important information regarding the safe and efficient use of your new power strip. Please read it thoroughly before use and retain it for future reference.

This power strip is designed to expand your electrical outlets, allowing you to connect up to three electrical appliances and luminaires. It features a space-saving flat plug, a 1.5-meter cable, and integrated child safety mechanisms for enhanced protection.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Indoor Use Only: This power strip is designed for indoor use in dry locations. Do not use it outdoors or in wet environments.
• Overload Protection: Do not exceed the maximum power rating of 3680W (16A, 230V). Overloading can cause overheating and fire.
• Child Safety: Each outlet is equipped with child safety shutters to prevent the insertion of foreign objects. Do not attempt to bypass or remove these safety features.
• Fire Resistance: The power strip is constructed from fire-retardant PP material, capable of withstanding temperatures up to 750°C.
• Proper Connection: Ensure plugs are fully inserted into the outlets. Loose connections can cause overheating.
• Avoid Damage: Do not use the power strip if the cable or housing is damaged. Do not disassemble or modify the product.
• Unplug When Not in Use: Disconnect the power strip from the wall outlet when not in use or before cleaning.

This image demonstrates the integrated child safety shutters within each outlet, preventing the insertion of foreign objects and protecting against electric shocks.

This image illustrates the fire-retardant PP material used in the power strip's construction, capable of withstanding temperatures up to 750°C, enhancing safety.

Product Features

• 3 Outlets: Provides three 16A 2P+T outlets for connecting multiple devices.
• Flat Plug: The 90° extra-flat plug design saves space and allows furniture to be placed closer to the wall.
• 1.5m Cable: Features a HO5 VV-F 3G1.0 mm² cable with a length of 1.5 meters for flexible placement.
• Integrated Switch: A main on/off switch controls power to all connected devices.
• Child Safety: All outlets include child protection shutters.
• High Power Capacity: Supports a maximum power of 3680W.
• Certifications: NF and CE certified for safety and quality.

This image shows the Extrastar 3-outlet power strip from a top-down view and a side view, highlighting its compact dimensions (180mm length, 52mm width, 38mm height). Key specifications such as 16A/230V voltage, 3680W maximum load, and 1.5m cable length are also displayed.

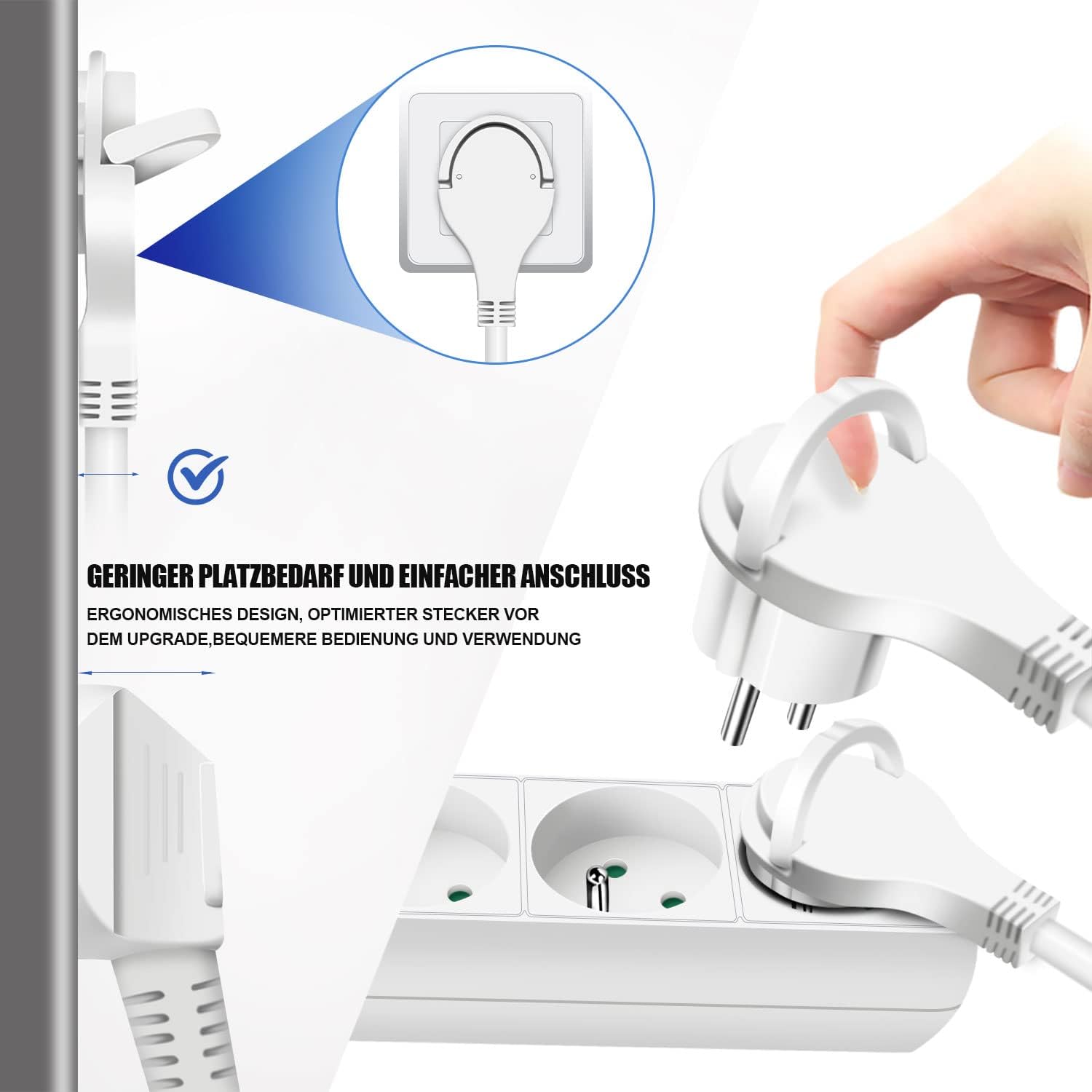

This image illustrates the flat plug design of the power strip, which allows for easy connection behind furniture or in tight spaces, keeping the wall surface smooth.

This image highlights the 40mm spacing between the three outlets, designed to prevent obstruction and accommodate various plug sizes. The red on/off switch is also visible.

Setup

1. Unpack: Carefully remove the power strip from its packaging.
2. Placement: Choose a dry, indoor location where the power strip will not be exposed to moisture or excessive heat. Ensure the cable can reach the wall outlet without being stretched or pinched.
3. Connect to Wall Outlet: Plug the power strip's flat plug firmly into a grounded wall outlet.
4. Connect Devices: Plug your electrical appliances into the outlets on the power strip. Ensure each device's plug is fully inserted.

A lifestyle image showing the power strip discreetly used in a modern living room, demonstrating its aesthetic integration.

Operating Instructions

The Extrastar 3-Outlet Power Strip is simple to operate:

• Power On: Press the red on/off switch to the 'I' position. The switch will illuminate, indicating that power is supplied to the outlets.
• Power Off: Press the red on/off switch to the 'O' position. The light will turn off, cutting power to all connected devices.

A detailed view of the illuminated red on/off switch, allowing for convenient control of connected devices.

This image shows the power strip in use, with a device plugged in, demonstrating its ability to power multiple appliances simultaneously up to 3680W.

Maintenance

• Cleaning: Disconnect the power strip from the wall outlet before cleaning. Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or immerse the product in water.
• Storage: When not in use, store the power strip in a cool, dry place, away from direct sunlight and moisture.
• Inspection: Periodically inspect the power strip, cable, and plug for any signs of damage. If damage is found, discontinue use immediately and replace the product.

Troubleshooting

• No Power to Devices:
  • Ensure the power strip's plug is fully inserted into the wall outlet.
  • Check that the on/off switch is in the 'I' (on) position and illuminated.
  • Verify that the wall outlet itself is functioning by plugging in another device directly.
  • Check if the total power consumption of connected devices exceeds 3680W. If so, unplug some devices.
• Overheating:
  • Immediately unplug all devices and the power strip from the wall.
  • Reduce the number of connected devices or their total power consumption.
  • Ensure adequate ventilation around the power strip.

If problems persist, discontinue use and contact customer support.

Specifications

Warranty and Support

Extrastar products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official Extrastar website. Keep your proof of purchase for any warranty claims.

For further assistance, you may contact the seller directly through the platform where the product was purchased.
