1. Introduction
Thank you for choosing the Anyasun Automatic Double Watch Winder. This device is designed to keep your automatic watches wound and ready to wear, while also providing convenient storage for jewelry and other accessories. It features a quiet Japanese Mabuchi motor, adjustable watch pillows, multiple rotation modes, and an integrated LED light for enhanced visibility.
Image 1.1: Front view of the Anyasun Automatic Double Watch Winder, showcasing the two watch winding slots and the top jewelry organizer tray.
2. Package Contents
Please verify that all items are present in the package:
- Automatic Double Watch Winder Unit
- AC Power Adapter
- User Manual (this document)
3. Product Features
- Multi-Space Design: Features two winding areas for automatic watches and a valet tray for storing daily accessories such as glasses, collar clips, ties, belts, and other watches. The exterior is crafted from premium leather with a transparent acrylic glass display.
- Adjustable Watch Pillows: Equipped with 2 retractable spring watch pillows, each with 3 adjustment slots to accommodate various watch sizes. The pillow perimeter can be adjusted from 165mm to 215mm, ensuring a secure fit for watches with a dial diameter not exceeding 55mm.
- 2 Rotation Modes: Operates with a precise rotation cycle: forward rotation for 2 minutes, stop for 6 minutes; then reverse rotation for 2 minutes, stop for 6 minutes, and repeats this cycle. This protects mechanical watches from overwinding.
- Extremely Quiet Operation: Utilizes a durable and noiseless Japanese Mabuchi motor, ensuring long-lasting movement without disturbing your rest.
- Integrated LED Light: Built-in LED lights illuminate your watches, making them visible and aesthetically pleasing, especially in low-light conditions. The LED light can be turned off using a button on the back.
- Auto-Stop Safety Feature: The winder automatically stops rotation when the front door is opened, preventing accidental injury.

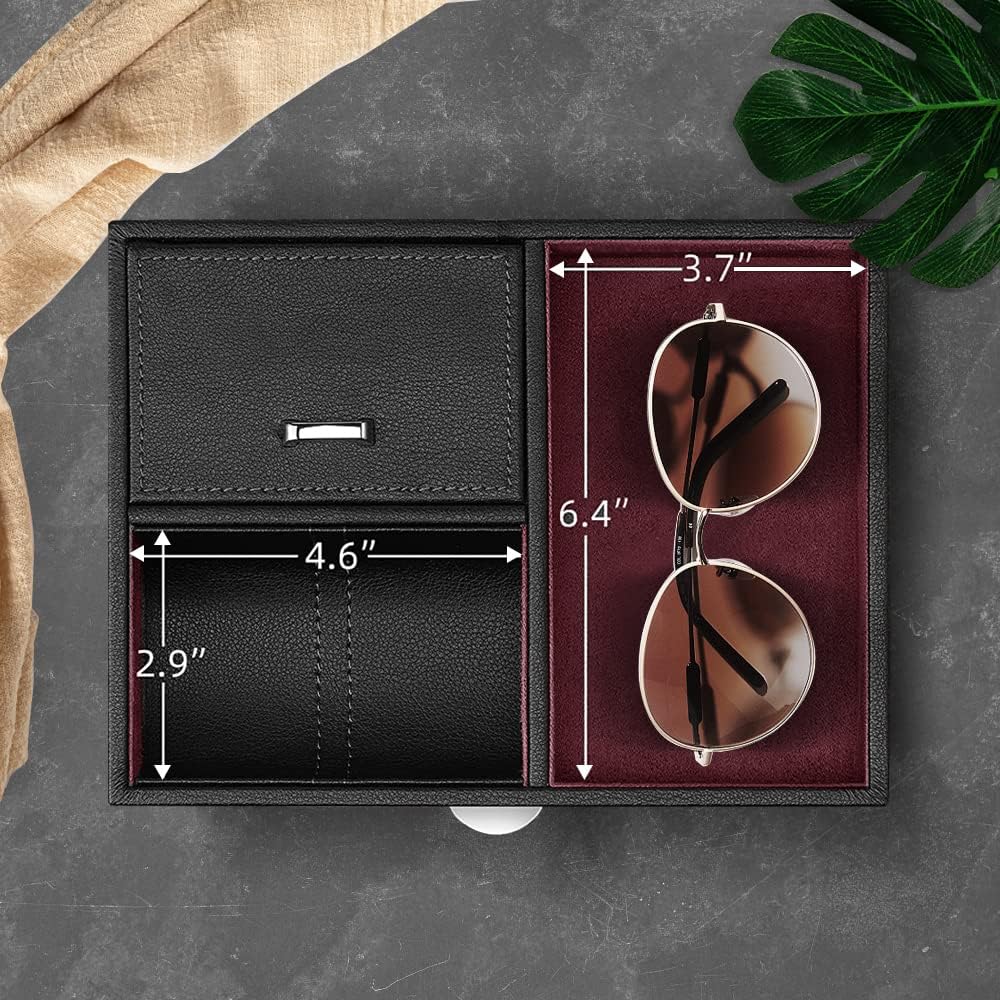

Image 3.1: Top view illustrating the multi-space design, including a covered compartment and an open tray for various accessories.
Image 3.2: Detailed view of the retractable watch pillows, highlighting the three adjustment slots for different watch sizes.
Image 3.3: Depiction of the watch winder's quiet operation, suitable for placement in a bedroom without disturbing sleep.
4. Setup Instructions
- Unpack the Winder: Carefully remove the watch winder from its packaging. Retain all packaging materials for future transport or storage.
- Connect Power: Plug the provided AC power adapter into the DC input port located at the back of the watch winder. Then, plug the adapter into a standard 100-240V wall outlet.
- Prepare Watch Pillows: Adjust the watch pillows to fit your watches. Press the pillow to adjust its height using the 3 available slots to ensure a snug fit for your watch.
- Place Watches: Secure your automatic watches onto the adjusted watch pillows.
- Insert Watches: Gently place the watch pillows with your watches into the winding slots inside the winder. Ensure they are seated correctly.
5. Operating Instructions
- Power On: Once connected to power, the winder will automatically begin its rotation cycle.
- Rotation Mode: The winder operates in a pre-programmed cycle: 2 minutes of forward rotation, followed by a 6-minute rest; then 2 minutes of reverse rotation, followed by a 6-minute rest. This cycle repeats continuously.
- LED Light Control: To turn the internal LED lights on or off, locate the button on the back of the unit and press it.
- Auto-Stop Feature: For safety and convenience, the winding mechanism will automatically stop when the front transparent door is opened. It will resume operation once the door is closed.
Image 5.1: The watch winder actively rotating two automatic watches within its compartments.
Image 5.2: A hand opening the winder door, demonstrating the automatic stop function for safety.
6. Maintenance
- Cleaning: Wipe the exterior of the watch winder with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or solvents.
- Environment: Place the winder on a stable, level surface away from direct sunlight, extreme temperatures, and high humidity.
- Handling: Handle the unit with care. Avoid dropping or subjecting it to strong impacts.
- Power Disconnection: When not in use for extended periods, disconnect the power adapter from the wall outlet.
7. Troubleshooting
- Winder Not Rotating:
- Ensure the AC power adapter is securely plugged into both the winder and a working wall outlet.
- Check if the front door is fully closed. The winder has an auto-stop safety feature when the door is open.
- LED Light Not Working:
- Press the LED light control button on the back of the unit to toggle the light on/off.
- Verify the power connection to the unit.
- Watch Not Winding Properly:
- Ensure the watch is securely seated on the watch pillow and the pillow is correctly inserted into the winding slot.
- Confirm your watch is an automatic mechanical watch. This winder is not designed for quartz watches.
If you encounter issues not covered here, please contact Anyasun customer support for assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Product Dimensions | 9.3 x 6.9 x 6.5 inches (23.6 x 17.5 x 16.5 cm) |
| Item Weight | 4.95 Pounds (2.25 kg) |
| Model Number | 1 |
| Material | Leather, Plastic |
| Power Source | AC Adapter (100-240V) |
| Motor Type | Japanese Mabuchi Motor |
| Watch Capacity | 2 Automatic Watches |
| Watch Pillow Perimeter | 165mm to 215mm (adjustable) |
Image 8.1: Diagram illustrating the physical dimensions of the watch winder unit.
9. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact Anyasun customer service directly. Please have your model number (1) and purchase details ready when contacting support.
