SOFTSEA L-Shaped Twin Beds with Trundle and Drawers User Manual

Product Overview

The SOFTSEA L-Shaped Twin Beds with Trundle and Drawers is a versatile furniture solution designed to maximize sleeping capacity and storage in a compact footprint. This unit features two twin-sized beds arranged in an L-shape, a pull-out trundle bed, and integrated storage drawers, making it ideal for shared rooms or accommodating guests.

A unique built-in square table connects the two main beds, serving as a convenient nightstand with additional storage. The trundle and drawers are convertible, allowing for flexible placement on either the left or right side to suit your room layout.

Image: The SOFTSEA L-Shaped Twin Beds with Trundle and Drawers, showcasing its L-shaped configuration, pull-out trundle, and integrated desk/nightstand.

Safety Information

WARNING:

• Do not exceed 250 pounds per bed.
• Always follow assembly instructions carefully to prevent instability.
• Be cautious of sharp edges during assembly and use.
• Ensure all connections are securely fastened before use.

Components and Parts List

Before beginning assembly, ensure all parts are present and undamaged. Unpack all components and lay them out on a clean, soft surface to prevent scratches.

• Twin Bed Frames (2 units)
• Trundle Bed Frame (1 unit)
• Storage Drawers (2 units)
• Built-in Square Table/Nightstand
• Slats for all beds
• All necessary hardware (screws, bolts, connectors)
• Assembly tools (included)

Image: An overhead view of the bed frame structure, highlighting the two main bed platforms and the integrated storage drawers beneath one section.

Image: A detailed view of one of the empty storage drawers, showing its construction and handle cutout.

Setup and Assembly

Assembly of the SOFTSEA L-Shaped Twin Beds requires careful attention to detail. It is recommended to have at least two adults for assembly. All necessary tools are included with the product.

Assembly Steps:

1. Prepare the Area: Clear a spacious area for assembly. Lay down a blanket or cardboard to protect your flooring and the furniture components.
2. Identify Components: Refer to the included parts diagram to identify each component. Group similar parts together.
3. Assemble Main Bed Frames: Begin by assembling the two main twin bed frames according to the provided diagram. Ensure all bolts are finger-tight at this stage.
4. Attach the Square Table: Connect the built-in square table to the two main bed frames. This forms the L-shape. Ensure the connection is secure and aligned.
5. Install Slats: Place the wooden slats onto the bed frames. Secure them using the provided fasteners. Ensure even spacing for proper mattress support.
6. Assemble Trundle Bed: Assemble the trundle bed frame. Attach the wheels to the bottom of the trundle for easy pull-out functionality.
7. Assemble Drawers: Construct the two storage drawers. Install the drawer slides and wheels (if applicable) to ensure smooth operation.
8. Insert Trundle and Drawers: Slide the assembled trundle bed and storage drawers into their designated positions under the main bed frames.
9. Final Tightening: Once all components are in place and aligned, systematically tighten all bolts and screws using the included tools. Do not overtighten.
10. Safety Check: Before use, gently shake the assembled bed to ensure stability. Verify that all connections are firm and there are no loose parts.

Image: A close-up view of the trundle bed's wheel and the wooden support structure, illustrating the mobility mechanism.

Image: A detailed shot of the drawer's support system, showing the wheel and how it integrates with the bed frame for smooth operation.

Operating and Usage

The SOFTSEA L-Shaped Twin Beds are designed for versatile use, providing multiple sleeping and storage options.

Using the Beds:

• Main Twin Beds: Each of the two main platforms accommodates a standard twin-sized mattress. The recommended mattress thickness for the platform beds is 6-8 inches.
• Trundle Bed: The trundle bed can be easily pulled out from under one of the main beds to provide an additional sleeping surface. It accommodates a twin-sized mattress with a recommended thickness of 6 inches.
• Weight Capacity: Each bed (main and trundle) has a weight capability of 250 pounds. Do not exceed this limit to ensure safety and product longevity.

Using the Storage and Desk:

• Storage Drawers: The two integrated drawers are designed for storing daily necessities such as clothing, toys, or bedding. Pull them out gently using the handle cutouts.
• Built-in Square Table: The table connecting the two beds functions as a nightstand or small desk. It includes a small drawer and a storage board for convenience.

Image: An overhead perspective of the L-shaped bed setup, showing the trundle bed fully extended from beneath one of the main platforms.

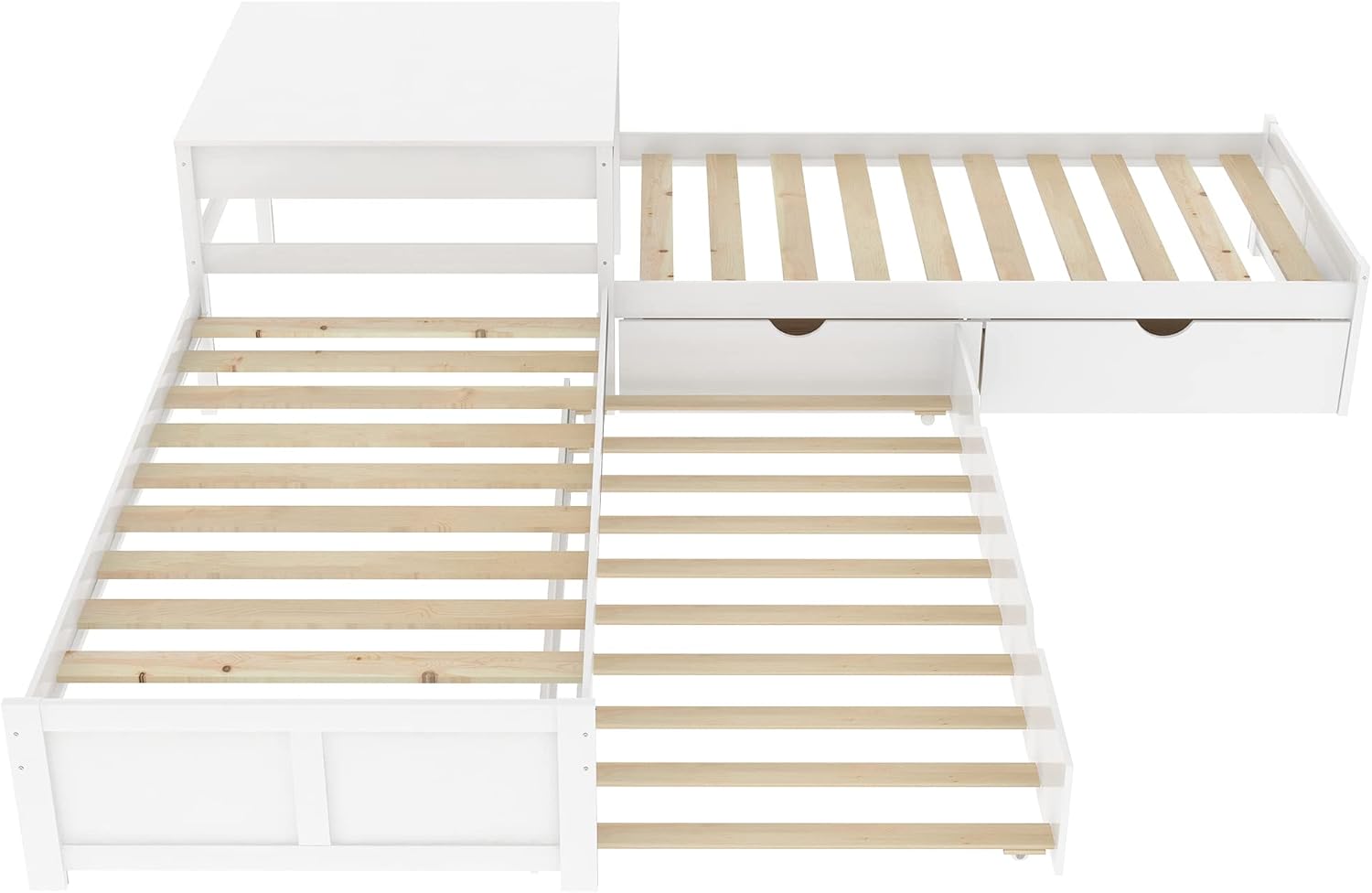

Image: A comprehensive overhead view displaying both the extended trundle bed and the open storage drawers, illustrating the full functionality of the unit.

Maintenance

Proper care and maintenance will extend the life of your SOFTSEA L-Shaped Twin Beds.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the wood finish.
• Spills: Clean spills immediately with a dry cloth to prevent staining or water damage.
• Tighten Hardware: Periodically check and tighten all bolts and screws to ensure the bed remains stable and secure. Loose hardware can lead to instability and damage.
• Ventilation: Upon initial setup, some new furniture may have a slight odor. Ensure adequate ventilation in the room by opening windows for a few days to dissipate any smells.
• Mattress Care: Rotate and flip mattresses regularly according to mattress manufacturer guidelines to ensure even wear and prolong their lifespan.

Troubleshooting

This section addresses common issues you might encounter with your SOFTSEA L-Shaped Twin Beds.

Specifications

Detailed specifications for the SOFTSEA L-Shaped Twin Beds with Trundle and Drawers:

• Brand: SOFTSEA
• Model Number: 916-1
• Size: Twin/Twin with Trundle
• Product Dimensions (Overall): 117.6''L x 117.6''W x 29.8''H
• Platform Bed Dimension (Inner): 75.9''L x 39''W
• Table Dimension: 41.4''L x 41.4''W
• Trundle Dimension (Inner): 74.8''L x 38.9''W
• Total Height: 29.8''
• Overall Product Weight: 182 lbs
• Bed Weight Capability (Each Bed): 250 lbs
• Number of Slats: 10 pcs (per main bed)
• Recommended Platform Bed Mattress Thickness: 6-8 inches
• Recommended Trundle Mattress Thickness: 6 inches
• Material: Pine wood + MDF
• Color: White
• Finish Type: Wood
• Assembly Required: Yes
• Origin: Vietnam
• First Available Date: March 29, 2022

Image: A technical diagram illustrating the precise dimensions of the L-shaped bed, including the main beds, trundle, and integrated table.

Warranty and Support

Warranty Information:

For specific warranty details regarding your SOFTSEA L-Shaped Twin Beds, please refer to the documentation included with your purchase or contact the seller directly. Extended protection plans may be available for purchase separately.

Customer Support:

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact SOFTSEA customer service. Have your model number (916-1) and purchase details ready for faster service.
