Sillervan LED Flashing Reflective Running Gear User Manual

1. Introduction and Overview

The Sillervan LED Flashing Reflective Running Gear is designed to enhance your safety during various outdoor activities such as cycling, running, camping, hiking, and climbing, especially in low-light conditions. This innovative accessory combines reflective strips with a remote-controlled LED light system, allowing you to signal your intentions to others on the road or trail. Its lightweight and comfortable design ensures it can be worn over various types of clothing, providing visibility without hindering movement.

Image 1.1: The Sillervan LED Flashing Reflective Running Gear, showing the bright LED display indicating a right turn. This vest is designed for high visibility and safety during outdoor activities.

2. Product Features

• LED Running Vest: Equipped with reflective strips and LED lights, this vest can be easily worn over a t-shirt, winter jacket, sports gear, or mounted on your own cycling backpack for quick release.
• Lightweight and Comfortable: The reflective vest ensures safety during cycling, motorcycling, climbing, rescue operations, traffic direction, and construction work. Its lightweight and comfortable design makes it suitable for wearing over thick jackets or t-shirts in any season, without adding significant weight during prolonged use.
• Wireless Remote Control: LEDs respond to signals received from the wireless remote control. The transmitter can be attached or mounted to your bicycle handlebars, allowing you to operate it without removing your hands from the handlebars.
• 4 Available LED Signals: Features four distinct LED signals: left turn, right turn, forward, and stop. These signals act as turn indicators and emergency warnings, reminding drivers to maintain a safe distance.
• Rechargeable Battery: The vest comes with a USB rechargeable battery that can be charged by connecting it to a computer or a power bank via a USB port. This significantly enhances your safety while running, dog walking, hiking, cycling, motorcycling, and other activities.

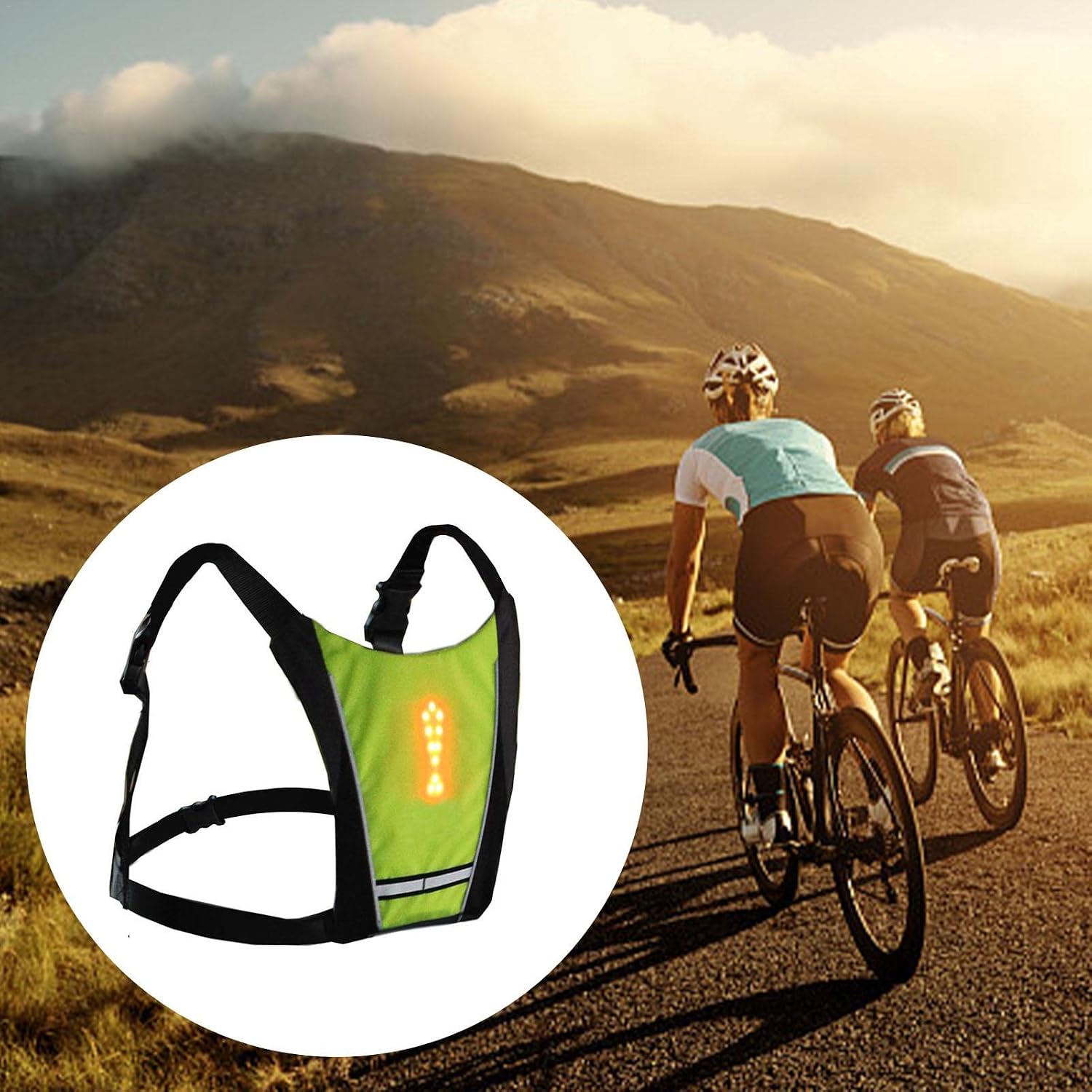

Image 2.1: The LED reflective vest in action, providing enhanced visibility for cyclists on an open road. The design ensures comfort and safety during outdoor adventures.

3. Package Contents

Please check the package carefully to ensure all items are present:

• 1 x Remote Control LED Emitting Backpack (Vest)
• 1 x Remote Control
• 1 x Remote Control Card Holder (Mount)
• 1 x User Manual (This document)
• 4 x Ties (for mounting)
• 1 x USB Charging Cable

4. Setup

4.1 Charging the Vest Battery

1. Locate the USB charging port on the LED vest. It is typically found within a small pocket or flap on the inside of the vest.
2. Connect the provided USB charging cable to the vest's charging port.
3. Plug the other end of the USB cable into a standard USB power source (e.g., computer USB port, USB wall adapter, power bank).
4. The charging indicator light (if present) will illuminate. A full charge typically takes 2-3 hours.
5. Once fully charged, disconnect the cable. The vest battery provides approximately 12-15 hours of operation.

4.2 Installing Remote Control Batteries

The remote control uses 2 CR2032 button cell batteries.

1. Open the battery compartment on the back of the remote control.
2. Insert 2 CR2032 batteries, ensuring correct polarity (+/-).
3. Close the battery compartment securely.

4.3 Attaching the Remote Control

The remote control can be attached to your bicycle handlebars or other convenient locations using the provided card holder and ties.

1. Place the remote control into the card holder.
2. Position the card holder with the remote on your desired location (e.g., bicycle handlebars).
3. Use the provided ties to secure the card holder firmly in place. Ensure it is stable and easily accessible during use.

Image 4.1: The wireless remote control securely mounted on bicycle handlebars, allowing for easy access to signal functions while riding.

5. Operating Instructions

5.1 Wearing the Vest

The LED vest is designed to be worn comfortably over your clothing or backpack. It features elastic straps and adjustable side straps for a secure fit.

1. Adjust the shoulder straps and side buckles to fit your body or backpack snugly but comfortably.
2. Ensure the LED panel is facing outwards and is clearly visible from behind.

Image 5.1: Rear view of the LED vest, highlighting its adjustable straps and the internal pocket where the battery and control unit are housed.

5.2 Using the Remote Control

The remote control allows you to wirelessly change the LED signals displayed on the vest. Ensure the vest is powered on before attempting to use the remote.

• Power On/Off: Press the central power button on the remote to turn the vest's LED display on or off.
• Left Turn Signal: Press the L button to display a left arrow signal.
• Right Turn Signal: Press the R button to display a right arrow signal.
• Forward Signal: Press the Up Arrow button to display a straight arrow or "forward" signal.
• Stop/Emergency Signal: Press the Exclamation Mark/Stop button to display a stop or emergency warning signal.

The LED display on the vest will change according to the button pressed on the remote. The communication range is approximately 3 meters.

Image 5.2: The LED vest showing a "stop" signal, accompanied by its wireless remote control. This signal is crucial for indicating a halt or caution to others.

Image 5.3: The LED vest displaying a clear left turn signal, enhancing safety by communicating directional intentions to following traffic or pedestrians.

6. Maintenance

6.1 Cleaning the Vest

• Before cleaning, ensure the vest is powered off and disconnect any charging cables.
• It is recommended to spot clean the vest with a damp cloth and mild detergent.
• Do not machine wash, tumble dry, iron, or dry clean the vest, as this may damage the electronic components.
• Allow the vest to air dry completely before storing or using again.

6.2 Battery Care

• Charge the vest battery regularly, even if not in frequent use, to maintain battery health.
• Avoid completely draining the battery before recharging.
• Store the vest in a cool, dry place away from direct sunlight and extreme temperatures.
• Replace remote control batteries (CR2032) when the remote's responsiveness decreases.

7. Troubleshooting

7.1 LED Display Not Lighting Up

• Check Battery: Ensure the vest's internal battery is charged. Connect it to a USB power source and allow it to charge for 2-3 hours.
• Power On: Make sure the vest is powered on using the remote control's power button.
• Connection: Verify that the internal connections within the vest (if accessible) are secure.

7.2 Remote Control Not Responding

• Check Batteries: Replace the 2 CR2032 batteries in the remote control. Ensure they are inserted with correct polarity.
• Distance: Ensure you are within the 3-meter communication range of the vest.
• Obstructions: Minimize any physical obstructions between the remote and the vest.

7.3 Short Battery Life

• Full Charge: Ensure the vest is fully charged (2-3 hours).
• Battery Age: Over time, rechargeable batteries may degrade. If the vest is old and battery life has significantly reduced, consider contacting customer support for potential battery replacement options.
• Usage Pattern: Continuous use of bright signals may consume more power.

8. Specifications

Image 8.1: Visual representation of the vest's dimensions, indicating a height of approximately 30cm (11.81in) and a width of 25cm (9.84in).

9. Warranty and Support

Specific warranty information for the Sillervan LED Flashing Reflective Running Gear is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product listing on the retailer's website or contact the seller directly.

Please retain your purchase receipt as proof of purchase for any warranty claims.
