Dttery Filter Replacement Manual for Shark CZ350, CZ351, CZ2001 Vertex Canister Vacuums

Product Overview

This manual provides instructions for the Dttery filter replacement kit, designed to maintain optimal performance of your compatible Shark vacuum cleaner. The kit includes essential filters for effective dust and allergen capture.

• Filter Kit Contents: 4 Foam and Felt filters, 2 HEPA filters.
• Compatibility: Specifically designed for Shark Canister Pet Bagless Corded Vacuum models CZ350, CZ351, and Shark Vertex Bagless Corded Canister Vacuum with DuoClean PowerFins model CZ2001.
• Part Numbers: Compatible with Shark parts XHPCZ350 and XFFKCZ350.
• Maintenance: Filters are washable and reusable, promoting extended product life and consistent vacuum performance.

Image: Complete Dttery filter replacement kit, including foam, felt, and HEPA filters.

Setup and Installation

Proper installation of the replacement filters is crucial for maintaining your vacuum's suction power and air filtration efficiency. Follow these steps to replace your filters:

1. Accessing the Filters

1. Remove Dust Cup: Detach the dust cup from your Shark vacuum cleaner. Refer to your vacuum's original manual for specific instructions on dust cup removal.
2. Locate Pre-Motor Filters: These are typically found at the top of the dust cup assembly. You will find a foam filter and a felt filter.
3. Locate Post-Motor (HEPA) Filter: This filter is usually located at the bottom or rear of the main vacuum body, often behind a cover.

2. Replacing Pre-Motor Filters (Foam and Felt)

1. Remove Old Filters: Carefully lift out the old foam and felt filters from the dust cup. Note their orientation for correct placement of the new filters.
2. Insert New Felt Filter: Place the new felt filter into the designated slot in the dust cup. Ensure it sits flat.
3. Insert New Foam Filter: Place the new foam filter on top of the felt filter. Ensure a snug fit.

Image: Close-up of the foam and felt filters, ready for installation into the vacuum's dust cup.

3. Replacing Post-Motor (HEPA) Filter

1. Open HEPA Filter Cover: Locate the HEPA filter cover (often at the bottom/rear of the vacuum) and open it.
2. Remove Old HEPA Filter: Pull out the old HEPA filter.
3. Insert New HEPA Filter: Place the new HEPA filter into the compartment, ensuring it is securely seated. Close the cover until it clicks into place.

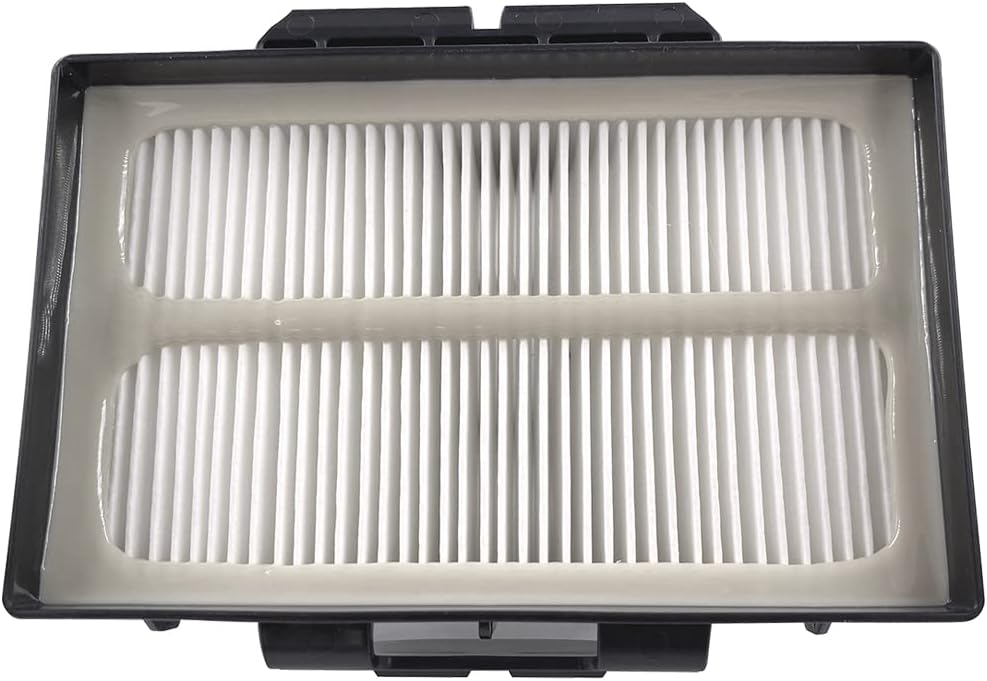

Image: Detailed view of the HEPA filter, showing its pleated design for advanced filtration.

Maintenance

Regular cleaning and timely replacement of your filters are essential for optimal vacuum performance and air quality. The Dttery filters are washable and reusable.

• Pre-Motor Filters (Foam & Felt): It is recommended to rinse these filters every 3 months, or more frequently with heavy use. Rinse with cold water until the water runs clear. Allow to air dry completely for at least 24 hours before reinserting.
• Post-Motor (HEPA) Filter: It is recommended to rinse this filter once every 12 months, or as needed. Rinse with cold water until the water runs clear. Allow to air dry completely for at least 24 hours before reinserting.
• Replacement Frequency: Replace filters every 6-12 months, or when you notice a decrease in suction power or an increase in dust escaping the vacuum.

Image: A clean foam filter, highlighting its pristine white appearance before use.

Image: A clean felt filter, showing its smooth texture and readiness for installation.

Troubleshooting

If you experience issues with your vacuum after filter replacement, consider the following:

• Reduced Suction: Ensure all filters are correctly installed and completely dry. Check for any blockages in the vacuum hose or brush roll.
• Unusual Odors: This often indicates filters need cleaning or replacement. Ensure filters are thoroughly dry before reinstallation to prevent mildew.
• Dust Escaping: Verify that all filter covers and the dust cup are securely closed and sealed. Check for any tears or damage to the filters.

Specifications

Warranty and Support

For any questions regarding the Dttery filter replacement kit, please contact the manufacturer directly. Specific warranty information may be available on the product packaging or the official Dttery website. Always refer to your Shark vacuum's original manual for detailed instructions on filter access and general vacuum maintenance.
