1. Introduction
This manual provides instructions for the installation, operation, and maintenance of the Mintu Lower Spray Arm Replacement part. This component is designed to restore proper water distribution within your Whirlpool dishwasher, ensuring effective cleaning performance. Please read these instructions carefully before proceeding with installation.
2. Compatibility
This lower spray arm is a compatible replacement part for various Whirlpool dishwasher models. Please verify your dishwasher's model number against the list below to ensure compatibility.
Compatible Whirlpool Models include:
- WDTA50SAHZ0, WDTA75SAHN0, WDTA75SAHZ0, WDTA50SAHN0, WDTA50SAHV0, WDTA50SAHW0, WDTA50SAHM0
- WDF760SADB0, WDF760SADB1, WDF760SADB2, WDF760SADB3, WDF760SADM0, WDF760SADM1, WDF760SADM2, WDF760SADM3, WDF760SADT0, WDF760SADT1, WDF760SADT2, WDF760SADT3, WDF760SADW0, WDF760SADW1, WDF760SADW2, WDF760SADW3
- WDF770SAFZ0, WDF770SAFZ1, WDF770SAFZ2
- WDT750SAHB0, WDT750SAHM0, WDT750SAHV0, WDT750SAHW0, WDT750SAHZ0
- WDT920SADE0, WDT920SADE1, WDT920SADE2, WDT920SADE3, WDT920SADH0, WDT920SADH1, WDT920SADH2, WDT920SADH3, WDT920SADM0, WDT920SADM1, WDT920SADM2, WDT920SADM3
- WDT970SAHB0, WDT970SAHV0, WDT970SAHW0, WDT970SAHZ0, WDT975SAHV0, WDT975SAHZ0, WDT995SAFM0
If your model number is not listed or you are unsure about compatibility, please contact the manufacturer for assistance.
3. Safety Information
Always prioritize safety when performing appliance repairs. Failure to follow these safety guidelines may result in injury or damage to the appliance.
- Disconnect Power: Before beginning any repair, always unplug the dishwasher from the electrical outlet or turn off the circuit breaker supplying power to the dishwasher.
- Wear Protective Gear: Consider wearing gloves to protect your hands from sharp edges or debris.
- Clear Work Area: Ensure your work area is well-lit and free of obstructions.
- Handle with Care: The spray arm may have small plastic components; handle them gently to avoid breakage.
4. Installation (Setup)
Follow these steps to replace the lower spray arm in your Whirlpool dishwasher.
- Prepare the Dishwasher: Ensure the dishwasher is empty and cool. Disconnect power as described in the Safety Information section.
- Remove Lower Dish Rack: Pull out the lower dish rack completely from the dishwasher tub and set it aside.
- Locate and Remove Old Spray Arm: The lower spray arm is typically held in place by a central nut or a locking mechanism. Turn the central nut counter-clockwise or disengage the locking tabs to release the old spray arm. Carefully lift the old spray arm off the wash arm manifold.
- Inspect the Manifold: Before installing the new spray arm, inspect the wash arm manifold (the part the spray arm attaches to) for any debris or damage. Clean if necessary.
- Install New Spray Arm: Place the new Mintu lower spray arm onto the wash arm manifold, aligning the central opening with the manifold's post.
- Secure the Spray Arm: If your model uses a central nut, thread it onto the manifold post and turn it clockwise until snug. Do not overtighten. If it uses locking tabs, ensure they click into place. Gently try to lift the spray arm to confirm it is securely attached.
- Replace Lower Dish Rack: Slide the lower dish rack back into its position inside the dishwasher.
- Restore Power: Reconnect the dishwasher to the electrical outlet or turn on the circuit breaker.
- Test Operation: Run a short wash cycle to ensure the new spray arm spins freely and water is distributed correctly. Listen for any unusual noises.
Image: Close-up of the central connection point of the new spray arm, showing the hub where it attaches to the dishwasher manifold.

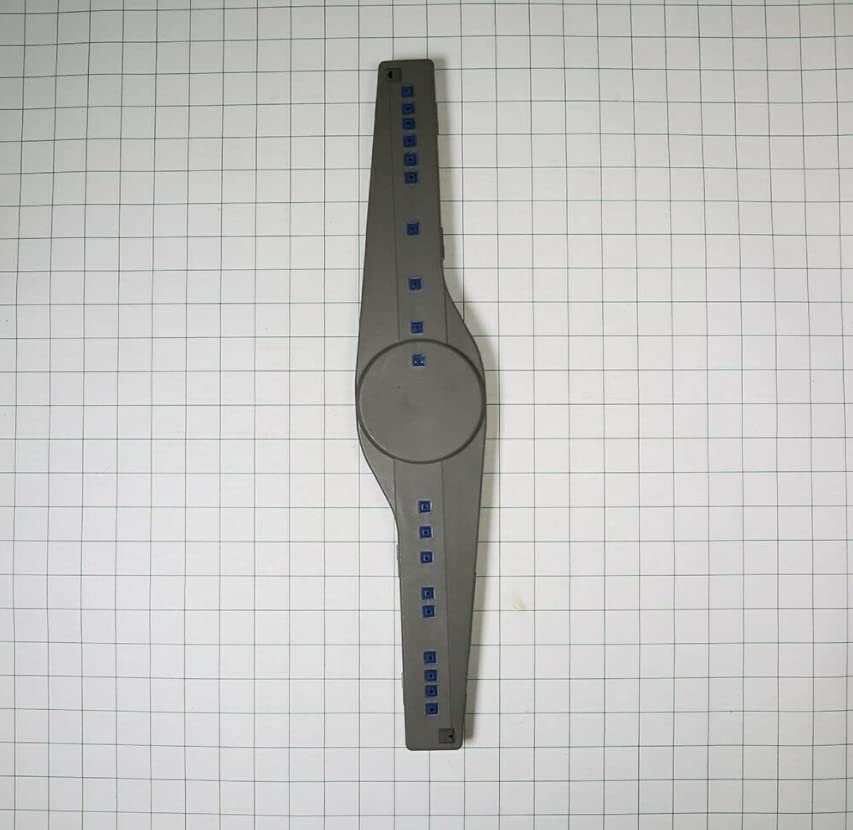

Image: Full view of the Mintu lower spray arm, illustrating its design and the distribution of spray nozzles.
5. Operating
After successful installation, the dishwasher should operate as normal. The new lower spray arm will ensure proper water coverage for the dishes in the lower rack. If you notice any issues during operation, refer to the Troubleshooting section.
6. Maintenance
To ensure optimal performance and longevity of your new lower spray arm, consider the following maintenance tips:
- Regular Inspection: Periodically check the spray arm for any blockages in the spray nozzles. Food particles or mineral deposits can accumulate over time.
- Cleaning: If nozzles are blocked, remove the spray arm (following installation steps in reverse) and rinse it under running water. Use a small brush or toothpick to clear any stubborn debris from the spray holes.
- Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals on the spray arm, as this may damage the plastic material.
7. Troubleshooting
If you encounter issues after replacing the lower spray arm, refer to the common problems and solutions below:
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor cleaning performance on lower rack | Blocked spray nozzles; Spray arm not spinning freely; Improper loading of dishes. | Clean spray arm nozzles. Ensure spray arm is securely attached but can rotate. Rearrange dishes to avoid blocking spray. |
| Spray arm not spinning | Debris obstructing rotation; Spray arm not properly seated; Low water pressure. | Remove debris. Re-seat the spray arm. Check household water pressure. |
| Unusual noise during wash cycle | Spray arm hitting dishes or other components; Loose spray arm. | Ensure dishes are not obstructing the spray arm's rotation. Check if the spray arm is securely fastened. |
8. Specifications
- Part Type: Lower Spray Arm Replacement
- Brand: Mintu
- Compatible Appliance: Whirlpool Dishwashers
- Material: Durable plastic construction
- Color: Gray (typical)
- Replaces Part Numbers: WDTA50SAHZ0, WDTA75SAHN0, WDTA75SAHZ0, WDTA50SAHN0, WDTA50SAHV0, WDTA50SAHW0, WDTA50SAHM0, and others listed in Compatibility section.
9. Warranty and Support
This Mintu replacement part comes with a 90-day money-back guarantee from the date of purchase. If you are not satisfied with the product, you may be eligible for a refund.
For technical assistance, compatibility inquiries, or warranty claims, please contact the seller directly through the platform where the purchase was made. Our support team aims to resolve your issues within 24 hours.
