Mecurate SL 61cm (600mm) Magnetic Torpedo Level

Introduction

This manual provides essential information for the proper use, care, and maintenance of your Mecurate SL 61cm (600mm) Magnetic Torpedo Level. Please read these instructions carefully before operating the instrument to ensure accurate measurements and prolong its lifespan.

Image: Mecurate SL 61cm Magnetic Torpedo Level in use, demonstrating its robust design and measurement capabilities.

Key Features

• Three Spirit Vials: Equipped with vertical, horizontal, and 45-degree vials for comprehensive leveling and alignment tasks.
• High Accuracy: Provides maximum precision of 0.5 mm/m (0.0005-inch/ft) for reliable measurements.
• Dual Scale Measurement: Features clear, easy-to-read metric (600mm) and imperial (24-inch) scales for versatile use.
• Durable Construction: Manufactured with a robust extruded aluminum frame for enhanced strength and longevity.
• Strong Magnetic Edge: Integrated powerful magnets allow for convenient, hands-free attachment to ferrous metal surfaces.
• TPR Rubber End Caps: Overmolded rubber end caps provide shock resistance and prevent marking surfaces during use.
• Ergonomic Design: Includes a large integrated handle for comfortable carrying and a hanging hole for easy storage.

Image: Detailed view of the Mecurate SL level, highlighting its various components and features.

Setup

1. Unpacking: Carefully remove the level from its packaging. Inspect for any signs of damage.
2. Initial Inspection: Verify that all three spirit vials (horizontal, vertical, 45-degree) are intact and the bubbles move freely.
3. Familiarization: Identify the metric and imperial scales along the edge, the magnetic strip, the handle, and the rubber end caps.

Operating Instructions

The Mecurate SL level is designed for precise measurement of horizontal, vertical, and 45-degree angles.

1. Horizontal Measurement

To check if a surface is perfectly level:

• Place the bottom edge of the level flat on the surface you wish to measure.
• Observe the bubble in the horizontal vial (the longest vial).
• For a level surface, the bubble should be centered precisely between the two indicator lines.

2. Vertical Measurement

To check if a surface is perfectly plumb (vertical):

• Place one of the side edges of the level against the vertical surface.
• Observe the bubble in the vertical vial.
• For a plumb surface, the bubble should be centered precisely between the two indicator lines.

3. 45-Degree Measurement

To check for a 45-degree angle:

• Position the level against the surface at the desired 45-degree angle.
• Observe the bubble in the 45-degree vial.
• For an accurate 45-degree angle, the bubble should be centered precisely between the two indicator lines.

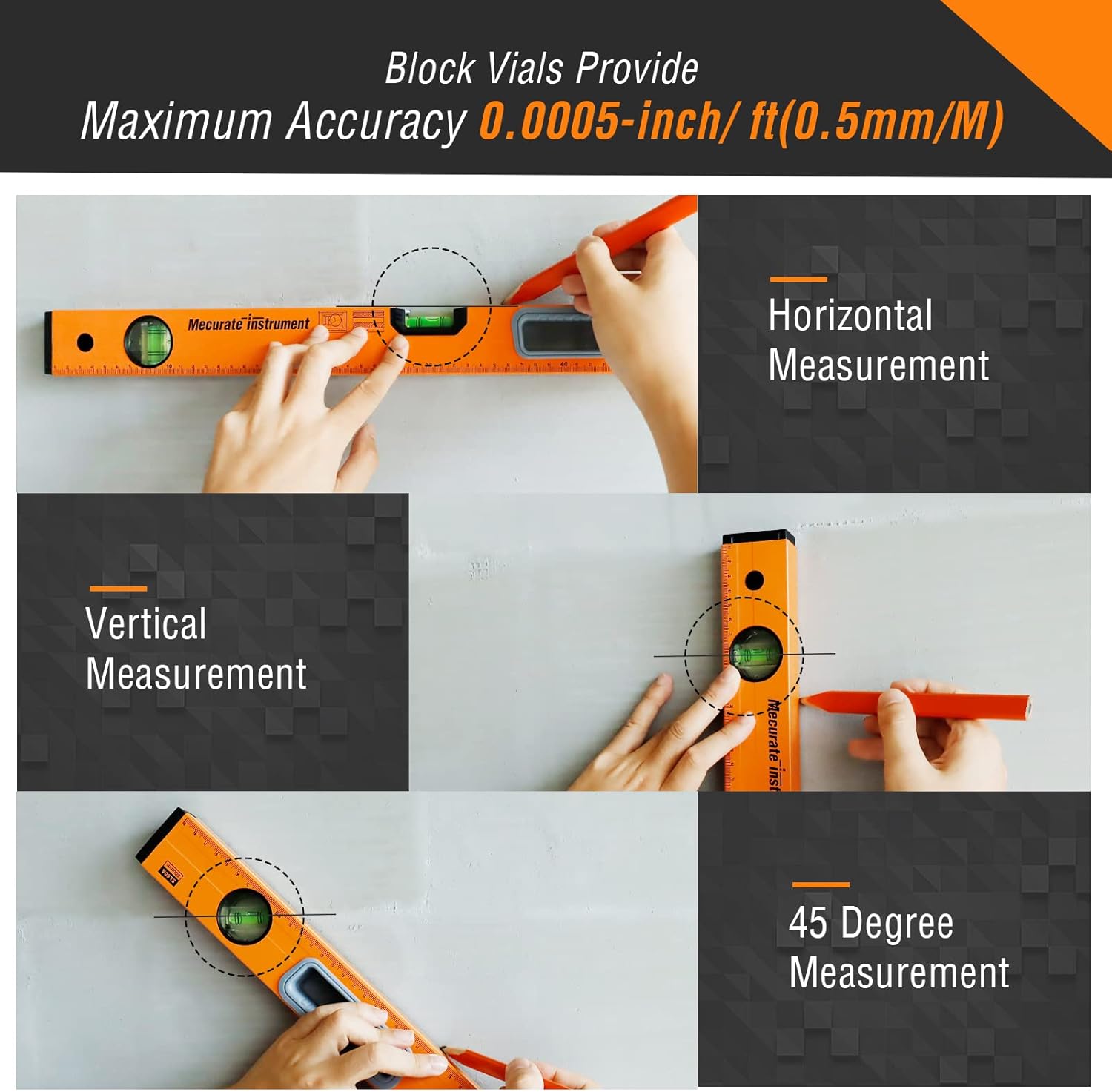

Image: Demonstrations of horizontal, vertical, and 45-degree measurements using the Mecurate SL level.

Image: Practical application of the level for aligning objects horizontally.

Using the Magnetic Edge

The strong magnetic edge allows the level to adhere to metal surfaces, providing hands-free operation for tasks such as installing metal studs or pipes.

Using the Ruler Scale

The integrated metric and imperial scales can be used for quick measurements and marking distances directly on surfaces.

Maintenance

• Cleaning: Wipe the level clean with a soft, damp cloth after each use. Avoid abrasive cleaners or solvents that could damage the finish or vial markings.
• Storage: Store the level in a dry place, away from extreme temperatures. Utilize the hanging hole for convenient and safe storage.
• Protection: The TPR rubber end caps are designed to absorb impacts. However, avoid dropping the level from significant heights to maintain its accuracy.
• Accuracy Check: Periodically check the accuracy of the vials. Place the level on a flat surface, note the bubble position, rotate the level 180 degrees, and place it in the exact same spot. The bubble should return to the same position. If not, the level may require professional calibration or replacement.

Image: Details of the large handle, rubber ends, and hanging hole for easy handling and storage.

Troubleshooting

• Inaccurate Readings: Ensure the level is placed firmly and evenly on the surface. Check for debris on the surface or the level's edge. Verify the level's calibration as described in the Maintenance section.
• Bubble Not Moving Freely: This could indicate damage to the vial or extreme temperature changes. Allow the level to acclimate to room temperature. If the issue persists, the vial may be damaged.
• Level Not Sticking to Metal: Ensure the metal surface is clean and free of rust or paint that could interfere with the magnetic connection.

Specifications

Warranty and Support

For information regarding warranty coverage, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Mecurate website. Keep your proof of purchase for warranty claims.
