Mintu WR55X26671 LED Light Board Replacement Manual

For GE Refrigerator Models: GSS25GMHKCES, GSS25GMHLCES, GSS25GMHMCES, GSS25GMHNCES, GSS25GMHPCES, GSS25GMHRCES, GSS25GSHDCSS, GSS25GSHJCSS, GSS25GSHKCSS, GSS25GSHLCSS, GSS25GSHMCSS

Brand: Mintu | Model: WR55X26671

1. Introduction

This manual provides detailed instructions for the safe and effective installation of the Mintu WR55X26671 LED Light Board, a direct replacement part for specific GE refrigerator models. Please read this manual thoroughly before beginning any installation procedures.

2. Safety Information

WARNING: Risk of Electric Shock. Disconnect power to the refrigerator before servicing. Failure to do so may result in serious injury or death.

  • Always unplug the refrigerator from the electrical outlet before attempting any repairs or installations.
  • Wear appropriate personal protective equipment, such as gloves and safety glasses.
  • If you are unsure about any step, consult a qualified appliance technician.
  • Ensure the replacement part matches the original part number and specifications.

3. Package Contents

Verify that all components are present and undamaged upon opening the package:

  • Mintu WR55X26671 LED Light Board (Quantity: 1 or 2, depending on purchase)

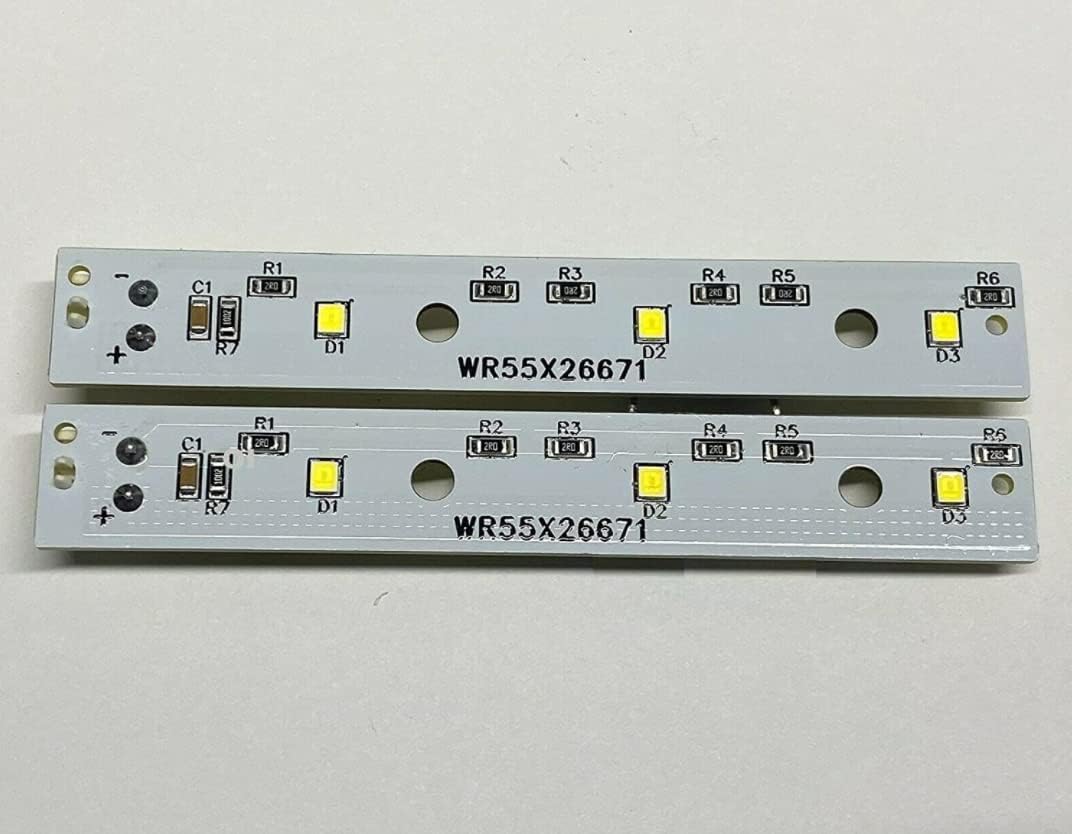

Two Mintu WR55X26671 LED light boards, side-by-side, showing the circuit board layout with LED lights and resistors.

Figure 1: Mintu WR55X26671 LED Light Boards. This image displays two identical LED light boards, each featuring three individual LED lights, resistors, and capacitors, with the part number WR55X26671 printed on the board.

4. Installation Instructions

Follow these steps carefully to replace the LED light board in your GE refrigerator.

  1. Disconnect Power: Unplug the refrigerator from the electrical outlet to prevent electric shock.
  2. Access the Light Board:

    Locate the existing LED light board within your refrigerator. This is typically found in the fresh food compartment or freezer compartment, often behind a plastic cover or lens. Refer to your refrigerator's specific service manual for exact location and access procedures.

  3. Remove the Old Board:

    Carefully remove any screws or clips securing the plastic cover or lens. Once the cover is off, gently disconnect the wiring harness from the old LED light board. Note the orientation of the connector. Remove any screws holding the old LED board in place.

  4. Install the New Board:

    Align the new Mintu WR55X26671 LED Light Board with the mounting points. Secure it with the screws previously removed. Connect the wiring harness to the new board, ensuring a firm and correct connection. The connector is designed to fit only one way.

    Close-up of the Mintu WR55X26671 LED light board showing the connection points and individual LED components.

    Figure 2: Detailed view of the WR55X26671 LED board. This image highlights the electrical connection points and the arrangement of the three LED diodes and associated circuitry on the board.

  5. Reassemble:

    Replace the plastic cover or lens, securing it with its original screws or clips. Ensure all components are properly seated and secured.

  6. Restore Power and Test:

    Plug the refrigerator back into the electrical outlet. Open the refrigerator door to verify that the new LED light board illuminates correctly. Close the door and reopen it to confirm proper operation.

5. Operation

The Mintu WR55X26671 LED Light Board operates automatically with your refrigerator's door switch. The light will turn on when the refrigerator door is opened and turn off when the door is closed.

6. Maintenance

This LED light board requires minimal maintenance. If cleaning is necessary, ensure the refrigerator is unplugged. Gently wipe the surface of the LED board and its protective cover with a soft, dry cloth. Do not use liquid cleaners directly on the board.

7. Troubleshooting

ProblemPossible CauseSolution
LED light does not turn on after installation.
  • Refrigerator not plugged in.
  • Wiring harness not properly connected.
  • Door switch malfunction.
  • Faulty new LED board.
  • Ensure refrigerator is plugged in and receiving power.
  • Check the wiring harness connection to the LED board. Disconnect and reconnect firmly.
  • Test the refrigerator door switch. If it's faulty, it may need replacement.
  • If all other steps fail, the new board may be defective. Contact customer support.
Light flickers or is dim.
  • Loose connection.
  • Power supply issue to the refrigerator.
  • Check all connections.
  • Verify stable power supply to the refrigerator.

8. Specifications

  • Model: Mintu WR55X26671 LED Light Board
  • Part Number: WR55X26671
  • Compatibility: Designed for GE Refrigerator models including GSS25GMHKCES, GSS25GMHLCES, GSS25GMHMCES, GSS25GMHNCES, GSS25GMHPCES, GSS25GMHRCES, GSS25GSHDCSS, GSS25GSHJCSS, GSS25GSHKCSS, GSS25GSHLCSS, GSS25GSHMCSS.
  • Type: Refrigerator LED Light Board Replacement

9. Warranty and Support

For warranty information or technical support regarding your Mintu WR55X26671 LED Light Board, please refer to the seller's return policy or contact the retailer from whom the product was purchased. Keep your proof of purchase for any warranty claims.

For additional resources or general refrigerator repair guidance, you may visit GE Appliances Support (external link, opens in new tab) or other reputable appliance repair websites.
