Introduction
This manual provides essential instructions for the installation, maintenance, and optimal use of your LUXRILIX replacement brush rolls and filters. Designed for compatibility with various Bissell CrossWave vacuum models, these parts ensure your cleaning appliance continues to perform effectively across multiple floor types.
Package Contents
Your LUXRILIX replacement kit includes the following components:
- 1 x 2460 Multi-Surface Pet Brush Roller
- 1 x 1868 Multi-Surface Brush Roller
- 1 x 1926 Hardwood Floor Brush Roller
- 1 x 1934 Area Rug Brush Roller
- 2 x 1866 Vacuum Filters
- 1 x Cleaning Tool
Compatibility
These replacement parts are compatible with a wide range of Bissell CrossWave vacuum models. Please verify your model number before installation:
- Bissell CrossWave All-in-One Multi-Surface Wet Dry Vac: 1785, 17853, 17854, 17855, 17856, 1785q, 1785a, 17852, 17858, 17859, 1785p, 1785r, 1785t, 1785v, 1785w
- Bissell CrossWave Deluxe All-in-One Multi-Surface Wet Dry Vac: 1785b
- Bissell CrossWave Upgrade All-in-One Multi-Surface Wet Dry Vac: 1785f
- Bissell CrossWave Pet Multi-Surface Wet Dry Vac: 2328, 2305, 2305k
- Bissell CrossWave Pet Pro Upgrade Multi-Surface Wet Dry Vac: 2303
- Bissell CrossWave Pet Pro Multi-Surface Wet Dry Vac: 2306a, 2306, 23062, 23068
Setup & Installation

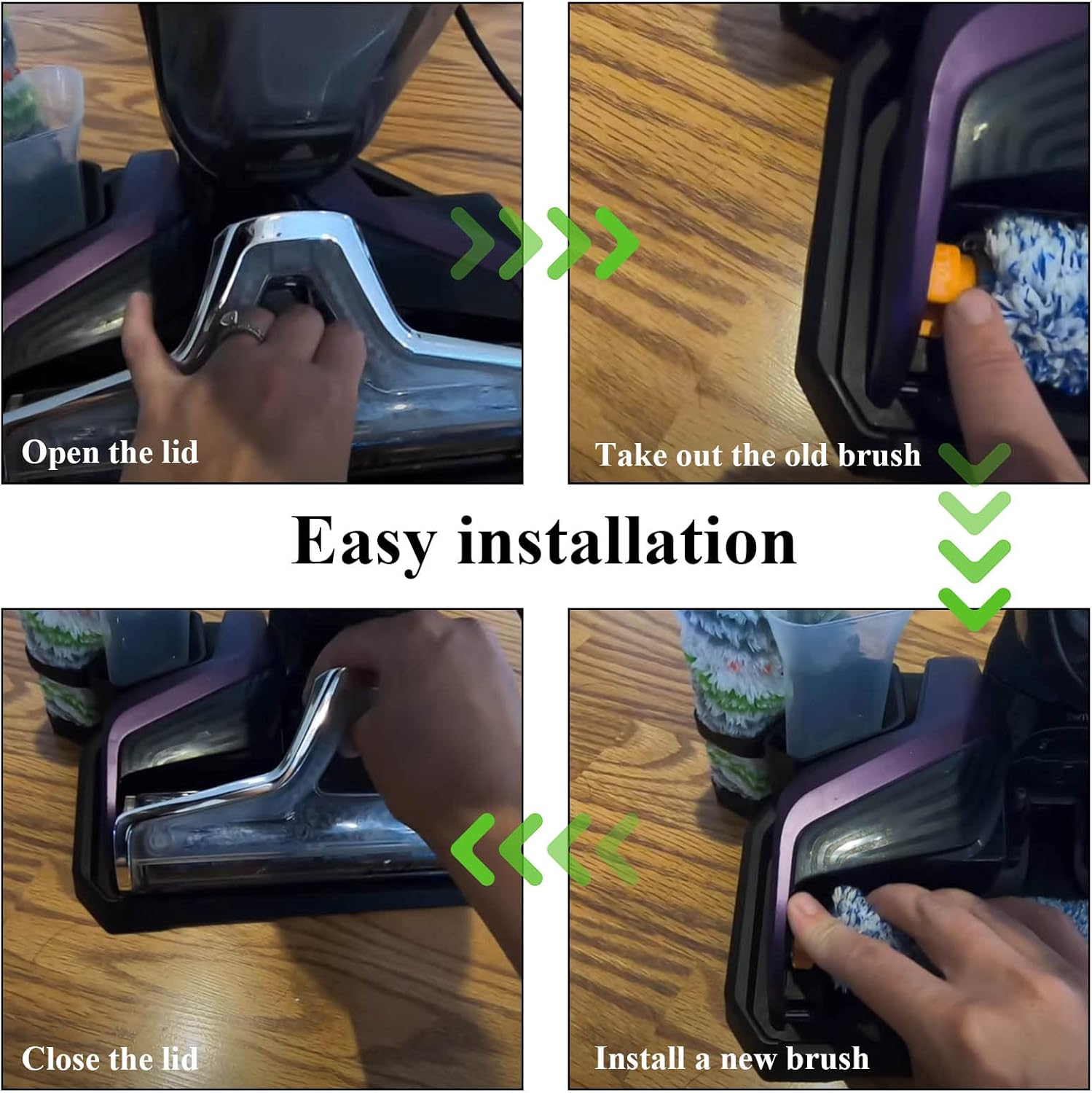

Replacing the Brush Roll
- Ensure the vacuum is unplugged and turned off.
- Locate the brush roll window on the foot of your Bissell CrossWave.
- Pull the tab to release the brush roll window and remove it.
- Grasp the end of the old brush roll and pull it out.
- Insert the new LUXRILIX brush roll, aligning the ends with the designated slots.
- Snap the brush roll window back into place until it clicks securely.
Replacing the Filter
- Ensure the vacuum is unplugged and turned off.
- Remove the dirty water tank from the vacuum.
- Locate the filter housing on the top of the dirty water tank.
- Remove the old filter by pulling it upwards.
- Insert the new LUXRILIX filter into the housing, ensuring it sits snugly.
- Reattach the dirty water tank to the vacuum until it clicks into place.
Video Guide: Brush Roll & Filter Replacement
Maintenance & Cleaning
Regular maintenance of your brush rolls and filters is crucial for extending their lifespan and maintaining optimal vacuum performance. All components are reusable and washable.
Cleaning the Brush Rolls
- Remove the brush roll from the vacuum as described in the installation steps.
- Use the provided cleaning tool to remove any hair, debris, or tangled fibers from the brush roll. The hook end is effective for cutting and pulling out hair.
- Rinse the brush roll thoroughly under warm water until clean.
- Allow the brush roll to air dry completely before reinserting it into the vacuum.
Cleaning the Filters
- Remove the filter from the dirty water tank.
- Tap the filter gently against a trash can to dislodge loose dirt and debris.
- Use the brush end of the provided cleaning tool to clean the filter surface.
- Rinse the filter under warm water. Ensure all dirt is removed from the pleats.
- Allow the filter to air dry completely for at least 24 hours before reinserting it.
Product Specifications
| Brand | LUXRILIX |
| Model Number (Kit) | 1785Vac-6 |
| Item Weight | 1.12 pounds |
| Product Dimensions | 10 x 1.7 x 1.7 inches (individual brush roll/filter dimensions may vary slightly) |
| Material Type | Microfiber, PP |
| Reusability | Reusable |

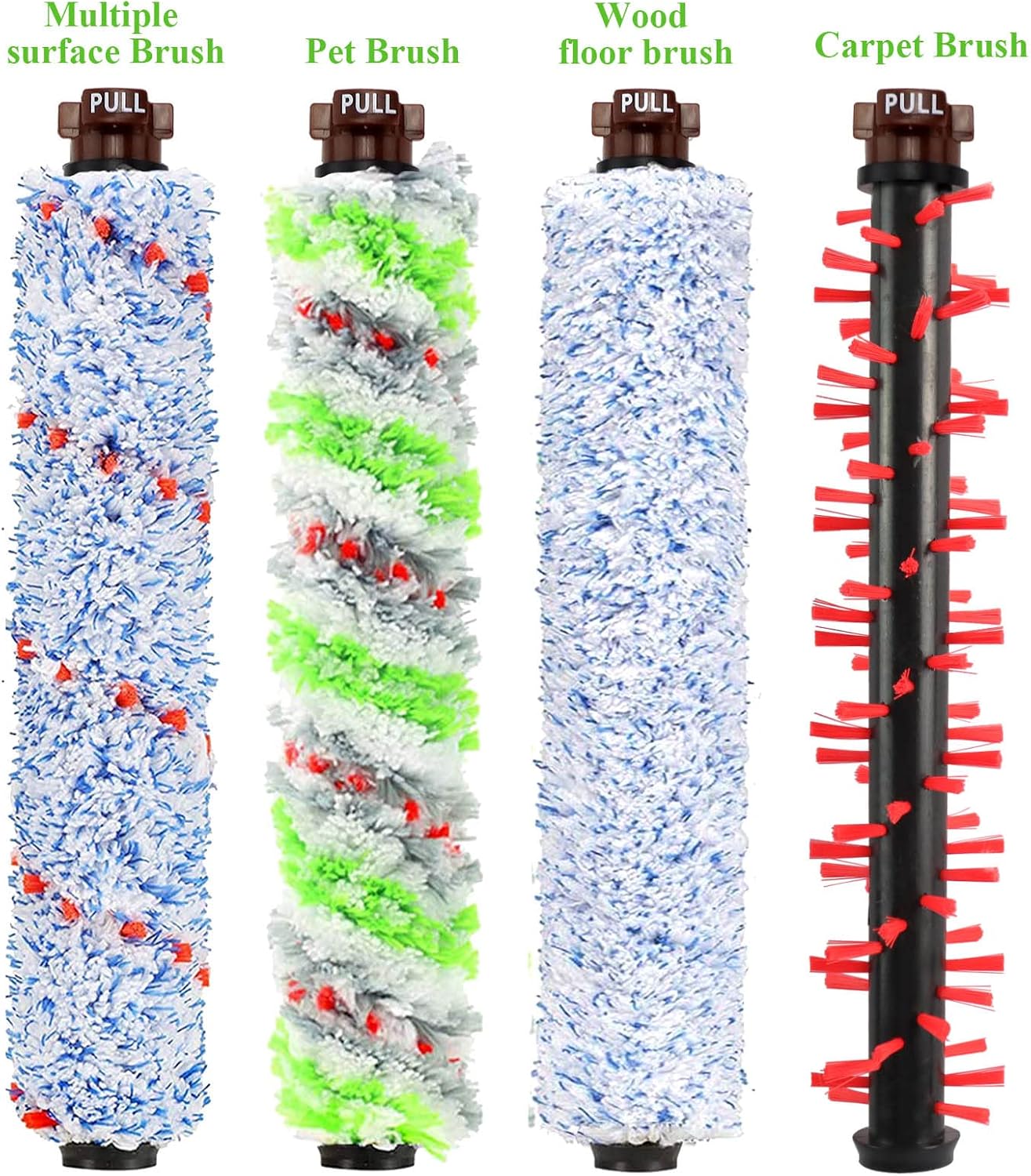

Brush Roll Types
The kit includes various brush rolls optimized for different cleaning needs:
- Multi-Surface Pet Brush Roller (2460): Designed for effective cleaning on multiple surfaces, with enhanced capability for pet hair.
- Multi-Surface Brush Roller (1868): General-purpose brush for various sealed hard floors and area rugs.
- Hardwood Floor Brush Roller (1926): Specifically designed for gentle yet thorough cleaning of hardwood floors.
- Area Rug Brush Roller (1934): Optimized for cleaning and refreshing area rugs.
Troubleshooting
If you encounter any issues with the performance of your replacement parts, consider the following:
- Reduced Suction: Check if the filter is clogged. Clean or replace the filter as instructed.
- Poor Cleaning Performance: Inspect the brush roll for tangled hair or debris. Clean the brush roll thoroughly. Ensure the correct brush roll type is used for the surface.
- Unusual Noises: Remove and inspect the brush roll for any obstructions or damage. Ensure it is properly seated.
Support
We are confident that you will be pleased with your LUXRILIX replacement parts. However, if you are not satisfied or have any questions, please do not hesitate to contact the seller directly for assistance. We are committed to working with you to find a solution.
