Mintu Control Circuit Board Replacement Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Mintu Control Circuit Board. This board is designed as a direct replacement for various Goodman Amana furnace models, ensuring proper functionality of your HVAC system. Please read this manual thoroughly before proceeding with any installation or service.

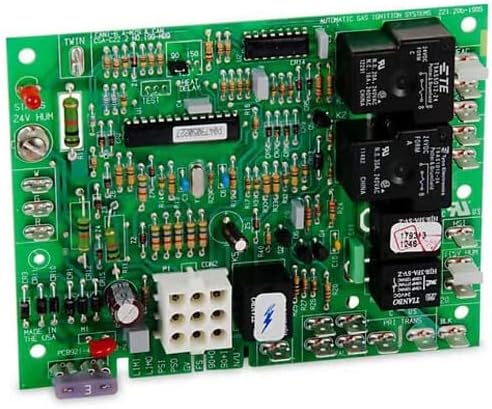

Image 1.1: The Mintu Control Circuit Board, a green rectangular board with various electronic components, relays, and connectors.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read these instructions thoroughly before installing or servicing this equipment.

• Always disconnect electrical power to the furnace before installing or servicing the control board. Failure to do so can result in electrical shock or death.
• Installation should only be performed by a qualified HVAC technician or licensed electrician.
• Verify that the replacement board is compatible with your specific furnace model before installation.
• Handle the circuit board by its edges to avoid damaging electronic components due to static electricity. Consider using an anti-static wrist strap.
• Ensure all wiring connections are secure and correctly matched according to the furnace manufacturer's specifications.

3. Package Contents

Verify that all items are present and undamaged upon opening the package:

• 1 x Mintu Control Circuit Board (Replacement for Goodman Amana GMP/GMPE Series)
• 1 x Instruction Manual (This document)

4. Setup and Installation

Follow these steps carefully to install the replacement control board:

1. Power Disconnection: Turn off all electrical power to the furnace at the main service panel or circuit breaker. Confirm power is off using a voltage tester.
2. Access the Existing Board: Open the furnace access panel to locate the existing control board. Note its position and how it is mounted.
3. Document Wiring: Before disconnecting any wires, take clear photographs of all wiring connections to the old board. Label each wire and its corresponding terminal on the old board. This is crucial for correct re-connection.
4. Disconnect Wires: Carefully disconnect all wires and connectors from the old control board.
5. Remove Old Board: Unmount the old control board. It may be held in place by screws, clips, or standoffs.
6. Install New Board: Mount the new Mintu Control Circuit Board in the same location and orientation as the old board. Secure it using the original mounting hardware.
7. Connect Wiring: Refer to your photographs and labels to meticulously re-connect all wires and connectors to the new board. Ensure each wire is firmly seated on its correct terminal. Double-check all connections.
8. Close Access Panel: Once all connections are verified, close and secure the furnace access panel.
9. Restore Power: Restore electrical power to the furnace at the main service panel or circuit breaker.
10. Test Operation: Initiate a heating cycle to verify that the furnace operates correctly. Observe the furnace's sequence of operation, including the inducer motor, igniter, main burner, and blower fan.

Image 4.1: Close-up view of various connectors and terminals on the control board, highlighting areas for wire connections.

5. Operating Principles

The Mintu Control Circuit Board serves as the central control unit for your Goodman Amana furnace. It manages the sequence of operations during a heating cycle, including:

• Thermostat Communication: Receives signals from the thermostat to initiate heating or cooling demands.
• Inducer Motor Activation: Powers the inducer motor to vent combustion gases.
• Ignition Sequence: Controls the igniter and gas valve to light the main burners.
• Flame Sensing: Monitors the flame presence to ensure safe operation.
• Blower Motor Control: Activates the main blower fan to distribute heated air throughout the home.
• Safety Monitoring: Continuously monitors various safety limits and sensors (e.g., high-limit switch, rollout switch) to prevent unsafe conditions.
• Diagnostic Codes: Provides diagnostic fault codes via an LED indicator to assist in troubleshooting. Refer to your furnace's specific service manual for a list of fault codes.

6. Maintenance

The control board itself requires no routine maintenance. However, regular maintenance of the overall furnace system is crucial for its longevity and proper function:

• Annual Professional Inspection: Have a qualified HVAC technician inspect and service your furnace annually.
• Air Filter Replacement: Replace or clean your furnace's air filter regularly (typically every 1-3 months) to ensure proper airflow and prevent strain on the system.
• Clear Vents: Ensure all supply and return air vents are unobstructed.
• Keep Area Clear: Keep the area around the furnace clear of obstructions and combustible materials.

7. Troubleshooting

If your furnace is not operating correctly after installing the new control board, consider the following troubleshooting steps:

• No Power: Check the circuit breaker for the furnace. Ensure the furnace access panel is fully closed, as some furnaces have safety interlock switches.
• Incorrect Wiring: Double-check all wiring connections against your photographs and the furnace wiring diagram. Loose or incorrect connections are a common cause of issues.
• Diagnostic LED: Observe the LED indicator on the control board. It will flash a specific code if a fault is detected. Consult your furnace's service manual for the meaning of these codes.
• Thermostat Issues: Ensure the thermostat is set to the correct mode (Heat/Cool) and temperature. Check thermostat batteries if applicable.
• Safety Switches: Verify that all safety switches (e.g., high-limit switch, rollout switch, pressure switch) are reset and functioning correctly.
• Gas Supply: Ensure the gas supply valve to the furnace is open.

If problems persist, contact a qualified HVAC technician for further diagnosis and repair.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the seller's policies or contact the Mintu customer service department. Keep your purchase receipt as proof of purchase.
