1. Product Overview
The Bosch AdvancedLeafBlower 36V-750 is a powerful battery-operated leaf blower designed for efficient garden cleanup. Its durable brushless motor and Syneon Technology provide robust performance for clearing wet leaves, grass clippings, and debris from various surfaces. The variable speed control allows users to adjust airflow for optimal power, reduced noise, and extended battery life, making it suitable for both large areas and delicate tasks. This lightweight tool is engineered for comfort, minimizing strain during use.
Image: The Bosch AdvancedLeafBlower 36V-750, a green and black battery-powered leaf blower.
2. Important Safety Instructions
Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Read the Manual: Familiarize yourself with the controls and proper use of the appliance.
- Wear Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
- Hearing Protection: Use ear protection during operation to prevent hearing damage.
- Secure Clothing: Do not wear loose clothing or jewelry that could get caught in moving parts.
- Keep Clear: Ensure bystanders, especially children and pets, are at a safe distance from the operating area.
- Remove Battery: Always remove the battery pack before making any adjustments, changing accessories, or storing the tool.
- Use Correct Battery: Only use battery packs specifically designated for this tool.
- Maintain Balance: Always maintain proper footing and balance. Do not overreach.
- Inspect Before Use: Check for damaged parts before each use. Do not operate if any part is damaged.
- Store Safely: Store the appliance indoors in a dry, locked place, out of reach of children.
3. Package Contents
Upon unpacking, please ensure all items listed below are present and in good condition:
- Bosch AdvancedLeafBlower 36V-750 (main unit)
- Blower Nozzle
- Cardboard box (packaging)
Note: Battery and charger are not included with this model and must be purchased separately.
4. Assembly and Setup
4.1 Attaching the Blower Nozzle
- Align the grooves on the blower nozzle with the corresponding slots on the main unit's air outlet.
- Push the nozzle firmly onto the unit until it clicks into place.
- To remove, press the release button (if present) and twist or pull the nozzle off.
Image: A hand attaching the twist nozzle to the main body of the leaf blower.
4.2 Battery Installation and Removal
Ensure the battery is fully charged before first use.
- Installation: Slide the charged 36V battery pack into the battery slot on the blower until it locks securely into place. Ensure it clicks to confirm proper seating.
- Removal: Press the battery release button (usually located on the battery pack) and slide the battery out of the tool.
Image: A hand inserting a 36V battery pack into the leaf blower's battery compartment.
4.3 Battery Status Indicator
The battery pack features an indicator to show the remaining charge level:

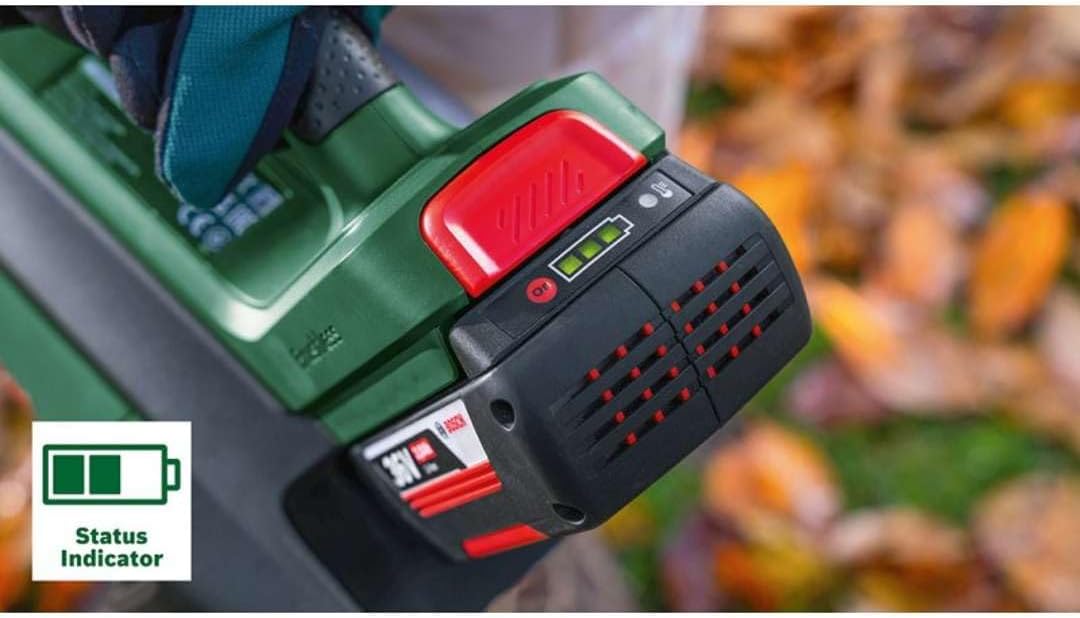

Image: Close-up of the battery status indicator lights on a Bosch 36V battery.
- Green Lights: Indicate a sufficient charge level.
- Red Light: Indicates a low charge level, requiring recharging.
5. Operating Your Leaf Blower
5.1 Powering On/Off
- To Start: Press and hold the trigger switch located on the handle. The blower will start.
- To Stop: Release the trigger switch.
5.2 Variable Speed Control
The AdvancedLeafBlower 36V-750 features a variable speed knob, allowing you to adjust the airflow to suit different tasks and surfaces.
Image: A gloved hand adjusting the red speed control dial on the blower's handle.
- Low Speed: Ideal for delicate areas, light debris, or to conserve battery life and reduce noise.
- Medium Speed: Suitable for general cleanup of dry leaves and light garden waste.
- High Speed: Provides maximum power for stubborn debris, wet leaves, or large areas.
5.3 Effective Blowing Techniques
- Sweep Motion: Use a sweeping motion from side to side to gather debris into piles.
- Dry Leaves: For dry leaves, use a lower to medium speed to avoid scattering them too widely.
- Wet Leaves/Stubborn Debris: Increase to higher speeds for more effective clearing.
- Paved Surfaces: Blow debris off paved areas first, then move to grassy areas.
Image: A person operating the leaf blower on a lawn, clearing dry leaves.
Image: A person operating the leaf blower on a paved path, clearing leaves.
Image: A person operating the leaf blower near garden plants, clearing fallen leaves.
6. Care and Maintenance
Regular maintenance ensures optimal performance and extends the life of your leaf blower.
6.1 Cleaning
- Before Cleaning: Always remove the battery pack before cleaning or performing any maintenance.
- Exterior: Wipe the exterior of the tool with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Air Vents: Keep the air vents clear of debris to prevent overheating. Use a soft brush or compressed air if necessary.
- Nozzle: Ensure the blower nozzle is free from obstructions.
6.2 Storage
- Remove Battery: Always remove the battery pack before storing the tool for extended periods.
- Clean Tool: Ensure the tool is clean and dry before storage.
- Location: Store the leaf blower in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
- Security: Store out of reach of children and unauthorized persons.
7. Troubleshooting Guide
If you encounter issues with your Bosch AdvancedLeafBlower 36V-750, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Blower does not start | Battery not inserted correctly | Ensure battery is fully inserted and clicks into place. |
| Battery is discharged | Charge the battery pack. | |
| Trigger switch faulty | Contact customer support for service. | |
| Reduced airflow | Nozzle or air intake blocked | Remove battery, then clear any obstructions from the nozzle or air intake vents. |
| Battery charge low | Recharge the battery. | |
| Tool stops during operation | Battery overheated or discharged | Allow battery to cool down or recharge. |
| Motor overload protection activated | Reduce load, clear obstructions, and restart. |
8. Technical Specifications
Key technical data for the Bosch AdvancedLeafBlower 36V-750:
| Feature | Specification |
|---|---|
| Brand | Bosch |
| Model Name | AdvancedLeafBlower 36V-750 |
| Item Model Number | 06008C6001 |
| Power Source | Battery Powered |
| Battery Voltage | 36 Volts |
| Volume Flow | 780 m³/h |
| Air Speed Range | 100-200 km/h |
| Max. Running Time (with 4.0Ah battery) | 75 min |
| Noise Level | 98 Decibels |
| Item Weight | 2.9 Kilograms (6.38 pounds) |
| Dimensions (Product) | 3.15 x 1.18 x 3.94 inches |
| Special Feature | Adjustable Speed |
9. Warranty and Customer Support
Bosch power tools are manufactured to the highest quality standards and undergo rigorous testing. In the unlikely event that your tool develops a fault, please refer to the warranty terms and conditions provided with your purchase.
For technical assistance, spare parts, or warranty claims, please contact Bosch customer support or visit the official Bosch website.
You can find more information and support resources on the Bosch Home Appliances Store.
