1. Introduction
The CRAFTSMAN V20 Cordless Electric Pruner (CMCPR320C1) is designed for efficient pruning in yards and gardens. This tool offers cordless convenience, powered by a V20 1.5Ah lithium-ion battery, allowing for easy cutting of both wet and dry wood. It is engineered to reduce the effort typically required for manual pruning, making gardening tasks quicker and less strenuous.
2. Safety Information
WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses, gloves, and sturdy footwear, when operating the pruner.
- Keep hands and body parts clear of the cutting blades during operation. The blades are sharp and move rapidly.
- Ensure the work area is clear of bystanders, especially children and pets.
- Do not operate the pruner in wet conditions or in the presence of flammable liquids or gases.
- Before performing any maintenance, cleaning, or blade changes, always remove the battery pack from the tool.
- Store the pruner and battery in a dry, secure location out of reach of children.
3. Package Contents
Verify that all items listed below are included in your package:
- (1) CMCPR320 Pruner
- (1) V20* 1.5Ah Lithium Ion Battery
- (1) V20* Lithium Ion Charger
- (1) Blade Set

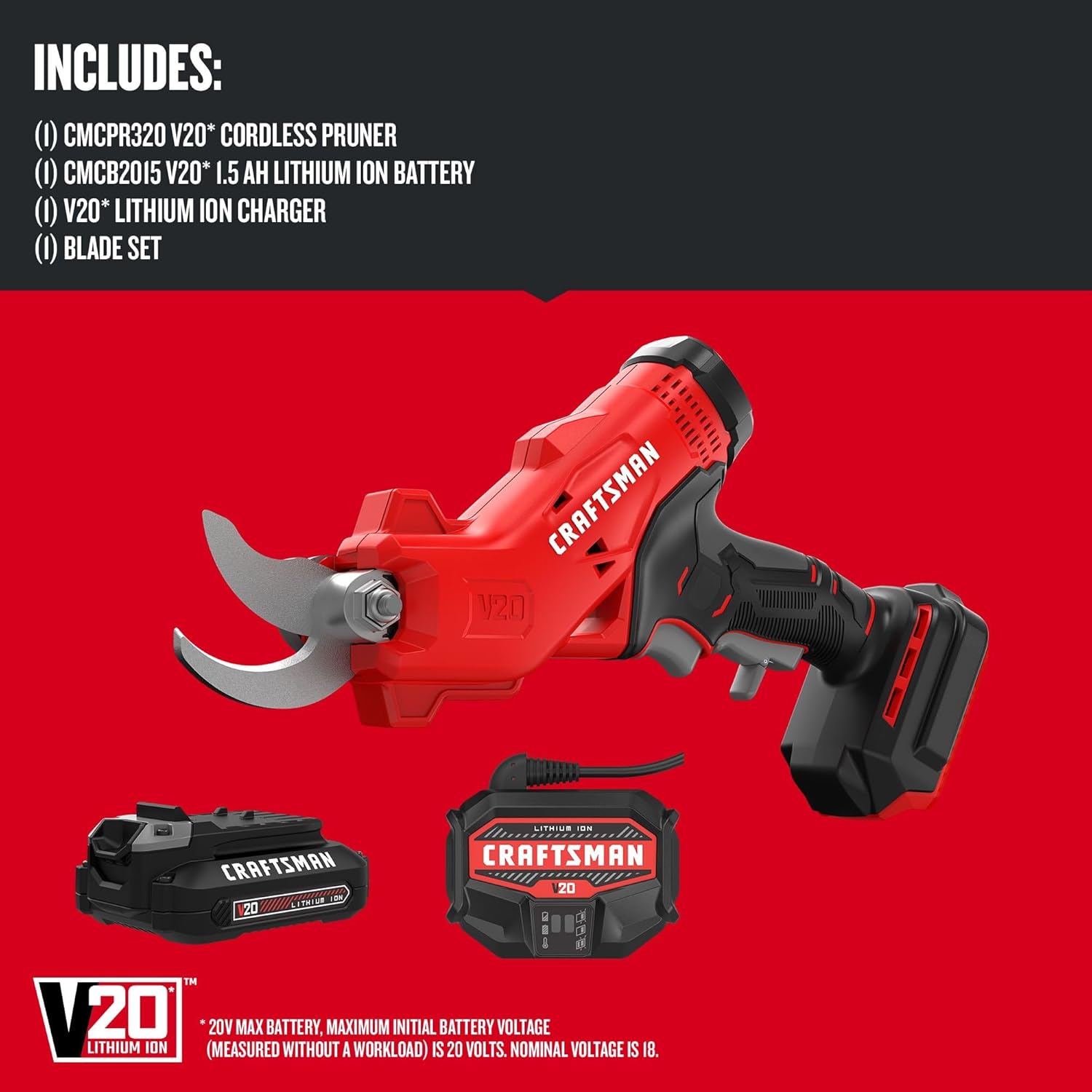

Figure 3.1: Included components of the CRAFTSMAN V20 Cordless Electric Pruner kit.
4. Product Overview
The CRAFTSMAN V20 Cordless Electric Pruner is designed for powerful and efficient pruning. Key features include:
- Cordless Convenience: Powered by the V20* Lithium Ion battery platform for dependable performance without cords.
- High Cutting Capacity: Capable of cutting through both wet and dry wood up to 1-1/4 inches thick.
- Extended Operation: Delivers up to 900 cuts per charge, allowing completion of most projects on a single battery charge.
- Rapid Cutting: Achieves up to 1 cut per second, minimizing downtime between cuts.
- Reduced Effort: Requires up to 20 times less effort compared to a manual pruner.
- Tool-Free Blade Changes: Blades can be changed quickly without the need for additional tools.
- V20* Platform Compatibility: The battery is interchangeable with other CRAFTSMAN V20* outdoor equipment and power tools.

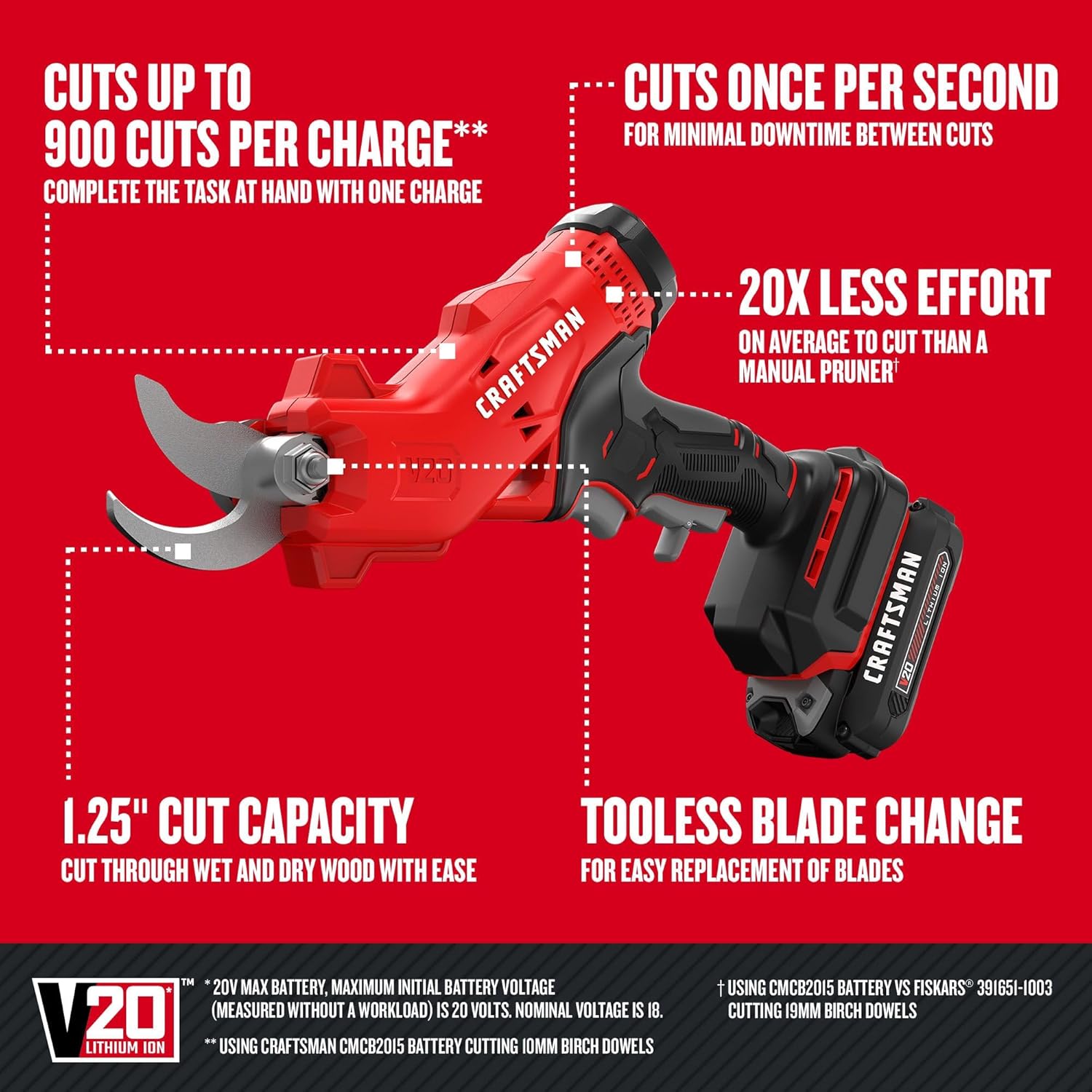

Figure 4.1: Overview of the pruner's key features including cut capacity and efficiency.
Figure 4.2: The V20 platform offers compatibility across various CRAFTSMAN tools, including the VersaTrack system for organized storage.
5. Setup
5.1 Battery Installation and Charging
- Ensure the battery is fully charged before first use. Connect the V20 Lithium Ion Charger to a standard power outlet.
- Slide the V20 1.5Ah Lithium Ion Battery onto the charger until it clicks into place. The charger indicator light will show charging status.
- Once fully charged, remove the battery from the charger.
- Align the charged battery pack with the battery port on the base of the pruner handle.
- Slide the battery pack into the pruner until it locks securely in place. Ensure it is firmly seated to prevent accidental disconnection during use.
6. Operating Instructions
6.1 Activating the Pruner
To activate the pruner, press and hold the safety button located on the handle, then squeeze the trigger. The blades will open and close with each trigger pull.
6.2 Pruning Technique
- Identify the branch or stem to be cut. Ensure it is within the 1-1/4 inch cut capacity of the pruner.
- Position the open blades around the branch, ensuring a clean cut can be made without obstruction.
- Press the safety button and squeeze the trigger to close the blades and make the cut. Release the trigger to open the blades for the next cut.
- Avoid forcing the pruner through branches thicker than its rated capacity, as this can damage the tool or cause injury.
Figure 6.1: Demonstrating the use of the electric pruner on a small branch.
Figure 6.2: The pruner provides ample power for numerous cuts on a single charge.
Figure 6.3: The pruner's blades are designed to handle branches up to 1.25 inches in diameter.
Video 6.1: Official product demonstration of the CRAFTSMAN V20 Cordless Electric Pruner (CMCPR320C1) in action.
Video 6.2: A brief demonstration highlighting how the CRAFTSMAN V20 Cordless Electric Pruner can simplify landscaping tasks.
7. Maintenance
7.1 Cleaning
After each use, ensure the pruner is clean and free of debris. Remove any sap, leaves, or wood fragments from the blades and housing. Use a damp cloth for cleaning and ensure the tool is dry before storage.
7.2 Blade Changes
The CRAFTSMAN V20 Cordless Electric Pruner features a tool-less blade change mechanism. To replace the blades:
- Remove the battery pack from the pruner.
- Locate the blade retention mechanism (refer to the product diagram for exact location).
- Follow the instructions in the detailed manual for releasing the old blade set.
- Install the new blade set, ensuring it is correctly aligned and securely fastened.
- Re-insert the battery pack and test the pruner in a safe environment before resuming work.
8. Troubleshooting
If you encounter issues with your CRAFTSMAN V20 Cordless Electric Pruner, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pruner does not operate | Battery not charged or improperly installed. | Ensure battery is fully charged and correctly inserted until it clicks. |
| Blades do not cut cleanly | Blades are dull or damaged. | Replace the blade set (refer to Section 7.2). |
| Pruner stops during operation | Overload or low battery. | Avoid cutting branches exceeding capacity. Recharge or replace battery. |
For further assistance, contact CRAFTSMAN customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | CRAFTSMAN |
| Model Number | CMCPR320C1 |
| Power Source | Battery Powered (V20* Lithium Ion) |
| Voltage | 20 Volts |
| Battery Included | 1.5Ah Lithium Ion Battery |
| Cut Capacity | 1-1/4 inches |
| Cuts Per Charge | Up to 900 cuts |
| Cut Speed | Up to 1 cut per second |
| Blade Material | High Speed Steel |
| Blade Length | 4 Inches |
| Blade Shape | Straight |
| Cutting Angle | 45 Degrees |
| Handle Material | Wood (referring to general material type, not necessarily the grip) |
| Color | Red, Black |
| Special Features | Brushless motor, Tool-less blade change |
10. Warranty and Support
The CRAFTSMAN V20 Cordless Electric Pruner (CMCPR320C1) comes with a 3 Year Limited Warranty. This is a full warranty covering defects in materials and workmanship under normal use. For detailed warranty terms, service, or support, please refer to the official CRAFTSMAN website or contact their customer service department.
For further assistance or to locate authorized service centers, visit the CRAFTSMAN Store or contact customer support.
