1. Introduction
Thank you for choosing the STAHLWERK MIG/MAG 200 Double Pulse Pro welding machine. This versatile 3-in-1 inverter welding machine offers advanced double pulsation technology for precise welding of thin sheets and aluminum, alongside MMA (electrode) and flux-cored wire (gasless) functions. Designed for maximum performance in industrial and craft applications, it is suitable for steel, stainless steel, and aluminum alloys. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting.
2. Safety Information
WARNING: Welding can be dangerous. Always follow safety precautions to prevent injury or death.
- Electric Shock: Can kill. Do not touch live electrical parts. Wear dry welding gloves and protective clothing. Insulate yourself from the work and ground.
- Fumes and Gases: Can be hazardous to your health. Keep your head out of the fumes. Use enough ventilation or exhaust at the arc to keep fumes and gases away from the breathing zone.
- Arc Rays: Can burn eyes and skin. Wear a welding helmet with a proper shade of filter to protect your face and eyes when welding or watching. Wear appropriate safety glasses with side shields beneath your helmet. Wear protective clothing made from durable, flame-resistant material.
- Fire and Explosion: Welding sparks and hot metal can cause fire or explosion. Keep flammable materials away from the welding area. Have a fire extinguisher nearby.
- Hot Parts: Can cause severe burns. Do not touch hot parts with bare hands. Allow the welding machine to cool before handling.
- VRD (Voltage Reduction Device): The integrated VRD provides increased safety in MMA mode by reducing the open-circuit voltage when the machine is not welding.
3. Setup Instructions
Before operating the STAHLWERK MIG/MAG 200 Double Pulse Pro, ensure proper setup for safe and effective welding.
3.1 Unpacking and Inspection
- Carefully remove all components from the packaging.
- Inspect the machine and accessories for any signs of damage during transit. Contact your supplier immediately if any damage is found.
- Ensure all listed components are present: MIG/MAG 200 Double Pulse Pro welding machine, AK-25/MB25 torch, ground clamp, electrode holder, flux-cored wire, and other accessories.

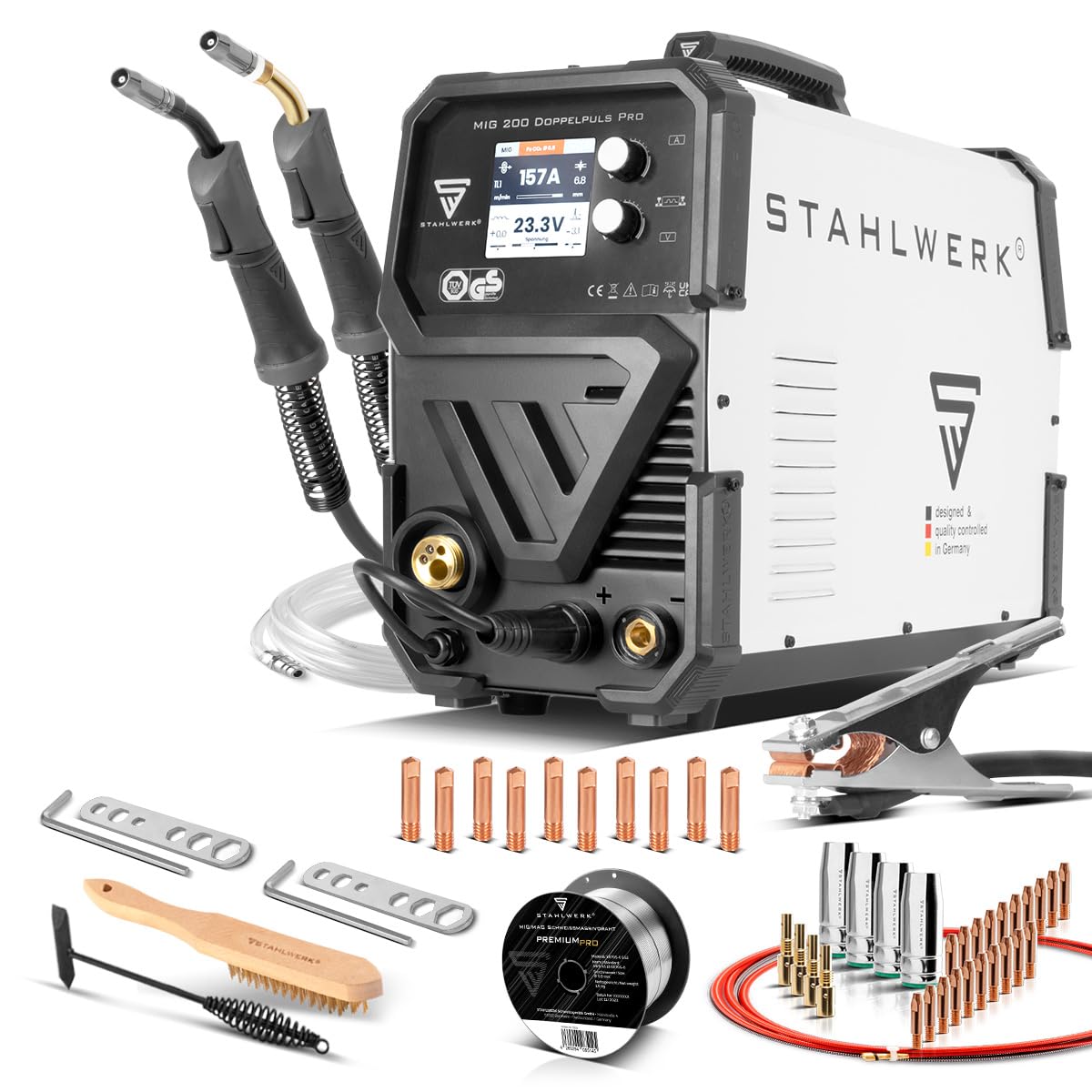

Figure 1: STAHLWERK MIG/MAG 200 Double Pulse Pro welding machine and included accessories.
3.2 Power Connection
- Connect the machine to a suitable power supply (230 V AC, 50/60 Hz). Refer to the specifications section for detailed power requirements.
- Ensure the power outlet is properly grounded and protected by a circuit breaker.
Figure 2: Rear connections of the welding machine, including power input and gas inlet.
3.3 Gas Connection (for MIG/MAG welding)
- Connect the gas hose from your shielding gas cylinder to the gas inlet on the rear of the machine.
- Ensure all connections are tight to prevent gas leaks.
- Use appropriate shielding gas for the material being welded (e.g., Argon for aluminum, Argon/CO2 mix for steel).
3.4 Torch and Ground Clamp Connection
- Connect the MIG/MAG torch (AK-25/MB25) to the appropriate connector on the front panel.
- Connect the ground clamp cable to the negative (-) terminal and attach the clamp securely to the workpiece.
- For MMA welding, connect the electrode holder to the positive (+) terminal and the ground clamp to the negative (-) terminal.
Figure 3: Front panel connections for welding cables.
3.5 Wire Spool Installation (for MIG/MAG welding)
- Open the side panel of the machine to access the wire feeder.
- Install the wire spool (compatible with 50mm spools) onto the spindle.
- Thread the welding wire through the wire feeder mechanism and into the torch liner. Ensure the correct drive rollers are used for the wire diameter.
Figure 4: Installing the welding wire spool.
4. Operating Instructions
The STAHLWERK MIG/MAG 200 Double Pulse Pro features an intuitive digital interface for easy parameter adjustment.
4.1 Control Panel Overview
The machine's control panel allows selection of welding modes and adjustment of parameters. The graphic interface simplifies setting Twin, Spot, and special cycles.
Figure 5: Clear and intuitive digital display for maximum user-friendliness.
4.2 Welding Modes
- MIG/MAG Welding: For rapid welding of almost all metals such as steel, stainless steel, and aluminum.
- Flux-Cored Wire Welding (Gasless): Suitable for flux-cored wire processing without shielding gas.
- MMA (ARC) Welding: For electrode welding. Features automatic Hotstart for optimal ignition results and Anti-Stick function to prevent electrode sticking.
Figure 6: Example of welding in action.
4.3 Advanced Functions
- Pulse & Double Pulse Function: Enables ultra-precise welding of thin sheets and aluminum. Effectively breaks the oxide layer and minimizes thermal deformation for clean, pore-free welds.
- Synergic Wire Feed: Precise regulation of wire speed based on welding current intensity. Ensures a stable arc in all welding positions.
- Spot Function: Allows for spot welding/tacking with minimal deformation.
- Job Memory: Save your favorite settings for quick recall, significantly reducing setup time.
Figure 7: Example of a high-quality weld achieved with the machine.
4.4 Welding Videos
SYNMIG Welding Test
Video 1: This video demonstrates the SYNMIG welding process, showcasing the machine's capability to produce clean and consistent welds on various materials. It highlights the arc stability and overall performance during operation.
IPOTOOLS MIG-210DP MIG MAG Synergy Dual Pulse
Video 2: This video illustrates the MIG MAG Synergy Dual Pulse welding function, demonstrating its effectiveness in achieving high-quality welds, particularly on aluminum and thin materials, by controlling heat input and minimizing distortion.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your welding machine.
- Cleaning: Regularly clean the machine's exterior with a dry cloth. Use compressed air to remove dust and debris from inside the machine, especially from cooling vents.
- Torch Maintenance: Inspect the welding torch for wear and tear on consumables (contact tip, gas nozzle, diffuser). Replace worn parts as necessary. Clean the torch liner periodically to ensure smooth wire feeding.
- Cable Inspection: Check all welding cables, ground clamps, and electrode holders for damage, cuts, or loose connections. Replace damaged cables immediately.
- Wire Feeder: Ensure the wire feeder rollers are clean and free of debris. Adjust tension as needed for consistent wire feed.
- Cooling System: The machine features a high-performance cooling system. Ensure the cooling vents are unobstructed to prevent overheating.
Figure 8: The intelligent cooling system ensures optimal performance and prevents overheating.
6. Troubleshooting
This section addresses common issues you might encounter during operation.
| Problem | Possible Cause | Solution |
|---|---|---|
| No arc / Poor arc ignition | Loose connections, incorrect settings, worn consumables, insufficient power. | Check all cable connections. Verify welding parameters (current, voltage, wire speed). Replace contact tip or electrode. Ensure adequate power supply. |
| Wire feeding issues | Incorrect wire tension, clogged liner, wrong drive rollers, tangled wire. | Adjust wire tension. Clean or replace torch liner. Use correct drive rollers for wire diameter. Untangle wire spool. |
| Overheating indicator active | Prolonged use at high current, obstructed cooling vents. | Allow the machine to cool down. Ensure cooling vents are clear and unobstructed. Reduce duty cycle or welding current. |
| Porous welds (MIG/MAG) | Insufficient shielding gas, gas leak, contaminated workpiece, incorrect gas flow. | Check gas cylinder level and connections. Ensure proper gas flow rate. Clean workpiece thoroughly. |
7. Technical Specifications
| Feature | Value |
|---|---|
| Model | MIG/MAG 200 Double Pulse Pro |
| Manufacturer | STAHLWERK |
| Welding Processes | MIG/MAG, MMA (ARC), Flux-Cored Wire |
| Input Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| MIG/MAG Output Current | 200 A (Max) |
| MMA Output Current | 200 A (Max) |
| Dimensions (L x W x H) | 59 x 24 x 43 cm |
| Weight | 17.25 kg |
| Material | Metal and Rigid Plastic |
| Protection Class | IP21S (Protected against dripping water) |
| Technology | IGBT |

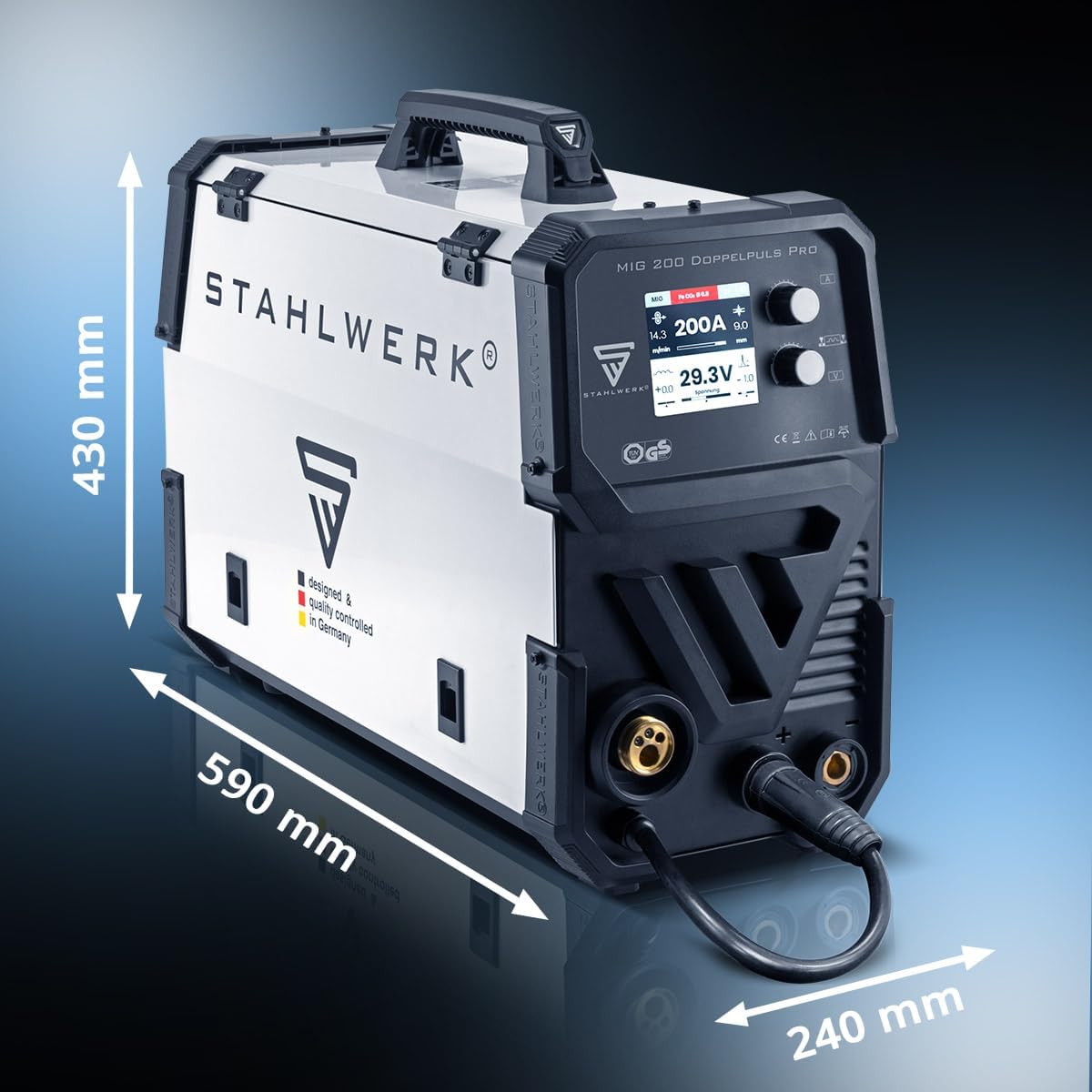

Figure 9: Dimensions of the STAHLWERK MIG/MAG 200 Double Pulse Pro.
8. Warranty and Support
STAHLWERK is committed to providing high-quality products and excellent customer service.
- Warranty: This product comes with a 7-year warranty, ensuring extended coverage and peace of mind.
- Customer Service: For support, inquiries, or warranty claims, please contact STAHLWERK customer service. Our internal workshop ensures quick repairs.
- Quality Assurance: Our internal quality management ensures compliance with the highest quality and safety standards, exceeding general norms.
Figure 10: The machine comes with suitable accessories for immediate use.
