LATURE 4.2 QT Air Fryer Oven Cooker Instruction Manual

1. Introduction

Thank you for purchasing the LATURE 4.2 QT Air Fryer Oven Cooker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read these instructions thoroughly before first use and retain them for future reference.

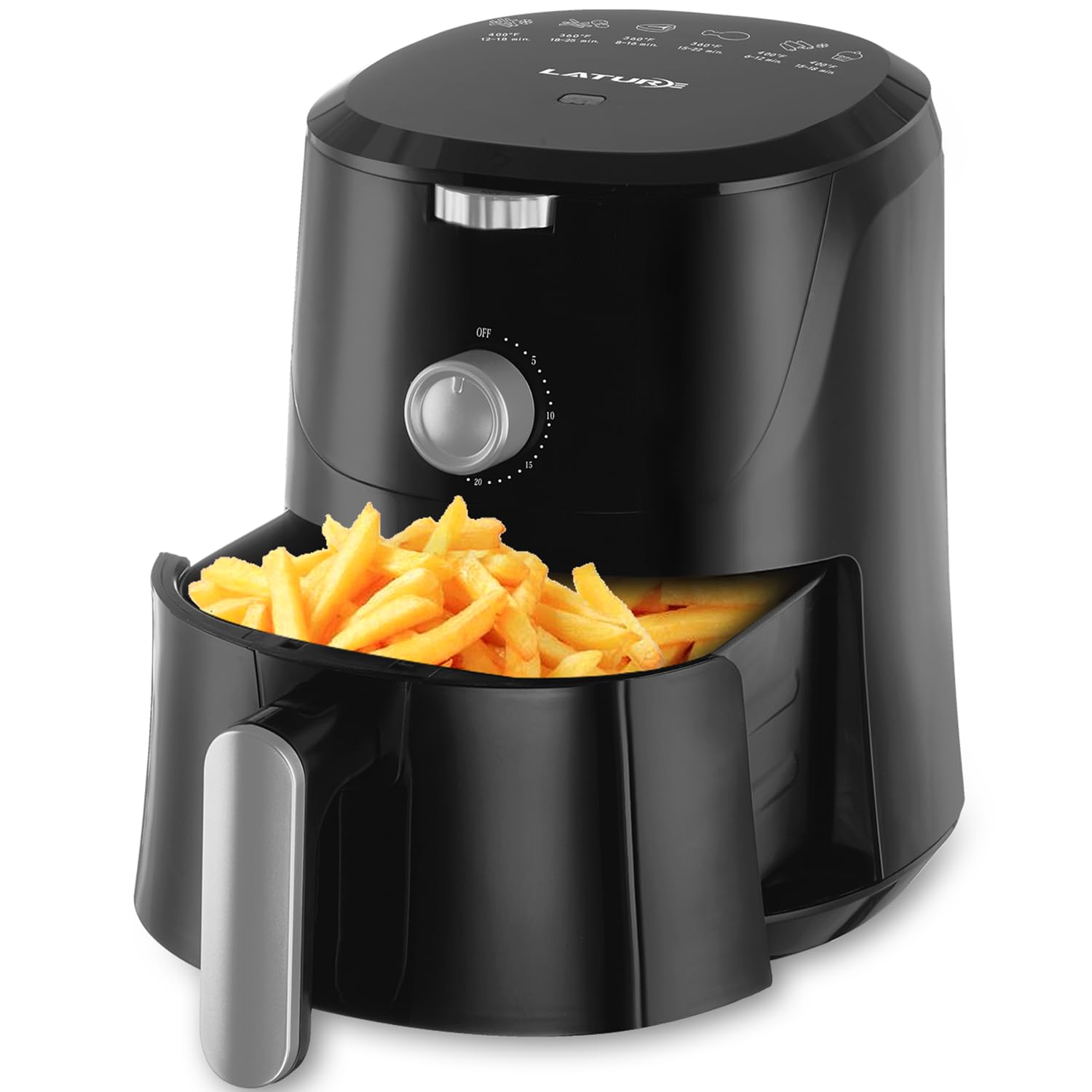

Image 1: LATURE 4.2 QT Air Fryer with the frying basket containing fries.

2. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use the appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

3. Product Components

Familiarize yourself with the main parts of your LATURE Air Fryer.

1. Main Unit Housing
2. Control Panel (with Temperature and Time Knobs)
3. Frying Basket (Non-stick, Dishwasher Safe)
4. Basket Handle
5. Air Inlet
6. Air Outlet Vents

Image 2: Detailed view of the control knobs for temperature and time settings.

Image 3: The air fryer basket, which is removable for cleaning and food placement.

4. Before First Use

Before using your air fryer for the first time, follow these steps:

1. Remove all packaging materials, stickers, and labels from the appliance.
2. Clean the frying basket and any removable parts with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
3. Wipe the inside and outside of the appliance with a damp cloth.
4. Place the air fryer on a stable, level, and heat-resistant surface, ensuring adequate space (at least 10 cm / 4 inches) around the back and sides for proper ventilation.
5. It is recommended to run the air fryer empty for about 10-15 minutes at 400°F (200°C) during the first use to eliminate any manufacturing odors. A slight smell or smoke may occur, which is normal and will dissipate.

5. Operating Instructions

5.1 Powering On and Off

• Plug the power cord into a grounded wall outlet.
• The appliance will power on when the timer knob is turned from the "OFF" position.
• To turn off, rotate the timer knob back to the "OFF" position, or the appliance will automatically shut off when the timer reaches zero.

5.2 Temperature and Time Adjustment

• Temperature: Use the temperature knob to set the desired cooking temperature between 170°F (80°C) and 400°F (200°C).
• Time: Use the timer knob to set the cooking time, up to 30 minutes. The appliance will begin heating once the timer is set.

5.3 Using Preset Functions

The LATURE Air Fryer features 6 preset cooking options for common foods. These presets automatically adjust the time and temperature for optimal results.

Image 4: Visual representation of the 6 preset cooking options available on the air fryer.

1. Place food into the frying basket.
2. Select the desired preset by rotating the temperature knob to the corresponding icon on the control panel.
3. Set the timer knob to the recommended time for the selected preset.
4. The air fryer will begin cooking.

5.4 General Cooking Guidelines

• Preheating: For best results, preheat the air fryer for 3-5 minutes at the desired temperature before adding food.
• Food Placement: Do not overfill the basket. Ensure food is spread in a single layer for even cooking.
• Shaking/Flipping: For many foods, especially smaller items like fries or chicken wings, shaking or flipping the food halfway through cooking will promote even browning.
• Oil Usage: A small amount of oil (1 tablespoon or less) can be added to some foods to enhance crispiness, but it is not always necessary due to the 360° hot air circulation technology.

Image 5: Illustration of the 360° hot air circulation technology for even cooking.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your air fryer.

6.1 Daily Cleaning

1. Unplug the air fryer and allow it to cool completely before cleaning.
2. Remove the frying basket. The non-stick basket is dishwasher safe. Alternatively, wash it with hot water, dish soap, and a non-abrasive sponge.
3. Wipe the exterior of the appliance with a damp cloth. Do not use harsh abrasive cleaners.
4. Clean the interior with a damp cloth and mild detergent if necessary. Avoid getting water into the heating element area.

6.2 Storage

Ensure the appliance is clean and dry before storing. Store it in a cool, dry place.

7. Troubleshooting

8. Specifications

• Model: CR-
• Capacity: 4.2 Quarts
• Power: 1300 Watts
• Voltage: (Refer to product label for specific voltage)
• Temperature Range: 170°F - 400°F (80°C - 200°C)
• Timer: Up to 30 minutes with automatic shut-off
• Dimensions (D x W x H): 30D x 30W x 33H Centimetres
• Weight: 3.6 Kilograms
• Material: Aluminum (basket), Aluminium (outer/inner)
• Control Method: Knob

Image 6: Dimensions and capacity details of the LATURE Air Fryer.

9. Warranty and Customer Support

For information regarding warranty coverage, product registration, or customer support, please refer to the documentation included with your purchase or visit the official LATURE website. Do not attempt to repair the appliance yourself; contact qualified service personnel for assistance.
